DBX

160A

Compressor ve Limiter İşlemcisi
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER

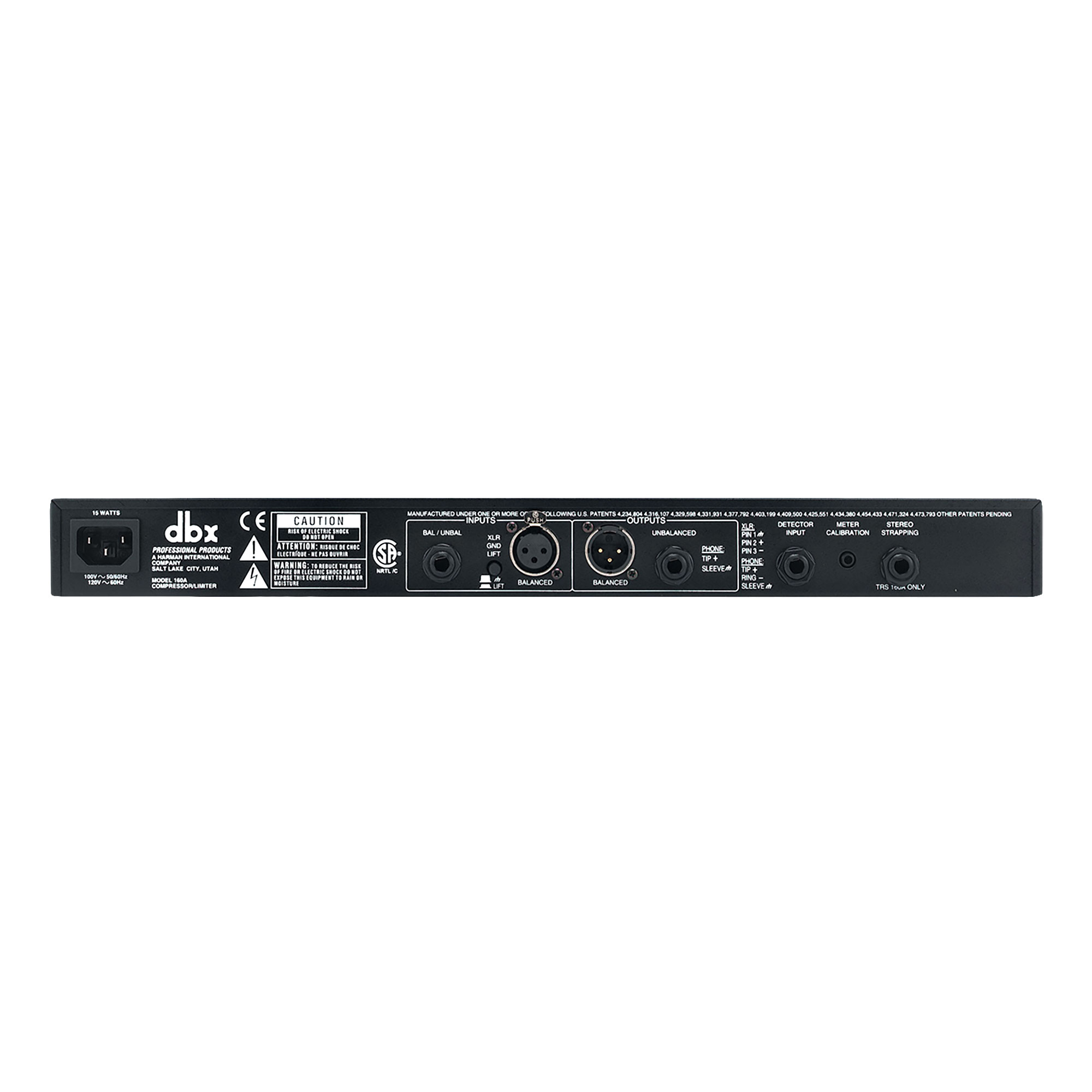

Input Connectors 1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot
Input Impedance 40k
Max Input +24dBu, Balanced or Unabalanced (Absolute)
CMRR >45dB (any Frequency)
Detector Input Connector: 14" TRS phone, Floating Balanced
Detector Input Impedance >200k
Detector Input Max Level +28dBu, Balanced or Unbalanced
Output Connectors 1/4" TRS phone, Unbalanced; XLR, floating balanced; pin 2 hot
Output Impedance Balanced 200 ohm, unbalanced 100 ohm
Max Output (Balanced): +24dBm; <0.3% THD; (Unbalanced): +20dBm; <0.3% THD
Noise <-90dBu, Unweighted (20Hz - 20kHz)
Frequency Response 20Hz -20kHz, +0, -0.5dB; +0, -3dB 0.5Hz and 90kHz.
THD <0.2%, Typical, any amount of compression up to 40dB @ 1kHz
Compressor Threshold Range -40dBu to +20dBu
Compressor Threshold Characteristic OverEasy® or hard knee
Compressor Ratio Variable 1:1 to :1 thru to -1:1; >60dB maximum compression
Compressor Attack Time Program dependent; typically 15ms for 10dB, 5ms for 20dB, 3ms for 30dB
Compressor Release Time Program Dependent; Typically 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/sec rate
Dynamic Range >113dB
Gain Adjustment Range Variable from -20dB to +20dB
Stereo Coupling True RMS Power summing
Summing 1/4" TRS phone jack
Operating Voltage DO: 90-130VAC, 50/60Hz; EU: 200-250VAC, 50/60Hz
Power Connector IEC receptacle
Dimensions 1.75" x 19" x 6.5" (4.45cm x 48.2cm x 16.51cm)
Unit Weight 4.452 lbs (1.99 kg)
Shipping Weight 6.62 lbs (2.99 kg)
DETAYLAR
DETAYLAR

Since its introduction in the mid 1970's, the dbx 160 series has been the world's most popular line of audio compressors. After the classic 160 (which is still used daily in many world class studios), came the 165, the 160X and the 160XT. The 160X/XT were the models that truly became the industry standard. Solid construction, fool proof operation, great sound, at-a-glance metering and a bulletproof output stage all contributed to its popularity with musicians, recording studios, consultants and installers, and broadcast media production people alike.

The dbx® 160A is a legendary dbx® 160 family of compressor/limiters. The same classic sound, easy set-up and no compromise metering is now married to an improved signal path and stronger chassis design. The result is industry standard compressor/limiter which is digital-ready and road tough.

Featuring switch-selectable OverEasy® and Hard Knee compression curves along with extremely wide-ranging threshold, ratio and output controls, the dbx 160A is up to any task. True RMS level detection provides the most natural-sounding dynamics processing available, from subtle compression to "brick wall" peak limiting. Choose low ratios and OverEasy® compression to transparently smooth out fluctuating vocal and instrumental levels. Or use the 160A's Hard Knee compression and high ratios (up to and beyond :1 and over 60dB gain reduction) for bombproof protection against overload distortion in digital recording, P.A. systems and broadcast signals. The 160A is fully compatible with +4/-10dB and balanced/ unbalanced systems, and its electronically balanced output stage is an outstanding line driver for long cable runs (an output transformer is optional). The 19-segment, switchable input/ output LED metering can be easily calibrated to any operating level. 12-segment gain reduction LEDs provide precise analysis at a glance.

The dbx® 160A's unique "INFINITY +" inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds threshold, a real lifesaver for correcting overbearing vocal choruses and controlling runaway house mix levels. A detector input can be used with an equalizer for de-essing sibilant vocals and selectively smoothing out boomy notes on acoustic guitar and bass. And two 160As can be stereo-coupled to process an entire mix or instruments mic'd in stereo, without shifting the left/right image. Its musical sound, easy operation and unequaled versatility made the original dbx® 160 a world standard. The 160A follows that tradition, while meeting the challenges of a digital world.ent in the mix, or overall characteristics of 4 independent signals or control the gain leveling on a couple of stereo pairs, the dbx 160A is for you.
