Analog Outputs 4 line
Output Type balanced/unbalanced
DETAYLAR
DETAYLAR

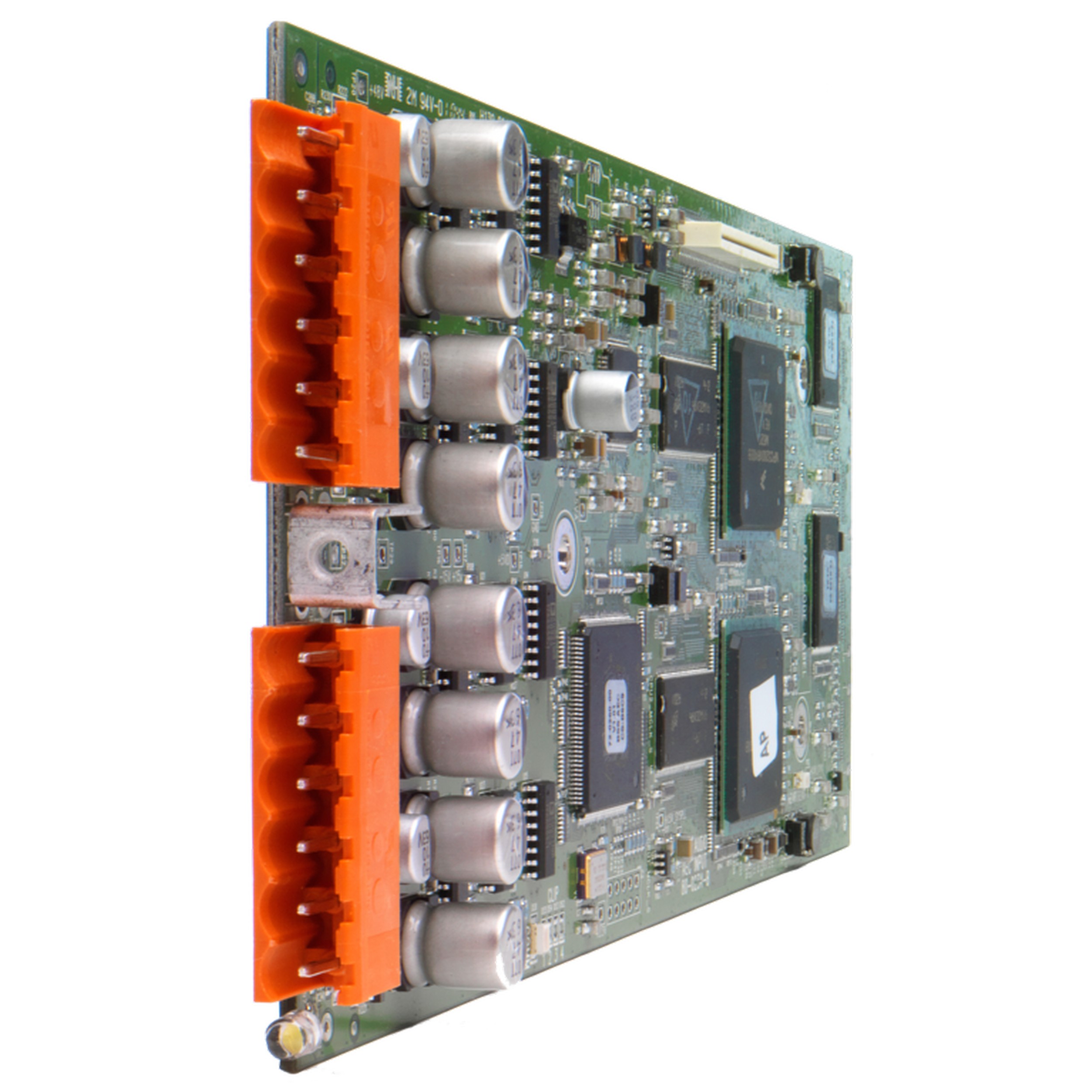

The Soundweb London Analog Output Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. This analog card enables Soundweb London devices to send line level signals.

The Analog Output Card has two Combicon connectors which are used as follows:

  • Connector 1
    • Balanced / Unbalanced Audio, Channel 1 - Mic/Line
    • Balanced / Unbalanced Audio, Channel 2 - Mic/Line
  • Connector 2
    • Balanced / Unbalanced Audio, Channel 3 - Mic/Line
    • Balanced / Unbalanced Audio, Channel 4 - Mic/Line
Connector [Line Combicon] [Line Combicon]
Signal 4 3 2 1
Pin [S + -] [S + -] [S + -] [S + -]



Balanced Hot: to + Unbalanced Hot: to +
  Cold: to -   Link to Shield: to -
  Shield: to S   Shield: to S
