BSS

BLU-101

12 analog mic/line Giriş - 8 Analog Çıkış Cihazı
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Chassis 19" (single rack space)
Custom I/O (card based) no
Analog Inputs 0
Digital Inputs 0
AEC Inputs 12
Analog Outputs 8
Digital Outputs 0
Telephone Connection 0
Max Inputs/Outputs fixed
Config Software
LCD Display no
Logic Processing yes
RS-232 yes
GPIO yes
Signal Processing (MHz) 400
Cobranet no
SWL Digital Audio Bus 48
AVB no
Dante no
DETAYLAR
DETAYLAR

The Soundweb London BLU-101 offers a fixed configuration of 12 analog inputs and 8 analog outputs, configurable signal processing, AEC processing, and a high bandwidth, fault tolerant digital audio bus.

The BLU-101 has open architecture which is fully configurable through HiQnet™ London Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.

The BLU-101 contains dedicated AEC processing for up to 12 independent AEC algorithms. The AEC algorithm can be applied to signals coming from the local analog inputs or from the digital audio bus. 12 individual AEC references (one per algorithm) allow the user to provide a solution for multiple conferencing spaces using a single device.

Automatic Gain Control (AGC) and Noise Cancellation (NC) are also provided per AEC algorithm. AGC ensures that microphone levels remain at an optimum level, and NC removes steady state noise (such as from a projector fan or air conditioning device) from the signal path.

This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

The BLU-101 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120, BLU-BIB and BLU-BOB devices.

Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel.

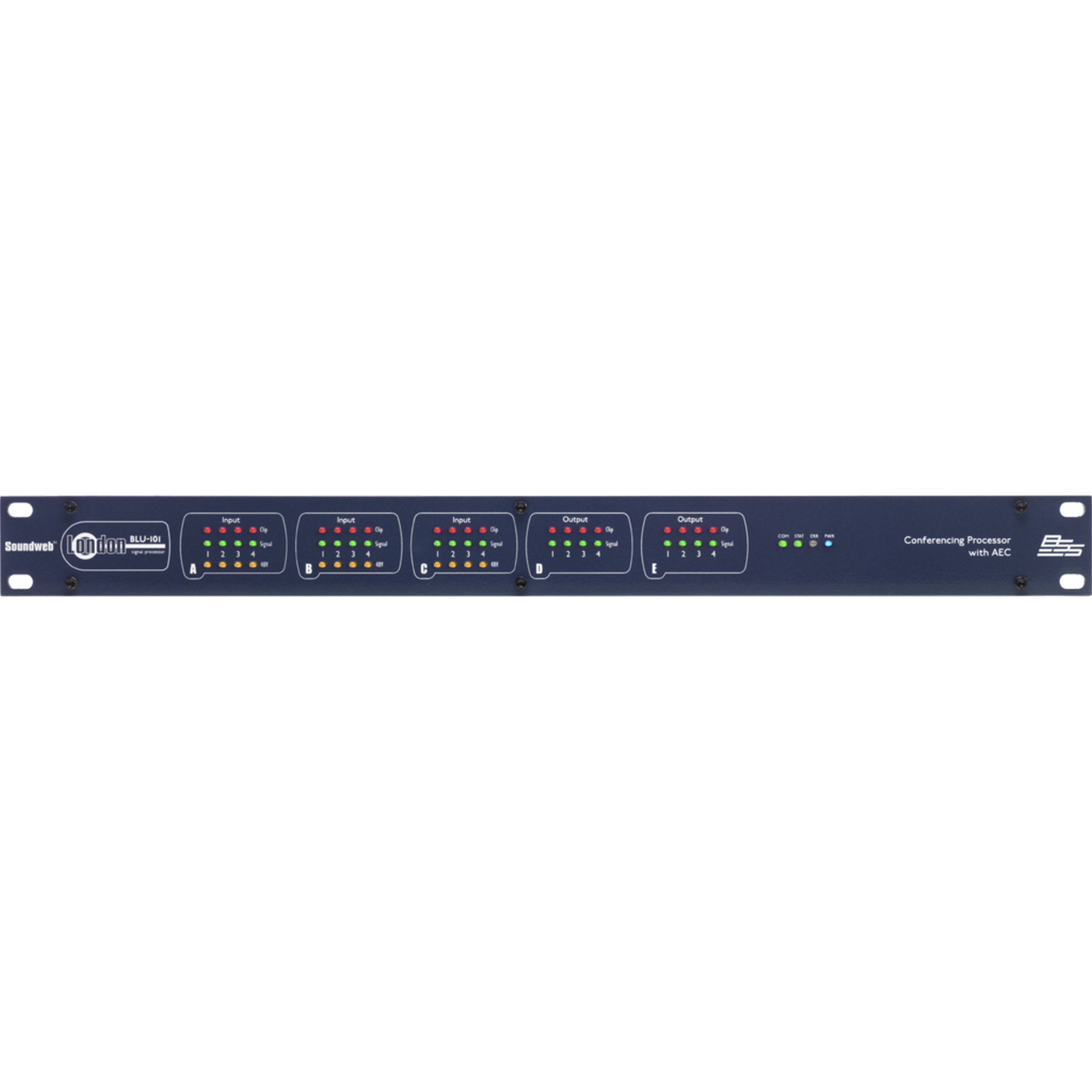

Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.

12 Control Inputs and 6 Logic Outputs allow the BLU-101 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect.

The BLU-101 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.
