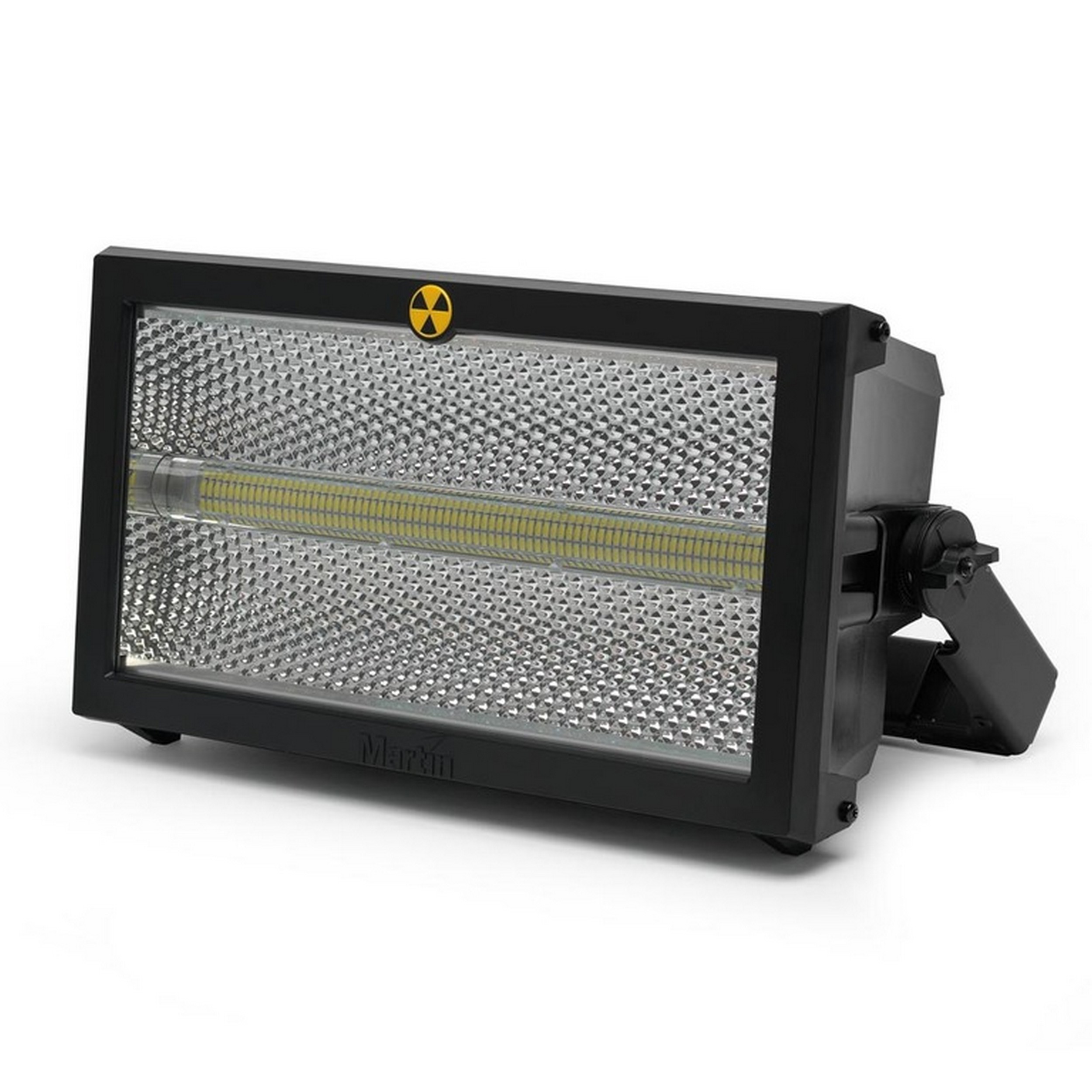

| Length |
245 mm (9.7 in.)
|
| Width |
425 mm (16.8 in.)
|
| Height |
240 mm (9.5 in.)
|
| Weight |
7.8 kg (17.2 lbs.)
|
| Physical notes |
All data including mounting bracket
|
| Strobe |
0.289 - 16.667 Hz, variable flash rate, intensity and duration
|
| Special effects |
Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FX
|

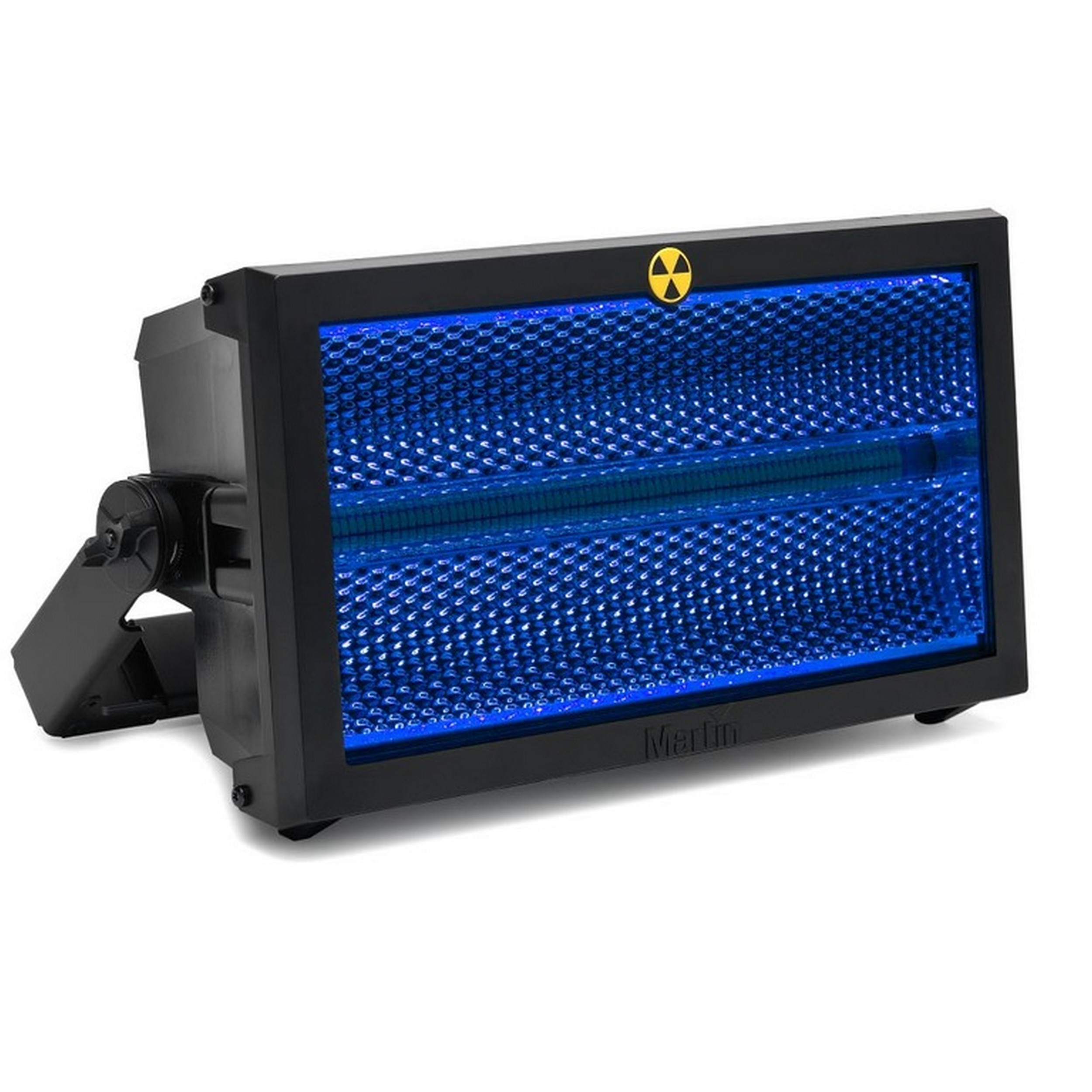

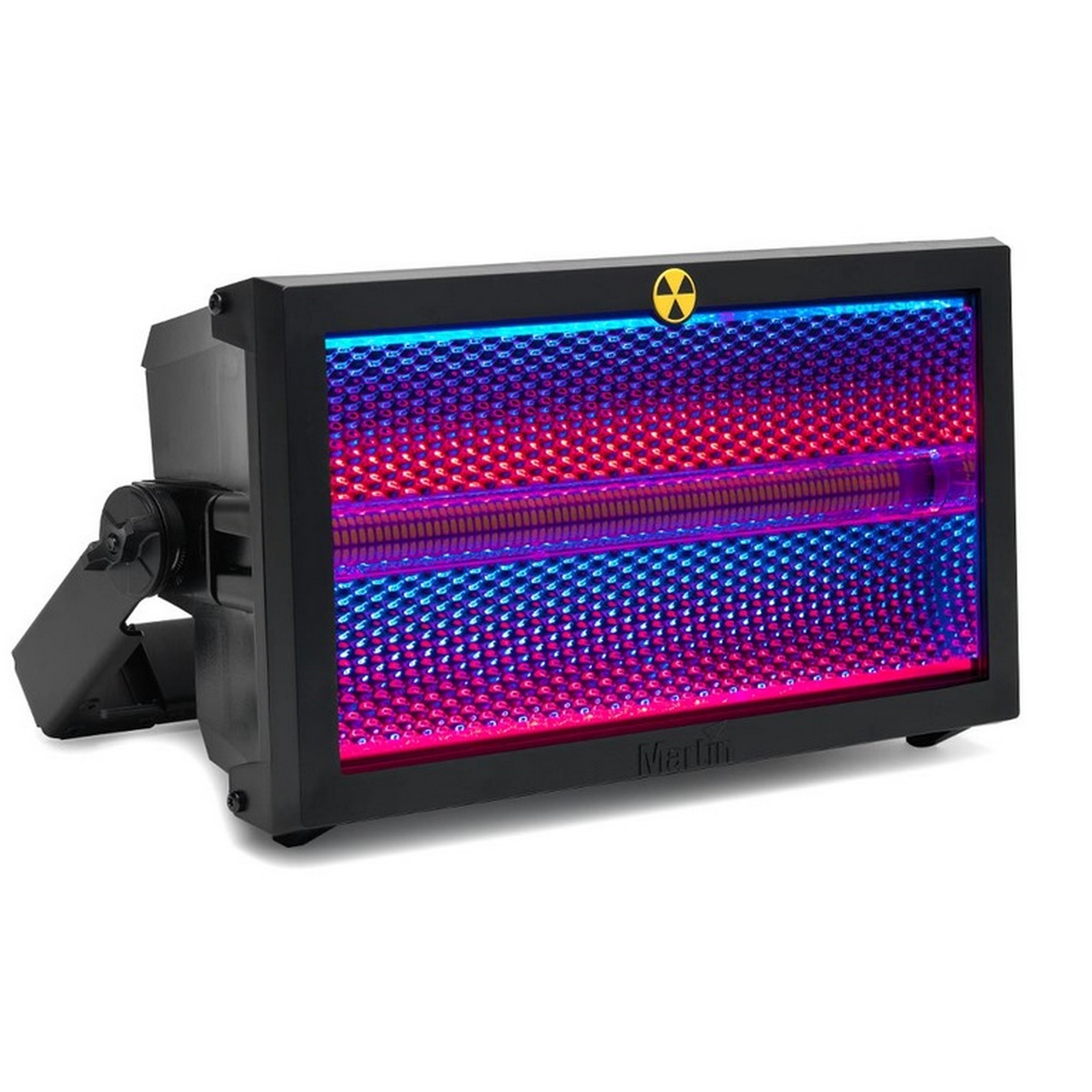

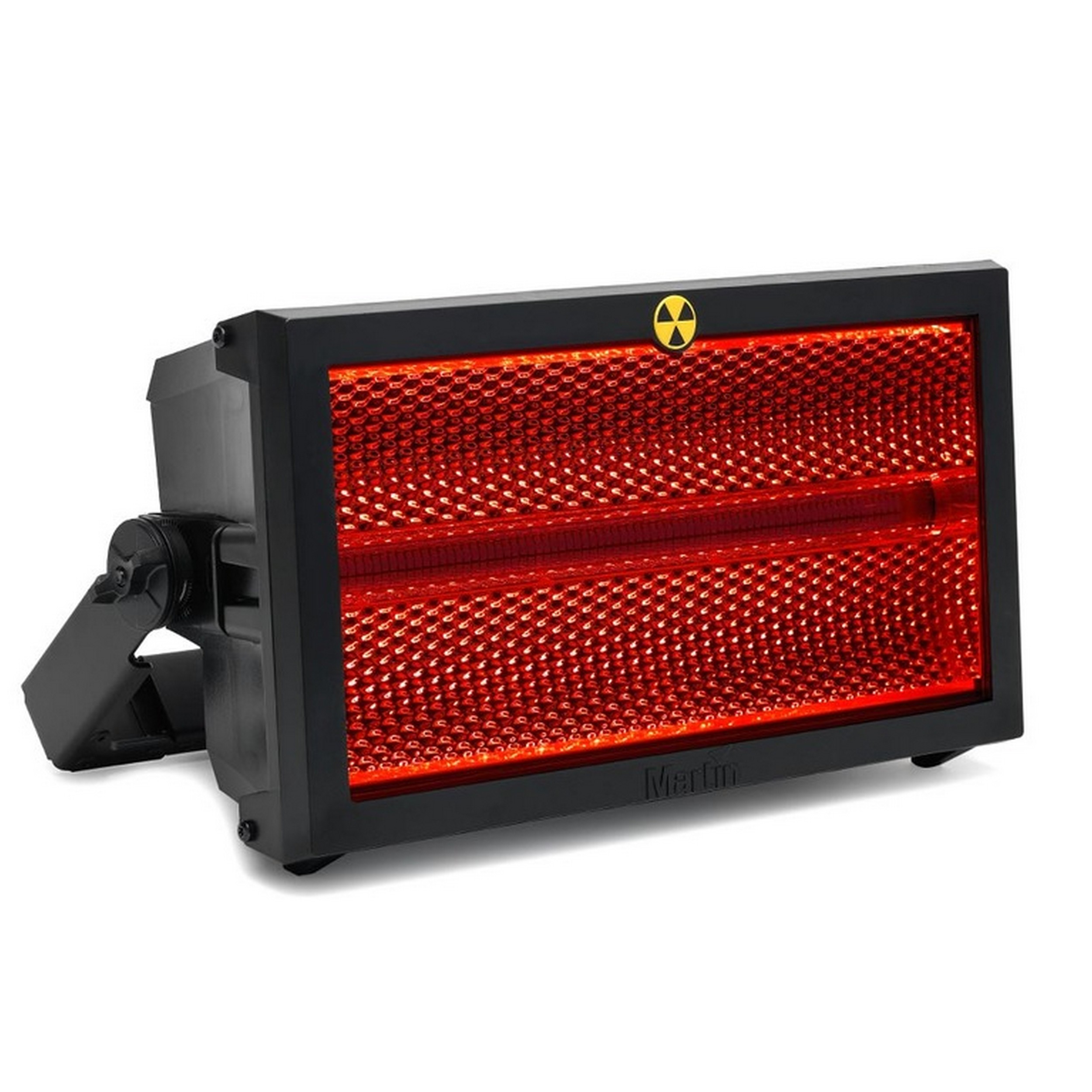

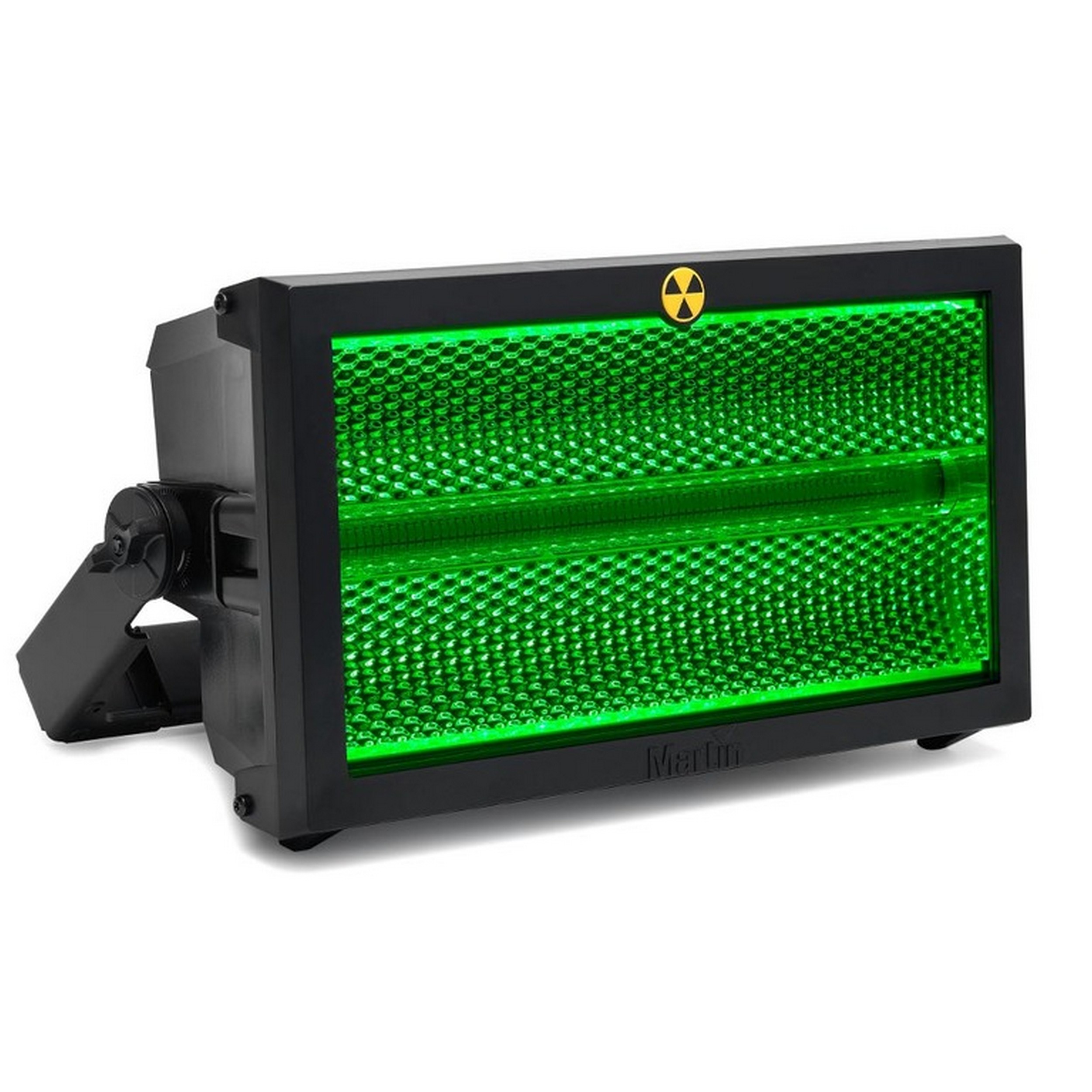

| Aura (secondary LED array illumination) color mixing |
RGB
|
| Control systems |
DMX, RDM
|
| DMX channels |
3/4/14
|
| Setting and addressing |

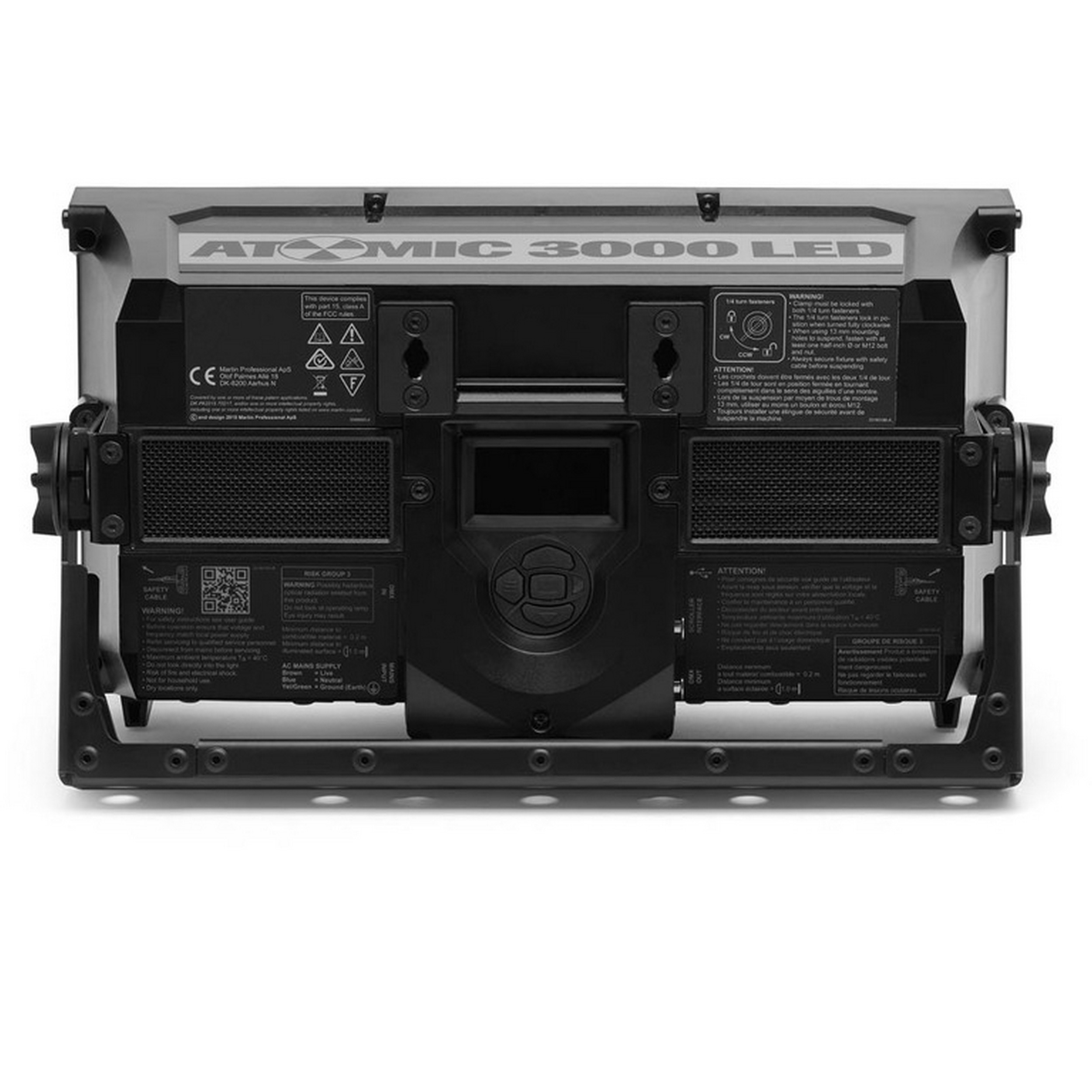

Control panel with backlit monochrome graphic display
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20 RDM
|
| Transceiver |
RS-485
|
| Firmware update |
USB memory key or via DMX with Martin™ M-DMX interface
|
| Max. total output |
180,000 lumens*
|

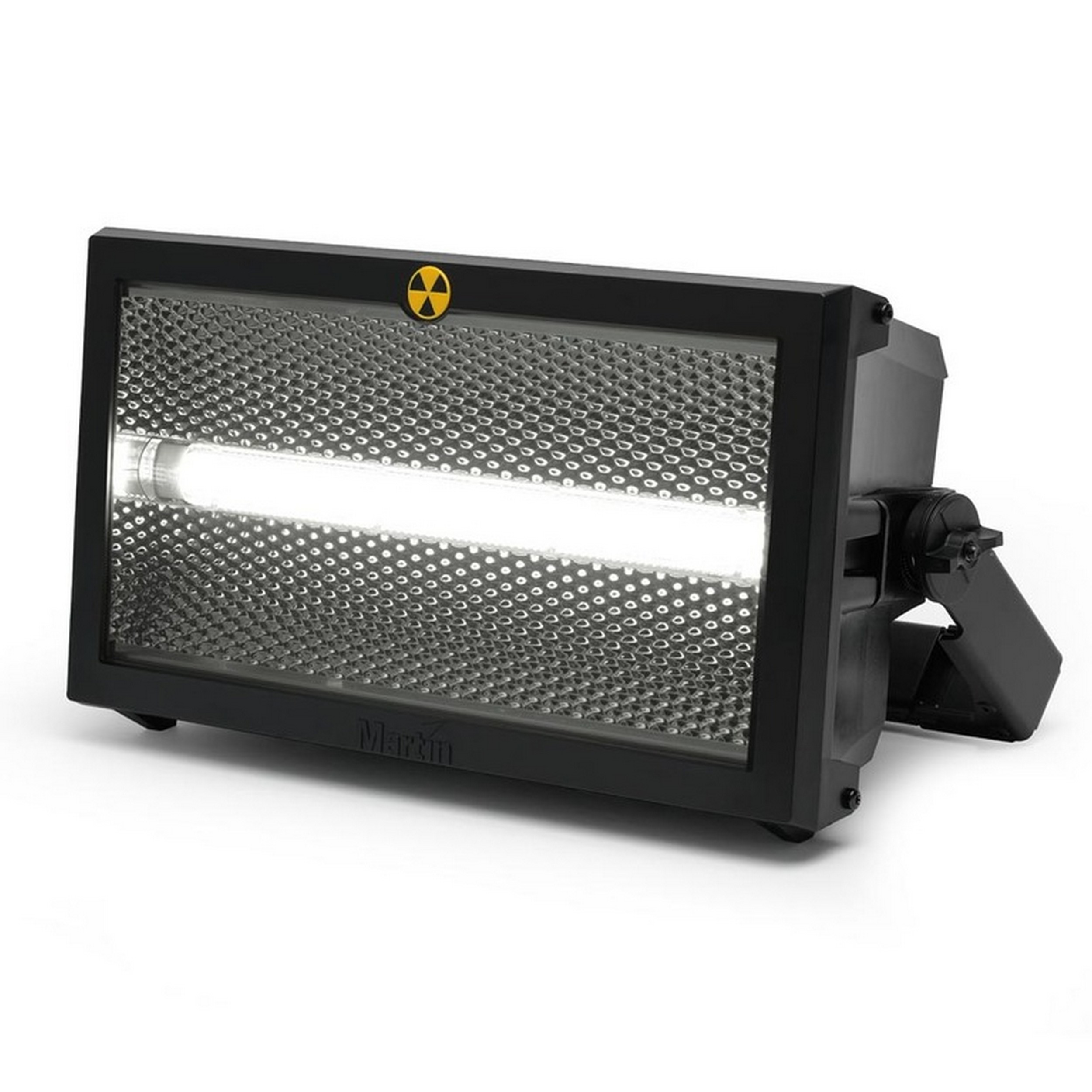

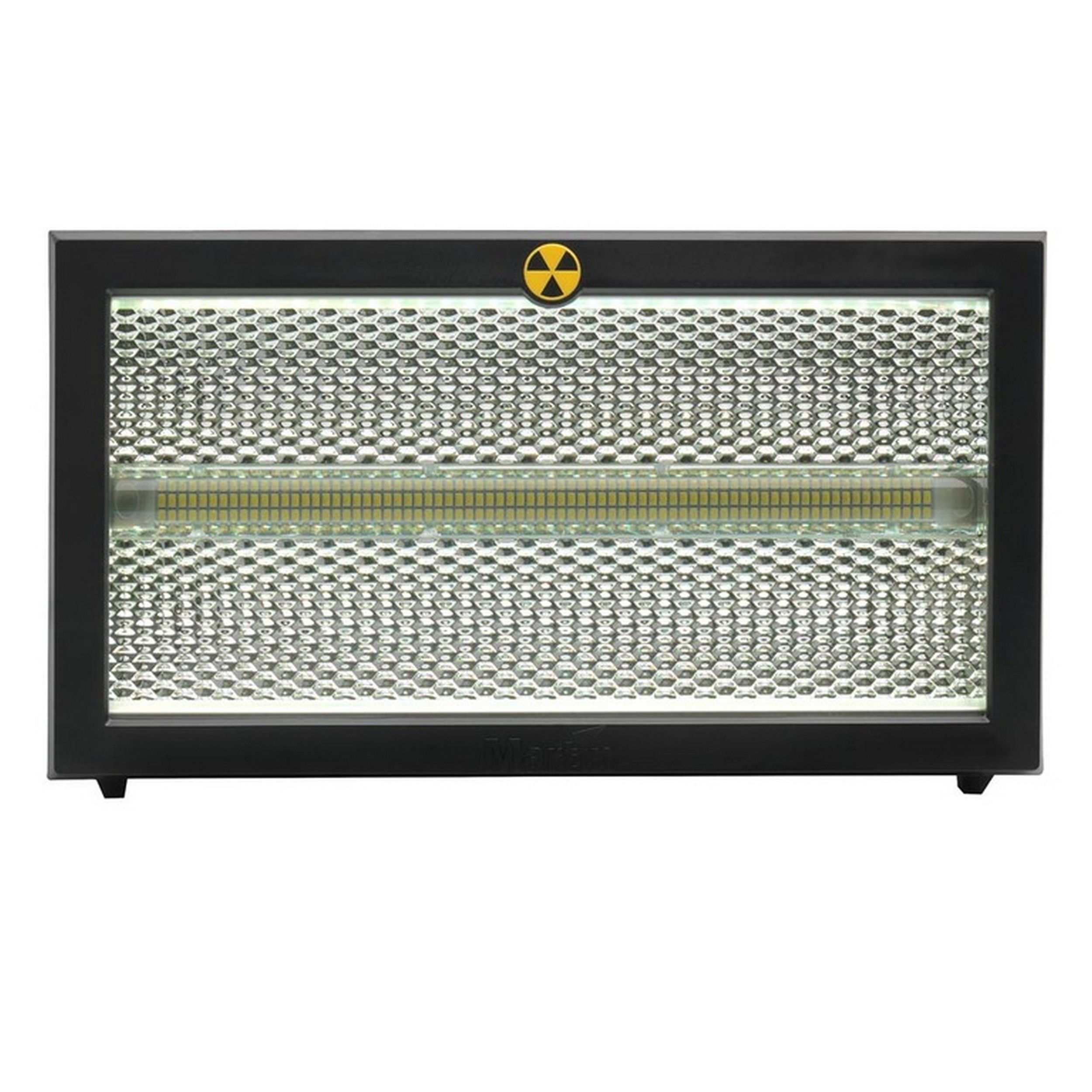

| Beam (strobe) array |
Light source: 228 x Cree XLamp XP-L, 10 W white LEDs (color temperature 5,700 K)
Resolution: 8-bit
Dimming, above 16.7% output intensity: Current-controlled, flicker-free
Dimming, below 16.7% output intensity: PWM (refresh rate 6,000 Hz)
Minimum LED lifetime: 50,000 hours**
|
| Aura (backlight) array |
Light source: 64 x Osram RGB LEDs
Resolution: 8 bits per color plus 8-bit dimming
Dimming: PWM (refresh rate 1,001 Hz)
Minimum LED lifetime: 50,000 hours**
|
| Optics and Photometric Data notes |
*For full photometric data, click on Photometrics in menu bar
**To >70% output, figure obtained under manufacturer’s test conditions
|
| Color |
Black
|
| Housing |
Steel. high-impact thermoplastic, flame-retardant to UL 94 5VA
|
| Protection rating |
IP 20
|

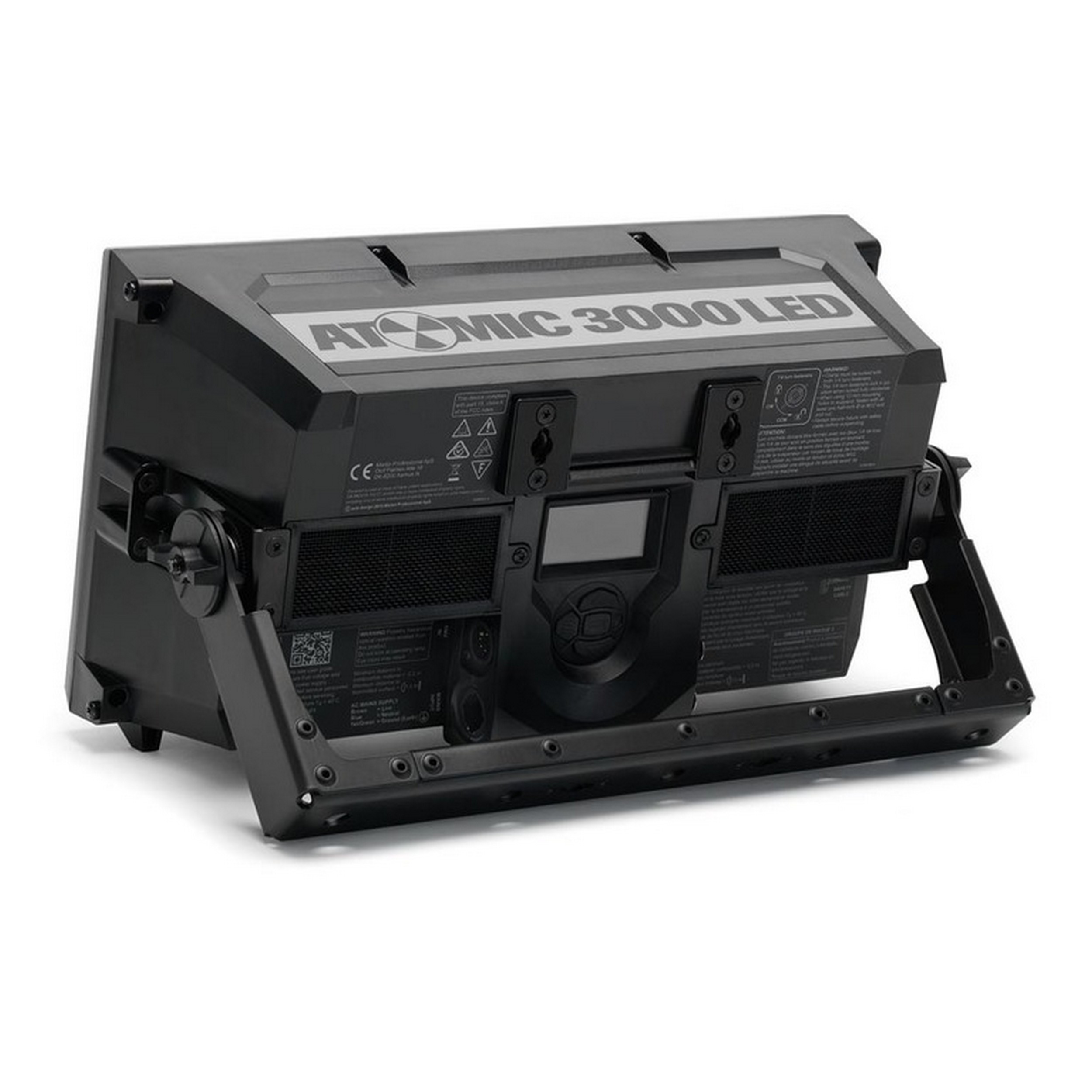

| Mounting points |
Two pairs of quarter-turn fastener points, M12 holes in adjustable bracket
|
| Orientation |
Any
|
| Minimum distance to combustible materials |
200 mm (8 in.) from fixture
|
| Minimum distance to illuminated surfaces |
1 m (3 ft. 4 in.) from fixture
|
| Location |
Indoor use only, must be fastened to structure or surface
|
| AC Power |
Neutrik PowerCON TRUE1 male socket
|
| DMX data in/out |
5-pin locking XLR
|
| Atomic Colors color gel scroller |
4-pin locking XLR
|
| Software upload |
USB 2.0
|
| AC power |
100-240 V~ nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch mode
|
| Maximum power consumption |
740 W
|
| Rated current consumption |
3.5 - 8.4 A
|
| Peak current consumption |
17.7 A
|
| Typical half-cycle RMS inrush current |
17.7 A
|
| 100 V, 60 Hz |
663 W, 6.8 A, PF 0.98
|
| 120 V, 60 Hz |
655 W, 5.7 A, PF 0.96
|
| 208 V, 60 Hz |
645 W, 3.5 A, PF 0.89
|
| 230 V, 50 Hz |
642 W, 3.2 A, PF 0.88
|
| 240 V, 50 Hz |
642 W, 3.1 A, PF 0.87
|
| Typical Power and Current notes |
Measurements made at nominal voltage with all LEDs at full strobe intensity. Allow for a deviation of +/- 10%. Allow for peak currents that exceed these figures when using the blinder effect. PF = power factor.
|
| Cooling |
Forced air (temperature-regulated, low noise, user-definable fan settings)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Typical heat dissipation (calculated, +/- 10%) |
2270 BTU/hr.
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
|
| EU EMC |
EN 55103-1, EN 55103-2, EN 55015, EN 61547
|
| US safety |
UL 1573
|
| Canadian safety |
CSA E598-2-17 (CSA E60598-1)
|
| Australia/NZ |
RCM (pending)
|
| Power cables |
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
|
| Power connectors |
Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
|
| Installation hardware |
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging installation only): P/N 91602003
Quick trigger clamp (vertical hanging installation only): P/N 91602007
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Cable |
P/N 91616091
|
| Atomic 3000 LED™ in cardboard box |
P/N 90425000
|
| Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black |
P/N 91604006
|
| Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver |
P/N 91604007
|
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com
|

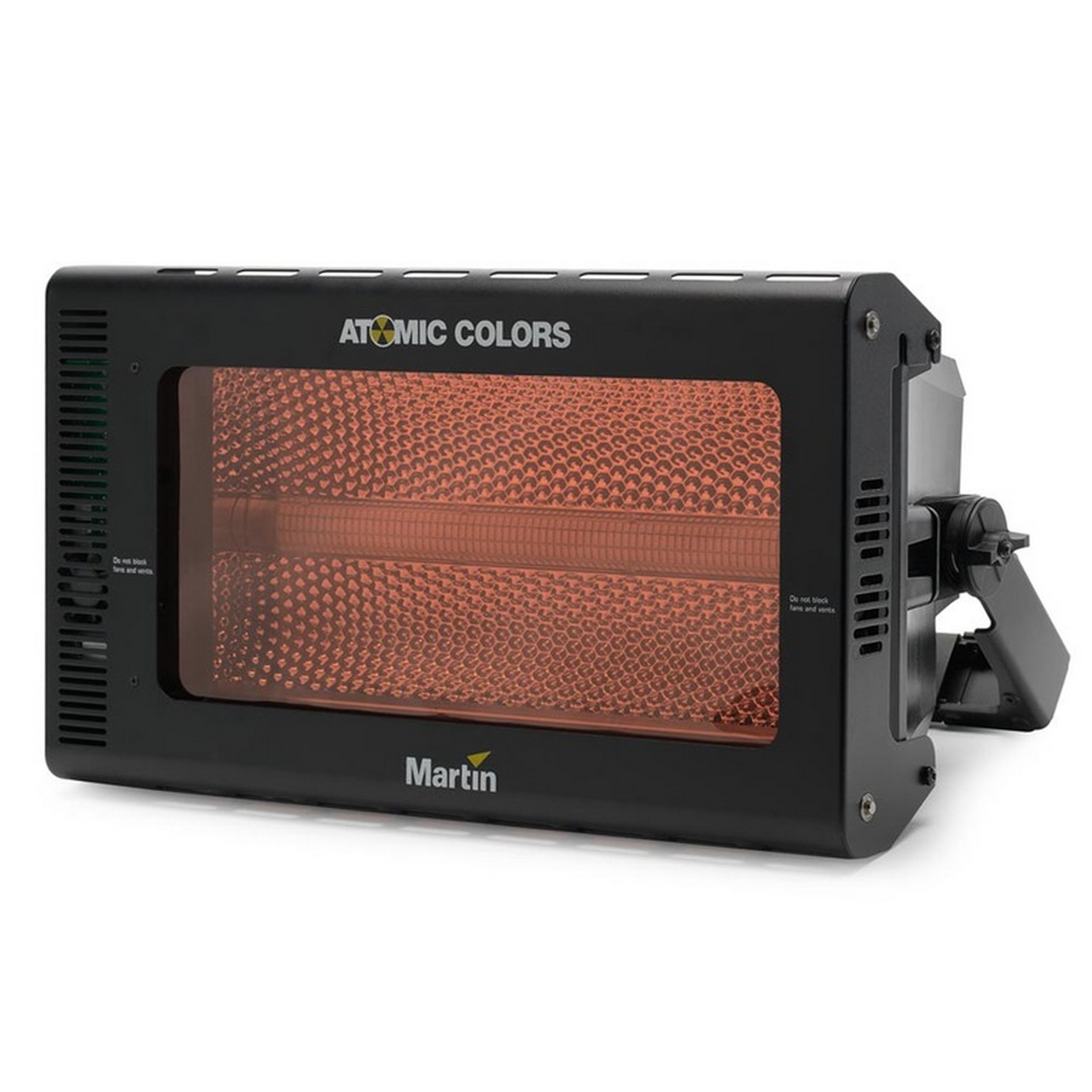

| Atomic Colors gel scroller |
P/N 91611086
|
