Kablolu Konferans Sistemleri


Taiden
HCS-3600 MB2
Başkan Delege Merkez Ünitesi


Technical Specifications
Electrical
  • Frequency response 40 Hz to 16 kHz
  • SNR >80 dBA
  • Dynamic range >85 dB
  • Isolation >70 dB
  • THD <0.05%
  • Power supply AC 100 V-120 V 60 Hz or AC 220 V-240 V 50 Hz
  • Power consumption 150 W
  • RS232 connection 2 x nine-pole Sub-D female socket
Audio inputs
  • LINE IN 0.775 V BAL.
  • REC. IN 0.775 V UNBAL.
  • Audio outputs
  • REC. OUTPUT RCA X 1 0.775 V UNBAL.
  • ORIGINAL OUTPUT RCA x 2 0.775 V BAL.
  • ORIGINAL OUTPUT XLR x 1 0.775 V BAL.
Mechanical
  • Mounting Tabletop or mounted in a 19” rack
  • Dimensions (h x w x d)
  •  For table use, with feet 99 x 430 x 325 mm
  •  For 19” rack use, with brackets 89 x 478 x 350 mm
  • Weight 7.7 kg
  • Color White

Ordering Information
  • HCS-3600MB2 Economical Conference System Main Unit
  • (discussion, voting, 256x32 LCD, 6P
  • sockets)

Kablolu Konferans Sistemleri


Taiden

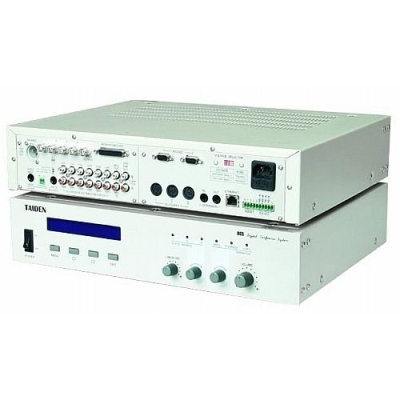

HCS-3600 MBP
Başkan Delege Merkez Ünitesi


Technical Specifications
Electrical
  • Frequency response 40 Hz to 16 kHz
  • SNR >80 dBA
  • Dynamic range >85 dB
  • Isolation >70 dB
  • THD <0.05%
  • Power supply AC 100 V-120 V 60 Hz or AC 220 V-240 V 50 Hz
  • Power consumption 150 W
  • RS232 connection 2 x nine-pole Sub-D female socket
Audio inputs
  • LINE IN 0.775 V BAL.
  • REC. IN 0.775 V UNBAL.

Audio outputs

  • REC. OUTPUT RCA X 1 0.775 V UNBAL.
  • ORIGINAL OUTPUT RCA x 2 0.775 V BAL.
  • ORIGINAL OUTPUT XLR x 1 0.775 V BAL.
Mechanical
  • Mounting Tabletop or mounted in a 19” rack
  • Dimensions (h x w x d)
  •  For table use, with feet 99 x 430 x 325 mm
  •  For 19” rack use, with brackets 89 x 478 x 350 mm
  • Weight 7.7 kg
  • Color White

Ordering Information
  • HCS-3600MB2 Economical Conference System Main Unit
  • (discussion, voting, 256x32 LCD, 6P
  • sockets)

Kablolu Konferans Sistemleri


Taiden

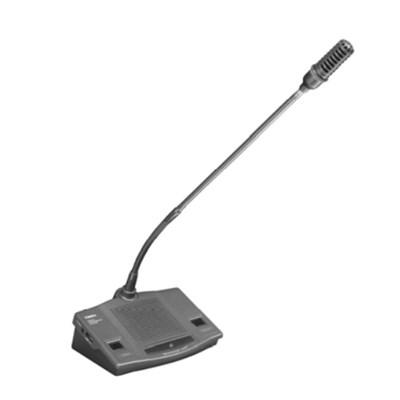

HCS-3632 DB
3600 Serisi İçin Delege Mikrofonu

Technical Specifications

Electrical
Headphone connection
  • Frequency response 40 Hz to 16 kHz
  • Earphone load impedance >16 Ohm
  • Earphone output 10 mW
Recommended microphone type
  • Transducer Electret-condenser
  • Polar pattern Uni-directional
  • Operating voltage 5 VDC
  • Sensitivity -46 dBA at 680 Ohm (0 dB = 1 V/Pa at 1 kHz)
  • Frequency response 80 Hz to 18 kHz
  • Input impedance 2 kOhm
  • Directivity 0°/180° > 20 dB (1 kHz)
  • Equivalent noise 25 dBA (SPL)
  • Maximum sound pressure level 125 dB (THD<3%)
Interface data
  • Connector 2 x Ø 3.5 mm stereo jack for headphone
Mechanical
  • Mounting Tabletop mounting
  • Dimensions (h x w x d) (w/o Mic.) 62 x 156 x 125 mm
  • Weight 0.74 kg
  • Color Gray/Silver

Ordering Information
  • HCS-3632CB Digital Conference System Chairman Unit
  • (tabletop, speech timer & request-to-speak indicator, gray)
  • HCS-3632CB_S Digital Conference System Chairman Unit
  • (tabletop, speech timer & request-to-speak indicator, silver)

Kablolu Konferans Sistemleri


Taiden
HCS-3632 CB
3600 Serisi için Başkan Mikrofonu

Technical Specifications

Electrical
Headphone connection
  • Frequency response 40 Hz to 16 kHz
  • Earphone load impedance >16 Ohm
  • Earphone output 10 mW
Recommended microphone type
  • Transducer Electret-condenser
  • Polar pattern Uni-directional
  • Operating voltage 5 VDC
  • Sensitivity -46 dBA at 680 Ohm (0 dB = 1 V/Pa at 1 kHz)
  • Frequency response 80 Hz to 18 kHz
  • Input impedance 2 kOhm
  • Directivity 0°/180° > 20 dB (1 kHz)
  • Equivalent noise 25 dBA (SPL)
  • Maximum sound pressure level 125 dB (THD<3%)
Interface data
  • Connector 2 x Ø 3.5 mm stereo jack for headphone
Mechanical
  • Mounting Tabletop mounting
  • Dimensions (h x w x d) (w/o Mic.) 62 x 156 x 125 mm
  • Weight 0.74 kg
  • Color Gray/Silver

Ordering Information
  • HCS-3632CB Digital Conference System Chairman Unit
  • (tabletop, speech timer & request-to-speak indicator, gray)
  • HCS-3632CB_S Digital Conference System Chairman Unit
  • (tabletop, speech timer & request-to-speak indicator, silver)

Kablolu Konferans Sistemleri


Taiden

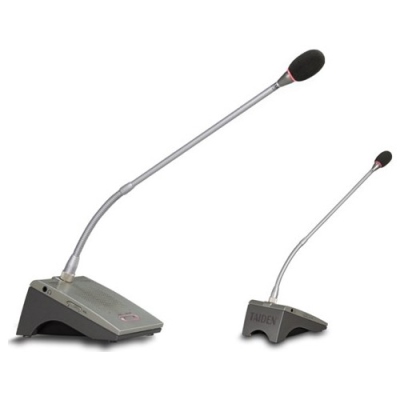

HCS-3638 D
3600 Serisi İçin Delege Mikrofonu

Technical Specifications

Electrical
Headphone connection
  • Frequency response 40 Hz to 16 kHz
  • Earphone load impedance >16 Ohm
  • Earphone output 10 mW
Microphone
  • Transducer Electret-condenser
  • Polar pattern Uni-directional
  • Operating voltage 5 VDC
  • Sensitivity -46dBV/Pa
  • Frequency response 80 Hz to 18 kHz
  • Input impedance 2 kOhm
  • Directivity 0°/180° > 20 dB (1 kHz)
  • Equivalent noise 25 dBA (SPL)
  • Maximum sound pressure level 125 dB (THD<3%)
Interface data
  • Connector Ø 3.5 mm stereo jack for headphone
Mechanical
  • Mounting Tabletop / Flush-mounting
  • Dimensions (h x w x d) (w/o stem microphone) 73 x 131 x 101 mm
  • Weight (incl. stem microphone) 0.6 kg
  • Color Champagne panel + gray base
  • / Champagne panel + black base
  • Stem length 410 mm (standard version),
  • 240 mm, 330 mm, 470 mm

Kablolu Konferans Sistemleri


Taiden

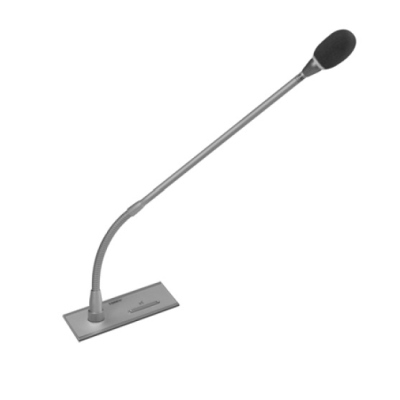

HCS-3641 ND

Bu ürün üretimine son verildi, lütfen diğer benzer modelleri seçin. Teşekkür ederim!

Kablolu Konferans Sistemleri


Taiden

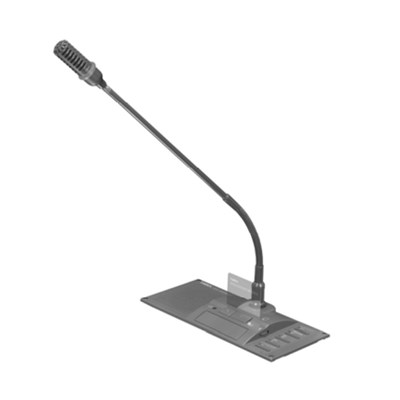

HCS-3660 CBE

Bu ürün üretimine son verildi, lütfen diğer benzer modelleri seçin. Teşekkür ederim!

Kablolu Konferans Sistemleri


Taiden

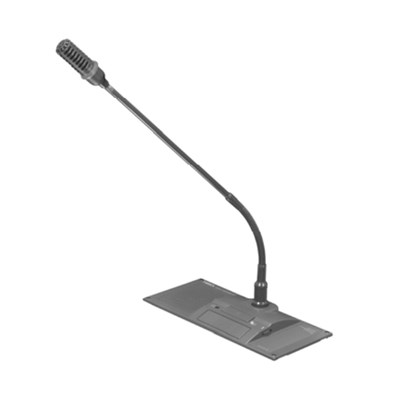

HCS-3662 DB

Bu ürün üretimine son verildi, lütfen diğer benzer modelleri seçin. Teşekkür ederim!

Kablolu Konferans Sistemleri


Taiden

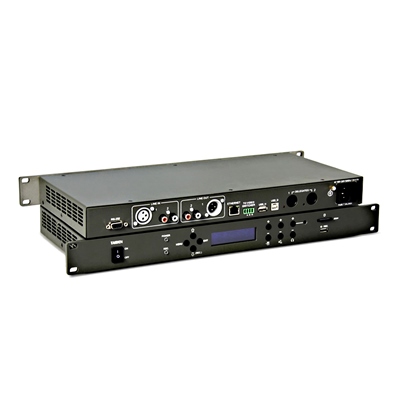

HCS-3900 MA
Konferans Sistemi Merkez Ünitesi

Technical Specifications
Electrical
  • Frequency response 40 Hz to 16 kHz
  • SNR >90 dBA
  • Dynamic range >94 dB
  • THD <0.05%
  • Power supply AC 100 V-120 V 60 Hz or AC 220 V-240 V 50 Hz
  • Power consumption 152 W
  • RS-232 connection nine-pole Sub-D female socket
Audio inputs
  • LINE IN 1 +18 dBu, BAL.
  • LINE IN 2 +18 dBu, UNBAL.
Audio outputs
  • LINE OUT 1 +18 dBu, BAL.
  • LINE OUT 2 +18 dBu, UNBAL.
Mechanical
  • Mounting Tabletop
  • Dimensions (h x w x d) 74 x 430 x 116 mm
  • Weight 2.3 kg
  • Color Black (PANTONE 419 C)

Kablolu Konferans Sistemleri


Taiden

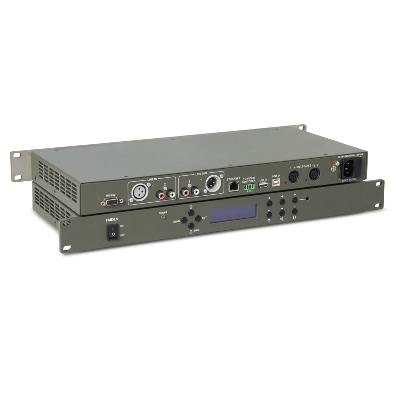

HCS-3900 MB
Konferans Sistemi Merkez Ünitesi

Technical Specifications
Electrical
  • Frequency response 40 Hz to 16 kHz
  • SNR >90 dBA
  • Dynamic range >94 dB
  • THD <0.05%
  • Power supply AC 100 V-120 V 60 Hz or AC 220 V-240 V 50 Hz
  • Power consumption 152 W
  • RS-232 connection nine-pole Sub-D female socket
Audio inputs
  • LINE IN 1 +18 dBu, BAL.
  • LINE IN 2 +18 dBu, UNBAL.
Audio outputs
  • LINE OUT 1 +18 dBu, BAL.
  • LINE OUT 2 +18 dBu, UNBAL.
Mechanical
  • Mounting Tabletop
  • Dimensions (h x w x d) 74 x 430 x 116 mm
  • Weight 2.3 kg
  • Color Black (PANTONE 419 C)

Kablolu Konferans Sistemleri


Taiden

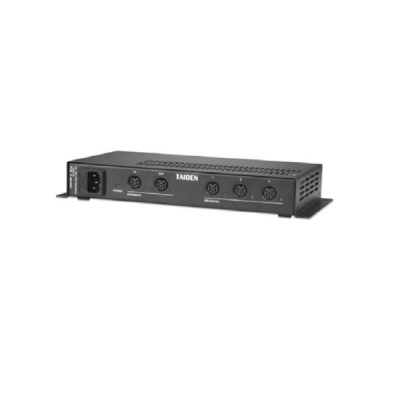

HCS-3900 ME
3900 Serisi İçin Ekstra Ünite

Technical Specifications
Electrical
  • Power supply AC 100 V - 240 V, 50 Hz / 60 Hz
  • Power consumption 150 W
  • Mechanical
  • Dimensions (h × w × d) 42 × 296 × 133 mm
  • Weight 1.5 kg
  • Color Black (PANTONE 419 C)

Ordering Information
  • HCS-3900ME Economical Digital Conference System
  • Extension Unit (6P sockets)

Kablolu Konferans Sistemleri


Taiden

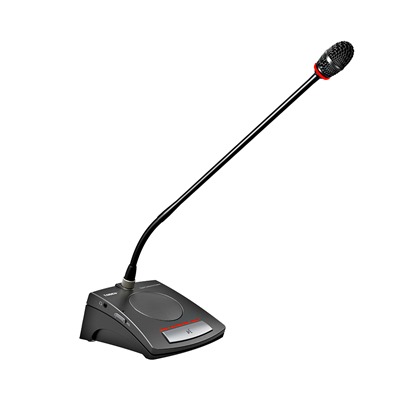

HCS-3938 C
3900 Serisi için Başkan Mikrofonu

Technical Specifications
Electrical
  • Max. consumption 2 W

Headphone connection

  • Frequency response 40 Hz to 16 kHz
  • Earphone load impedance >16 Ohm
  • Earphone output 10 mW
Microphone
  • Transducer Electret-condenser
  • Polar pattern Uni-directional
  • Sensitivity -46 dBV/Pa
  • Frequency response 80 Hz to 18 kHz
  • Input impedance 2 kOhm
  • Directivity 0°/180° > 20 dB (1 kHz)
  • Equivalent noise 20 dBA (SPL)
  • Maximum sound pressure level 125 dB (THD<3%)
Interface data
  • Connector Ø 3.5 mm stereo jack for headphone
Mechanical
  • Mounting Tabletop
  • Dimensions (h x w x d) (w/o stem microphone) 71 x 124 x 138 mm
  • Weight (incl. stem microphone) 0.9 kg
  • Color Champagne (PANTONE 401 C) panel + black (PANTONE419 C) base / Charcoal gray (PANTONE Cool Gray 11 C)panel + black (PANTONE 419 C) base
  • Stem length 410 mm (standard version),240 mm, 330 mm, 470 mm

Kablolu Konferans Sistemleri


Taiden

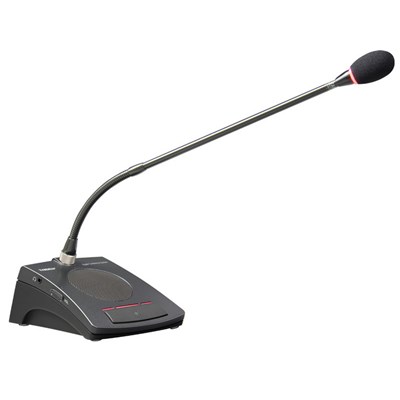

HCS-3938 D
3900 Serisi için Delege Mikrofonu

Technical Specifications
Electrical
  • Max. consumption 2 W

Headphone connection

  • Frequency response 40 Hz to 16 kHz
  • Earphone load impedance >16 Ohm
  • Earphone output 10 mW
Microphone
  • Transducer Electret-condenser
  • Polar pattern Uni-directional
  • Sensitivity -46 dBV/Pa
  • Frequency response 80 Hz to 18 kHz
  • Input impedance 2 kOhm
  • Directivity 0°/180° > 20 dB (1 kHz)
  • Equivalent noise 20 dBA (SPL)
  • Maximum sound pressure level 125 dB (THD<3%)
Interface data
  • Connector Ø 3.5 mm stereo jack for headphone
Mechanical
  • Mounting Tabletop
  • Dimensions (h x w x d) (w/o stem microphone) 71 x 124 x 138 mm
  • Weight (incl. stem microphone) 0.9 kg
  • Color Champagne (PANTONE 401 C) panel + black (PANTONE419 C) base / Charcoal gray (PANTONE Cool Gray 11 C)panel + black (PANTONE 419 C) base
  • Stem length 410 mm (standard version),240 mm, 330 mm, 470 mm

Kablolu Konferans Sistemleri


Taiden
HCS-4100MA/FS/52
Original MCA-STREAM digital audio processing and transmitting technology

Up to 64 CHs audio signals transmitted on a dedicated 6-pin cable

Supporting 48 kHz audio sampling rate, all 64 channels with a frequency response of 30 Hz~20 kHz

Increased reliability with "Closed Loop - Daisy Chain" connection topology, supports "PnP"

Gain and EQ (5 band) of each microphone adjustable separately

Equipped with optical fiber interface to combine two widely separated conference rooms to form one unique coherent system

TCP/IP communication protocol in PC control

Remote control, remote diagnosis and remote update

Built-in multi-channel intercom facility

System power controllable by central control system

Supports combining/separating meeting rooms by split/merge function

Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum


Kablolu Konferans Sistemleri


Taiden
HCS-4100MB/52
Original MCA-STREAM digital audio processing and transmitting technology

Up to 64 CHs audio signals transmitted on a dedicated 6-pin cable

Supporting 48 kHz audio sampling rate, all 64 channels with a frequency response of 30 Hz~20 kHz

Increased reliability with "Closed Loop - Daisy Chain" connection topology, supports "PnP"

Gain and EQ (5 band) of each microphone adjustable separately

Equipped with optical fiber interface to combine two widely separated conference rooms to form one unique coherent system

TCP/IP communication protocol in PC control

Remote control, remote diagnosis and remote update

Built-in multi-channel intercom facility

System power controllable by central control system

Supports combining/separating meeting rooms by split/merge function

Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum
