Otomasyon Sistemleri
Otomasyon Bileşenleri ve Aksesuarları

AMX
EXB-IRS4
Dimensions (HWD) :1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1 cm x 13.00 cm), RU: 1
Weight :1 lb (454 g)
Power Over Ethernet (PoE) :No local Power Supply needed
Power Draw :1.9 Watts
Connectors:(1) RJ-45 ICS-LAN Ethernet Connector, (1) 10-Pin 3.5mm captive-screw terminal (RS-232/422/485 port), (1) 5-Pin 3.5mm captive-screw terminal (RS-232 port)
FG Numbers :FG2100-21

Otomasyon Sistemleri
Otomasyon Merkez Üniteleri

AMX
NX-1200
Dimensions (HWD) :1 11/16” x 5 13/16” x 5 1/8” (42.16 mm x 147.32 mm x 130.81 mm)
Weight:1.6 lb. (.726 Kg)
Memory:Memory Card: 4 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption :Active Power Consumption: 3 W
AxLink Port :(1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator :(1) AxLink LED (green) indicates the state of the AxLink port
RS-232 Port :(1) 5-position 3.5mm Screw Terminal, NetLinx Port 2, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator :(2) sets of LEDs (red/yellow) indicate when serial Ports 1 and 2 are transmitting and receiving data
IR/Serial :(2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, NetLinx Ports 11-12, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators :(2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
I/O Channels :(4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
I/O Indicator :(4) LEDs (yellow) indicate each of the I/O channels (1-4) are active

Otomasyon Sistemleri
Otomasyon Merkez Üniteleri

AMX
NX-2200
Dimensions (HWD) :1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)
Weight:6.08 lb. (2.758 Kg)
Memory:Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption :Active Power Consumption: 4.2 W
AxLink Port :(1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator :(1) AxLink LED (green) indicates the state of the AxLink port
RS-232 Port :(1) 5-position 3.5mm Screw Terminal, NetLinx Port 2, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator :(2) sets of LEDs (red/yellow) indicate when serial Ports 1 and 2 are transmitting and receiving data
IR/Serial :(2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, NetLinx Ports 11-12, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators :(2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
I/O Channels :(4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
I/O Indicator :(4) LEDs (yellow) indicate each of the I/O channels (1-4) are active

Otomasyon Sistemleri
Otomasyon Merkez Üniteleri

AMX
NX-3200
Dimensions (HWD) :1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)
Weight:6.08 lb. (2.758 Kg)
Memory:Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption :Active Power Consumption: 6.6 W
AxLink Port :(1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator :(1) AxLink LED (green) indicates the state of the AxLink port
RS-232 Port :(1) 5-position 3.5mm Screw Terminal, NetLinx Port 2, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator :(2) sets of LEDs (red/yellow) indicate when serial Ports 1 and 2 are transmitting and receiving data
IR/Serial :(2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, NetLinx Ports 11-12, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators :(2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
I/O Channels :(4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
I/O Indicator :(4) LEDs (yellow) indicate each of the I/O channels (1-4) are active

Presentation Switchers


AMX
NMX-MM-1000
Dimensions (HWD) :1 3/8" x 5 13/16" x 3 1/4" (34.80 mm x 147.32 mm x 83.41 mm)
Weight :1.1 lb (.5 Kg)
Power Consumption :13 W, (Max)
Power Over Ethernet (PoE) :PoE, 802.3AF
Operating Temperature :0° C to 40° C (32° F to 104° F)
Controls:NetLinx, RS-232, Operation Button. See Data Sheet for details.
Supported Documents Office :.doc, .docx, .xls, .xlsx, .ppt, .pptx, .pdf
Supported Document Sources :Dropbox, USB Drive, Web Browser
Supported Document Sharing :Email, Dropbox
Supported Images :.png, .jpg, .bmp, .gif
Supported Video :.mp4 with H.264 video and AAC audio
FG Numbers :FG3211-01

Networked AV Systems


AMX

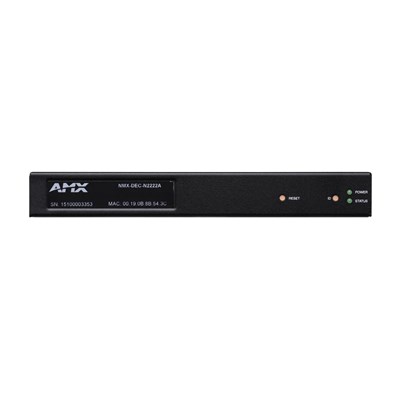

NMX-DEC-N2222A
Digital Video Input :Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs :HDMI, DVI-D (through adapter)
Video Formats :HDMI, DVI-D (through adapter), HDCP content protection support
Output Resolutions :Supports most common HD up to 1920x1200. See Data Sheet for details.
Audio Input Signal Types :Network video and audio over Ethernet via RJ45 (audio at 48-kHz, standard SVSI audio stream or AES67, user selectable)
Audio Output Signal Types :Embedded audio on DVI-D or HDMI (through adapter)
HDMI Audio Formats :8ch PCM
Analog Audio Formats :Stereo 2-channel
Audio Digital-to-Analog Conversation :16-bit 32 kHz, 44.1 kHz and 48 kHz (matched to Encoder settings)
Latency :50 ms for 720p60; 140ms for 1080p60. See Data Sheet for details.
Communications :Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP. See Data Sheet for details.
FG Numbers :FGN2222A-SA

Networked AV Systems


AMX

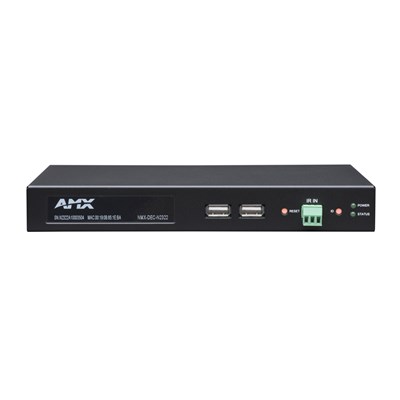

NMX-DEC-N2322
Digital Video Input :Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs :HDMI 2.0, DVI-D (through adapter)
Video Formats :HDMI 2.0, DVI-D (through adapter), HDCP 2.2 content protection support
Output Resolutions :720p, 1080p, 4K30 or input resolution if scaler is disabled
Audio Input Signal Types :Network video over Ethernet via RJ45
Audio Output Signal Types :Embedded audio on DVI-D or HDMI (through adapter), analog audio output
HDMI Audio Formats :8ch PCM
Analog Audio Formats :Stereo 2-channel
Latency:17-ms at 60fps for 1920x1080 and lower resolutions; 34-ms at 30 fps for 4K30 4K resolutions. See Data Sheet for details.
Communications :Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; 1 Gbps SFP port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling); HDMI: HDCP, EDID management
FG Numbers :FGN2322-SA

Networked AV Systems


AMX

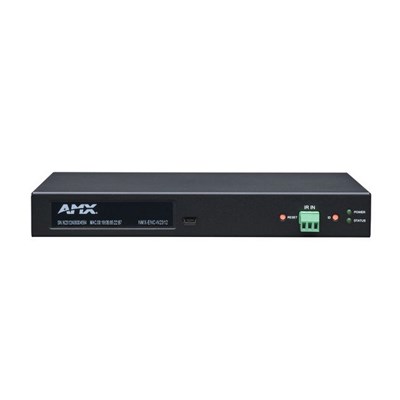

NMX-ENC-N2312
Digital Video Input :HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++) (through adapter)
Analog Video Input :HD-15 VGA, Component, supported through a passive adapter
Video Outputs :Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D (through adapter)
Video Formats :HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV. DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
Progressive Input Resolutions :Supports 4K30 4:2:0 and most common HD resolutions up to 1920x1200. See Data Sheet for details.
Interlaced Input Resolutions :Supports 1080i60. See Data Sheet for details.
Analog Input Resolutions :Supports most common HD up to 1920x1200. See Data Sheet for details.
Analog-To-Digital Conversion :8-bit 165 MHz per each of three color channels
Audio Input Signal Types :Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
Audio Output Signal Types :Ethernet, Embedded audio on HDMI or DVI-D (through adapter)
HDMI Audio Formats :8ch PCM
Analog Audio Formats :Stereo 2-channel
Audio Analog-to-Digital Conversion :48 kHz
Latency:17-ms at 60 fps for 1920x1080 and lower resolutions; 34-ms at 30 fps for 4K30. See Data Sheet for details. :Communications
Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; HDMI: HDCP, EDID management. See Data Sheet for details.
FG Numbers :FGN2312-SA

Otomasyon Sistemleri
Dokunmatik Ekranlar

AMX
MD-702-BL
Display Size (WH) Landscape :7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) Landscape :6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution:1280x800
Touch Overlay :Capacitive
FG Numbers :FG5969-53

Extender ve Bağlantı Panelleri


AMX
HPX-AV102-HDMI-R
Dimensions:1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Integrated Cable :DisplayPort Retractable Cable at 18.0 Gbps with DisplayPort pigtail connector or convert to HDMI pigtail connector by utilizing the included DisplayPort to HDMI adapter accessory Pullout Length: 5 ft (1.52m) Pigtail: 5 ft (1.52m) Pigtail Connector: HDMI Male Resolution Support: 4096x2160 @60 Hz Deep Color Support: Yes 3D Format Support: Yes
Front Panel Components :Pull-Out Connector: DisplayPort Male
Long-Term Reliability :Tested to 10,000 pull and release cycles
Recommended Accessories:HPA-MYT-TX, MyTurn Source Selector Button (FG554-21) HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23) CBL-DP-FL2, DisplayPort 4K60 MyTurn-Ready Flat Cable (FG10-2193-16) CBL-HDMI-FL2-16, HDMI 4K60 MyTurn-Ready Flat Cable, 16 ft (FG10-2192-16) CBL-HDMI-FL2-32, HDMI 4K60 MyTurn-Ready Flat Cable, 32 ft (FG10-2192-32)
FG Numbers :FG552-38
