Dimensions (HWD) :4 11/16" x 6" x 1 5/16" (11.90 cm x 15.20 cm x 3.33 cm)
Twisted Pair Cable Type & Length :Shielded Cat6A or Cat7; up to 262 ft. (80 m) for full 4K, 328 ft. (100 m) for 1080p and below
USB (HID) :(1) USB Mini A/B Connector (“HOST”); Use in conjunction with an Enova DGX Digital Media Switcher

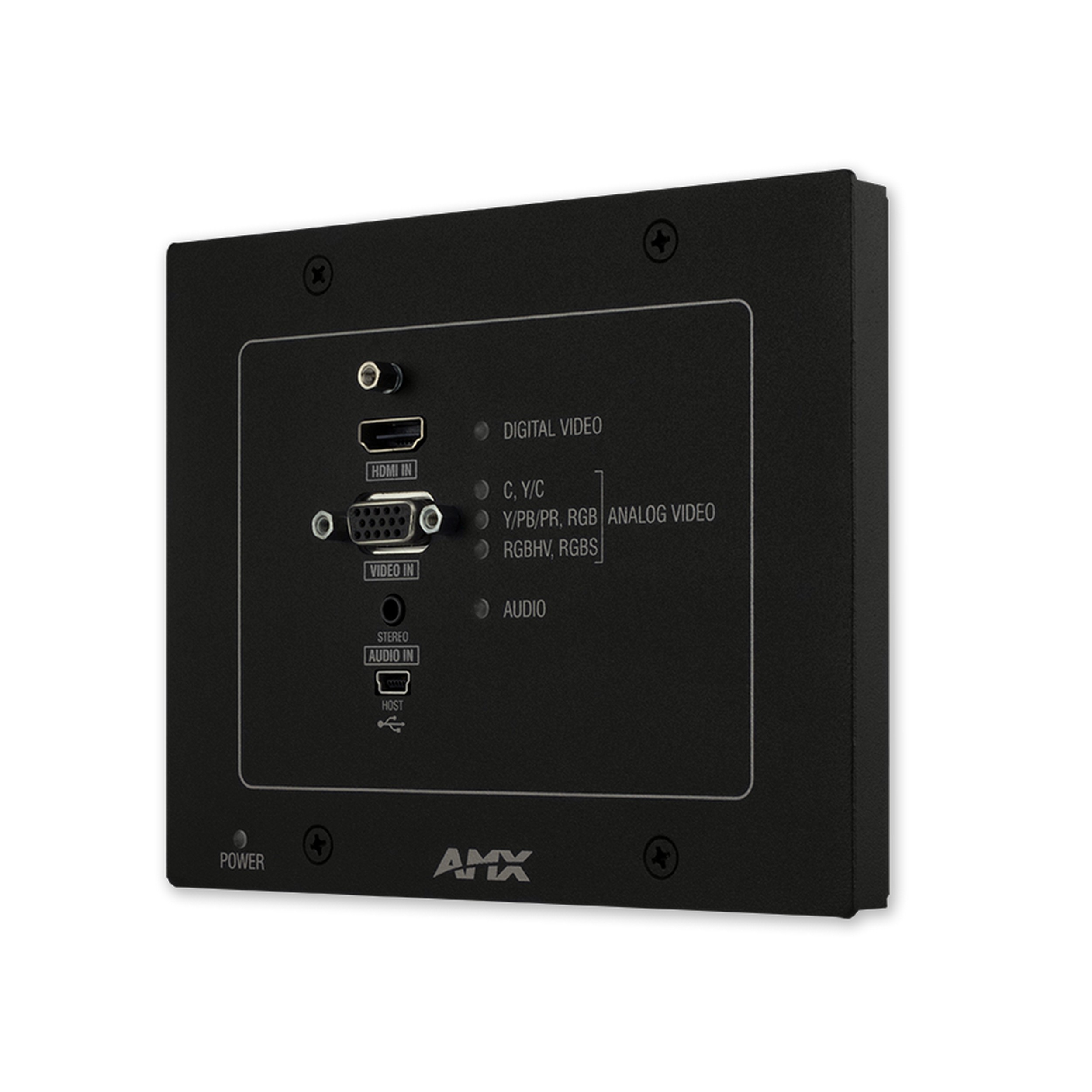

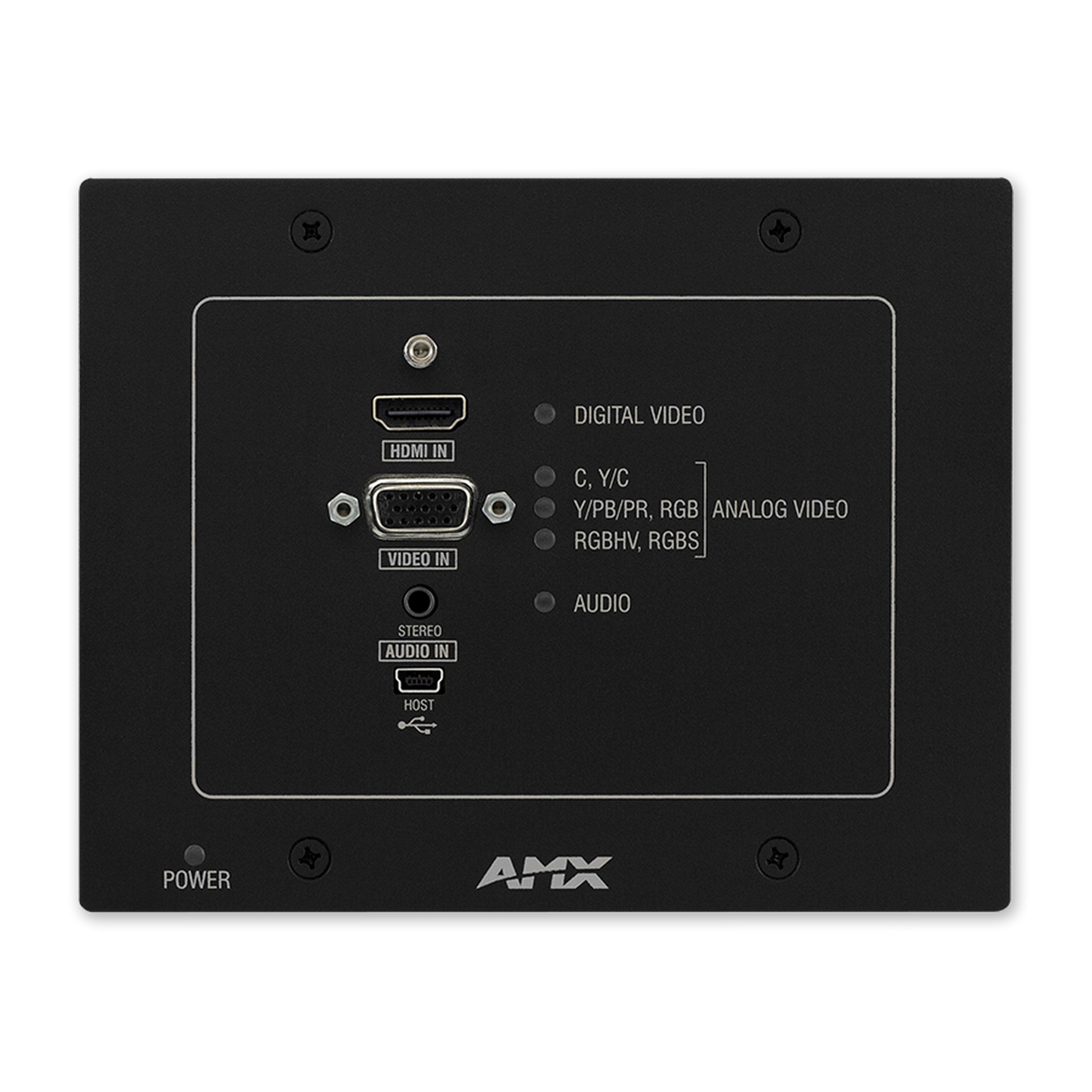

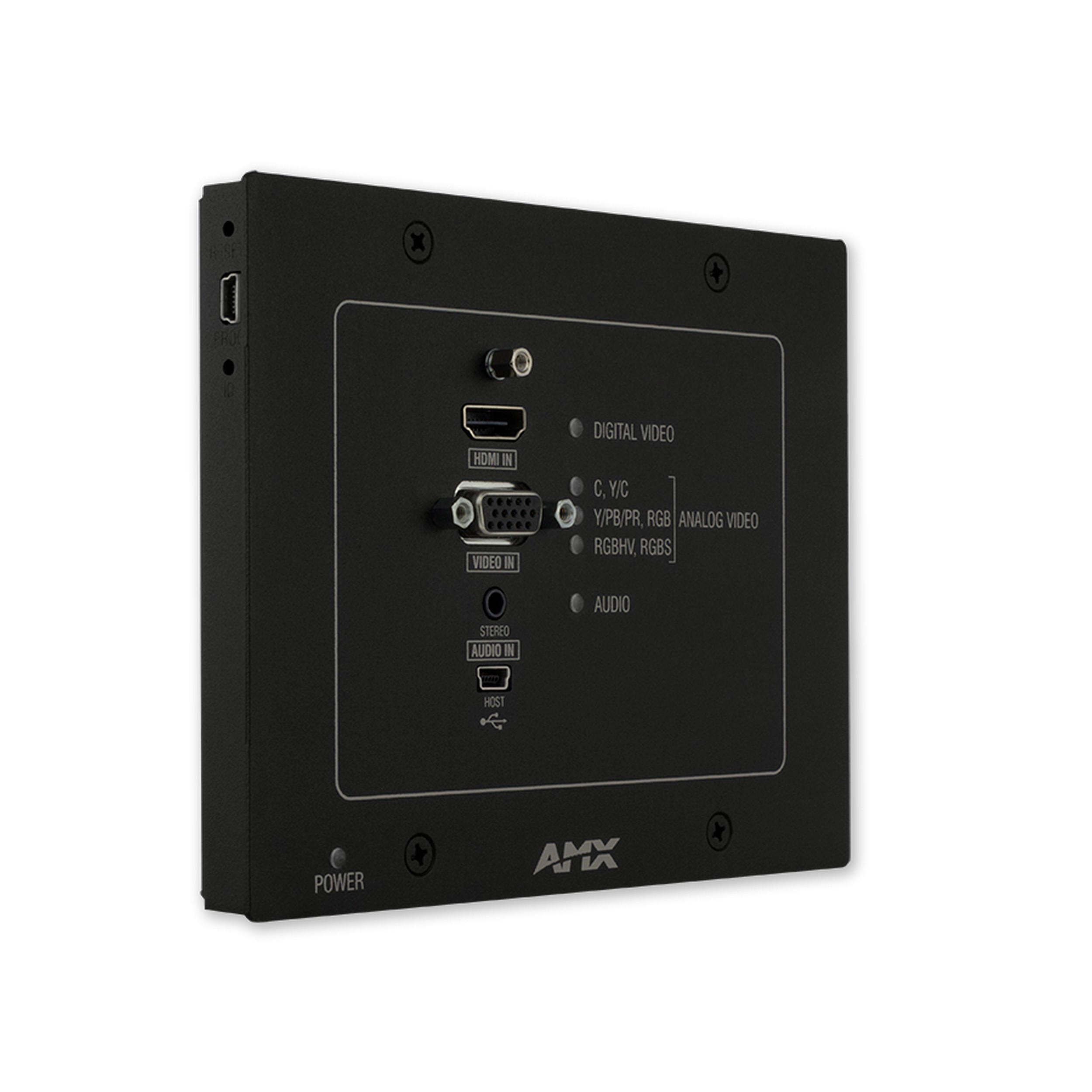

Front Connectors :HDMI Input: HDMI Type A Female; Analog Video Input: HD-15; Analog Stereo Input: 3.5mm Mini-Stereo Jack; Advanced Configuration Interface: USB Mini-B Connector; USB (HID): USB Mini-B Connector

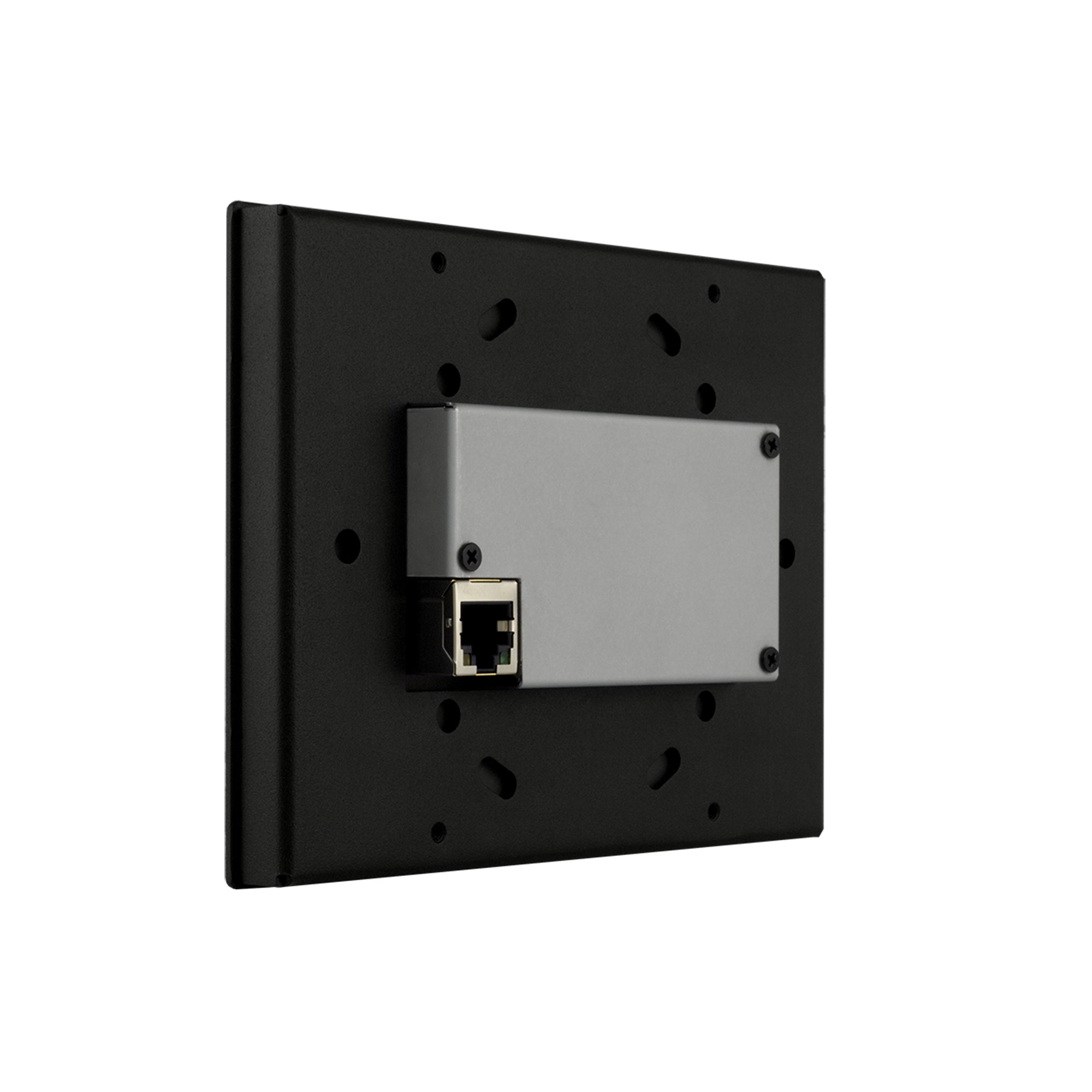

Back Connectors :DXLink Output: RJ-46
HDMI:Compatible Formats: HDMI, HDCP, DVI; Data Rate (Max): 4.95 Gbps / 6.75 Gbps
HDMI Support :Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio :Audio Resolution: 16 bit to 24 bit; Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz
HDCP & DDC/EDID :HDCP: Supports AMX HDCP InstaGate Pro Technology When used with an AMX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: EDID in point-to-point mode is passed up from the sink device
Analog Video Compatible Formats :RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support :Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF) :S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit
FG Numbers :FG1010-320-BL (Black) FG1010-320-WH (White)
