Martin

ERA 300 PORFILE

Profil

Marka:	Martin
Ürün Kodu:	ERA 300 PORFILE
Kategori:	Robot Işıklar
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Weight	17kg (38lbs)
Electronic shutter effect	Strobe effect, pulse effects, instant open and blackout
Electronic dimming	0 - 100%, four dimming curve options
Color mixing	CMY, independently variable 0-100%
Color wheel	9 color filters plus open
Rotating gobo wheel	7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel	9 gobos plus open, wheel indexing, rotation and shake
Zoom	Motorized
Focus	Motorized
Iris	0-100%
Beam effects	Rotating three-facet prism
Pan	540°, coarse & fine control and speed
Tilt	260°, coarse & fine control and speed
Control options	DMX
RDM compliance	ANSI/ESTA E1.20
DMX channels	21

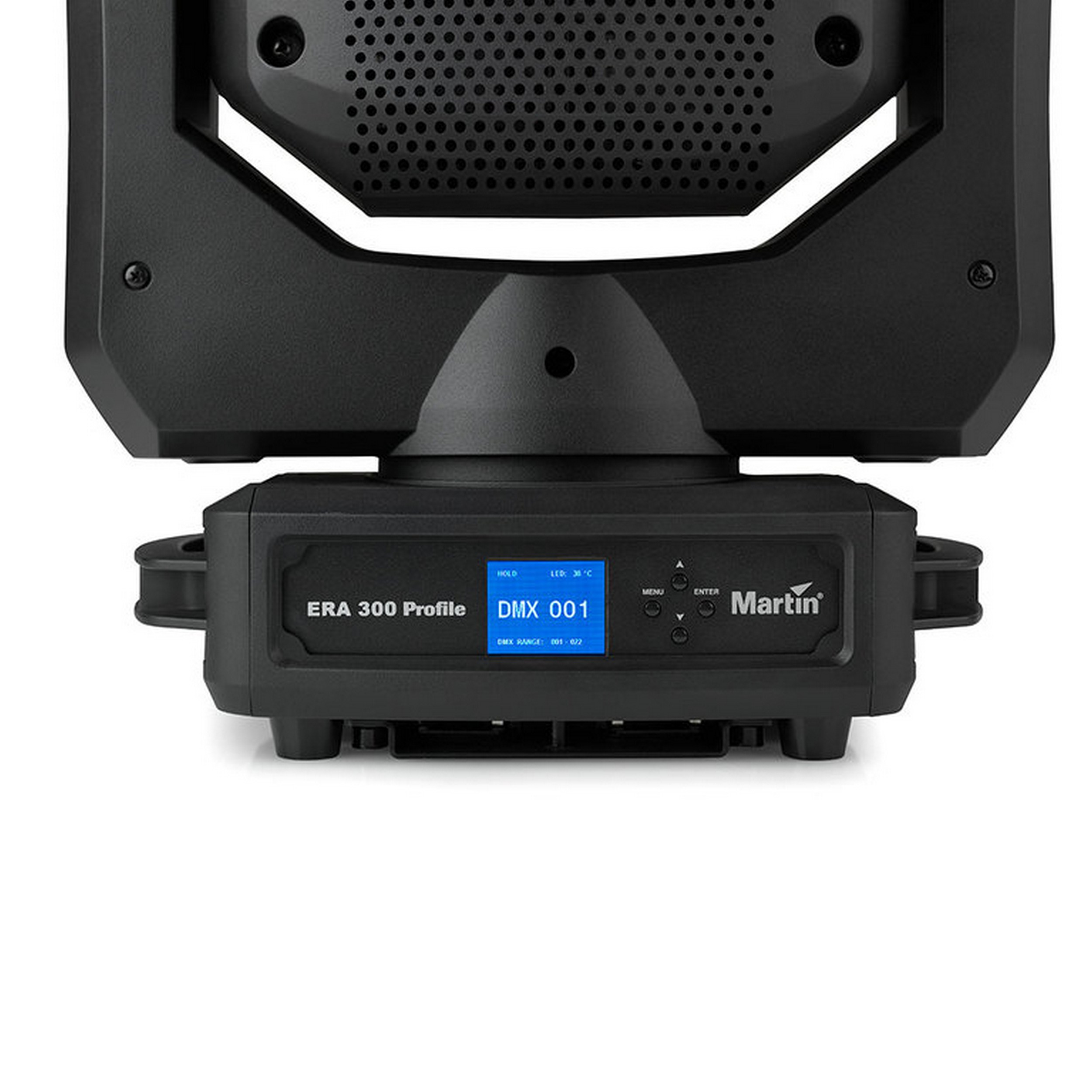

Setting and addressing	Control panel with backlit LCD display
DMX compliance	USITT DMX512/1990
Light source	260W LED engine
Zoom range	13° - 28°
Light engine luminous output	20,000 lumens
Fixture luminous output	9,500 lumens
CRI (Color Rendering Index)	>70
Minimum LED lifetime	20,000 hours (to >70% luminous output)*
Optics notes	*Manufacturer´s figure obtained under manufacturer´s test conditions.
CCT	6500 Kelvin
Color	Black/White
Housing	High-impact flame-retardant thermoplastic
Protection rating	IP20
Mounting points	Two quarter-turn brackets for rigging clamps
Orientation	Any
AC power in, thru	Neutrik powerCON TRUE1
DMX data in/out	3-pin & 5-pin locking XLR
AC power	100-240V nominal, 50/60 Hz
Power supply unit	Auto-ranging electronic switch mode
Fuse	T 6.3A
120 V, 60 Hz	3.13A, 374W, PF 0.999
230 V, 50 Hz	1.62A, 362W, PF 0.993
Typical Power and Current notes	Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
Cooling	Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.)	40° C
Minimum ambient temperature (Ta min.)	0° C
Included Items notes	Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug Omega brackets for rigging clamp attachment
Cables, 16 A, for connection to power in chains	Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797 Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786 Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173 Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Connectors	Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789 Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
Martin ERA 300 Profile in cardboard box	P/N 9025109547
Martin ERA 300 Profile White in cardboard box	P/N 9025109886
Cables, 16 A, for relaying power in chains	Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784 Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785 Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171 Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Installation hardware	G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Martin™ RDM 5.5 Splitter	P/N 90758150
Martin Companion Cable	P/N 91616091
Related items notes	Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Gobo diameter	26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter	19.0 mm (0.75 in.)
Gobo thickness, maximum	1.1mm borosilicate glass
16-bit control	Dimming, pan and tilt
Transceiver	Opto-isolated RS-485
Length	375 mm (14.8 in.)
Width	217 mm (8.5 in.)
Height	564 mm (22.2 in.)

DETAYLAR

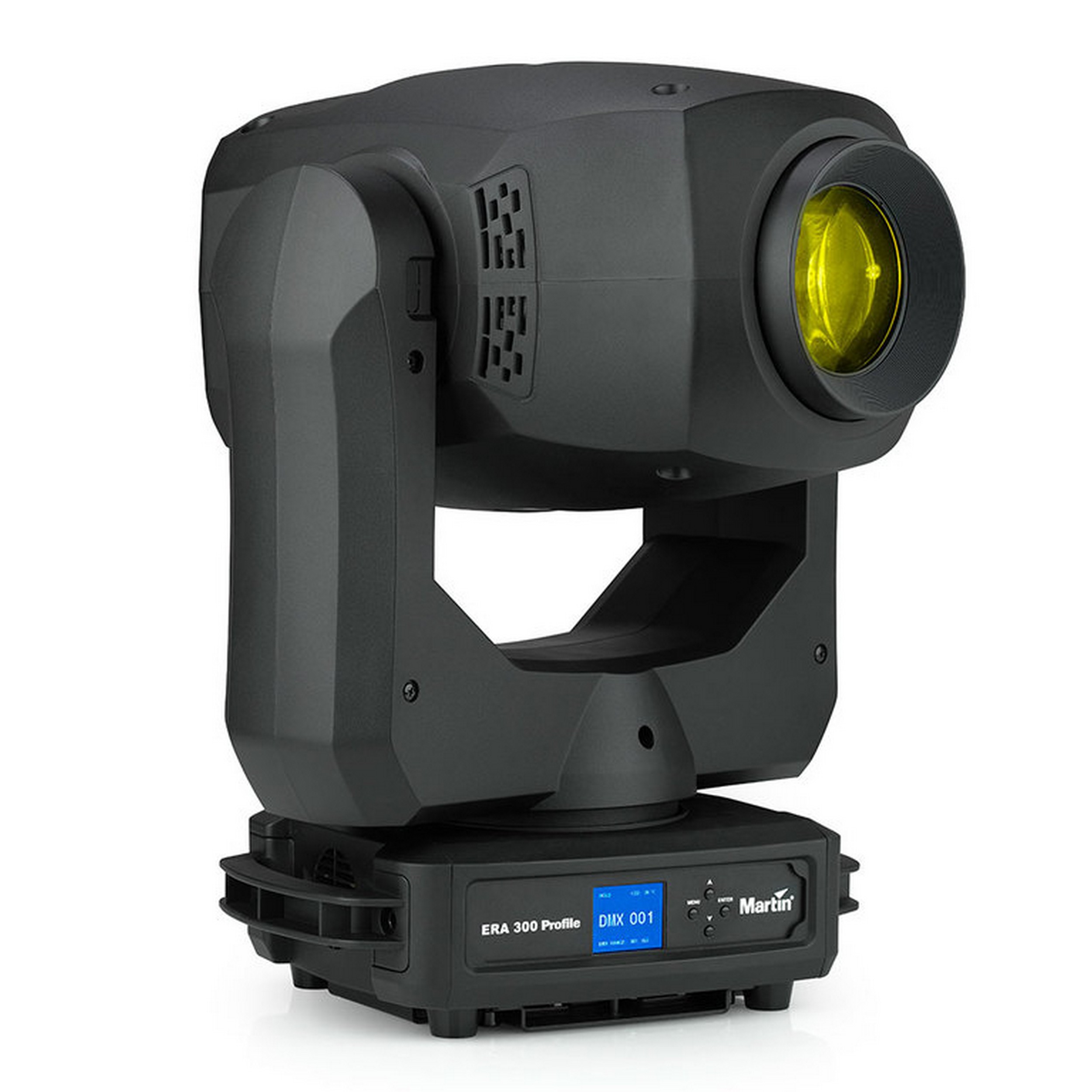

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.

The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

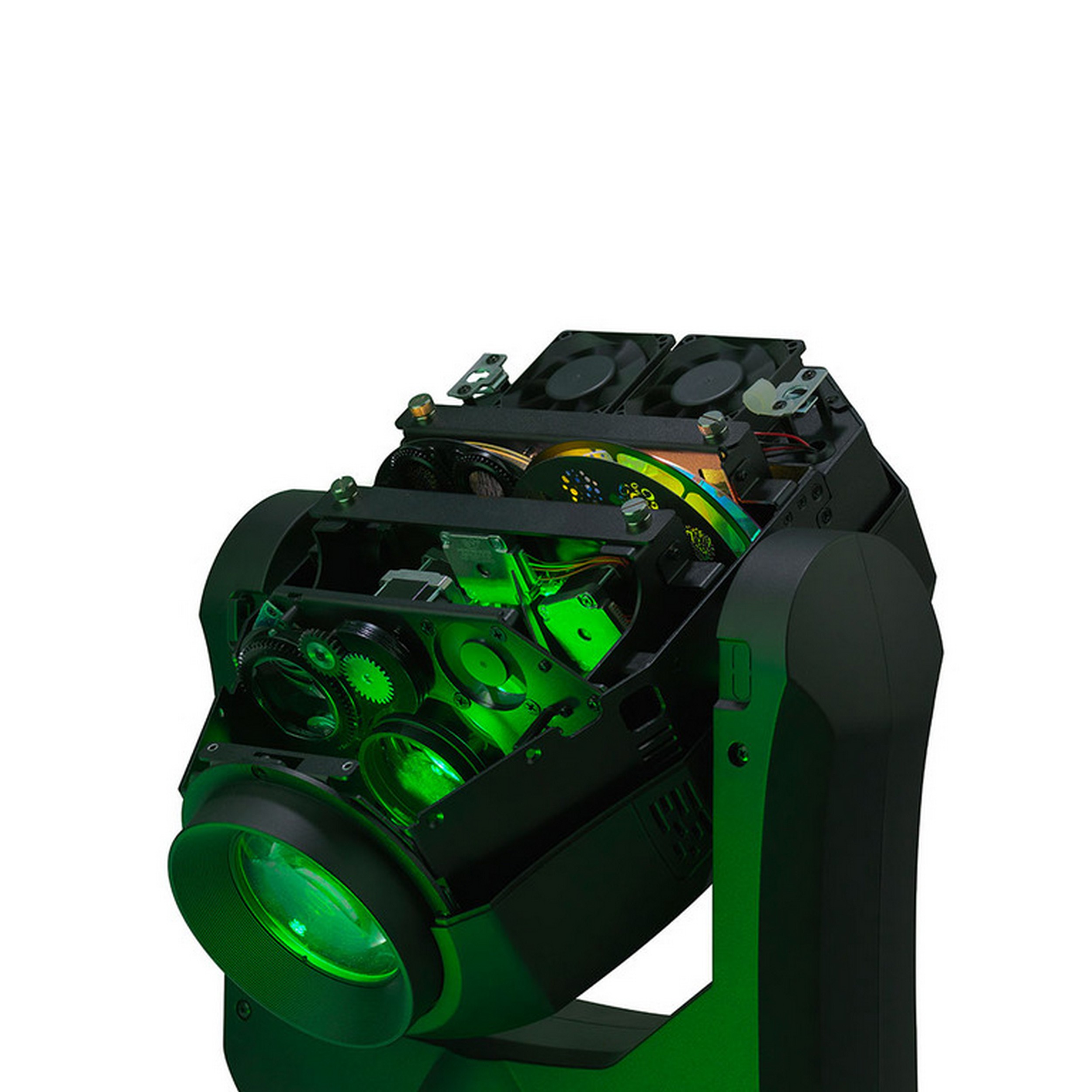

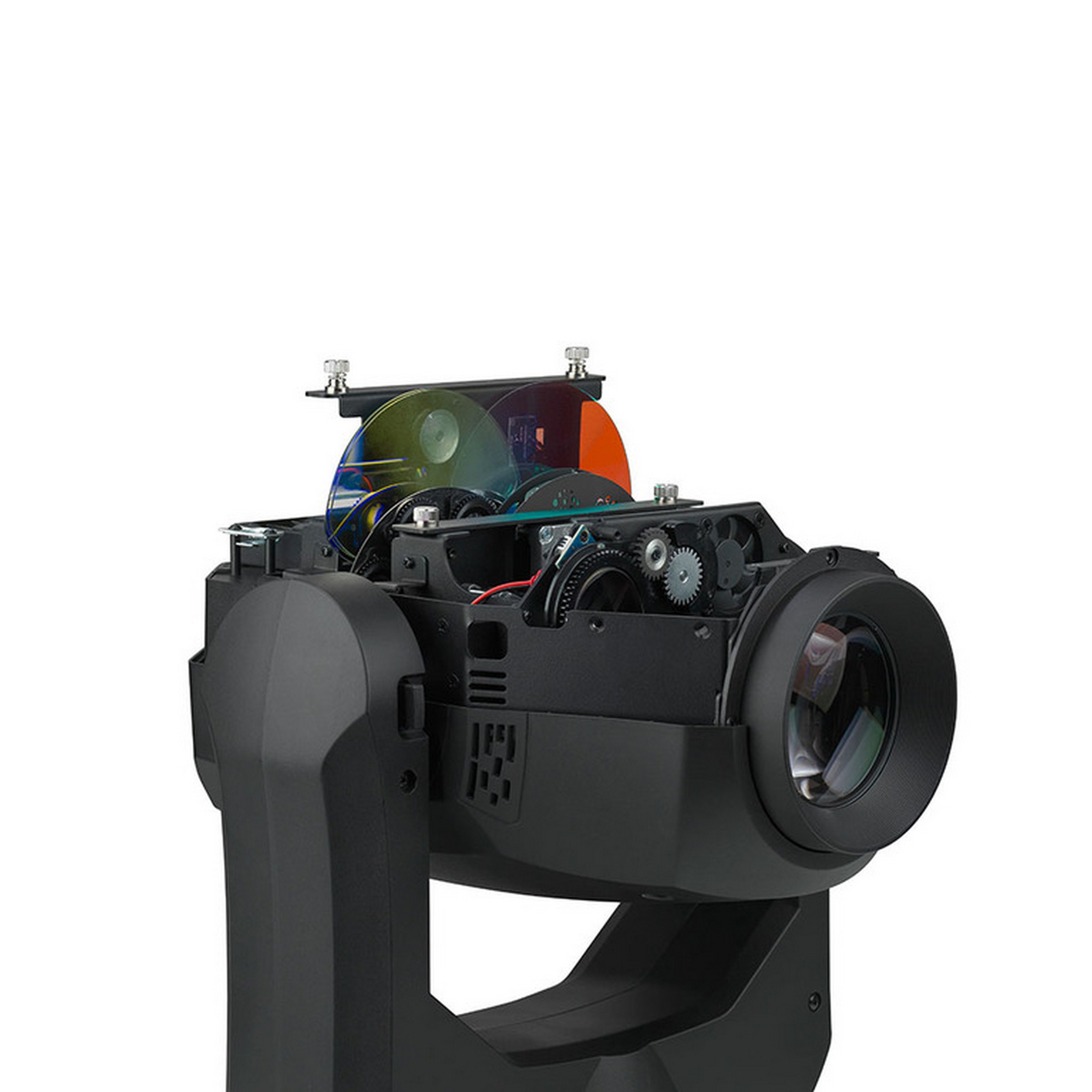

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.
