| Length |
492 mm (19.4in.)
|
| Width |
360 mm (14.2in.)
|
| Height |
774 mm (30.5in)
|
| Weight |
46 kg (101.4lbs)
|
| Color mixing |
CMY, independently variable 0-100%
|
| Color wheel |
9 color filters plus open
|
| Rotating gobo wheel |
9 gobos plus open, wheel rotation, gobo rotation, indexing and shake
|
| Static gobo wheel |
15 gobos plus open, wheel indexing, rotation and shake
|
| Frost filter |
Wash effect
|
| Beam smoother |
Flat field projection for spot mode
|
| Zoom |
Motorized
|
| Focus |
Motorized
|
| Prism |
2 rotating/indexing prisms (overlaying)
|
| Pan |
540°, coarse & fine control and speed
|
| Tilt |
260°, coarse & fine control and speed
|
| Control options |
DMX
|
| 16-bit control |
Dimming, pan and tilt
|
| Setting and addressing |
Control panel with backlit LCD display and via RDM
|
| DMX channels |
24
|
| DMX compliance |
USITT DMX512/1990
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
Opto-isolated RS-485
|
| Front lens diameter |
143 mm
|
| Zoom range - Beam |
2° - 40°
|
| Light source |
370W Philips MSD Platinum 18 R LL
|
| Maximum lifetime |
6000hrs
|
| Light engine luminous output |
22000 lumens
|
| CRI (Color Rendering Index) |
>70
|
| CCT |
6500 Kelvin
|
| Housing |
Diecast aluminium alloy, High-impact flame-retardant thermoplastic
|
| Color |
Black
|
| Effective Projected Area (EPA) |
0.1 m²
|
| Impact resistance |
IK07
|
| Ingress protection |
IP 65
|
| Corrosion resistance |
C3 medium (ISO 12944)
|
| Construction notes |
RoHS compliant
|
| Maximum image diameter |
10.0 mm (0.39in.)
|
| Gobo thickness, maximum |
1.1mm borosilicate glass
|
| Mounting points |
Two quarter-turn brackets for rigging clamps
|
| Orientation |
Any
|
| DMX data in/out |
5-pin locking XLR (IP65)
|
| AC power |
100-240V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch mode
|
| Fuse |
T 10A
|
| Typical Power and Current notes |
Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
|
| Cooling |
Forced air (temperature regulated, low noise)
|
| Maximum ambient temperature (Ta max.) |
40° C
|
| Minimum ambient temperature (Ta min.) |
-20° C
|
| Maximum surface temperature, steady state, at 40° C ambient |
70° C (158° F)
|
| Total heat dissipation (calculated, +/- 10%) |
1930 BTU/hr
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
|
| EU EMC |
EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class B
|
| Canadian safety |
CSA C22.2 No. 166
|
| Canadian EMC |
ICES-003 Class B, ICES-005 Class B
|
| Australia/NZ |
RCM
|
| Global CB Certification/IECEE |
EC 60598-2-17 (IEC 60598-1)
|
| Included Items notes |
2 x Omega brackets for rigging clamp attachment
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Cable |
P/N 91616091
|
| Related items notes |
Martin Companion Software Suite (including firmware uploader)
|

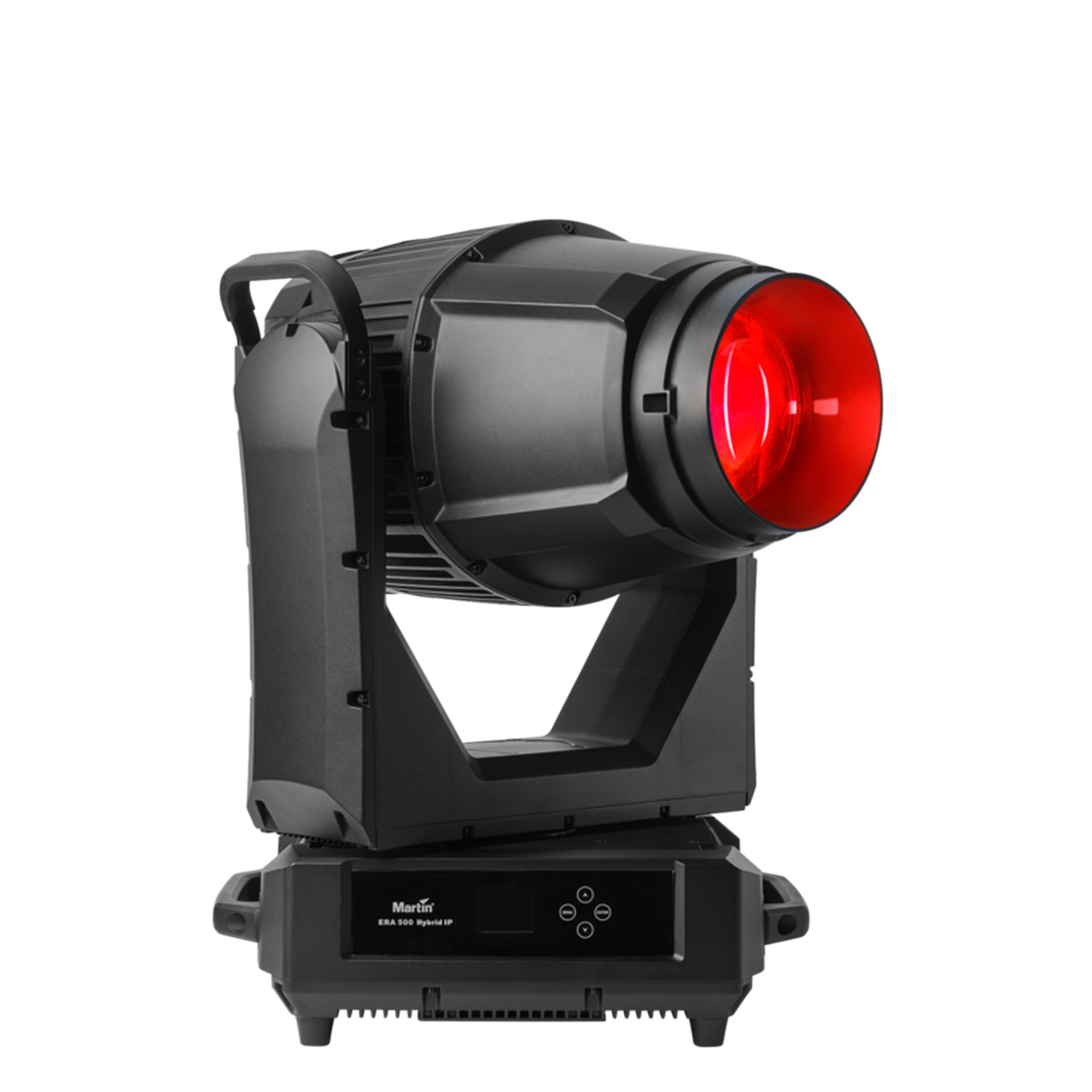

| Martin ERA 500 Hybrid IP in cardboard box |
P/N 9025122033
|
| Flightcase, two unit for ERA 500 Hybrid IP |
P/N 901512203
|
| 120 V, 60 Hz |
4.7A, 564W, PF 0.99
|
| 230 V, 50 Hz |
2.419A, 548W, PF 0.98
|
| Thermal notes |
*Power must be maintained below 0° C (32° F)
|
| Gobo diameter |
15.8 mm +0/- 0.2 mm (0.62 in. +0/- 0.008 in.)
|
| AC Power in |
Neutrik powerCON TRUE1 (IP65)
|
| Mechanical shutter effect |
Strobe effect, pulse effects, instant open and blackout
|
| Mechanical dimming |
0 - 100%, four dimming curve options
|
