| Electronic shutter effect |
Strobe effect, pulse effects, instant open and blackout
|
| Electronic dimming |
0 - 100%, four dimming curve options
|
| Color mixing |
CMY, independently variable 0-100%
|
| Color temperature control |
Variable 6500 - 2700 K
|
| Gobo animation |
Animation wheel, indexing, continuous rotation with variable speed and direction
|
| Iris |
0-100%
|
| Zoom |
Motorized
|
| Focus |
Motorized
|
| Framing |
Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
|
| Prism |
2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
|
| Pan |
540°, coarse & fine control and speed
|
| Tilt |
260°, coarse & fine control and speed
|
| Control options |
DMX
|
| DMX compliance |
USITT DMX512/1990
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
Opto-isolated RS-485
|
| CRI (Color Rendering Index) |
>70
|
| CCT |
6500 Kelvin
|
| Color |
Black
|
| Protection rating |
IP 20
|
| Mounting points |
Two quarter-turn brackets for rigging
|
| Orientation |
Any
|
| AC power |
100-240V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch mode
|
| Cooling |
Forced air (temperature regulated, low noise)
|
| Maximum ambient temperature (Ta max.) |
40° C
|
| Minimum ambient temperature (Ta min.) |
0° C
|
| Maximum surface temperature, steady state, at 40° C ambient |
75° C (167° F)
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
|
| EU EMC |
EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class B
|
| Canadian safety |
CSA C22.2 No. 166
|
| Canadian EMC |
ICES-003 Class B, ICES-005 Class B
|
| Australia/NZ |
RCM
|
| Cables, 16 A, for connection to power in chains |
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
|
| Cables, 16 A, for relaying power in chains |
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
|
| Connectors |
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
|
| Installation hardware |
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Cable |
P/N 91616091
|

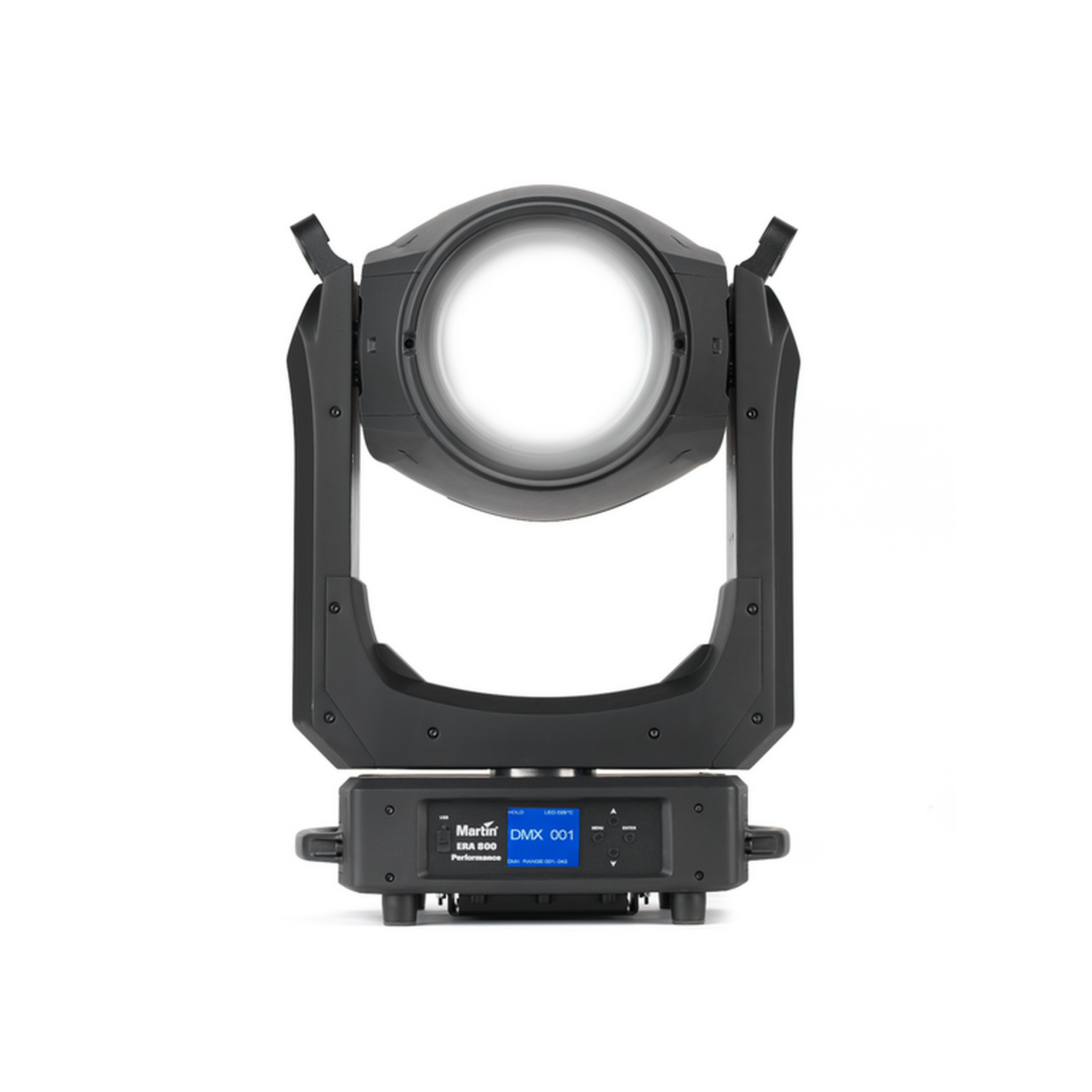

| Setting and addressing |
Control panel with backlit LCD display
|
| Martin ERA 800 Performance in cardboard box |
P/N 9025122052
|
| Martin ERA 800 Performance – White in cardboard box |
P/N 9025122053
|
| Flightcase, two unit for ERA 800 |
P/N 91512255
|
| Color wheel |
6 color filters plus open
|
| Rotating gobo wheel |
6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
|
| Static gobo wheel |
7 gobos plus open, wheel indexing, rotation and shake
|
| Frost |
Soft frost effect and heavy frost effect
|
| 16-bit control |
Dimming, pan and tilt
|
| DMX channels |
42
|
| Front lens diameter |
160 mm
|
| Zoom range |
7° - 56° (1:8)
|
| Light source |
800W LED engine
|
| Optics notes |
*Manufacturer´s figure obtained under manufacturer´s test conditions
|
| Minimum LED lifetime |
20000 hours (to >70% luminous output)*
|
| Fixture luminous output |
34000 lumens
|
| Housing |
High-impact flame-retardant thermoplastic
|
| Typical Power and Current notes |
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
|
| Included Items notes |
2 x Omega brackets for rigging clamp attachment
|
| Related items notes |
Martin Companion Software Suite (including firmware uploader)
|
| Light engine luminous output |
70000 lumens
|
| DMX data in/out |
5-pin locking XLR
|
| Total heat dissipation (calculated, +/- 10%) |
4340 BTU/hr.
|
| Half-cycle RMS inrush current at 230 V, 50 Hz |
52.3A
|
| Idle Consumption |
94 W, all effects static, zero light output
|
| 120 V, 60 Hz |
10.8A, 1270W, PF 0.99
|
| 230 V, 50 Hz |
5.5A, 1240W, PF 0.97
|

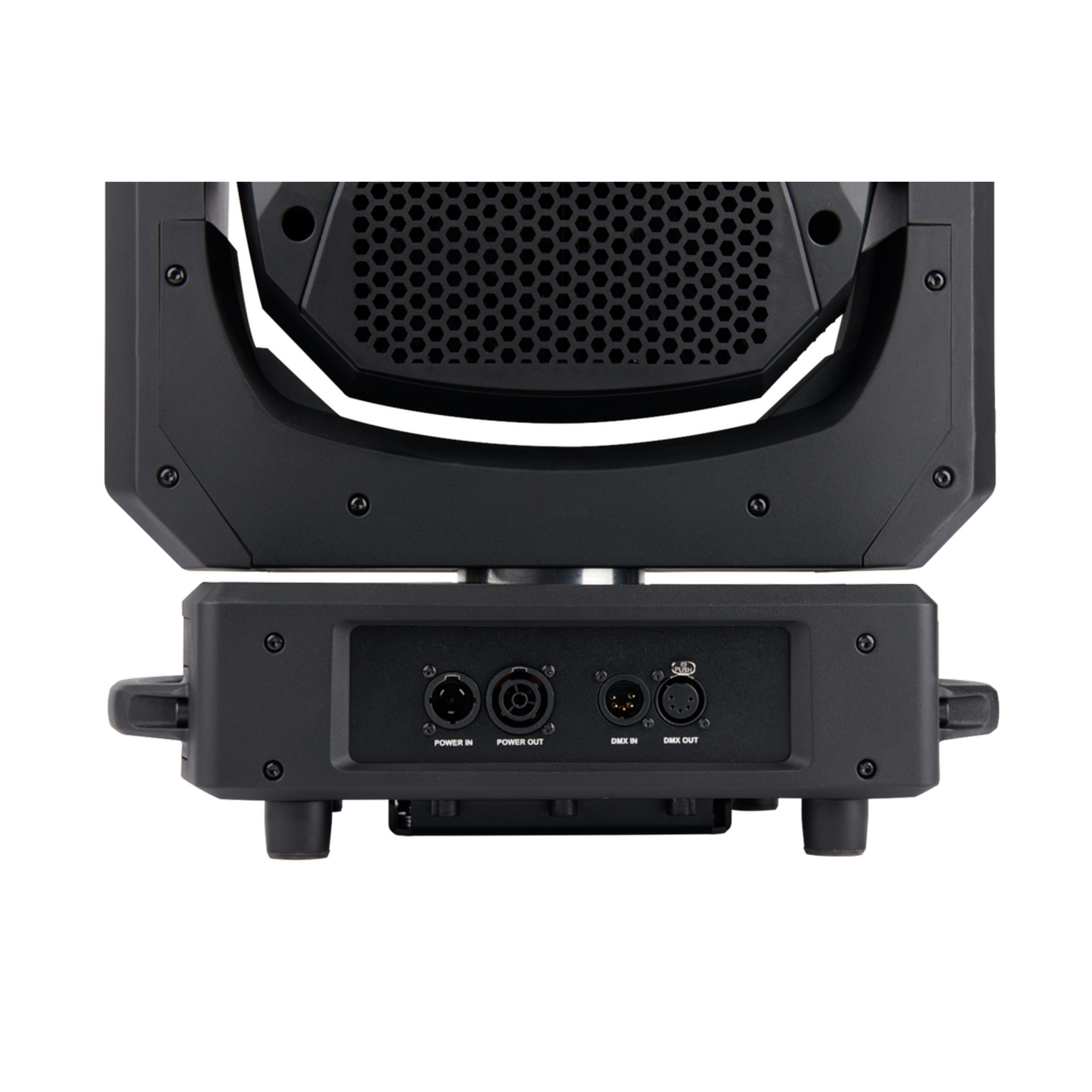

| AC power in, thru |
Neutrik powerCON TRUE1
|
| Global CB Certification/IECEE |
IEC 60598-2-17 (IEC 60598-1)
|
| Gobo diameter |
30.0mm +/-0.2mm (+/- 0.008 in.)
|
| Maximum image diameter |
25mm (0.98 in.)
|
| Gobo thickness, maximum |
1.1 mm (0.04 in.)
|
| LED refresh rate |
3600 Hz
|
| Length |
431 mm (17in.)
|
| Width |
290 mm (11.4in.)
|
| Height |
801 mm (31.5in.)
|
| Weight |
41kg (90.4lbs)
|
