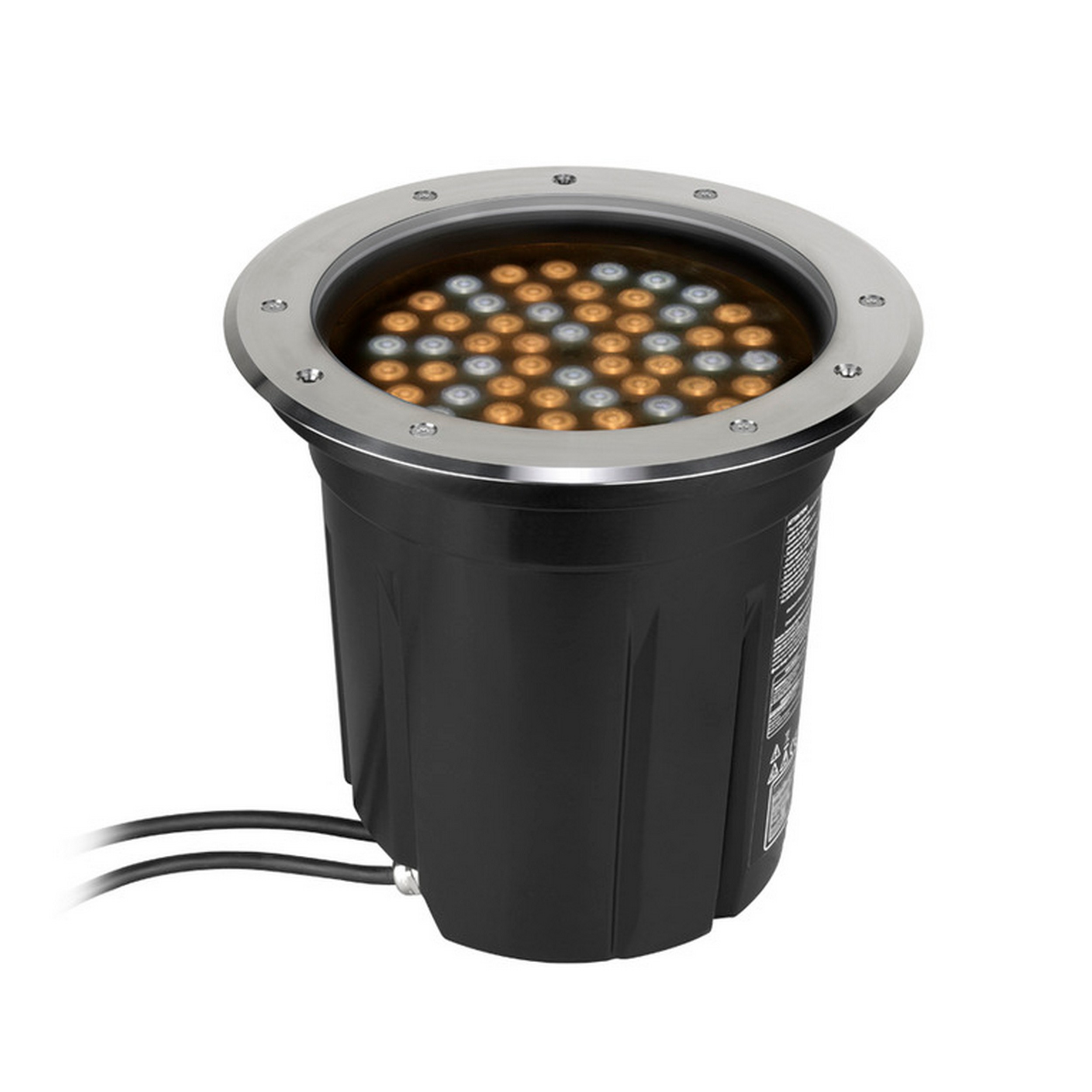

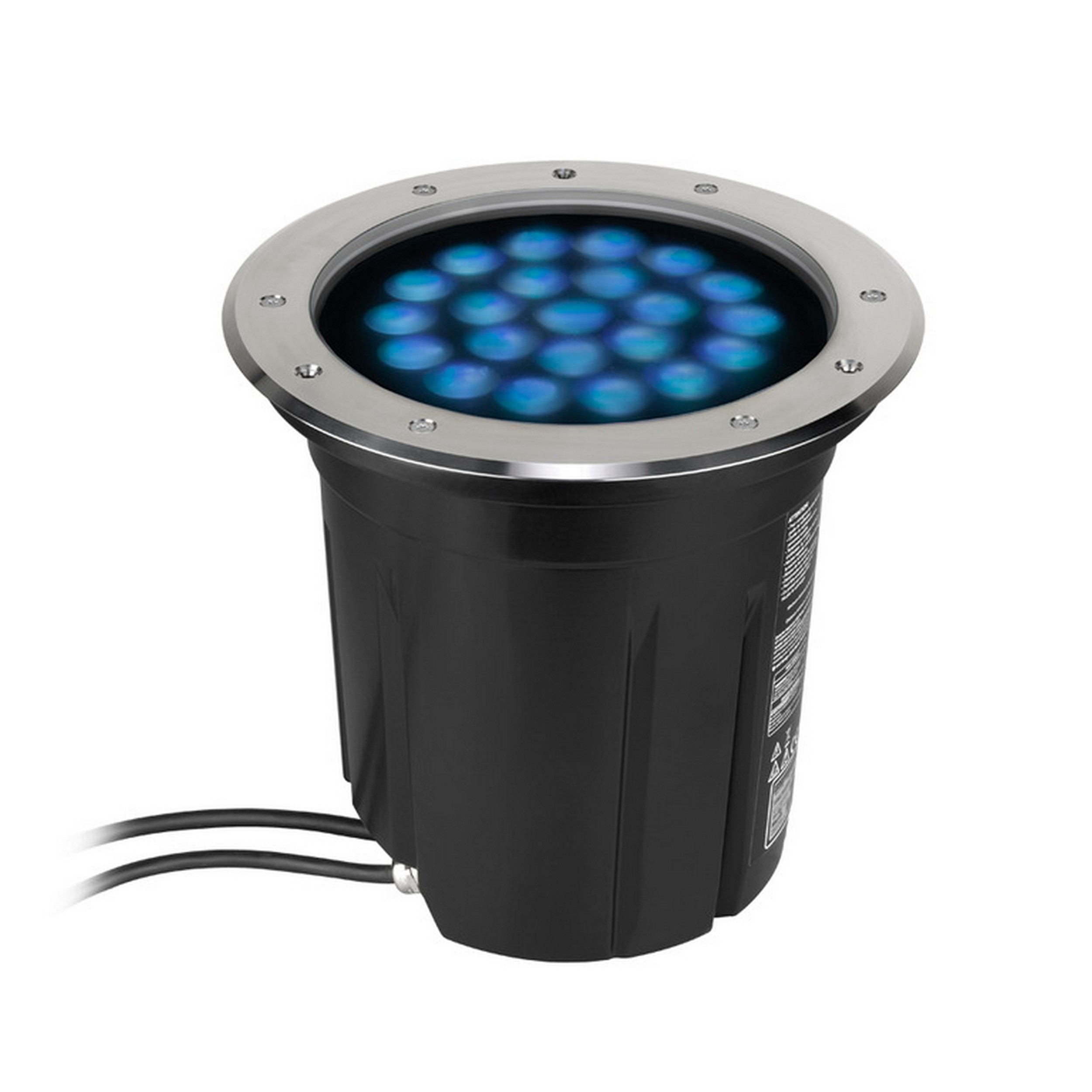

| Fixture |
Height: 315 mm (12.4 in.)
Outer diameter at top of fixture: 310 mm (12.2 in.)
Weight: 14.7 kg (32.5 lbs.)
|
| Top ring (trim ring) |
Flush-mount top ring outer diameter: 329 mm (13.0 in.)
Flush-mount top ring thickness: 7 mm (0.3 in.)
Beveled top ring outer diameter: 340 mm (13.4 in.)
Beveled top ring thickness: 5 mm (0.2 in.)
|
| Installation Sleeve |
Installation sleeve height: 400 mm (15.8 in.) Installation sleeve base flange external diameter: 416 mm (16.4 in.)
|
| All models |
Intensity: 0 - 100%
|
| Exterior Inground 400 and 410 |
Color mixing: RGBW
|
| Exterior Inground 420 |
Color temperature control: 2700 K - 6500 K
|
| All Models |
Control systems: DMX, RDM
DMX addressing and fixture setup: RDM
Fixture status monitoring: Multi-color status LED visible through top glass
Firmware update: Serial upload via DMX link
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Receiver: RS-485
|
| Exterior Inground 400 and 410 |
DMX channels: 3/4
|
| Exterior Inground 420 |
DMX channels: 2
|
| All models |
LED manufacturer: Cree
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions
|
| Exterior Inground 400 |
Light source: R, G, B and W single-color LEDs
Beam angle options
Narrow diffuser: 10.5°
Medium diffuser: 20°
Wide diffuser: 41°
Asymmetric diffuser: 52° x 12°
Directional (8°): 67° x 24°
Directional (20°): 69° x 24°
|
| Exterior Inground 410 |
Light source: RGBW quad-color LEDs
Beam angle options
Narrow diffuser: 22°
Medium diffuser: 29°
Wide diffuser: 50°
Asymmetric diffuser: 59° x 25°
Directional (8°): 76° x 33°
Directional (20°): 79° x 33°
|
| Exterior Inground 420 |
Light source: Warm (2700 K) and cool (6500 K) LEDs
Beam angle options
Narrow diffuser: 10.5°
Medium diffuser: 20°
Wide diffuser: 41°
Asymmetric diffuser: 52° x 12°
Directional (8°): 67° x 24°
Directional (20°): 69° x 24°
|
| Exterior Inground 400 |
Maximum luminous output: 5700 lumens
|
| Exterior Inground 410 |
Maximum luminous output: 4800 lumens
|
| Exterior Inground 420 |
Maximum luminous output: 6600 lumens
|
| Fixture housing |
Aluminum
|
| Front glass |
19 mm (0.8 in.) tempered glass (clear and anti-skid versions)
|
| Finish |
Black powder coating over anodizing
|
| Trim ring (top ring) |
Stainless steel
|
| Color |
Black
|
| Corrosion resistance |
C5-M (very high corrosivity / marine, ISO 12944)
|
| Protection rating |
IP67
|
| Impact resistance |
IK10
|
| Installation sleeve |
Hot-dip galvanized steel
|
| Weight resistance (in installation sleeve with stable groundwork) |
4000 kg (from vehicle tire for example)
|
| Construction notes |
RoHS compliant
|
| Installation method |
Installation sleeve (ordered separately)
|
| Minimum distance to illuminated surfaces |
0.2 m (0.6 ft.)
|
| Power connection |
1.8 m (5.9 ft.) cable tail without connector
|
| Data connection |
1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail
|
| Power and data cable entries |
IP68/69 cable glands
|
| AC power |
100-277 V~ nominal, 50/60 Hz
|
| Power supply unit |
Integrated, auto-sensing multi-voltage
|
| Power Consumption |
11 W (steady state, all LEDs at zero intensity)
|
| Surge protection |
4 KV
|
| 120 V, 60 Hz |
1.3 A, 142 W, PF 0.99
|
| 230 V, 50 Hz |
0.7 A, 142 W, PF 0.97
|
| Typical Power and Current notes |
Measurements made at nominal voltage. Allow for a deviation of +/- 10 %.
|
| Cooling |
Conduction / convection
|
| Maximum ambient temperature (Ta max.) |
45° C (113° F)
|
| Minimum ambient temperature (Ta min.) |
-30° C (-4° F), power must be maintained below 0° C (32° F)
|
| Maximum surface temperature, steady state, at 40° C ambient |
65° C (149° F)
|
| Total heat dissipation (calculated, +/- 10%) |
490 BTU/hr.
|
| EU safety |
EN60598-2-5 (EN60598-1), EN60598-2-13, EN62471, EN62493
|
| EU EMC |
EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5
|
| US safety |
ANSI/UL 1598
|
| US EMC |
47 CFR Part 15 Class A
|
| Canadian safety |
CSA C.22.2 No. 250
|
| Australia/NZ |
RCM
|
| Installation sleeve for Inground 400 |
P/N 91611841
|
| Installation Lid for flush mount top ring installations |
P/N 91616086
|
| Installation Lid for beveled top ring installations |
P/N 91616087
|
| Accessories notes |
Please order Installation Sleeves separately from fixtures.
|
| Inground 4xx, new install |
P/N 90507100HU
|
| Inground 4xx, replacement (for existing Inground 200 installations) |
P/N 90507150HU
|
| Inground 4xx, replacement (for existing Inground 200 installations), no top ring or top glass |
P/N 90507110HU
|
| Ordering information notes |
Products are ordered pre-configured by selecting from a range of options - see elsewhere on website or contact your Martin™ supplier.
|
| CCT |
6500 K (White LED)
|
| CRI (Color Rendering Index) |
> 70
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Cable |
P/N 91616091
|
| Related items notes |
Martin Companion Software Suite (including firmware uploader)
|
| Global CB Certification/IECEE |
IEC 60598-2-13 (IEC 60598-1)
|
