AMX

HPX-AV102-USB-R

Marka:	AMX
Ürün Kodu:	HPX-AV102-USB-R
Kategori:	Extender ve Bağlantı Panelleri
Barkod:	FG552-37

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Dimensions	1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight	Approximately 1lb (0.46 Kg)

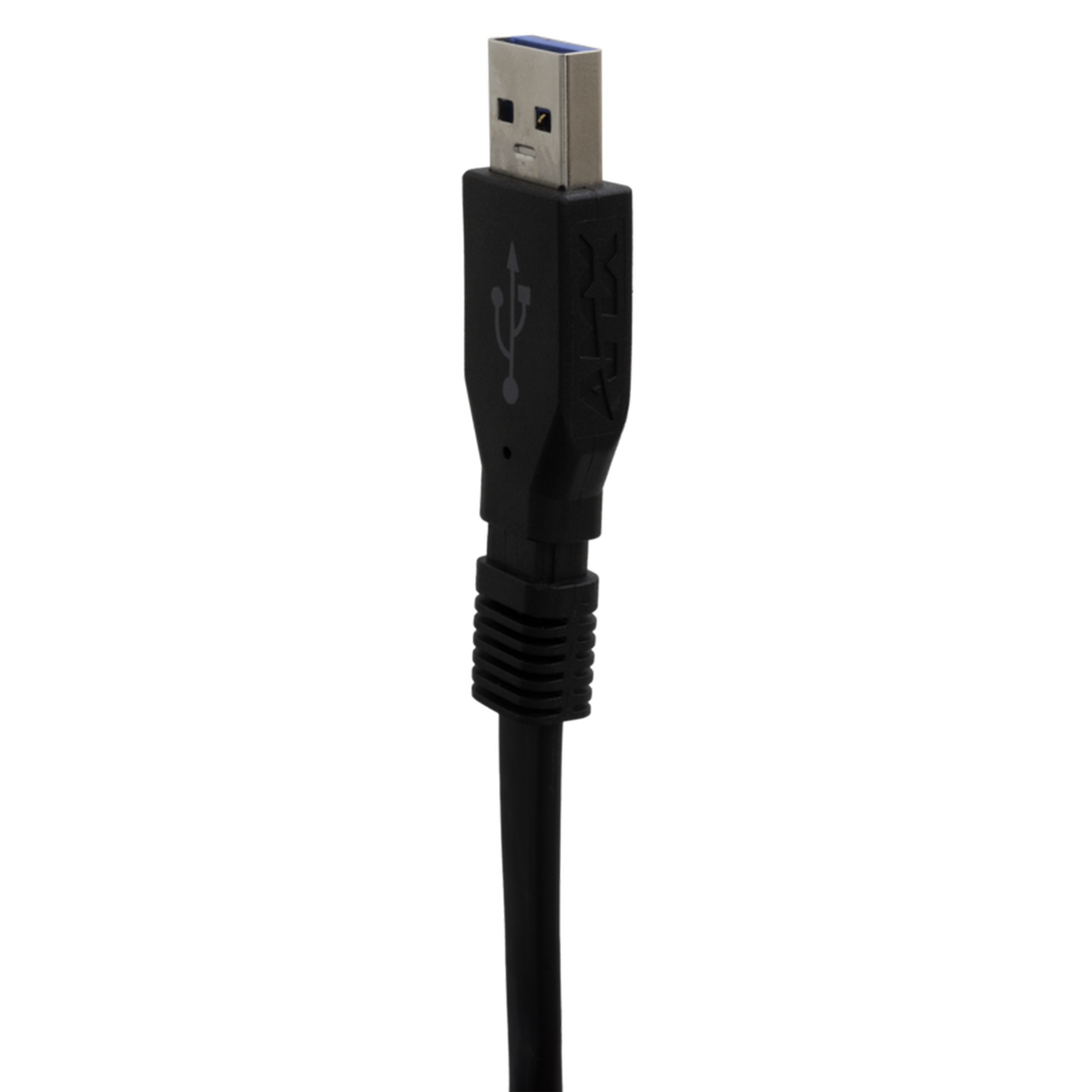

Integrated Cable	Universal Serial Bus (USB) 3.0 Retractable Cable Pullout Length: 5 ft (1.52m) Pigtail: 5 ft (1.52m) Pigtail Connector: USB Type A Male (use included adapters to change to a USB Type A female or USB Type B male connection) Data Rate: 5 Gbps

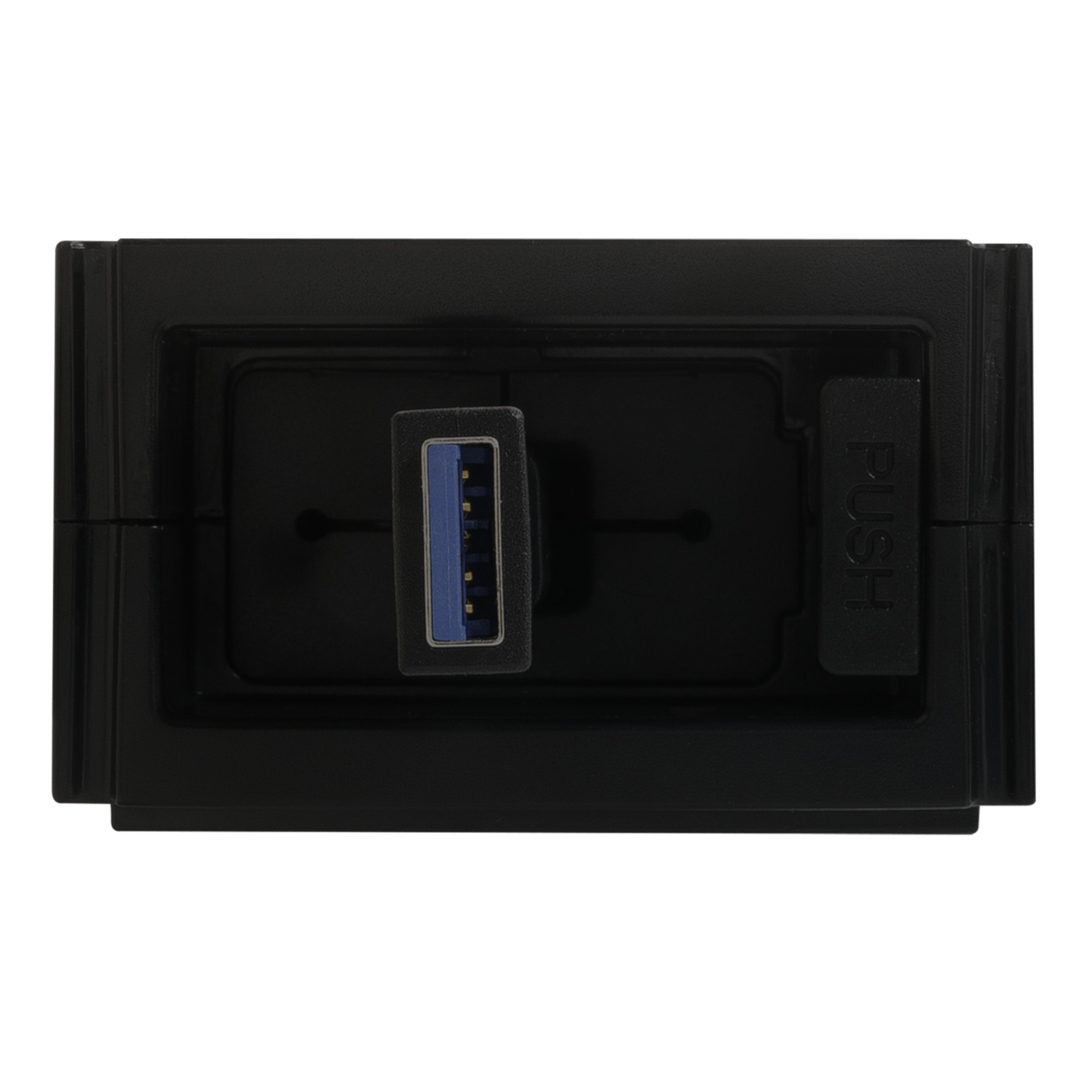

Front Panel Components	Pull-Out Connector: USB Type A Male
Long-Term Reliability	Tested to 10,000 pull and release cycles
Optional Accessories	HPA-MYT-TX, MyTurn Source Selector Button (FG554-21) HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23) CBL-USB-FL2, USB MyTurn-Ready Flat Cable (FG10-2197-16) NMX-VCC-1000, Sereno Video Conferencing Camera (FG3211-10)
FG Numbers	FG552-37

DETAYLAR

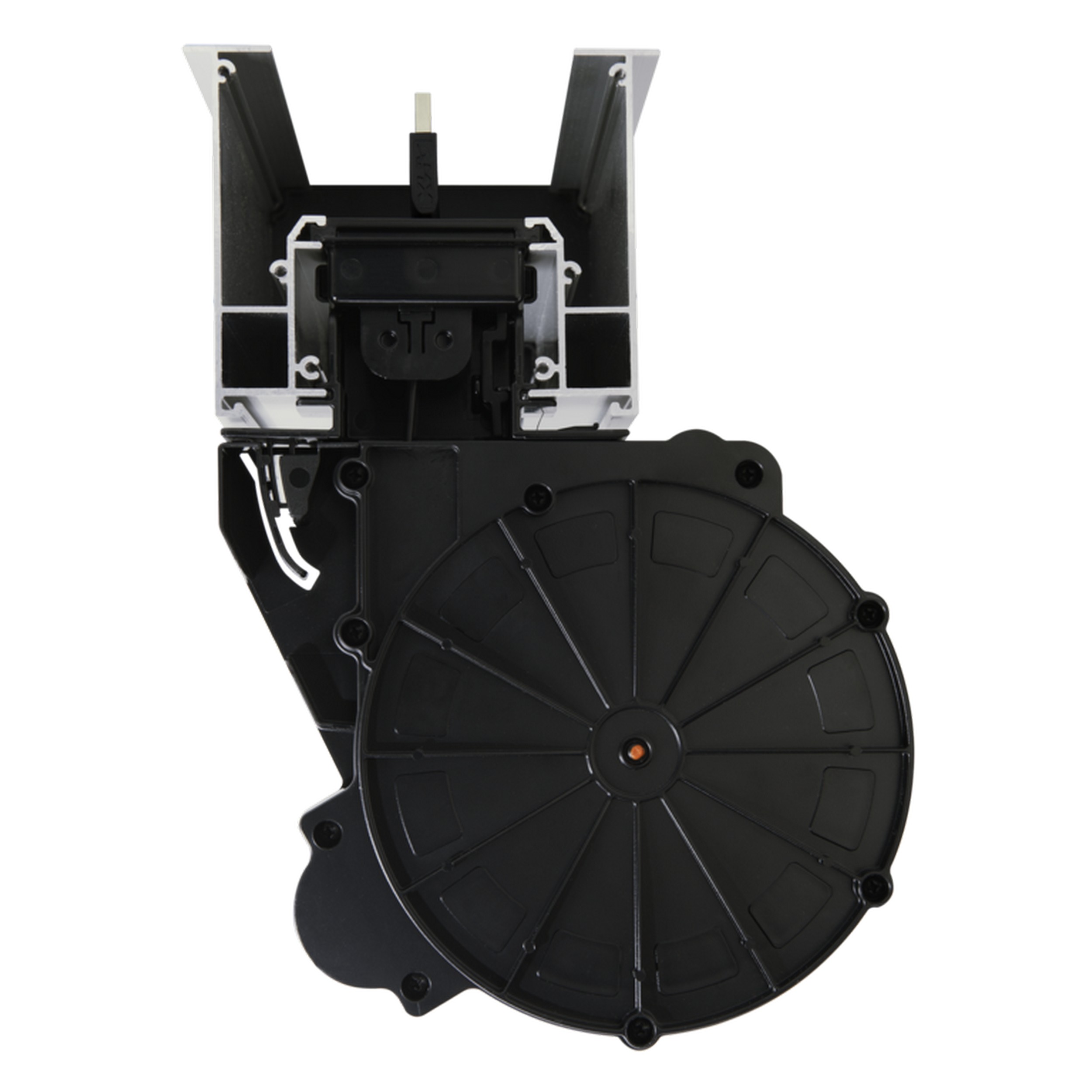

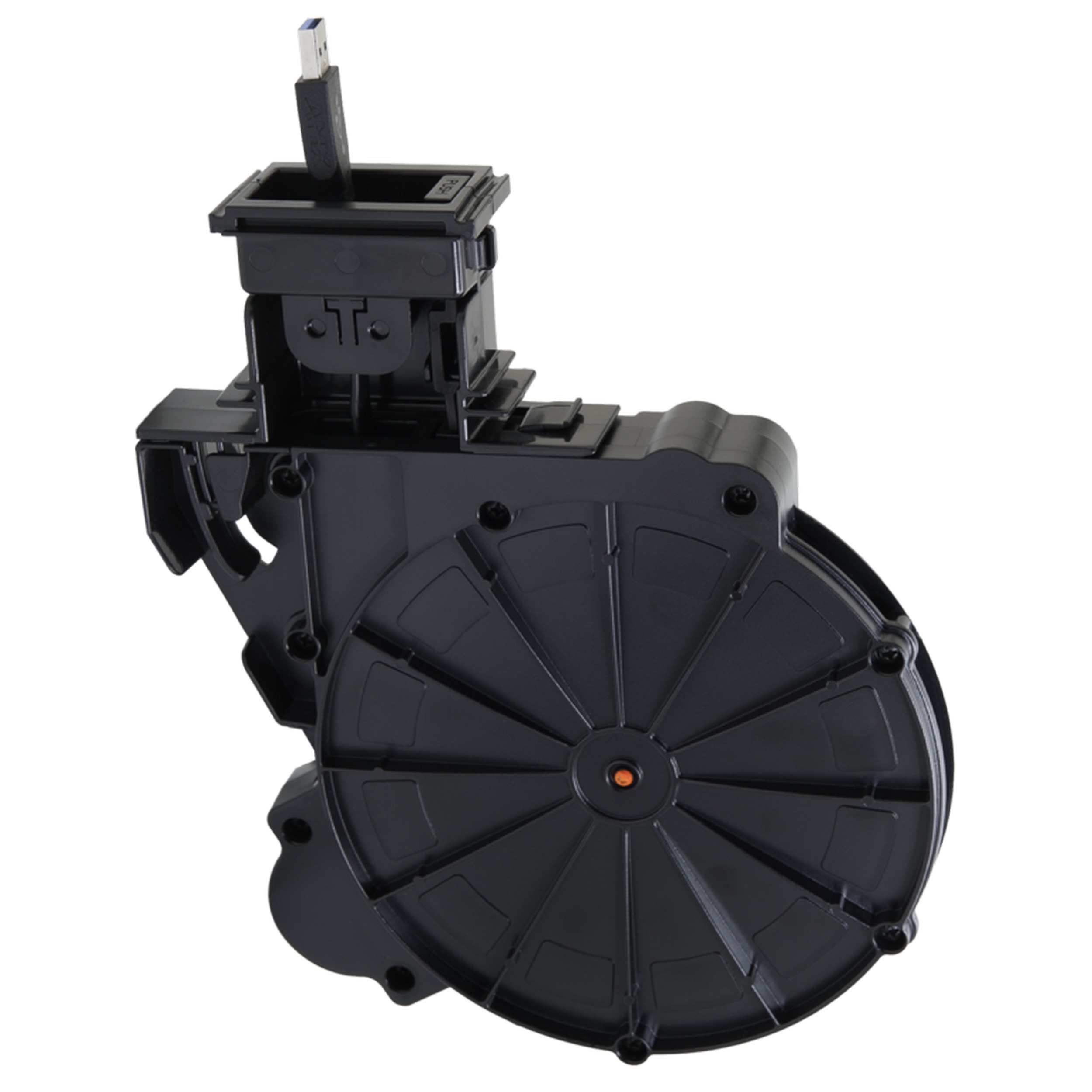

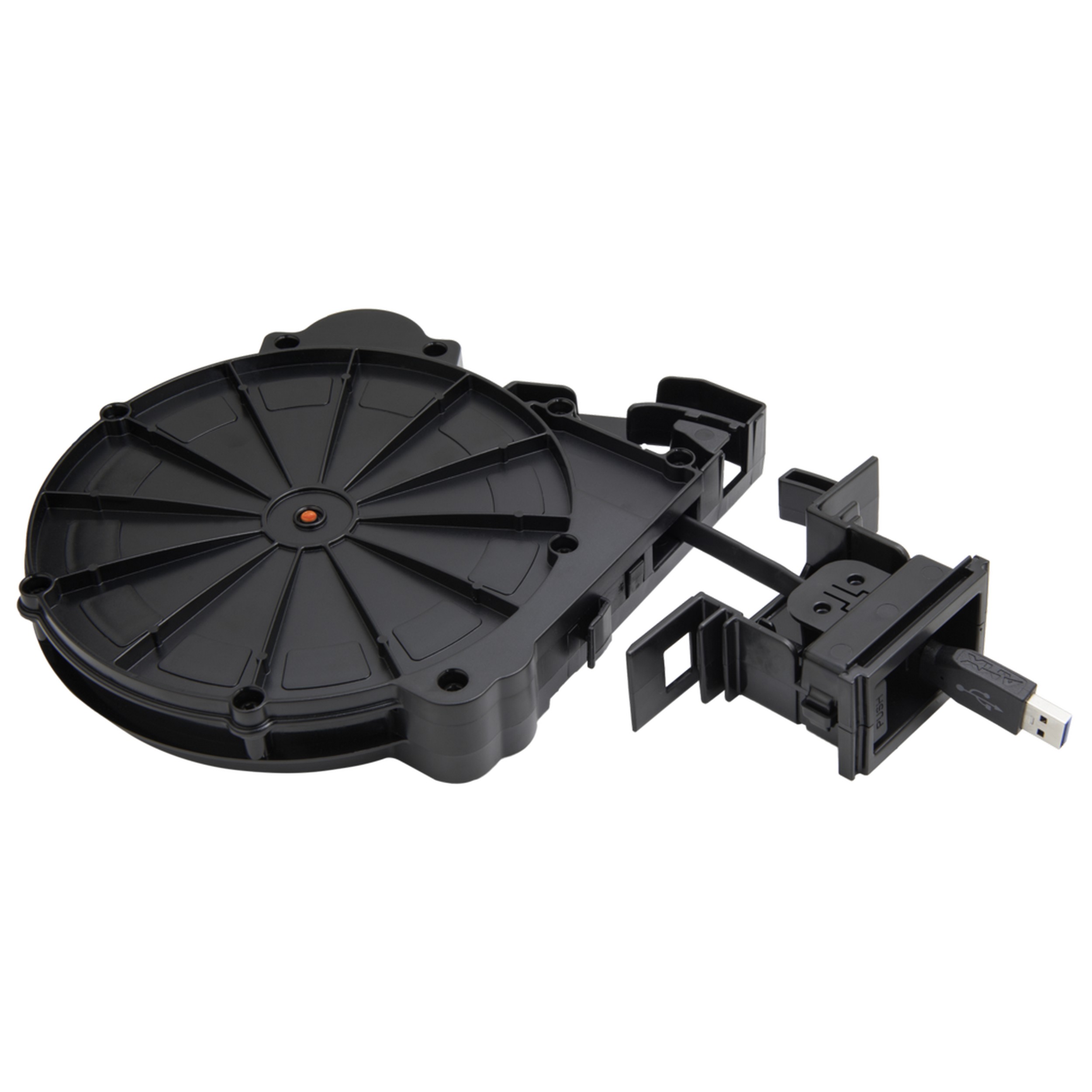

The HydraPort^® 3.0 Module with Retractable Cable allows you to connect your laptop to devices in the room such as a Sereno Web Camera or an Alero Web Conferencing Mixer. You can also connect through a rack-mounted USB 3.0 dock to connect to the display, Ethernet, cameras, mics, and more via a single USB 3.0 cable. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on My MyTurn^™ Source Selection Button, it is easy to instruct the system to switch to the selected input.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

Getting Started with HydraPort

For schedules and registration for these and any Harman Professional University courses, visit College of AMX.
