| Height |
769 mm (30.29 in.)
|
| Height without castors |
636 mm (25.06 in.)
|
| Length |
785 mm (30.91 in.)
|
| Weight, dry |
124 kg (274 lb.)
|
| Weight, filled |
129 kg (285 lb.)
|
| Width |
648 mm (25.52 in.)
|
| Coverage volume |
80 m3 (2825 ft3) minute
|
| Fluid consumption, continuous maximum output |
70 ml minute
|
| Ready time (minimum) |
5-minutes
|
| Ready time (optimal) |
7-minutes
|
| Performance notes |
Continuous effect output
|
| Control options |
Integrated digital remote control, fast access keypad, DMX/RDM, master/slave
|
| Control parameters |
Continuous or timer-controlled output
|
| Low-Fog/Fan |
Proportionally controlled output, 0-100%
|

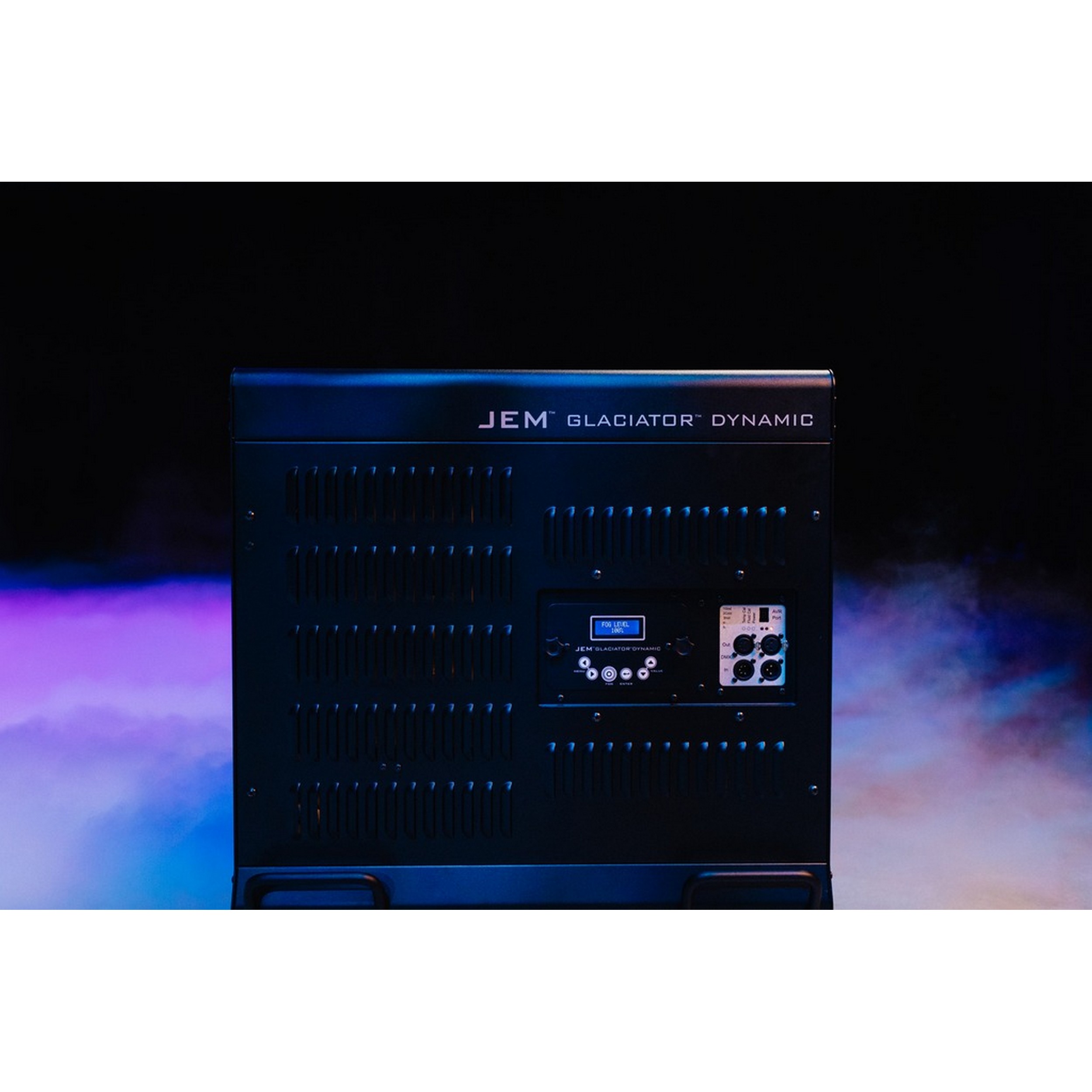

| Setting and addressing |
Control panel with backlit LCD display and 6-button user interface or via RDM
|
| DMX channels |
1/2
|
| DMX compliance |
ANSI E1.11 - USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20 RDM
|
| Housing |
Steel
|
| Color |
Black
|

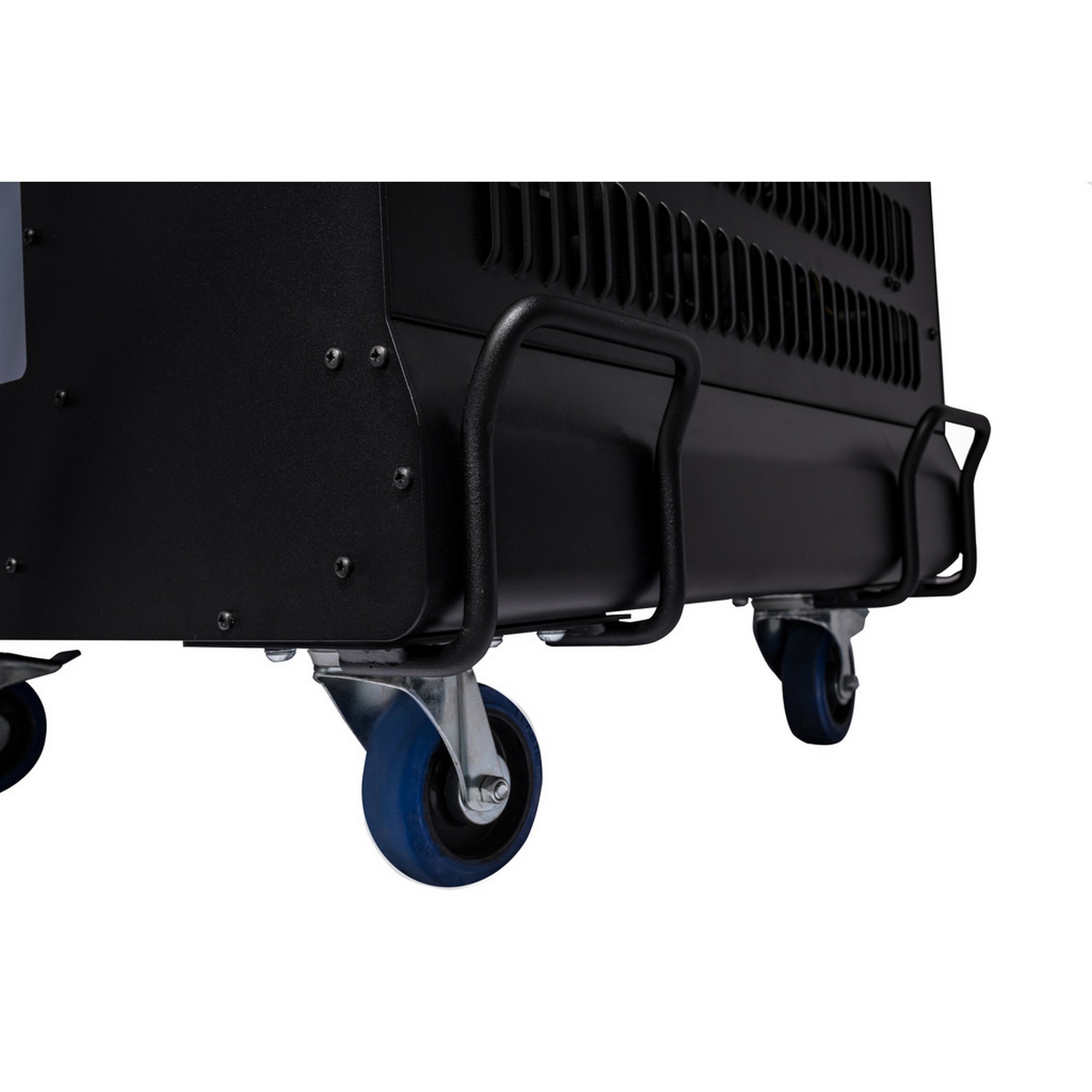

| Portability |
Removable castors
|
| Protection rating |
IP20
|
| Heat exchanger |
2500 W, thermally protected
|
| Fluid pump, low-fog fluid |
Oscillating piston, high-pressure
|
| Fluid pump, waste condensate |
Peristaltic pump, low-pressure
|
| Fluid management, low-fog fluid |
Fluid out sensing, sealed for transportation
|
| Fluid management, waste condensate |
Visual sight gauge, LED illuminated reservoir
|
| Fluid reservoir, low-fog fluid |
5 l drop-in reservoir w/ quick connect fitting or external source
|

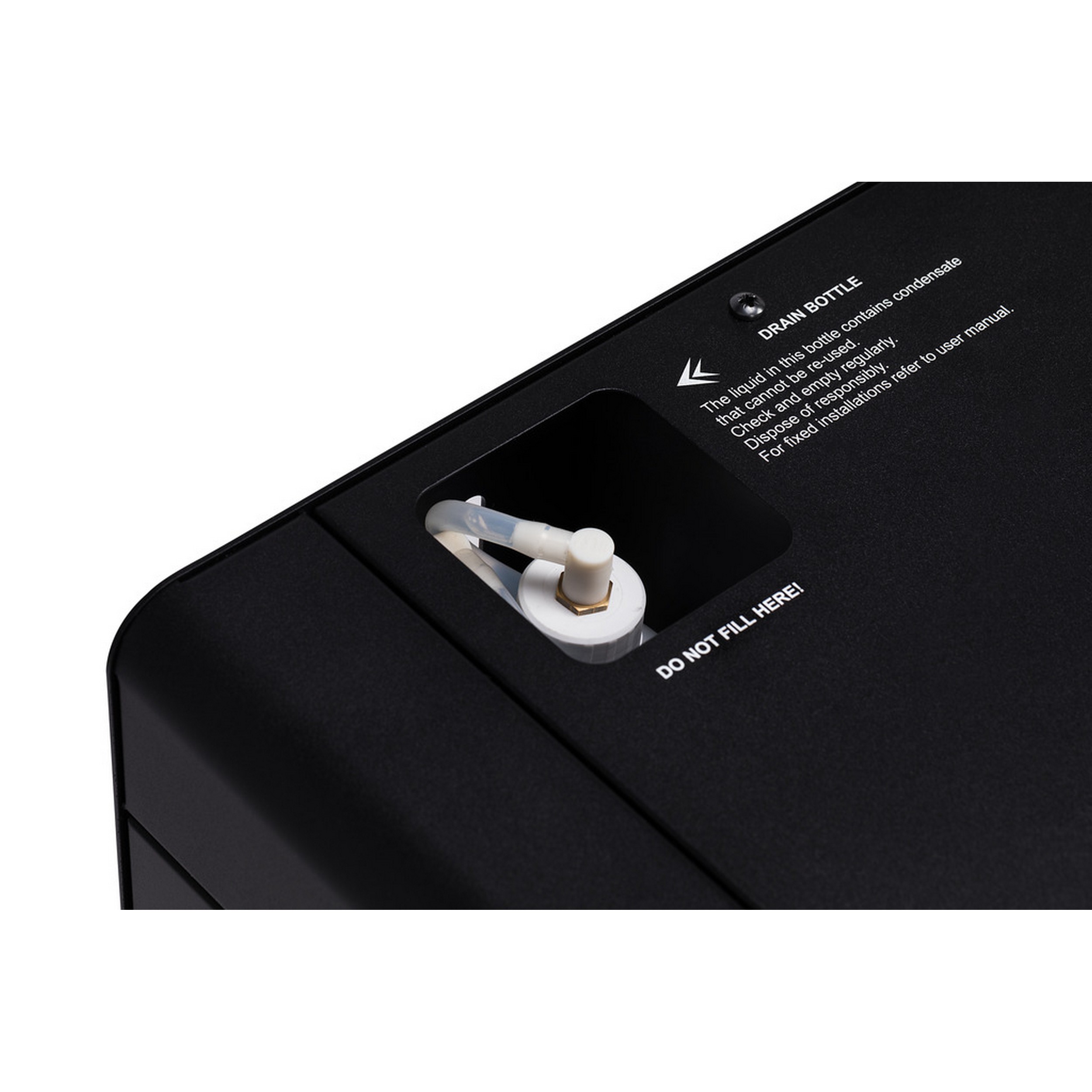

| Fluid reservoir, waste condensate |
0.5 l drop in reservoir w/ quick connect fitting or external source
|
| Refrigeration |
Closed loop system, variable speed condenser fans, electronic expansion valve
|
| Refrigeration control |
PWM electronic control
|
| Remote Control |
Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR
|
| Remote Control Cable Length (max.) |
25 m (82 ft.)
|

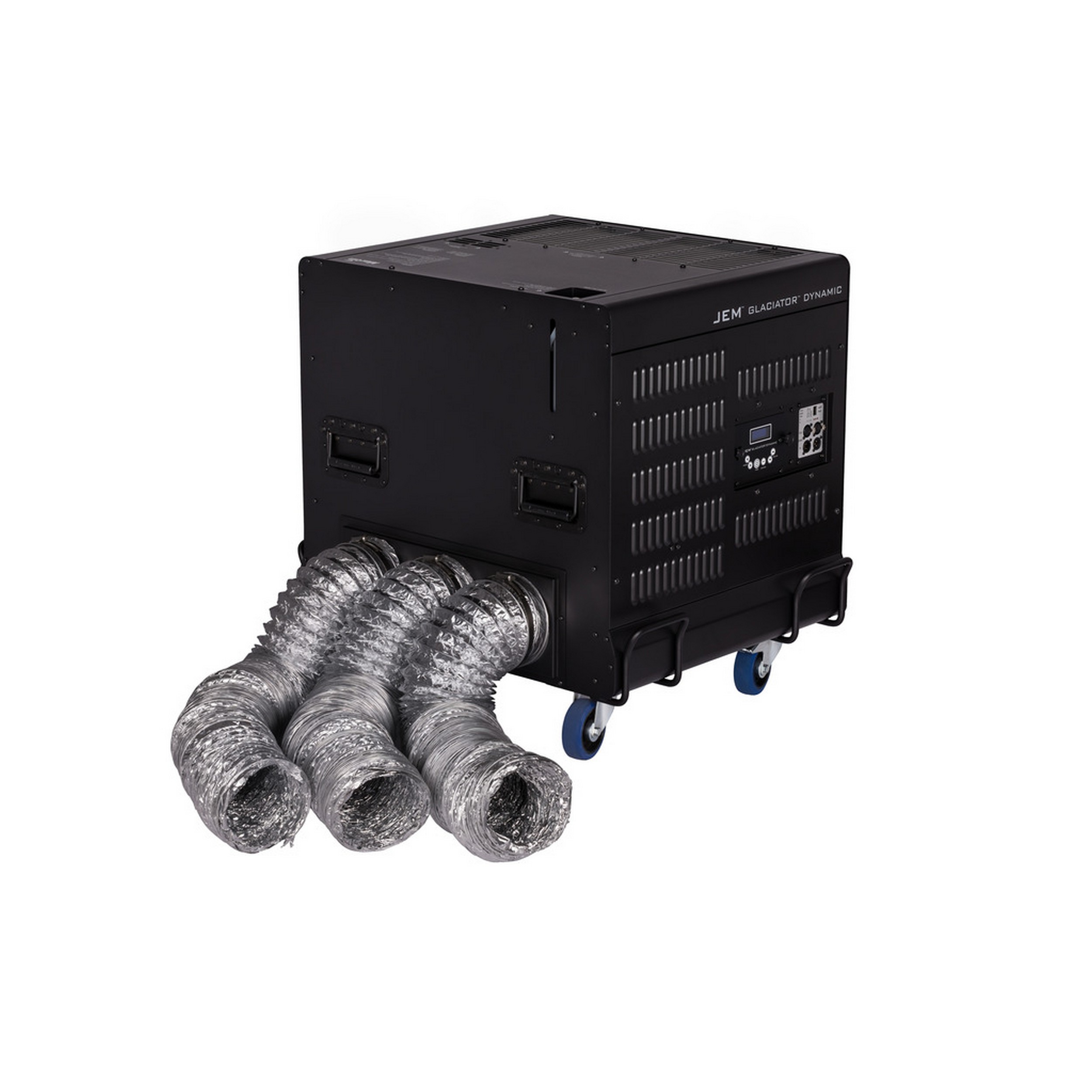

| Optional Ducting Kit |
Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.) OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw
|

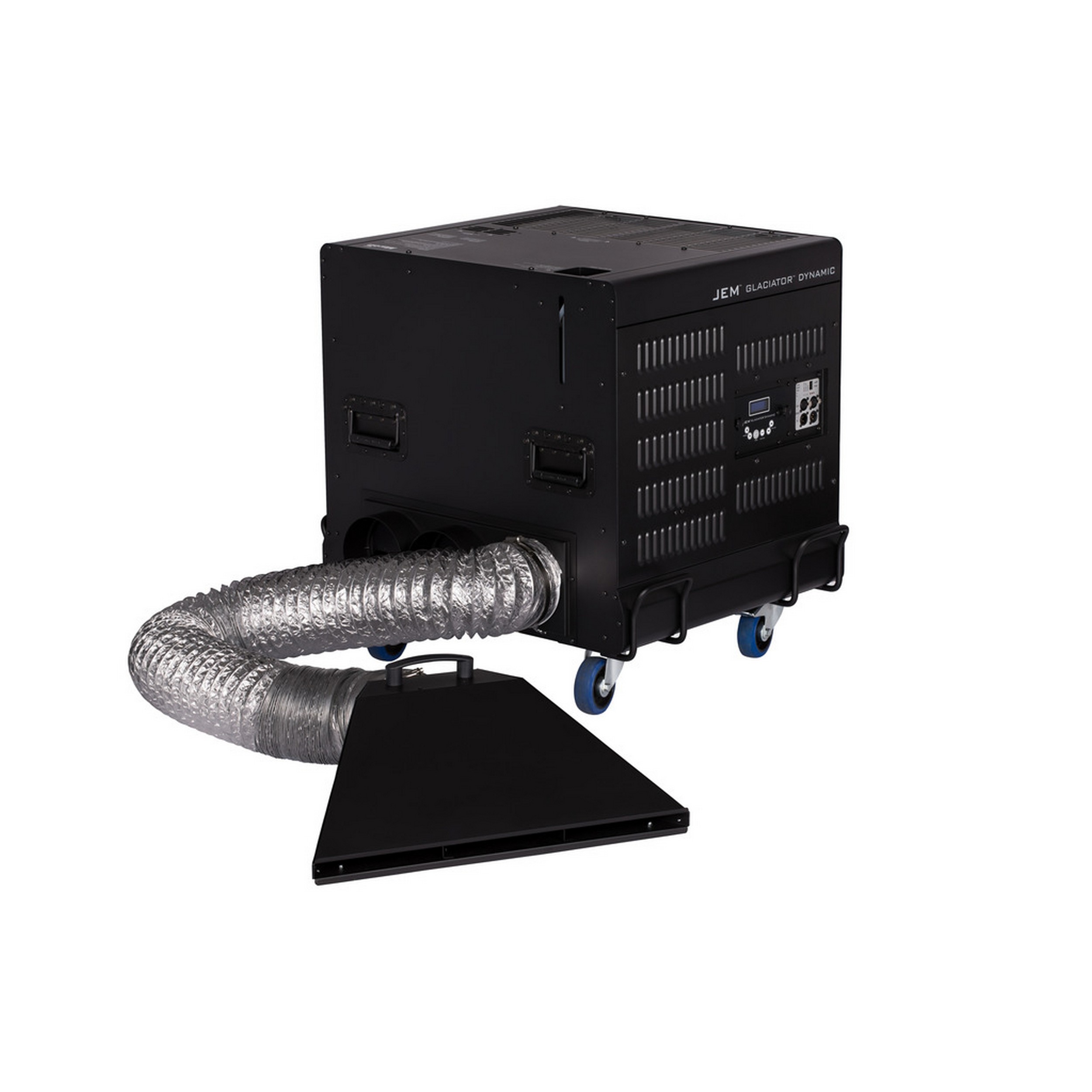

| Optional Fog Blade |
Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw
|

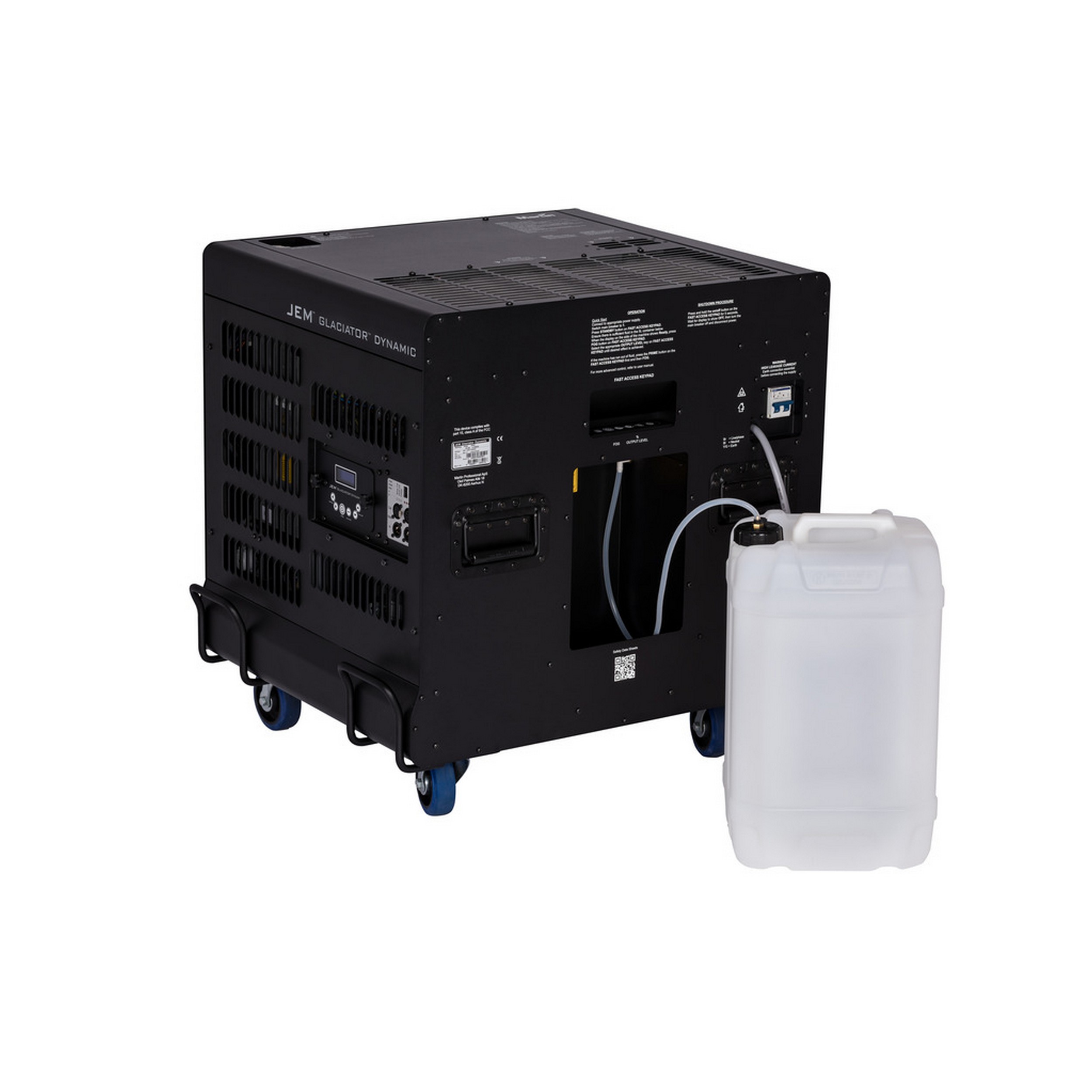

| Optional External Fluid Kit |
25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting
|

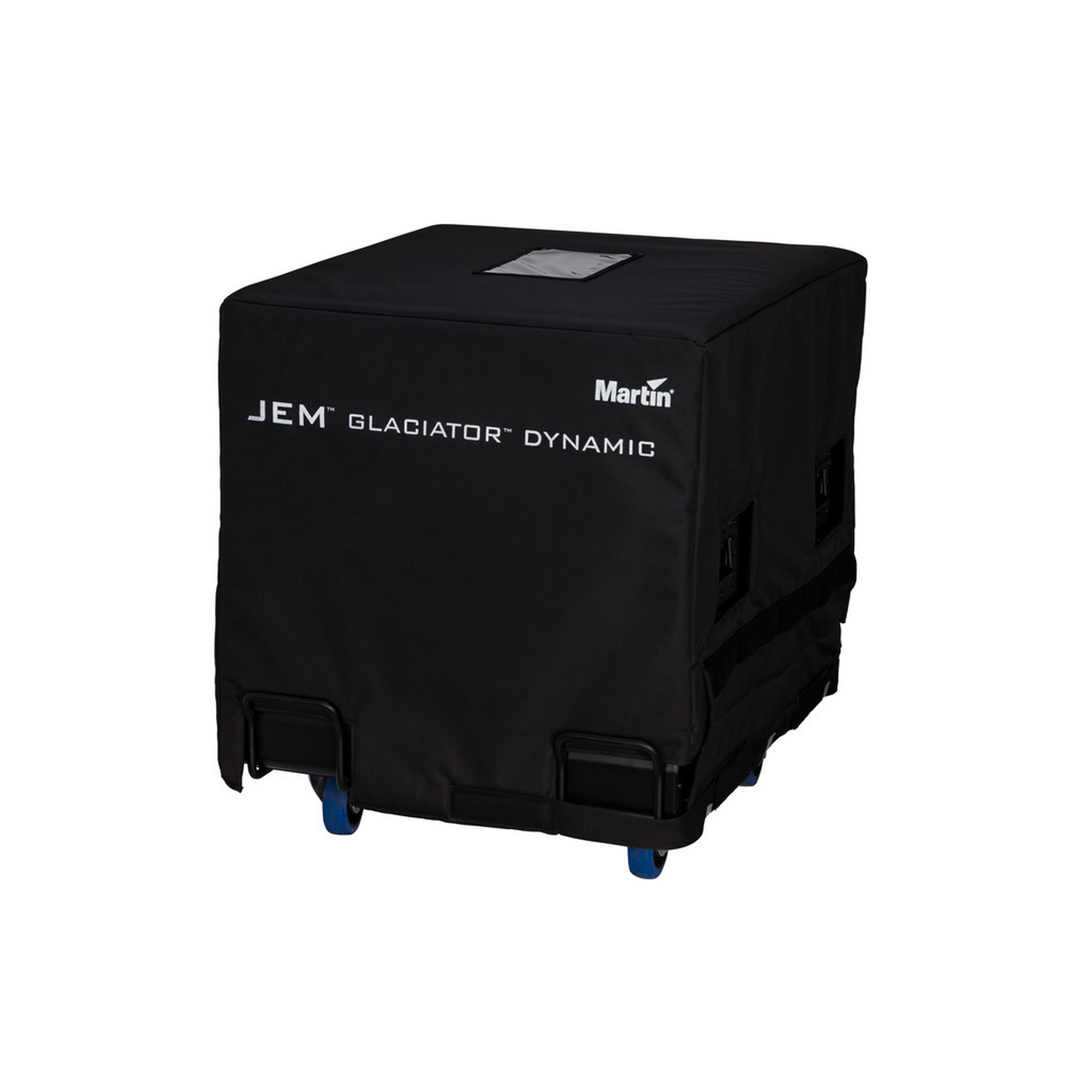

| Optional Softcover |
Black, heavy duty PVC external, brushed nylon padding interior, hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket
|
| Orientation |
Horizontal Only
|
| Location |
Dry location only
|
| Clearance around machine |
60 cm (24 in.)
|
| Ducting |
Optional, max length 10 m (32.8 ft.)
|
| AC Power |
Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.)
|
| DMX/RDM in/out |
3- and 5-pin locking XLR
|
| Remote control |
3-pin locking XLR
|
| Firmware |
AVR socket
|
| Fluid inlet, low-fog fluid |
Brass barbed hose tail, 6 mm
|
| Fluid outlet, waste |
Brass barbed hose tail, 6 mm
|
| AC power |
208 - 250 V single phase, 50/60 Hz
|
| Typical power consumption, standby |
10 W
|
| Typical power consumption, maximum |
3500 W
|
| Power supply unit |
Auto-ranging electronic switch-mode
|
| Integrated resettable circuit breaker |
25 A, 240 V max., 50/60 Hz
|
| Half-cycle RMS inrush current at 230 V, 50 Hz |
20 A
|
| 208 V, 60 Hz |
3350 W, 17.8 A, PF 0.96*
|
| 220 V, 50 Hz |
3350 W, 16.9 A, PF 0.96*
|
| 230 V, 50 Hz |
3350 W, 15.6 A, PF 0.96*
|
| 240 V, 50 Hz |
3350 W, 15.2 A, PF 0.96*
|
| Typical Power and Current notes |
*Figures are typical, not maximum. Measurements made at nominal voltage, allow for a deviation of +/- 10%. PF = Power Factor.
|
| Cooling |
Forced air, low noise
|
| Maximum ambient temperature (Ta max.) |
35° C (95° F)
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Exterior surface temperature, steady state |
30° C (86° F)
|
| Total heat dissipation, idle (calculated, +/- 10%) |
2241 BTU/hr.
|
| Total heat dissipation, full load (calculated, +/- 10%) |
11430 BTU/hr.
|
| Noise level average, maximum low-fog output |
62.76 dBa
|
| Noise level average, standby |
40.47 dBa
|
| EU safety |
EN 60335-1+A11
|
| EU EMC |
EN 61000-6-1, EN 62233
|
| EU immunity |
EN 61000-6-1+A1
|
| Fluid reservoir, 5 l |
P/N 34300506
|
| Fluid reservoir 0.5 l |
P/N 34300515
|
| JEM Glaciator Digital Remote Control |
P/N 92765050
|
| JEM Glaciator Dynamic, Ducting Kit |
P/N 92625020
|
| JEM Glaciator Dynamic, Fog Blade |
P/N 92625025
|
| JEM Glaciator Dynamic, Softcover |
P/N 92625030
|
| JEM External Fluid Reservoir Kit, 25 l |
P/N 92620035
|
| Approved fluids* |
JEM™ Low-Fog Fluid, Quick Dissipating
JEM™ Low-Fog Fluid
JEM™ Low-Fog Fluid, High Density
Martin® Pro-Clean and Storage Fluid
Various sizes available - contact your dealer or see 'Fluids' product pages for details
|
| Service Tools |
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
|
| JEM™ Glaciator™ Dynamic |
P/N 92210525
|
