| Height |
242 mm (9.6 in.)
|
| Height with hanging bracket |
333 mm (13.2 in.)
|
| Length |
485 mm (19.1 in.)
|
| Weight, dry |
11.2 kg (24.7 lbs.)
|
| Weight, filled |
13.7 kg (30.2 lbs.)
|
| Width |
335 mm (13.2 in.)
|
| Coverage volume |
600 m3 (21,189 ft3) per minute
|
| Fluid consumption (max.) |
100 ml per minute
|
| Maximum operating time, maximum output, 2.5 l of fluid |
1.2 hours
|
| Ready time |
7-minutes
|
| Performance notes |
Continuous effect output
|
| Control options |
Integrated digital remote control, DMX, master/slave link mode
|
| Control parameters |
Continuous or timer-controlled output
|
| Fog |
Variable output control, 0-100%
|
| DMX channels |
1
|
| External fluid control |
Fluid sensing
|
| DMX compliance |
ANSI E1.11 - USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20 RDM
|
| Housing |
Steel and aluminum
|

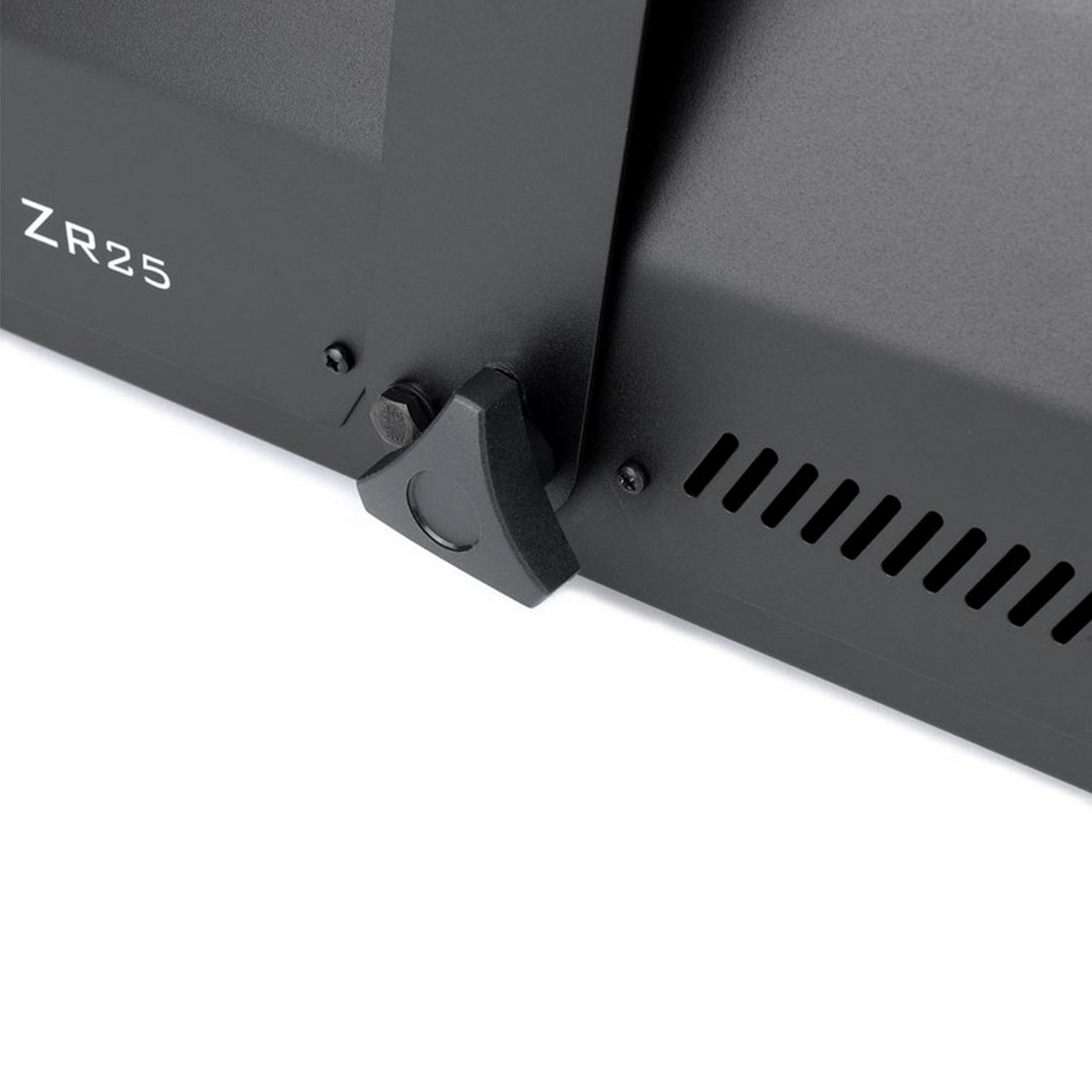

| Hanging bracket |
Integrated yoke with safety attachment point
|
| Color |
Black
|
| Heat exchanger |
1150 W, thermally protected
|
| Fluid pump |
Oscillating piston, high pressure
|
| Fluid management |
Fluid out sensing, sealed for transportation
|

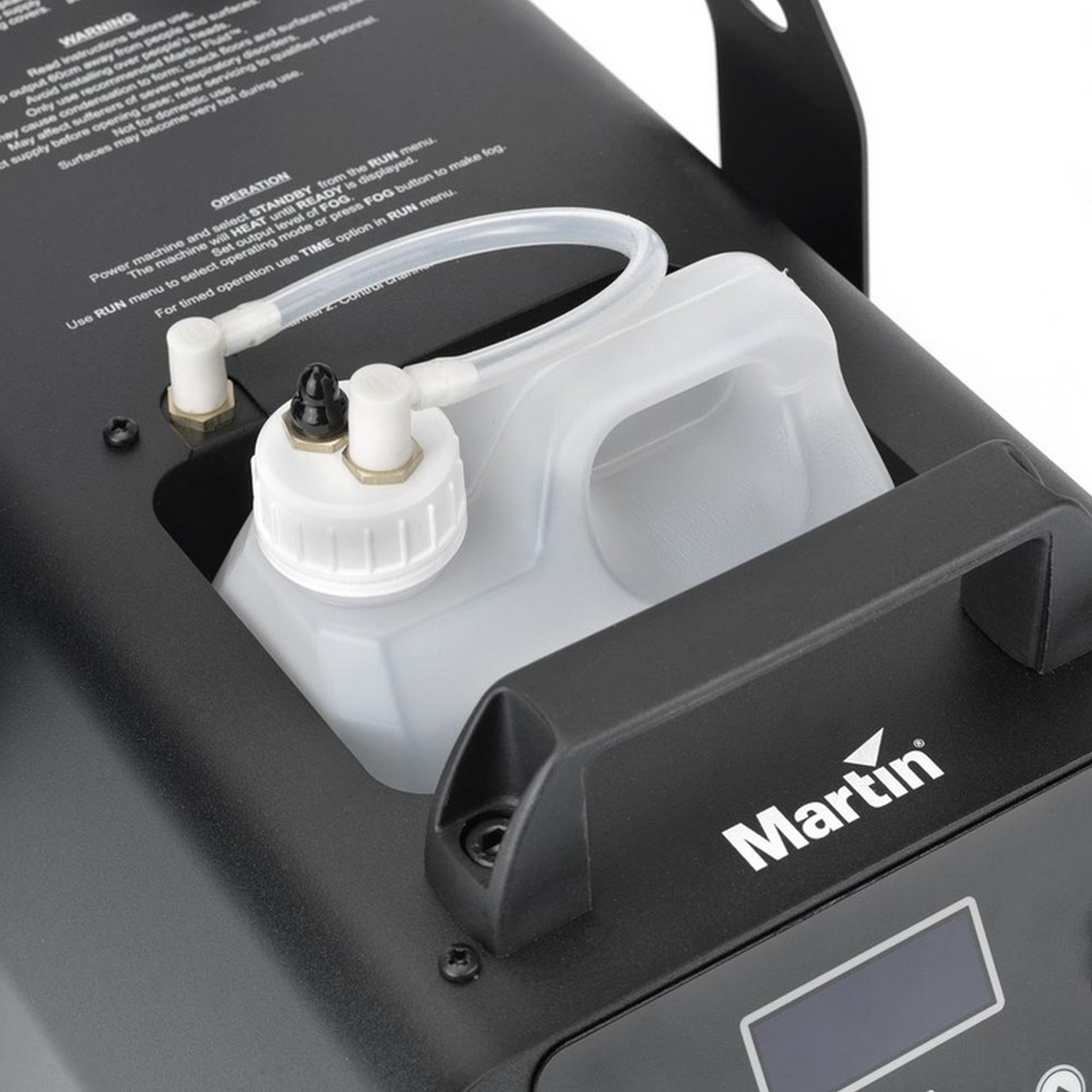

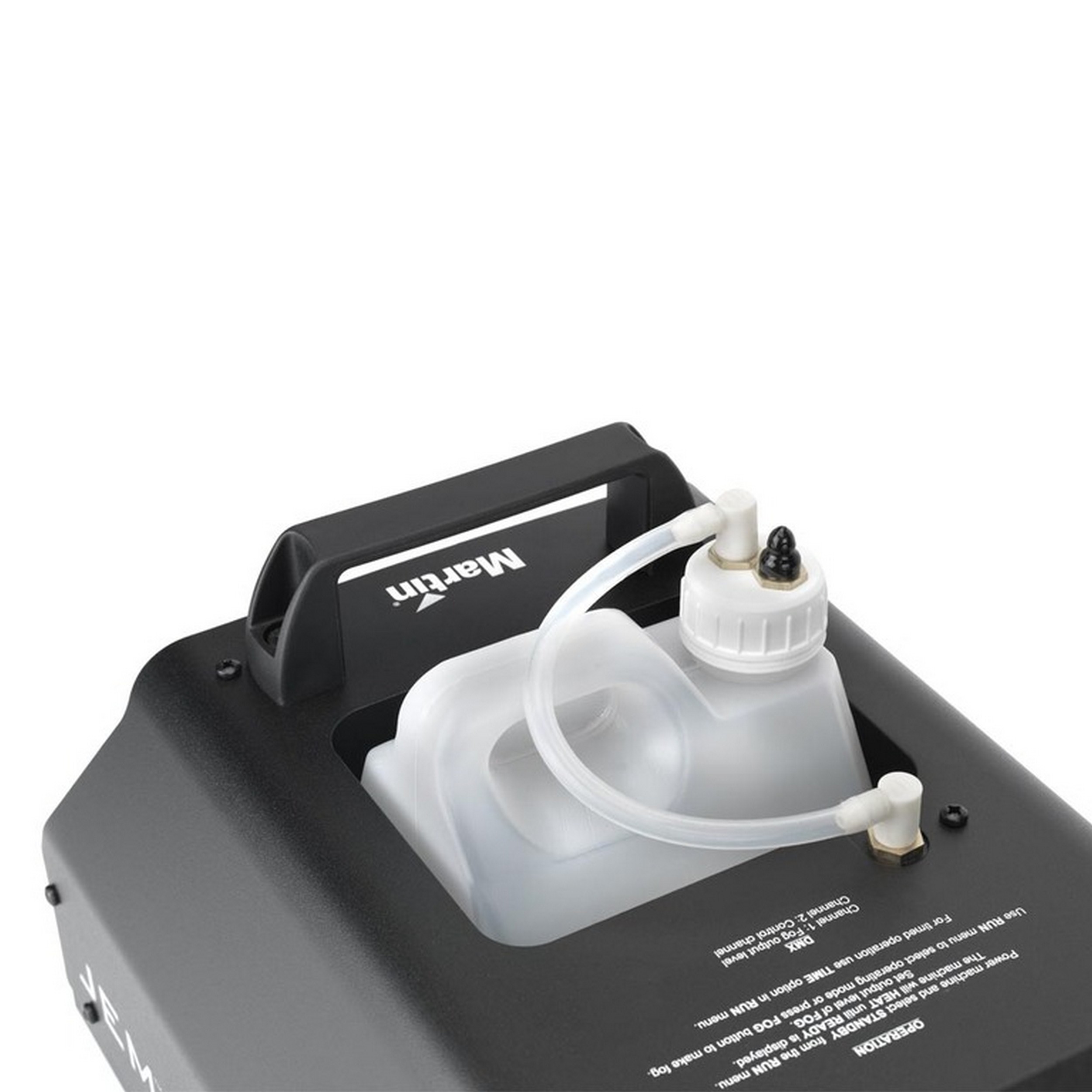

| Fluid reservoir |
2.5 l drop-in reservoir with quick-connect fitting
|
| External Fluid Control |
Fluid sensing
|

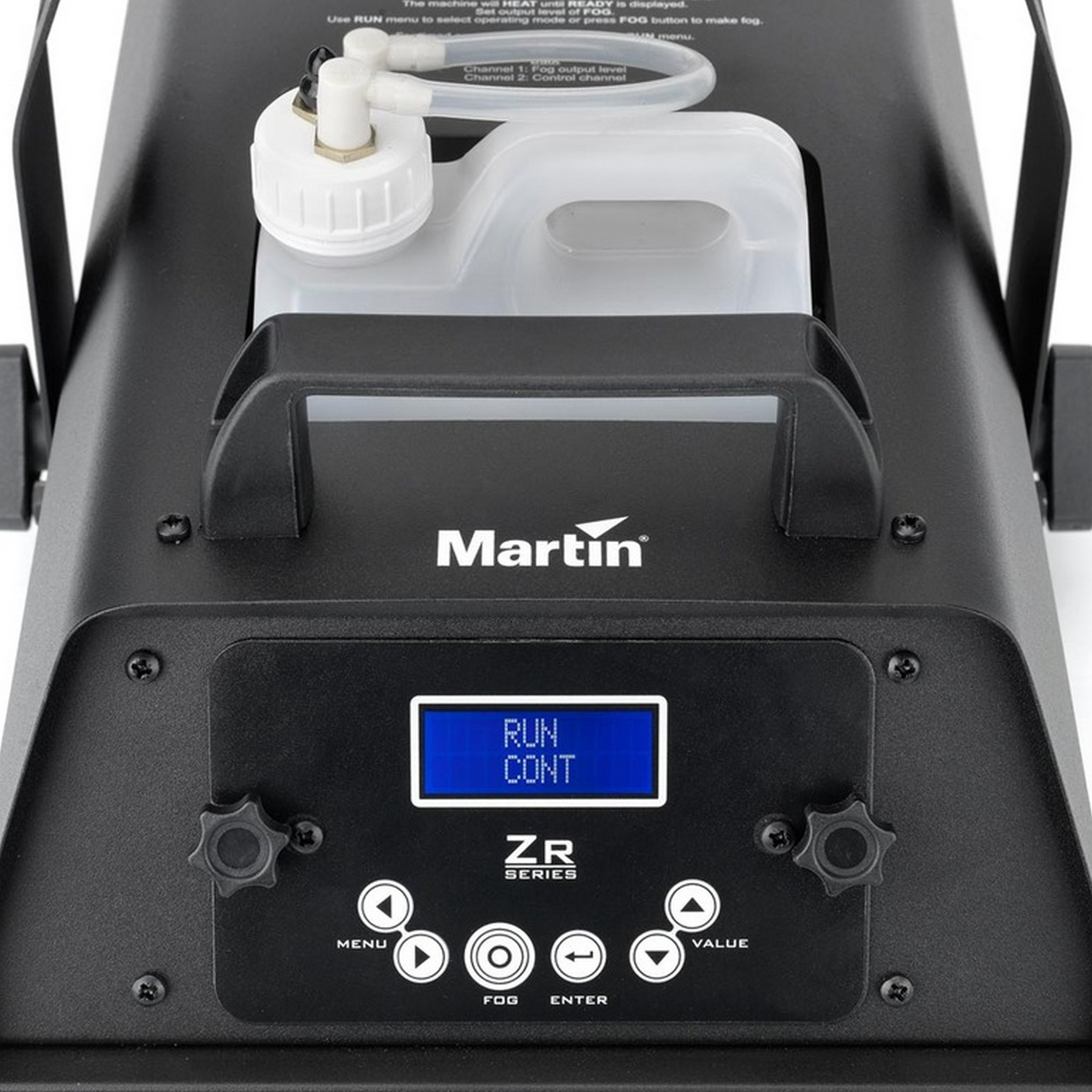

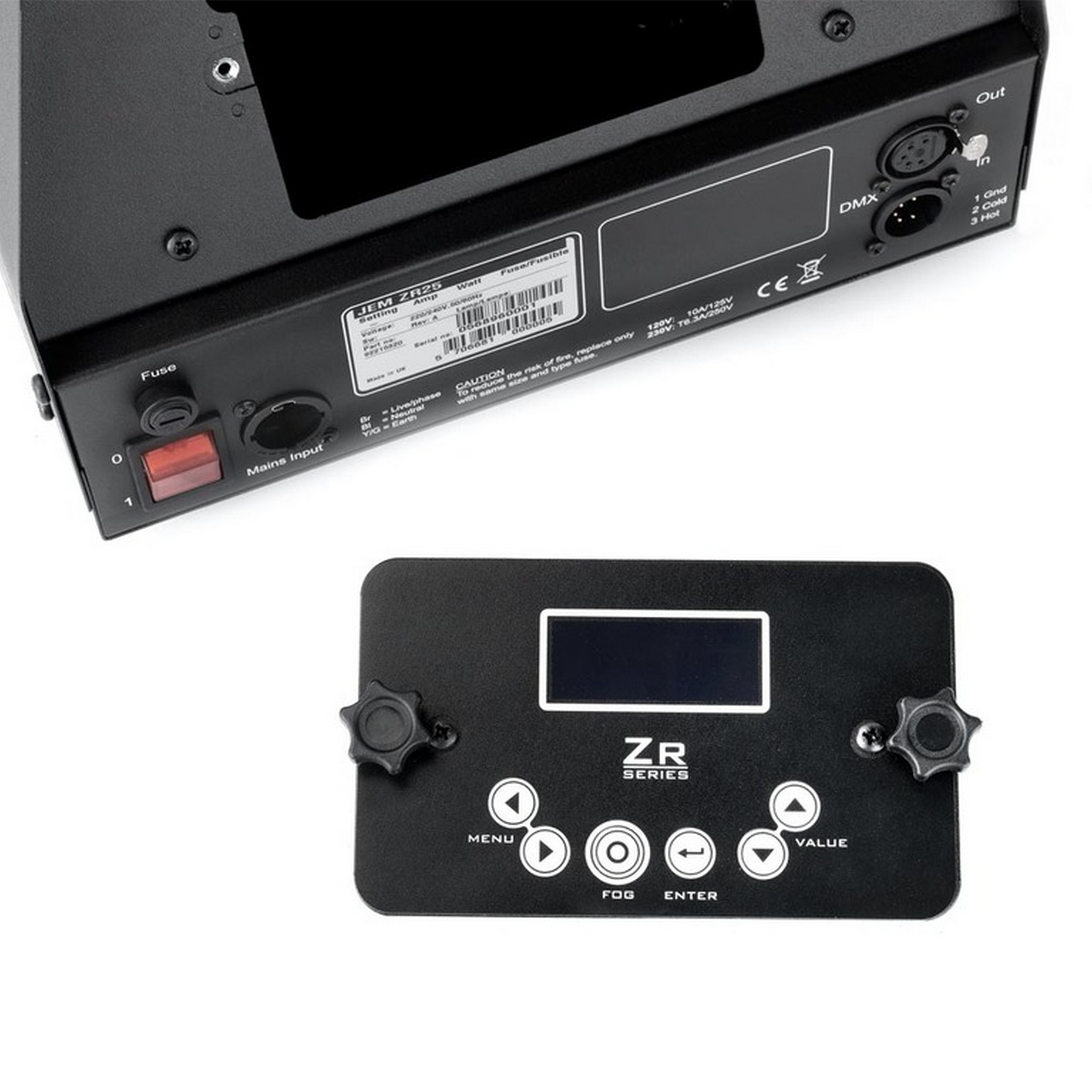

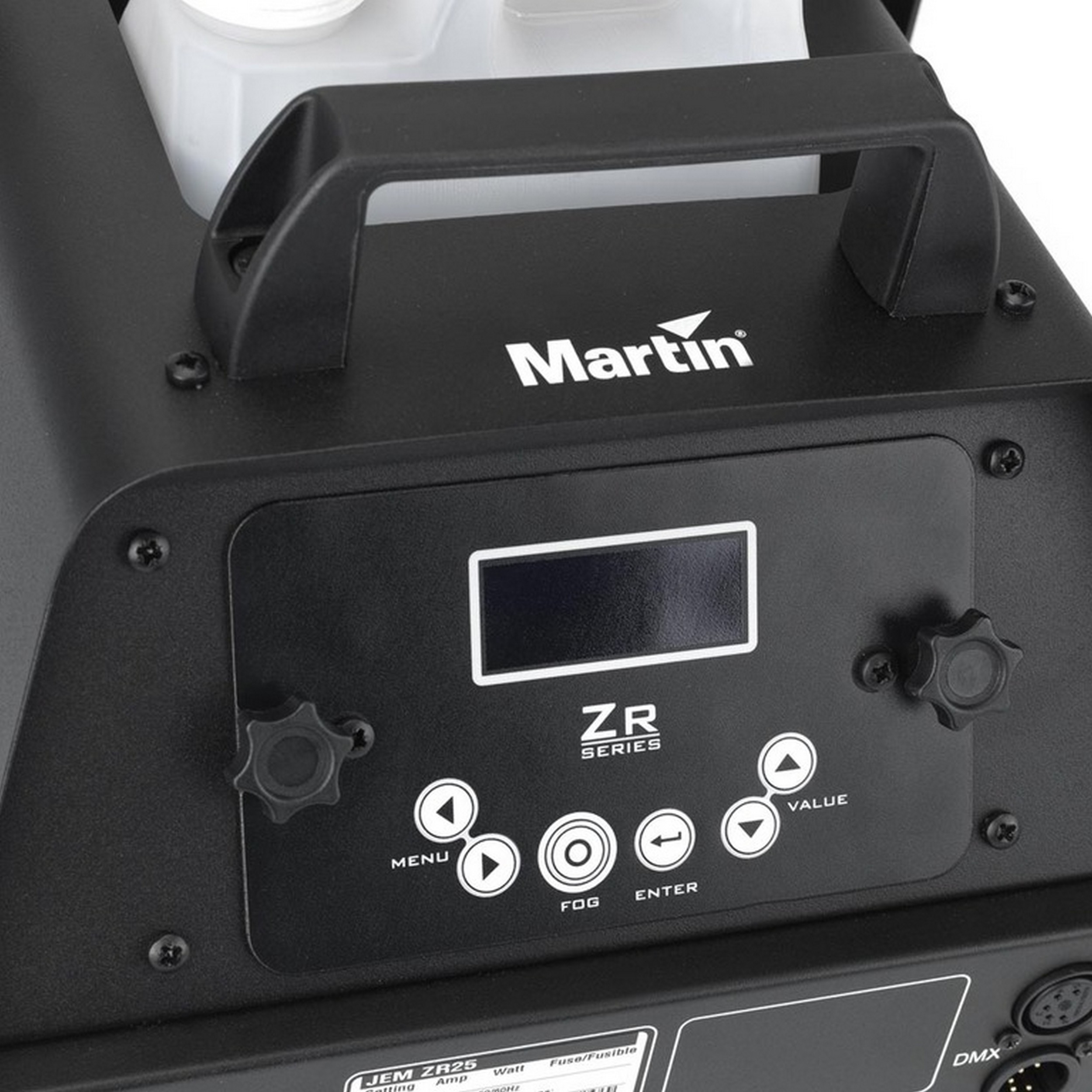

| Remote Control |
Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
|
| Mounting |
Standing or hanging
|
| Orientation |
Up to +/-40° from horizontal
|
| Clearance around machine |
100 mm (4 in.)
|

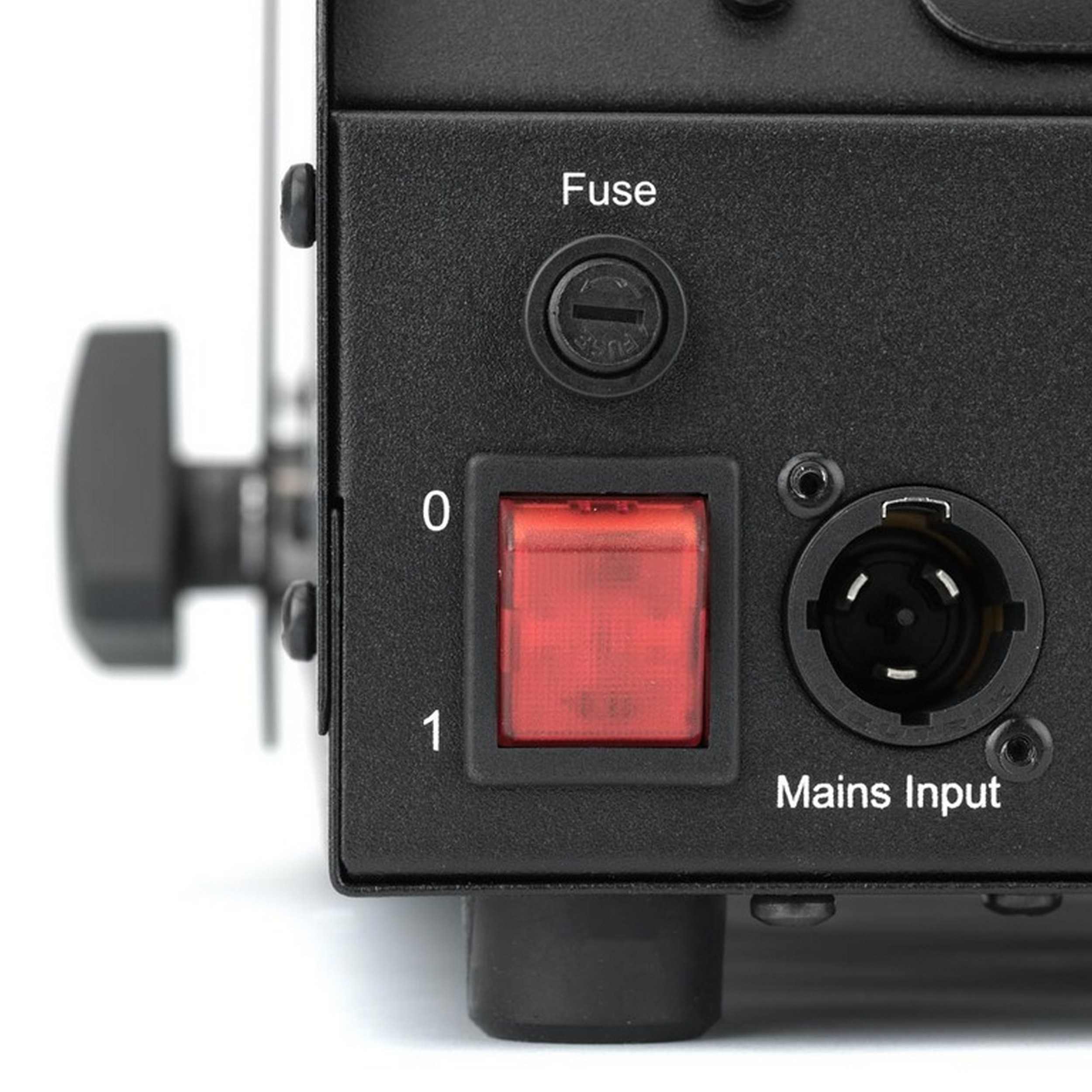

| AC Power |
Neutrik PowerCON TRUE1
|

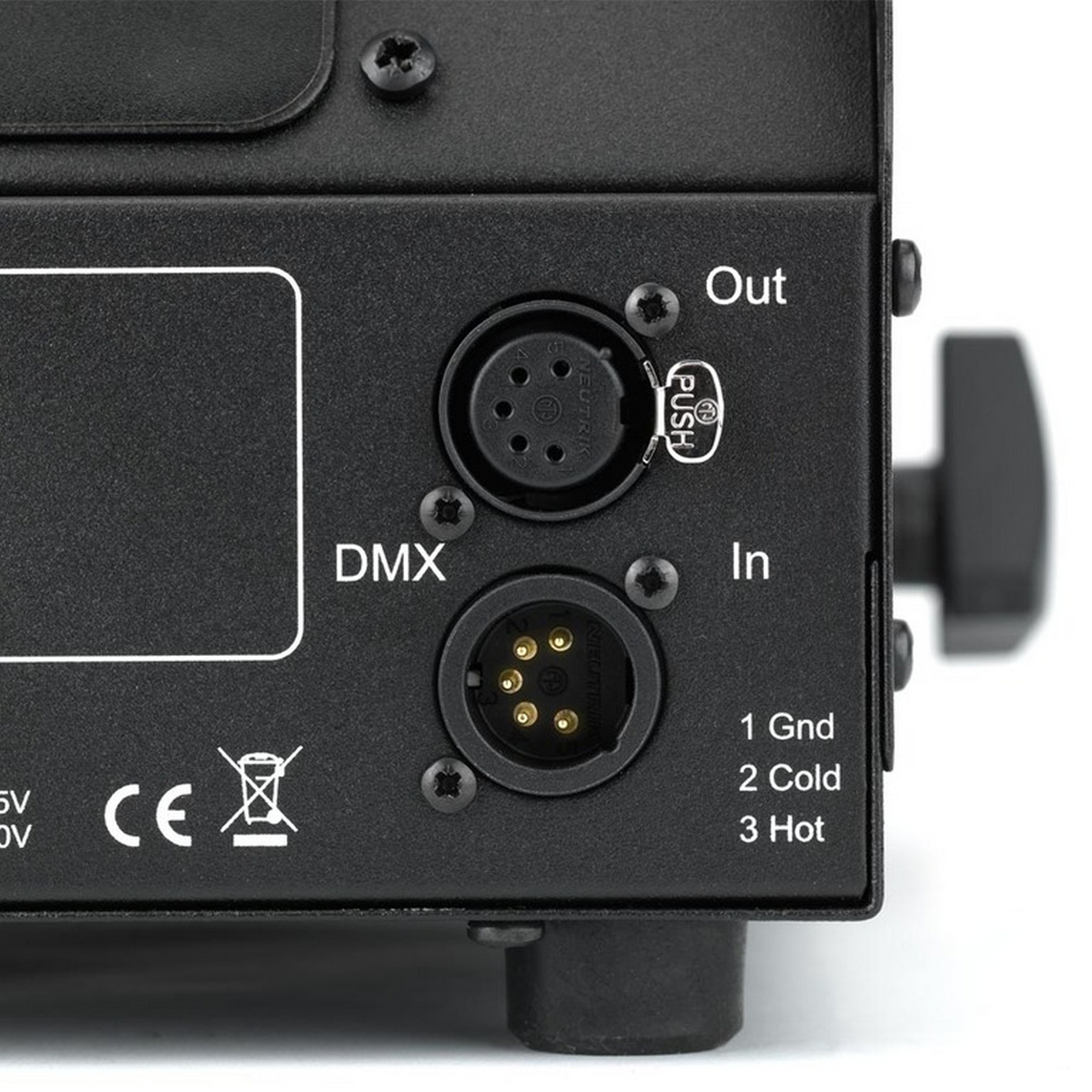

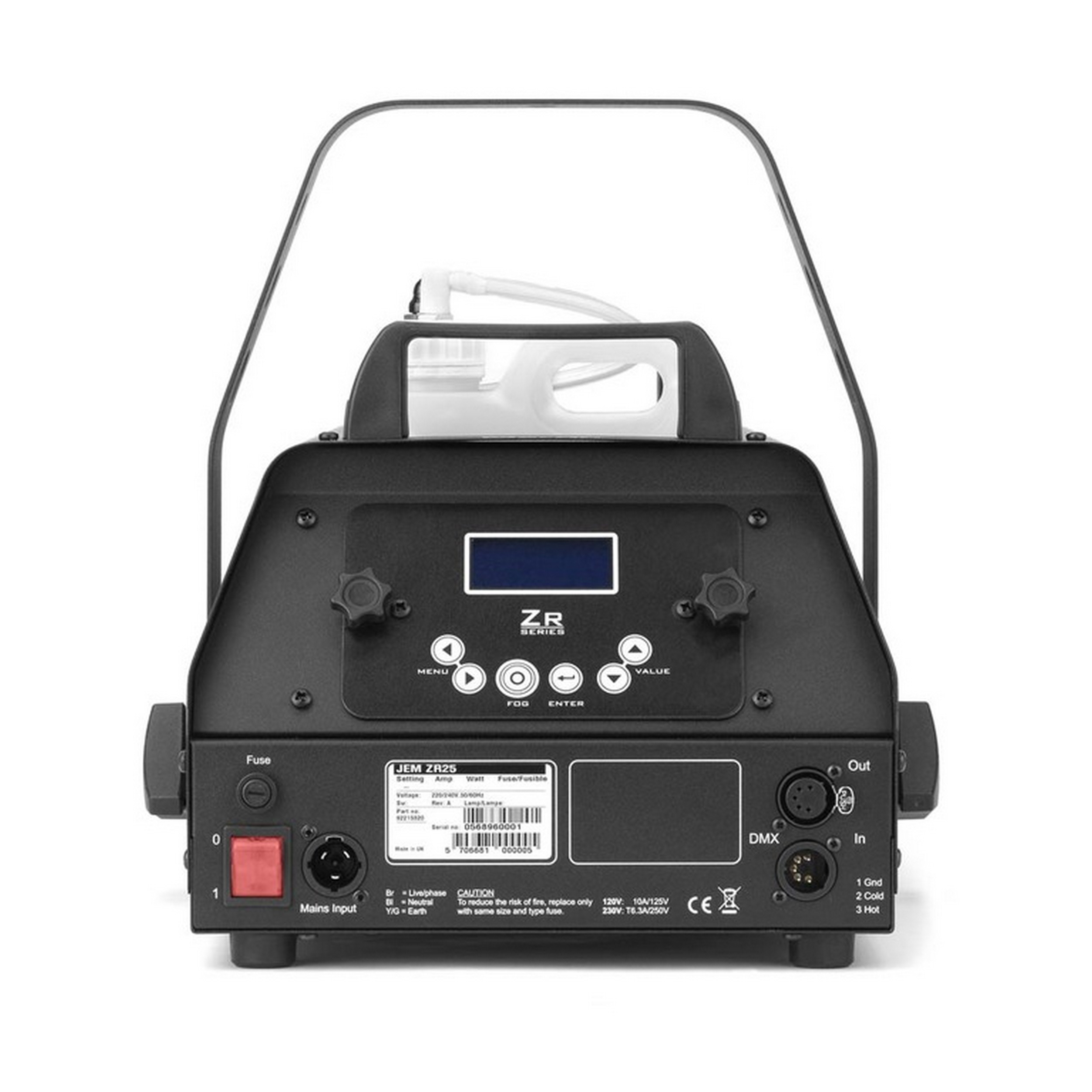

| DMX, link mode in/out |
5-pin locking XLR
|
| Remote control |
3-pin locking XLR
|
| Firmware |
AVR socket
|
| EU Model |
AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 6.3 AT (slow blow), 250 V
Typical power and current: 1200 W, 5.3 A*
|
| US Model |
AC power: 100-130 V nominal, 50/60 Hz
Main fuse: 10 AT (slow blow), 125 V
Typical power and current: 1050 W, 8.8 A*
|
| Electrical notes |
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Exterior surface temperature, steady state |
30° C (86° F)
|
| Maximum nozzle temperature |
290° C (554° F)
|
| EU safety |
EN 60 335-1+A15, EN62233
|
| EU EMC |
EN 61000-6-3
|
| EU immunity |
EN 61000-6-1
|
| US safety |
UL 998
|
| Canadian safety |
CSA C.22.2 No. 104.01
|
| Australia/NZ |
RCM (pending)
|
| Fluid reservoir, 2.5 l |
P/N 34300521
|
| JEM ZR Series Integrated Digital Remote Control |
P/N 92765048
|
| Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.) |
P/N 11501043
|
| Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.) |
P/N 11501044
|
| JEM ZR25 Ducting System with 5 m (16.4 ft.) 4" flexible ducting |
P/N 92625012
|
| JEM External Fluid Reservoir Kit, 25 l |
P/N 92620035
|
| Approved fluids* |
JEM Pro-Fog Fluid, Quick Dissipating
JEM Pro-Fog Fluid
JEM Pro-Fog Fluid, High Density
RUSH & THRILL Fog Fluid
Martin Pro-Clean and Storage Fluid
|
| Approved discontinued fluids* |
Pro Smoke Studio (DX)
Pro Smoke Super (ZR)
Pro Smoke High Density (SP)
I-Fog Fluid
Regular DJ Fluid (DJ)
RUSH Fog Fluid
RUSH ELX Smoke Fluid
Martin Pro Clean Supreme
|
| Service Tools |
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
|
| Accessories notes |
*Various sizes available - contact your dealer or see 'Fluids' product pages for details
|
| JEM ZR25, EU |
P/N 92215320
|
| JEM ZR25, US |
P/N 92215330
|
| Installation hardware |
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick trigger clamp (vertical hanging suspension only: P/N 91602007
Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
