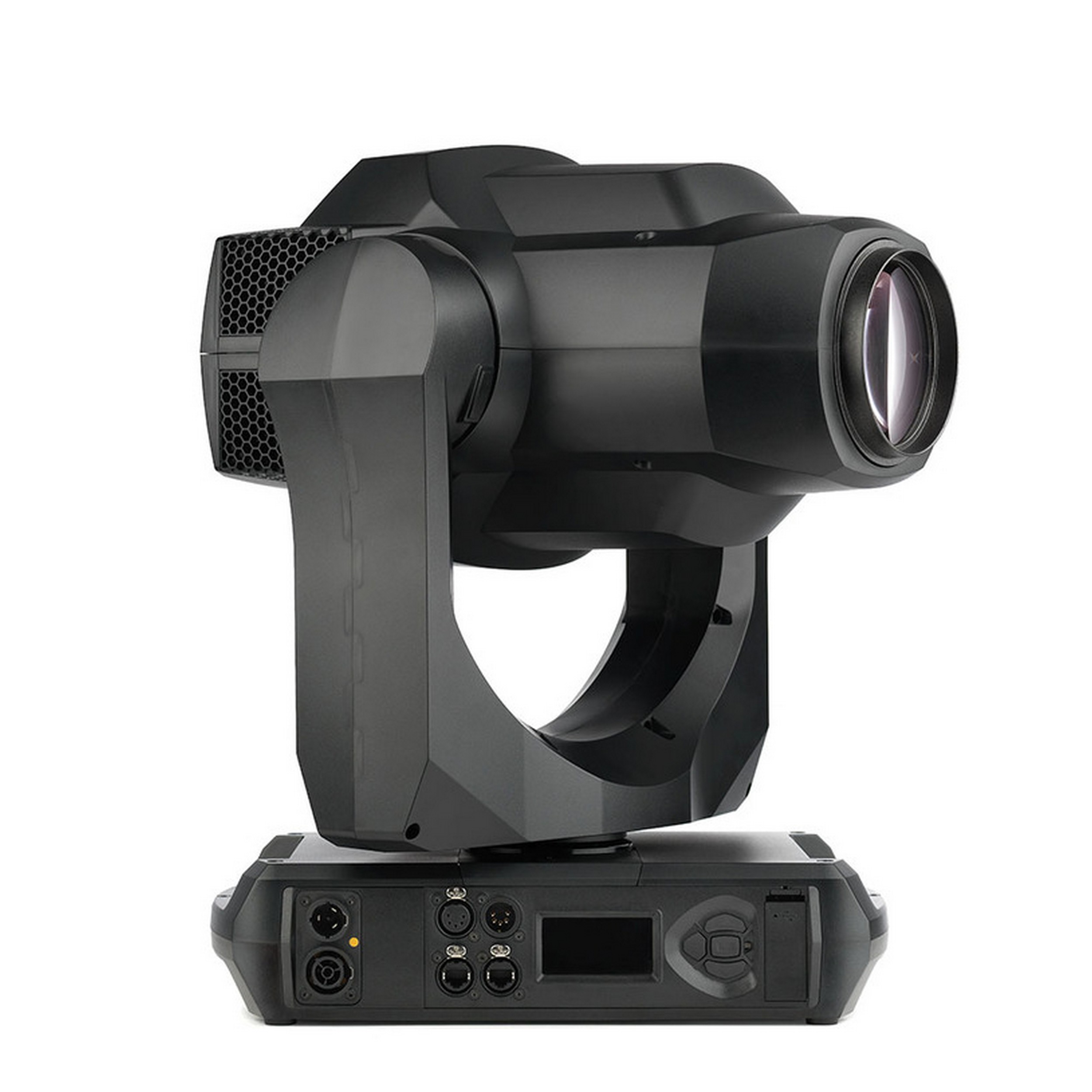

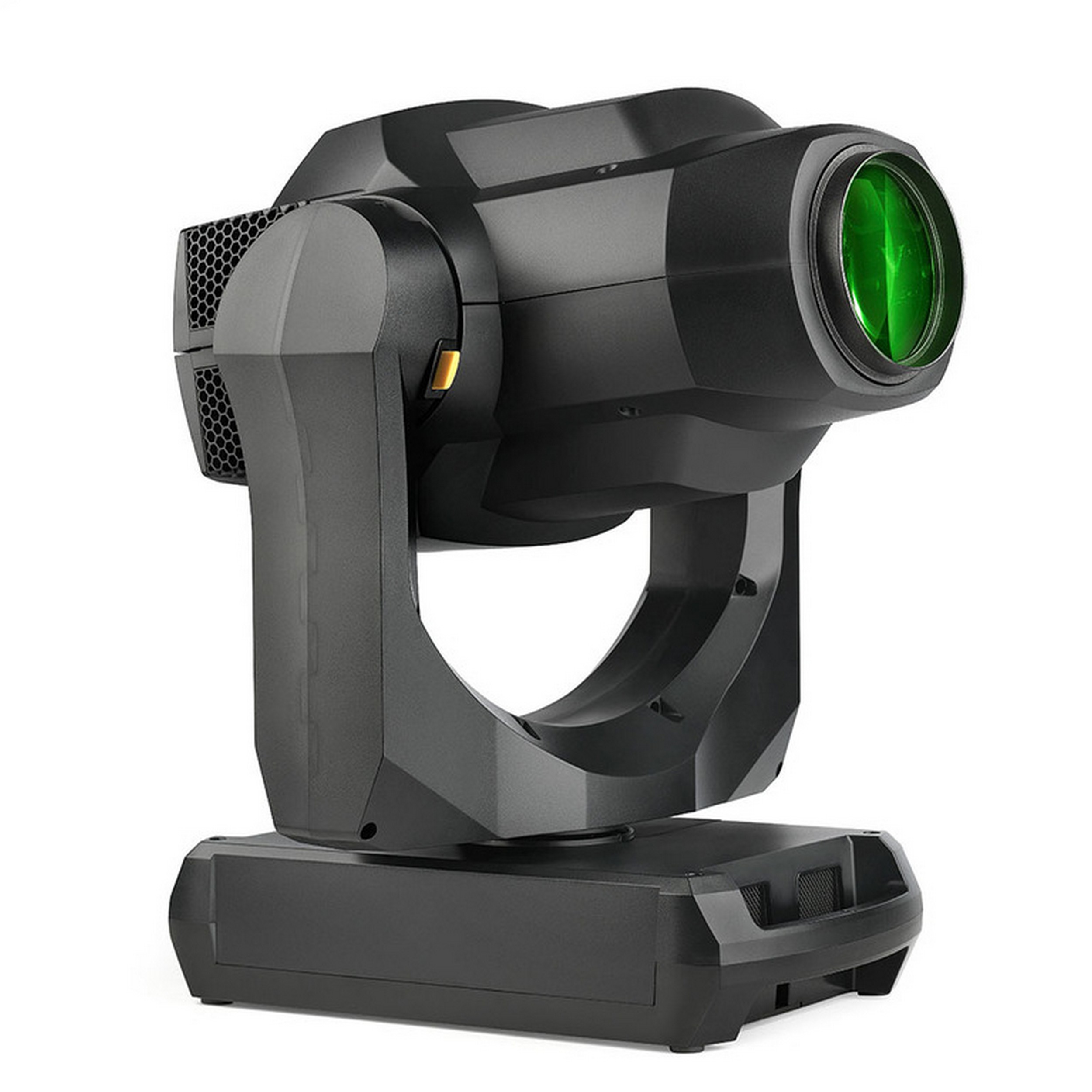

| Length |
385 mm (15.2 in.)
|
| Width |
410 mm (16.2 in.) across yoke
|
| Height |
609 mm (24.0 in.) maximum 603 mm (23.8 in.) head straight up
|
| Weight |
17.6 kg (38.8 lbs.)
|
| Minimum center-to-center distance in side-by-side installation |
510 mm (20.1 in.)
|
| Color mixing |
RGB(W), independently variable 0 - 100%
|
| Color temperature control |
Variable 2000 - 8000 K
|
| Color wheel |
Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color
|

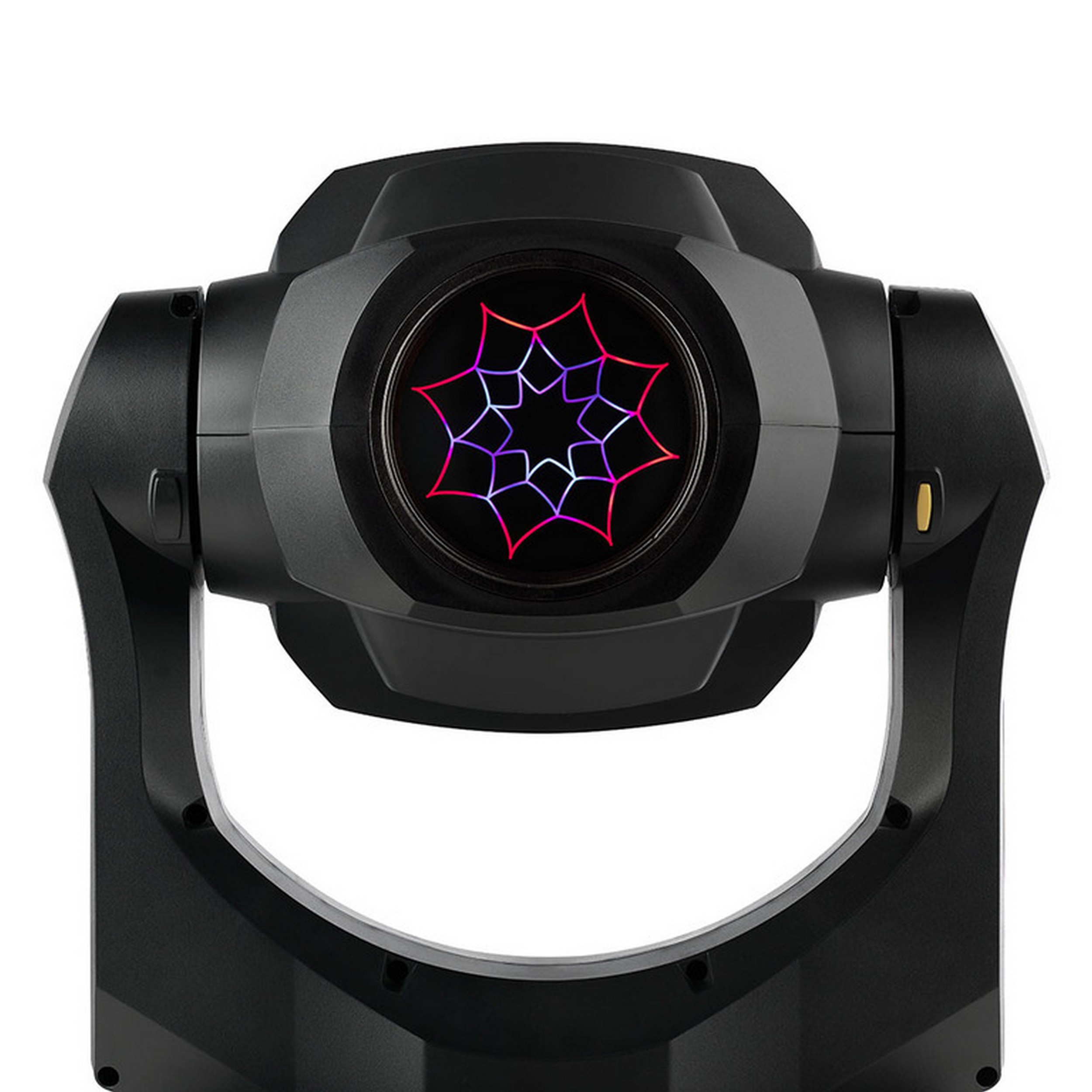

| Rotating gobo wheel |
6 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
|
| Prism |
4 facet, fully indexed
|
| Iris |
Variable 0 - 100% including pulse effects
|
| Dimmer/shutter |
0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout
|
| Dimming options |
Choice of four dimming curves
|
| Pre-programmed effects |
Two ranges of FX, independent or synchronized/combined
|
| Focus |
Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
|
| Zoom |
Motorized
|
| Pan |
540°
|
| Tilt |
268°
|
| Position correction system |
Absolute position monitoring
|
| DMX channels |
32/68
|

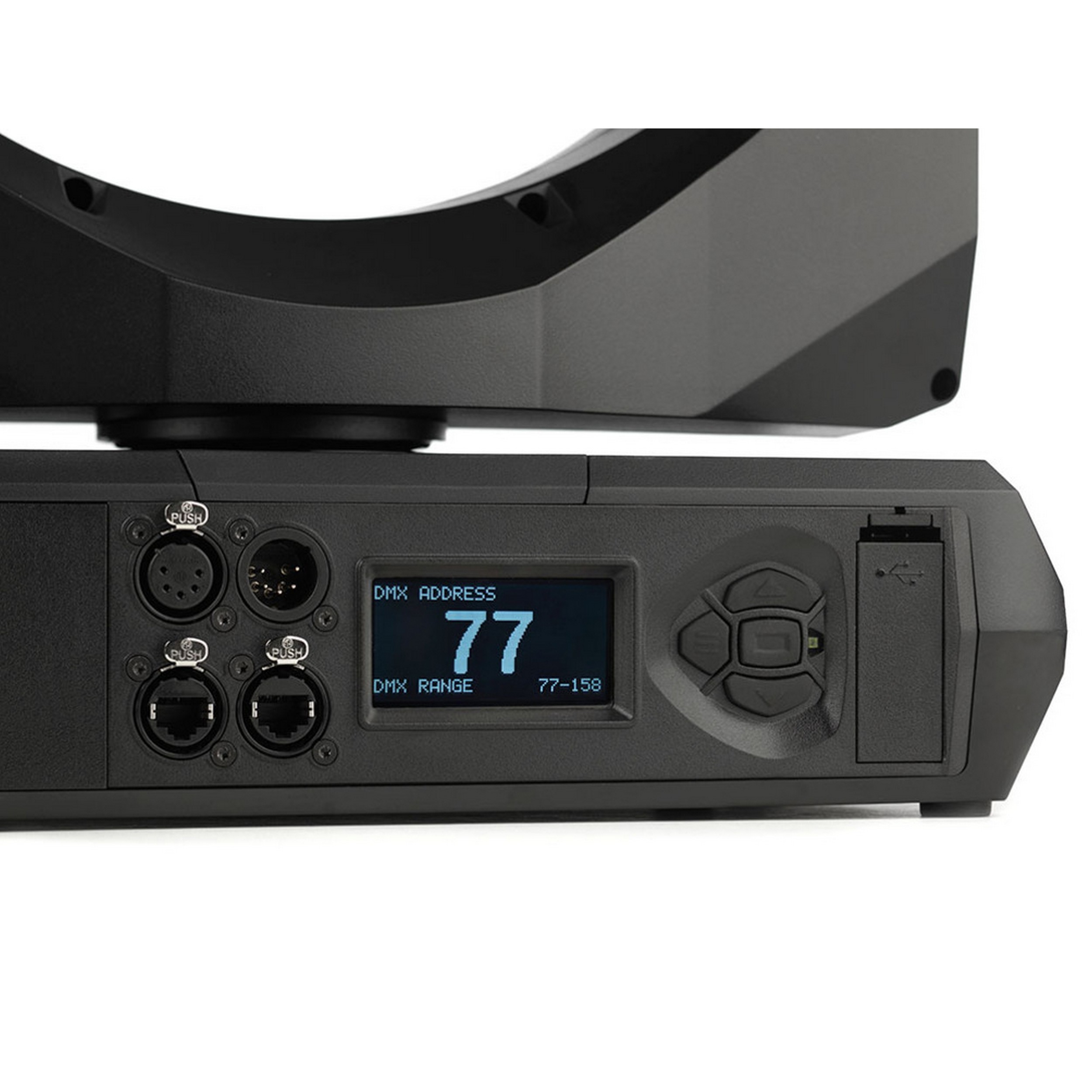

| Setting and addressing |
Control panel with backlit graphic display and 4 buttons or via DMX
|
| 16-bit control |
Dimming, color, rotating gobos, zoom, focus, pan and tilt
|
| Fixture Identification |
User-settable ID number
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
Opto-isolated RS-485
|
| Fixture software update |
USB memory device or over DMX link
|
| Light source |
7 x 60W RGBW LEDs
|
| Total LED engine power |
~420 W
|
| Minimum LED lifetime |
50,000 hours (to >80% luminous output)*
|
| Zoom range |
12° - 36° one-tenth peak (1:3)
|
| Optics notes |
*Figure obtained under manufacturer's test conditions
|
| Light engine luminous output |
14,000 lumens
|
| Fixture luminous output |
6500 lumens
|
| Calibrated default white |
6500 K
|
| CRI (Color Rendering Index) |
>80
|
| CQS (Color Quality Scale) |
88
|
| TM-30 Rf (IES TM-30-15 Fidelity Index) |
82
|
| TM-30 Rg (IES TM-30-15 Gamut Index) |
109
|
| TLCI (Television Lighting Consistency Index) |
82
|
| Color |
Black (white housing option available, made to order)
|
| Housing |
High-impact flame-retardant thermo-plastic
|
| Protection rating |
IP20
|
| Mounting Parts |
2 pairs of 1/4-turn locks
|
| Location |
Dry location only, must be fastened to surface or structure
|
| Orientation |
Any
|
| Minimum distance to combustible materials |
0.2 m (8 in.)
|
| Minimum distance to illuminated surfaces |
1.0 m (3.3 ft.)
|

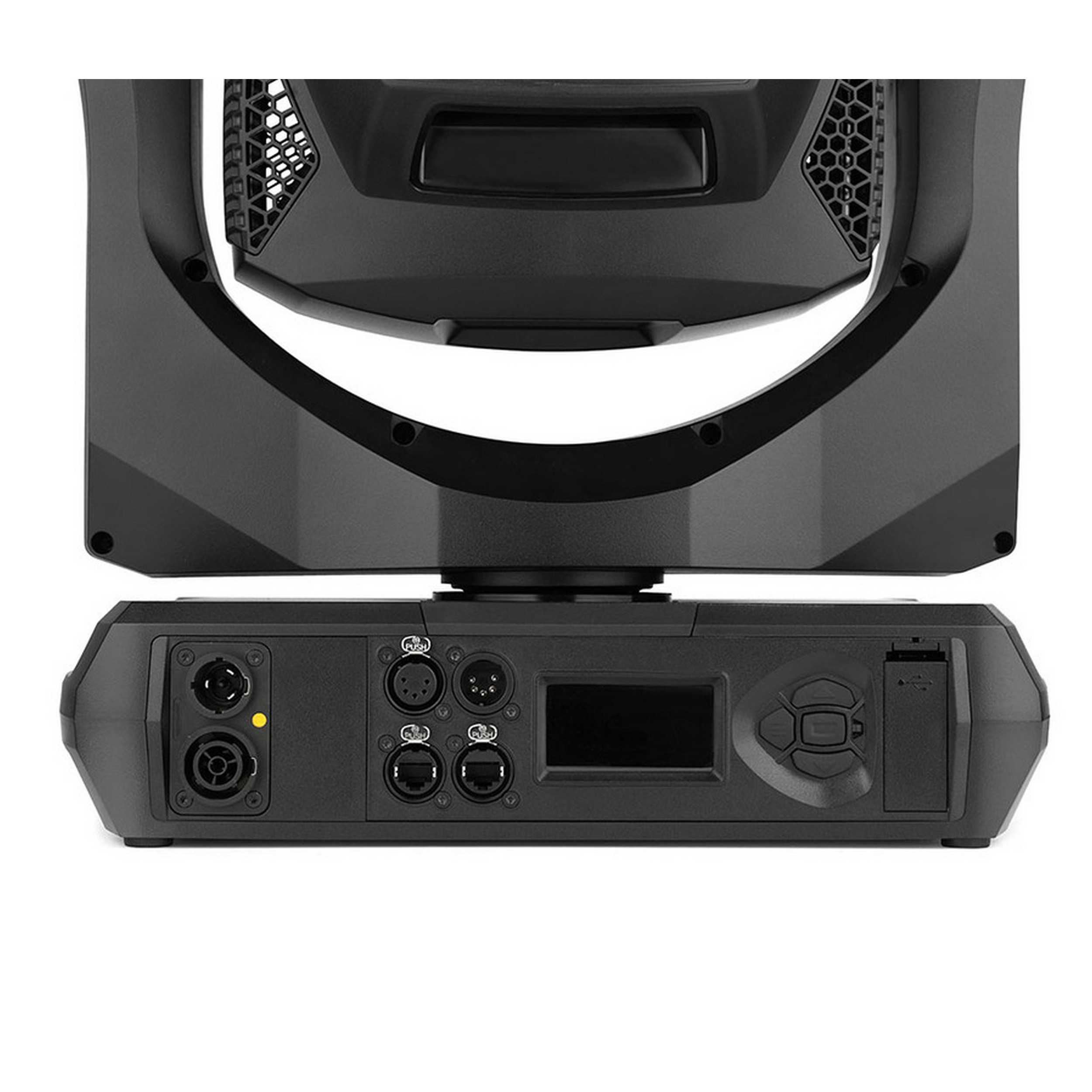

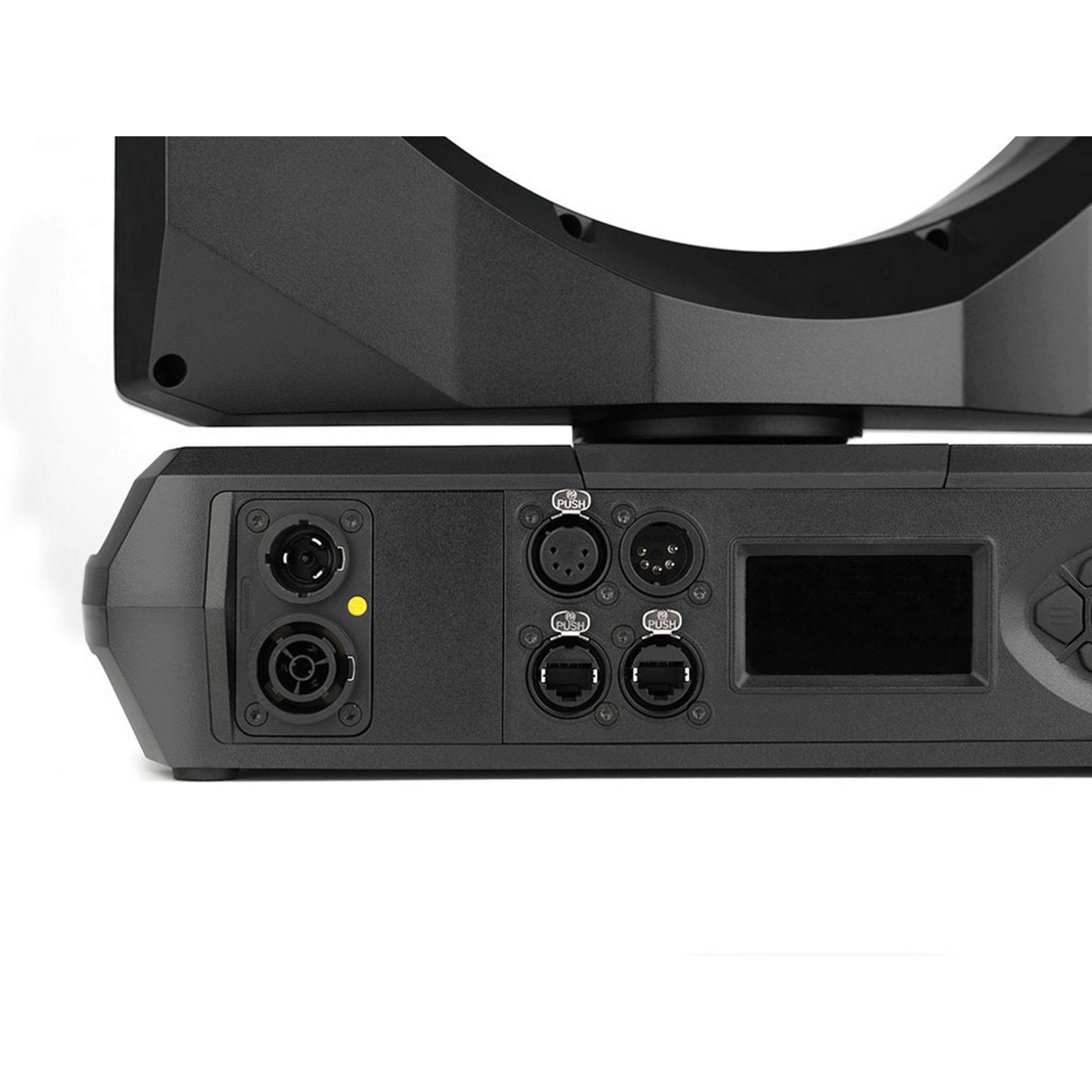

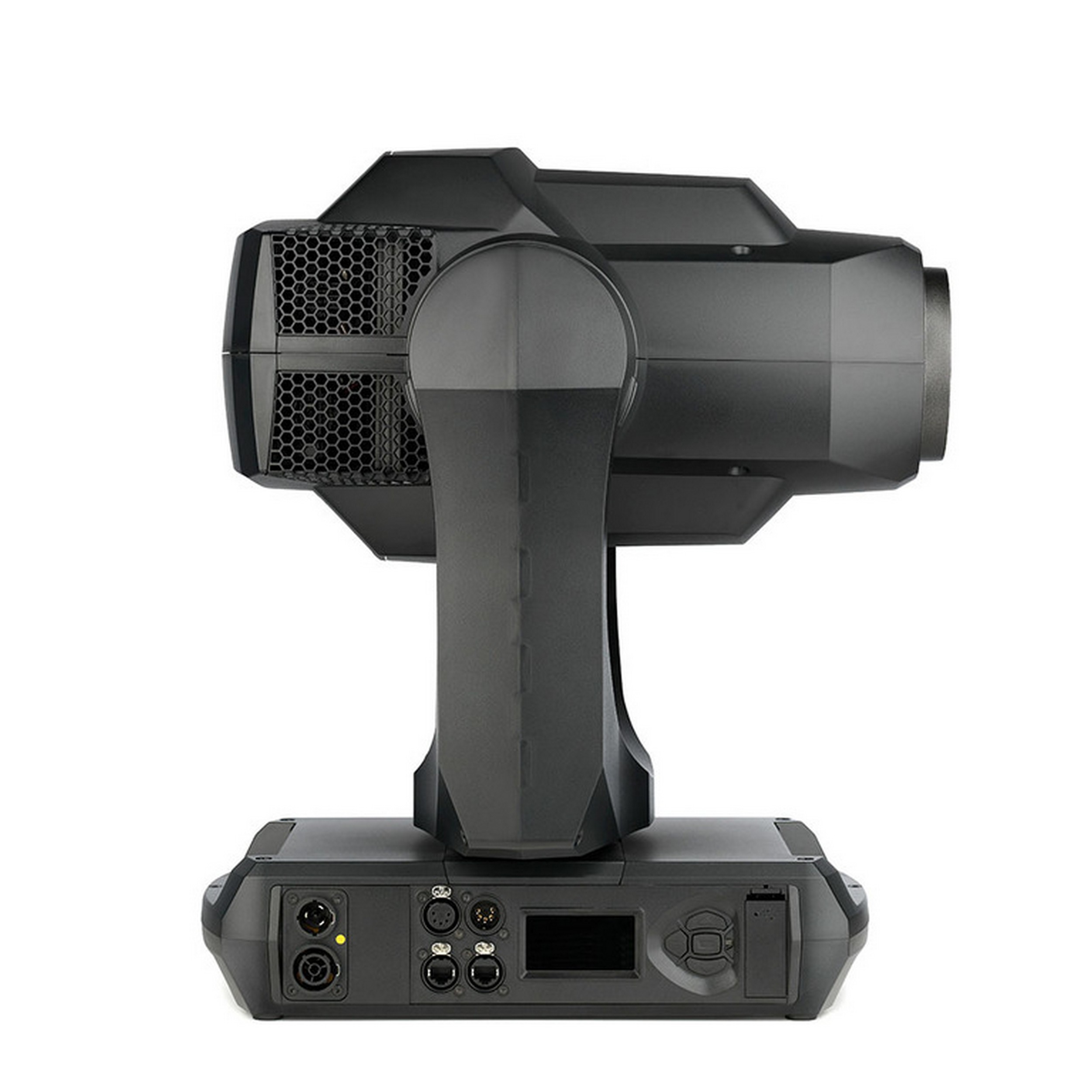

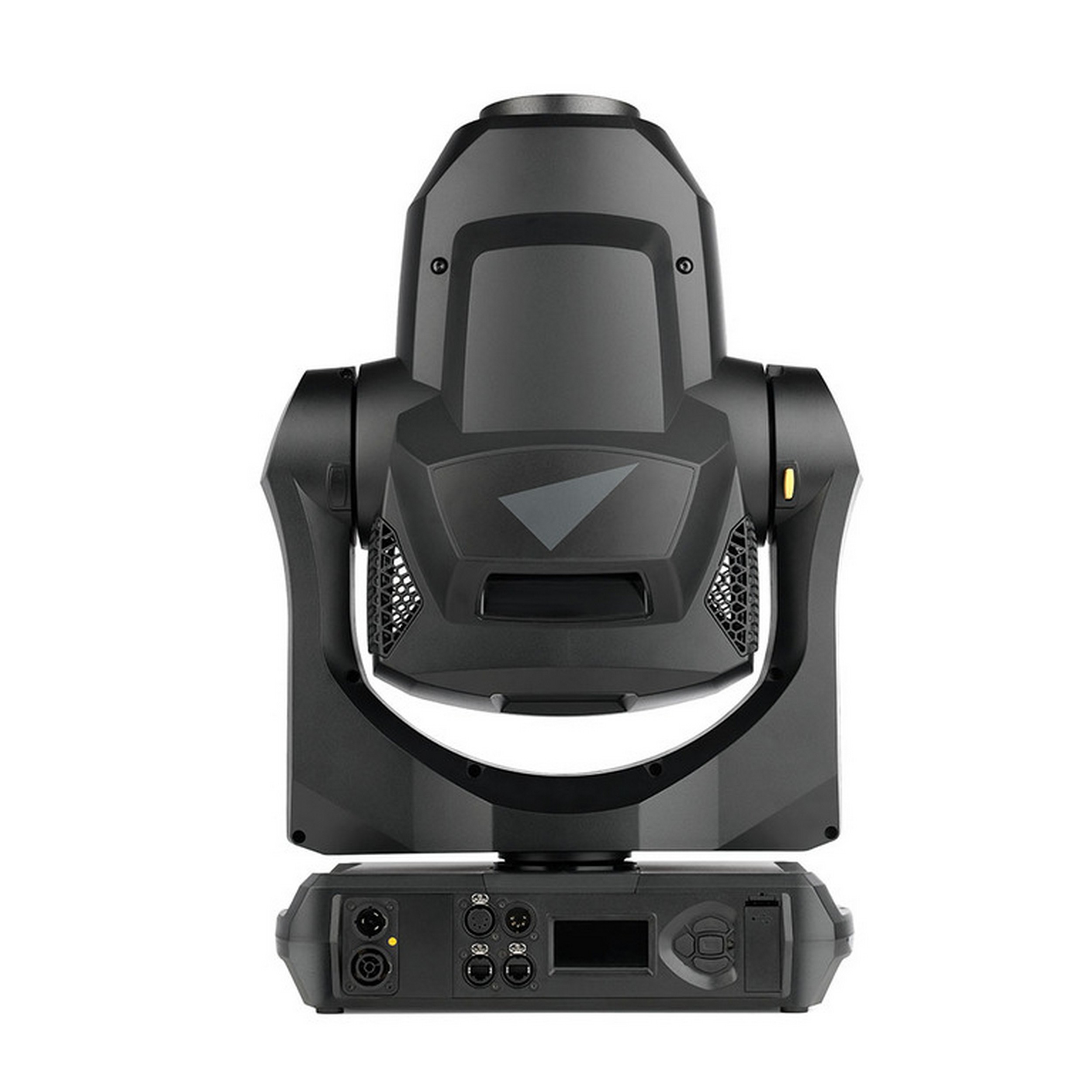

| AC power input/output |
Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector or NAC3FX-M connector)
|
| DMX and RDM data in/out |
5-pin locking XLR
|
| Ethernet data |
Neutrik EtherCon in/out
|
| AC power |
120-240 V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch-mode
|
| Power Consumption |
73 W (all effects static, zero light output)
|
| Half-cycle RMS inrush current at 230 V, 50 Hz |
16.6 A
|
| Typical power data, extended color mode, all LEDs at 100% intensity |
100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
240 V, 50 Hz: 2.0 A, 480 W, PF 0.97
|
| Typical power data, calibrated mode, full intensity at 6500 K |
100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
240 V, 50 Hz: 1.6 A, 370 W, PF 0.95
|
| Typical Power and Current notes |
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
|

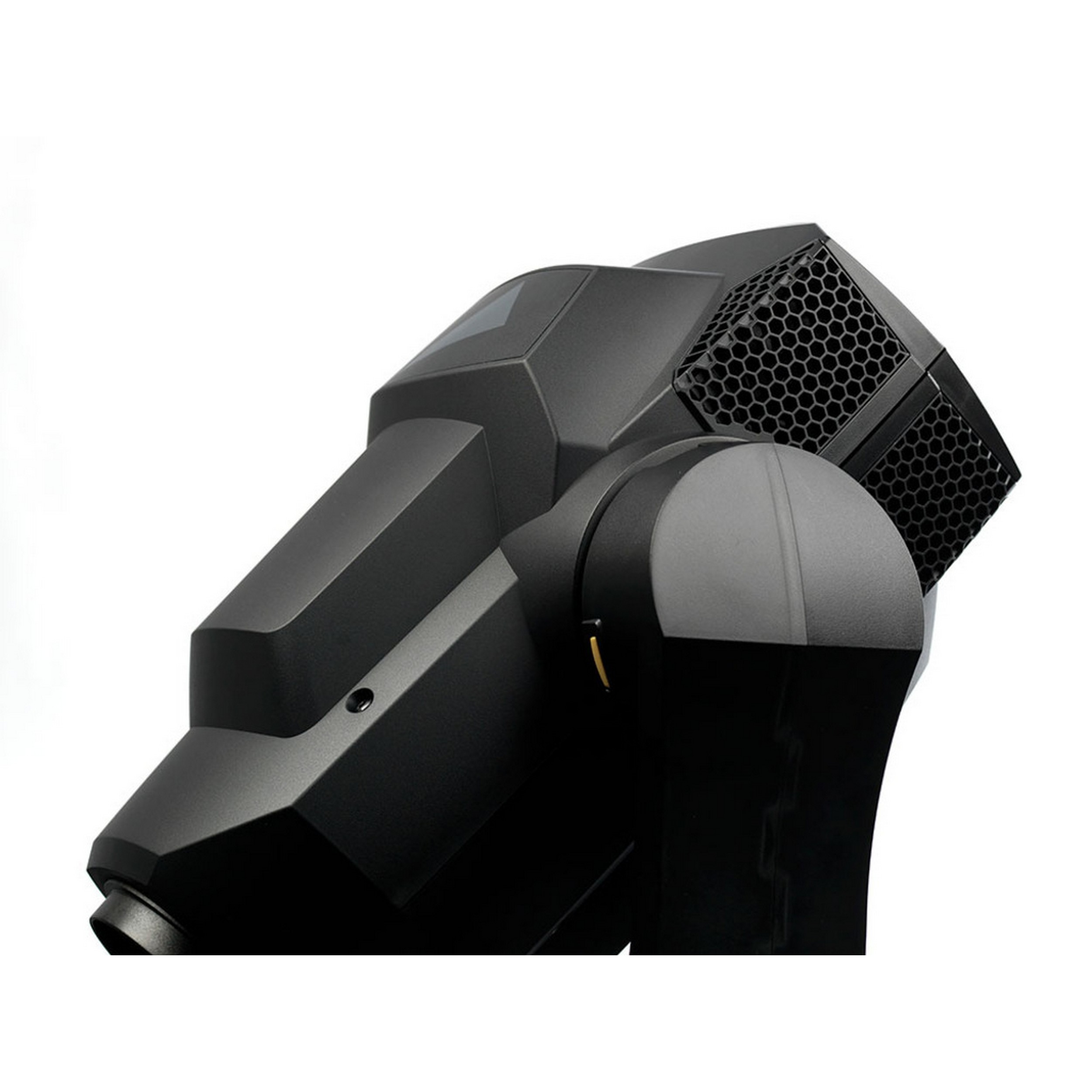

| Cooling |
Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Total heat dissipation (calculated, +/- 10%) |
2000 BTU/hr.
|
| EU safety |
EN 60598-2-17, EN 62471, EN62493
|
| EU EMC |
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class B
|
| Canadian safety |
CSA C22.2 No. E598-2-17
|
| Canadian EMC |
CAN ICES-003(B)/NMB-003(B); CAN ICES-005 (B) / NMB-005 (B)
|
| Australia/NZ |
RCM
|
| Included Items notes |
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
|
| SIP Packaging MAC Allure™ |
P/N 91611860
|
| Cables, 16 A, for connection to power in chains |
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
|
| Installation hardware |
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
| Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female) |
P/N 91611789
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Models |
MAC Allure™ Profile EPS (in cardboard box, polystyrene packaging): P/N 90250005HU
MAC Allure™ Profile SIP (in cardboard box with SIP foam flight case insert): P/N 90250010HU
MAC Allure™ Profile, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90250000HU
|
| Three-unit flight case for MAC Allure™ |
P/N 91515052
|
| Accessories notes |
(*Please order SIP variant fixtures to obtain the required SIP foam flight case inserts)
|
| Cables, 16 A, for relaying power in chains |
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
|
| Connectors |
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
|
| Martin Companion Cable |
P/N 91616091
|
| Related items notes |
Martin Companion Software Suiter (including firmware uploader) Free download from www.martin.com
|
