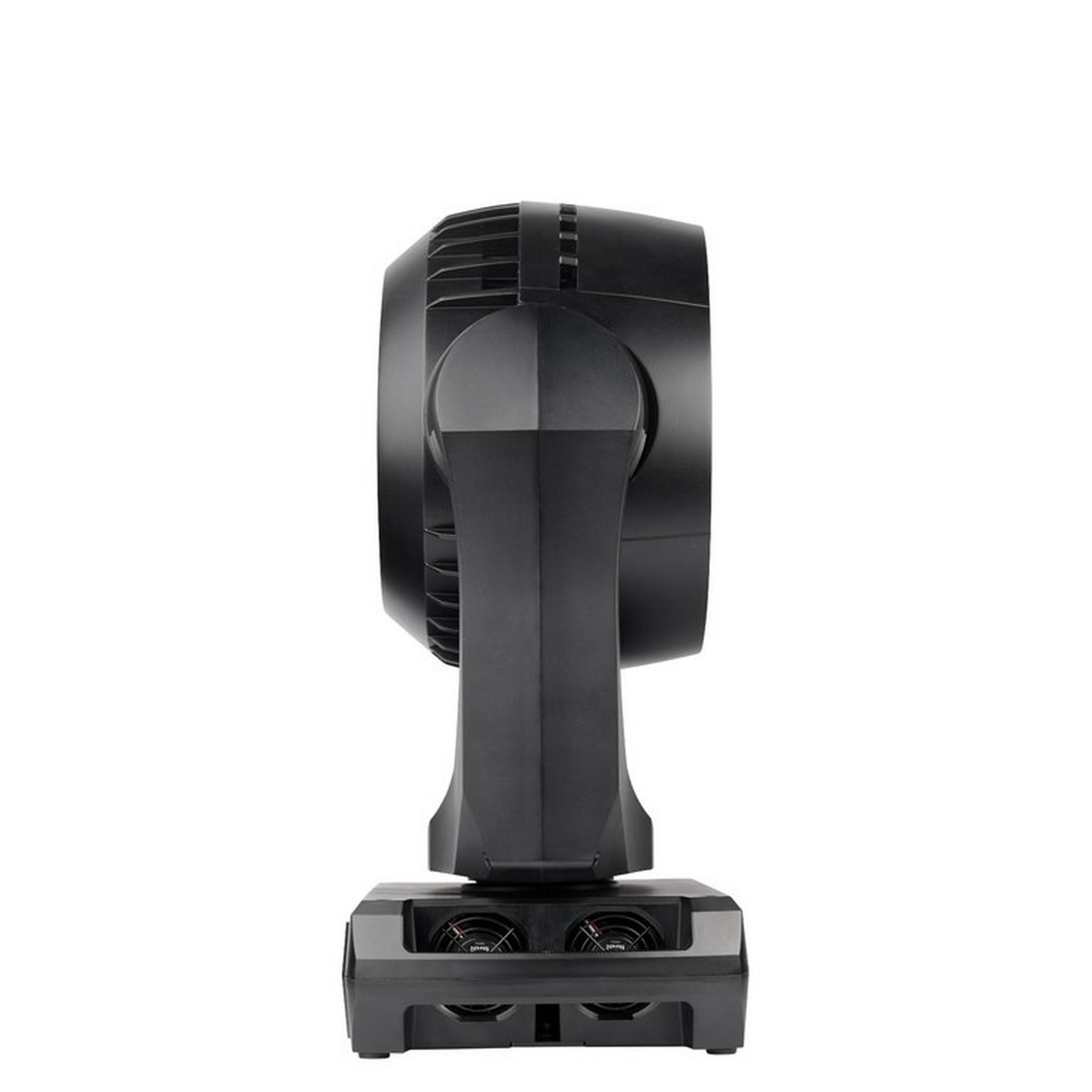

| Length |
232mm (9.1in.)
|
| Width |
410mm (16.1 in.)
|
| Height |
* 516mm (20.3in.) maximum
* 488.4mm (19.2in.) head straight up
|
| Weight |
15.6kg (34.4lbs)
|

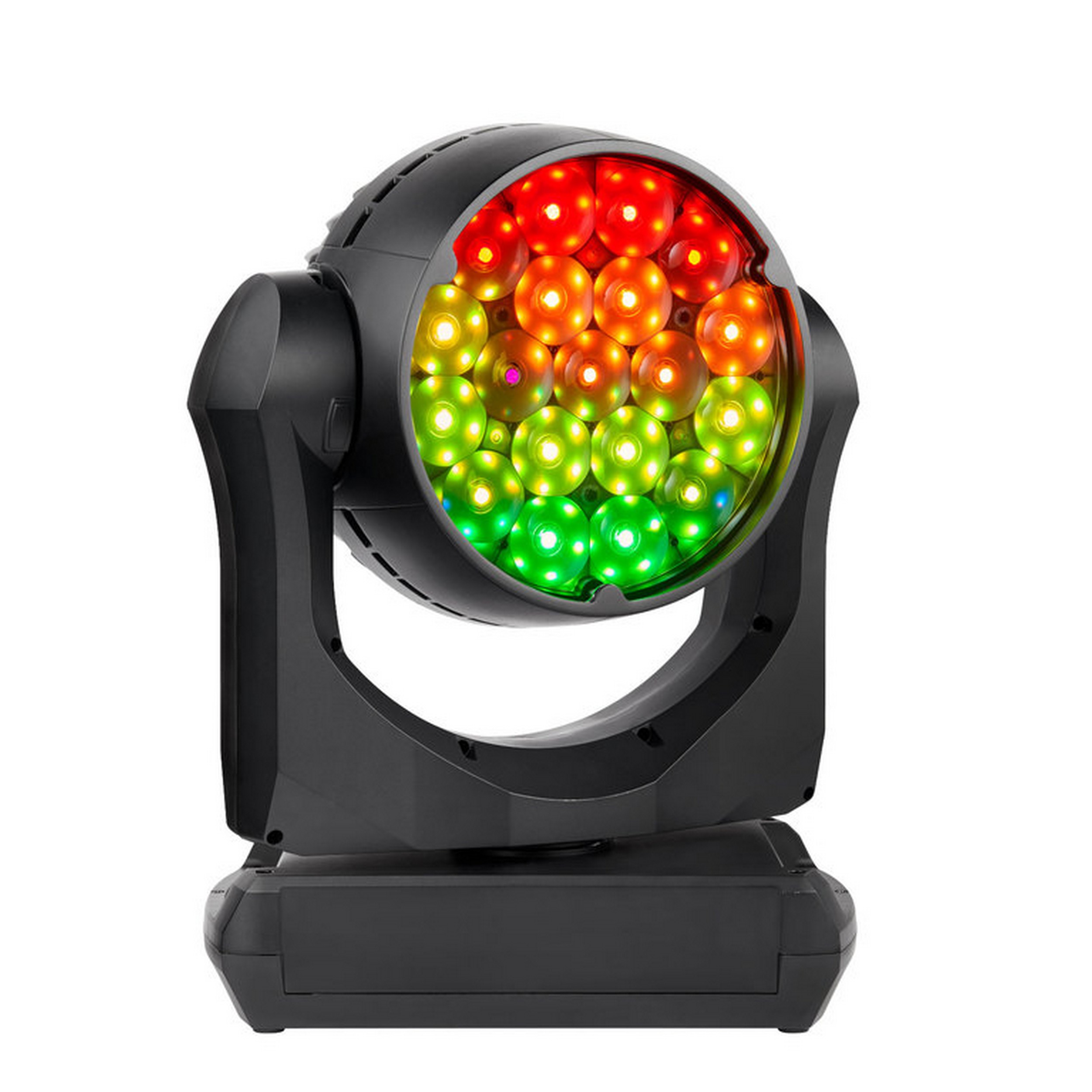

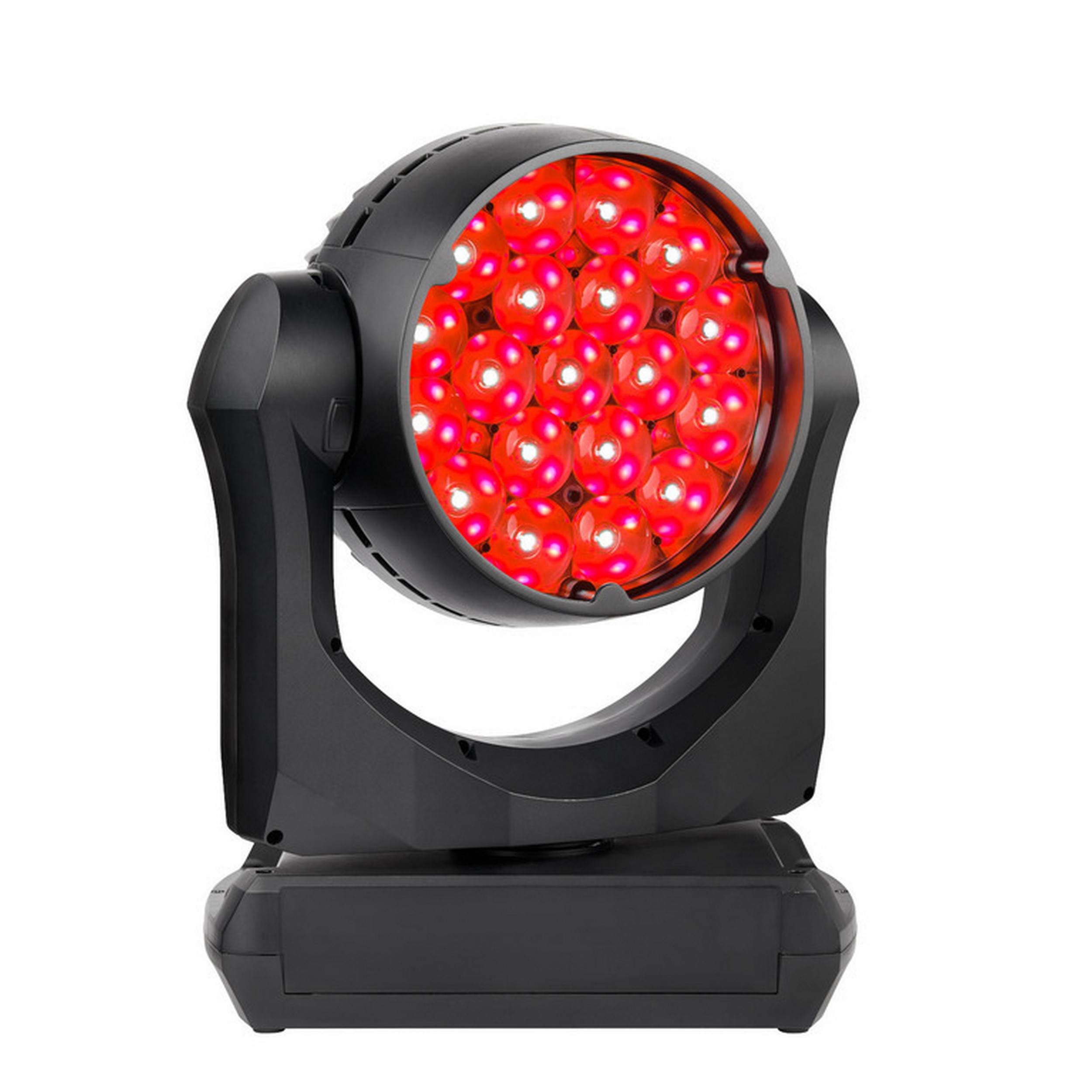

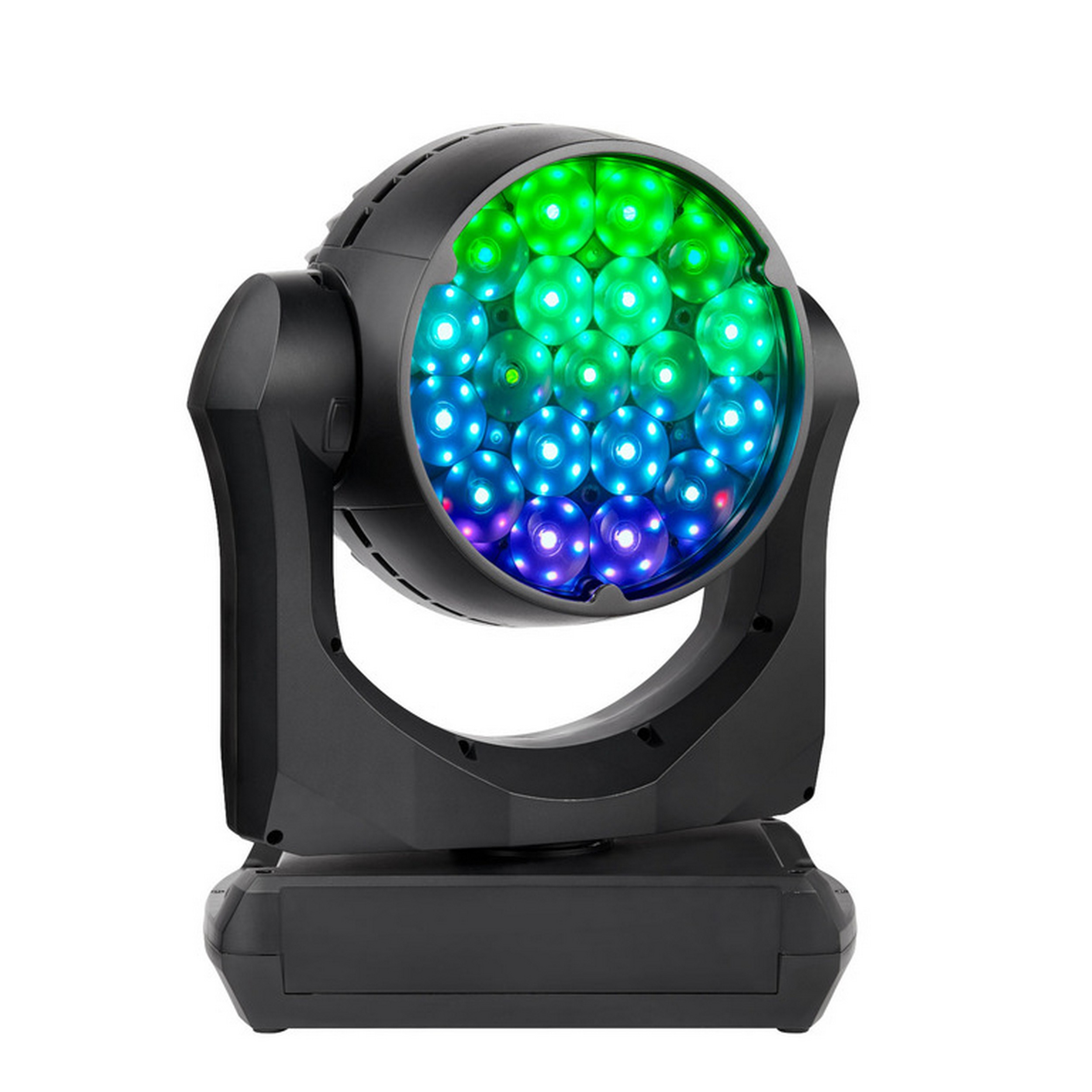

| Beam color mixing |
RGBW, independently variable 0 - 100%.
|

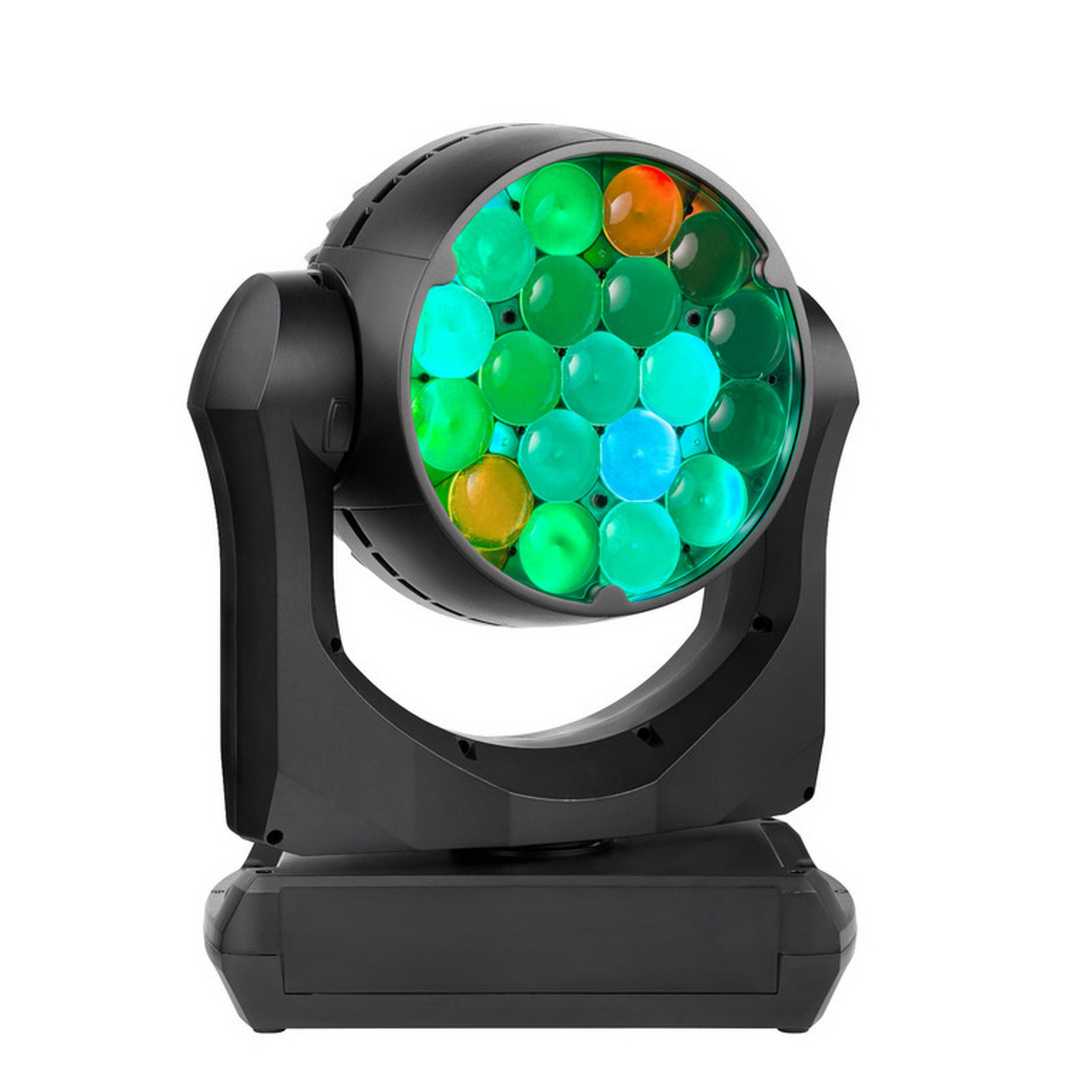

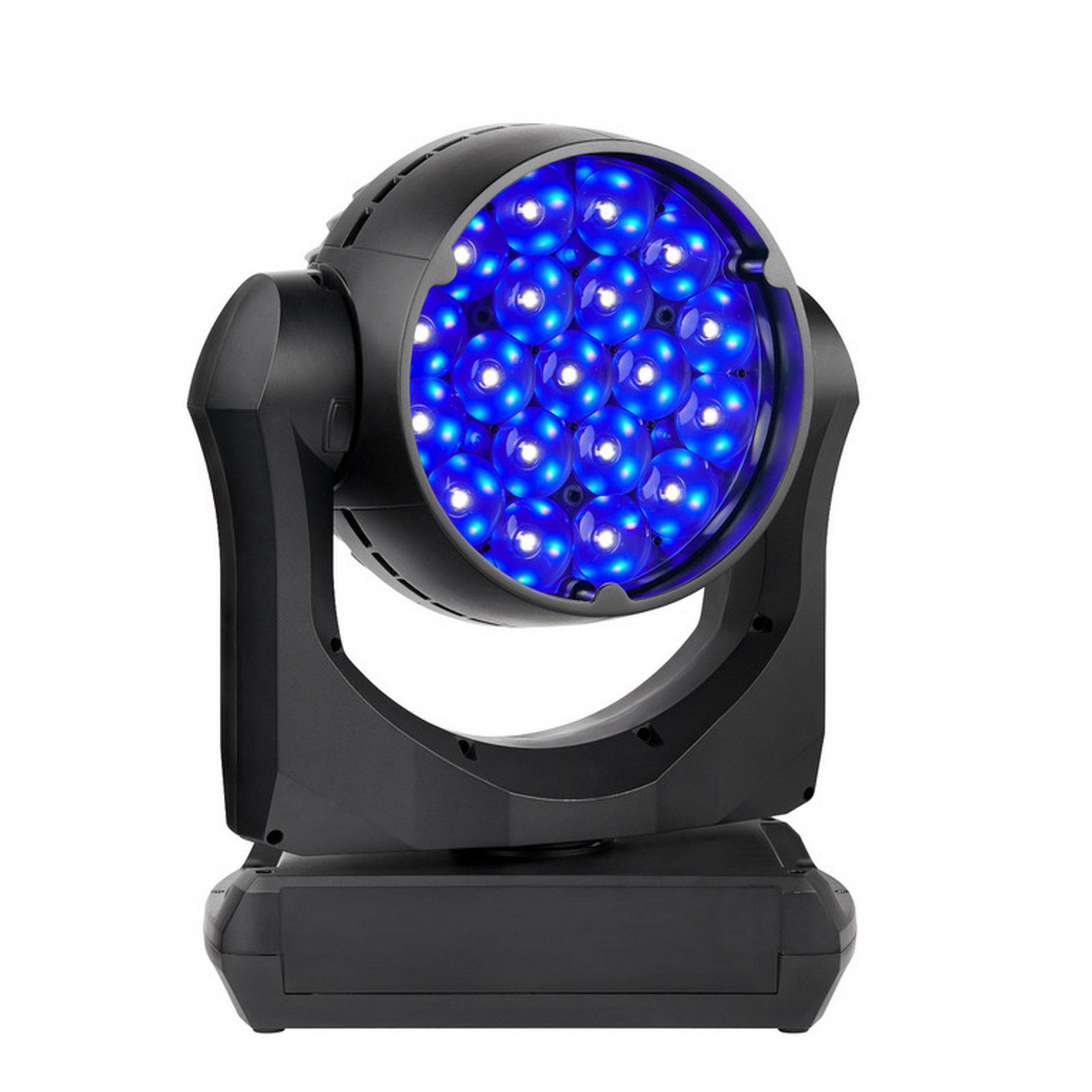

| Aura Color mixing |
RGB, independently variable 0-100%
|

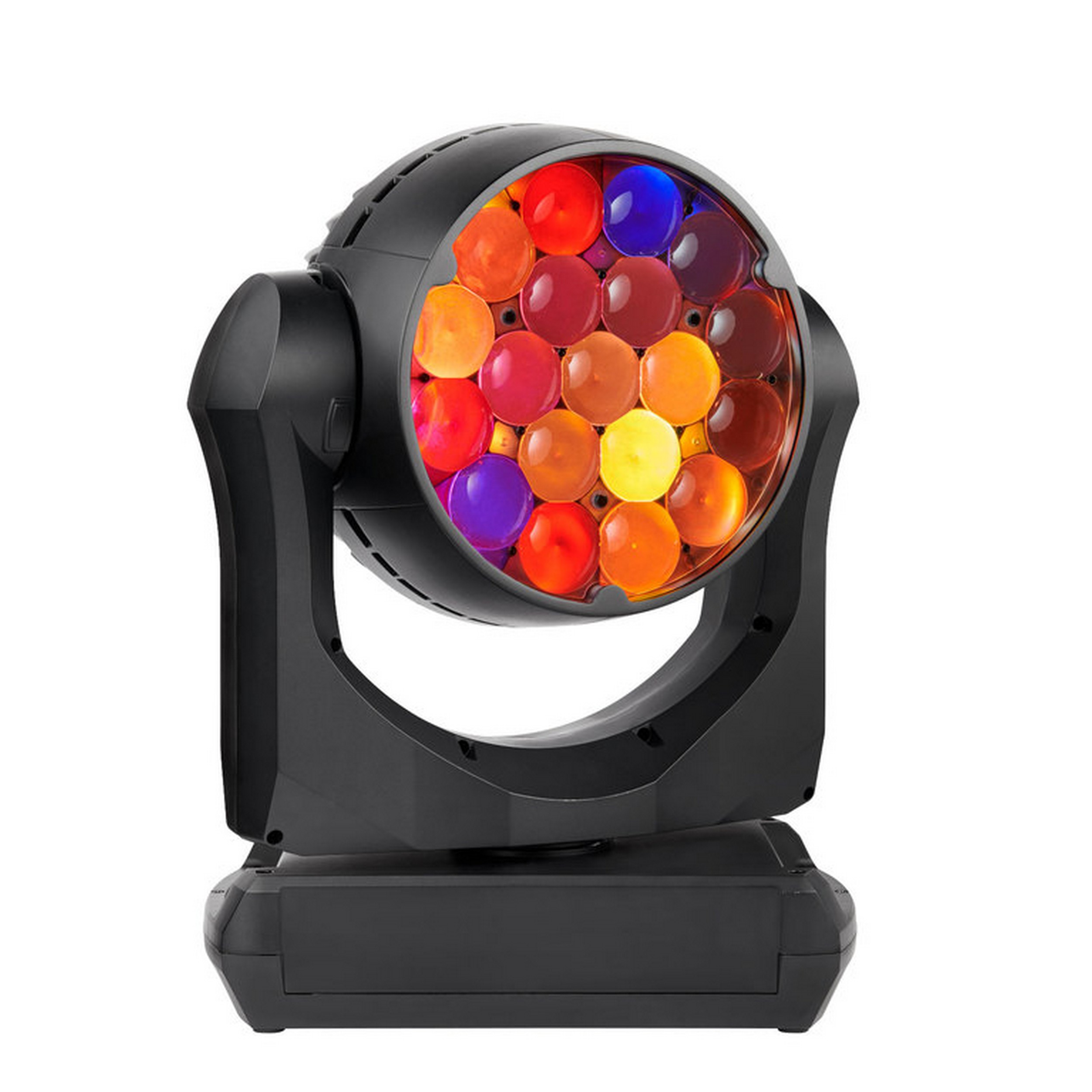

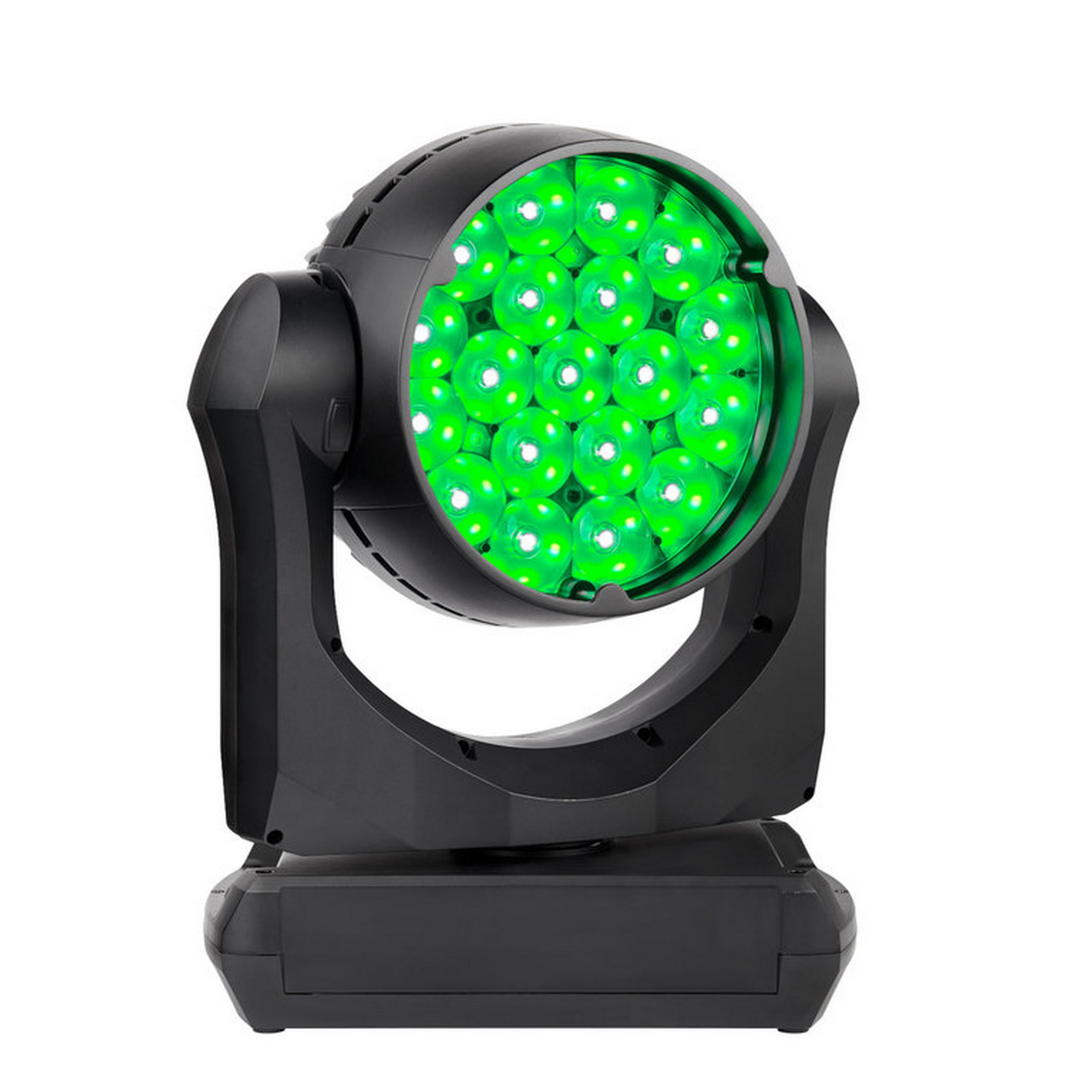

| Beam and Aura Color wheel |
Virtual color wheel. Open, indexing, continuous rotation, random color. 36 pre-programmed solid colors
|
| Beam and Aura Color temperature control |
Variable 2000 - 10000 K
|
| Beam and Aura Dimmer/shutter |
0 - 100% continuous electronic dimming, Choice of four dimming curves
|
| Zoom |
Motorized with 1:8 Zoom Ratio
|
| Pan |
540°, coarse & fine control and speed
|
| Tilt |
268°, coarse & fine control and speed
|
| Position correction system |
Absolute position monitoring
|
| Pre-programmed effects |
Two ranges of FX
|
| Control options |
DMX-512, Art-Net, sACN, P3, RDM
|
| 16-bit control |
Dimming, Pan and Tilt
|
| Setting and addressing |
Control panel with backlit LCD display and 4 buttons, RDM or P3
|
| DMX channels |
Compact Mode 17; Basic Mode 32; Extended Mode 89, Ludicrous Mode 512
|
| Fixture Identification |
User-settable ID number
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
Opto-isolated RS-485
|
| Fixture software update |
USB memory device or over DMX link
|
| Zoom range |
1:8,
|
| Full beam angle at Half Peak |
5 – 40°
|
| Full field angle at Tenth Peak |
7 – 55°
|

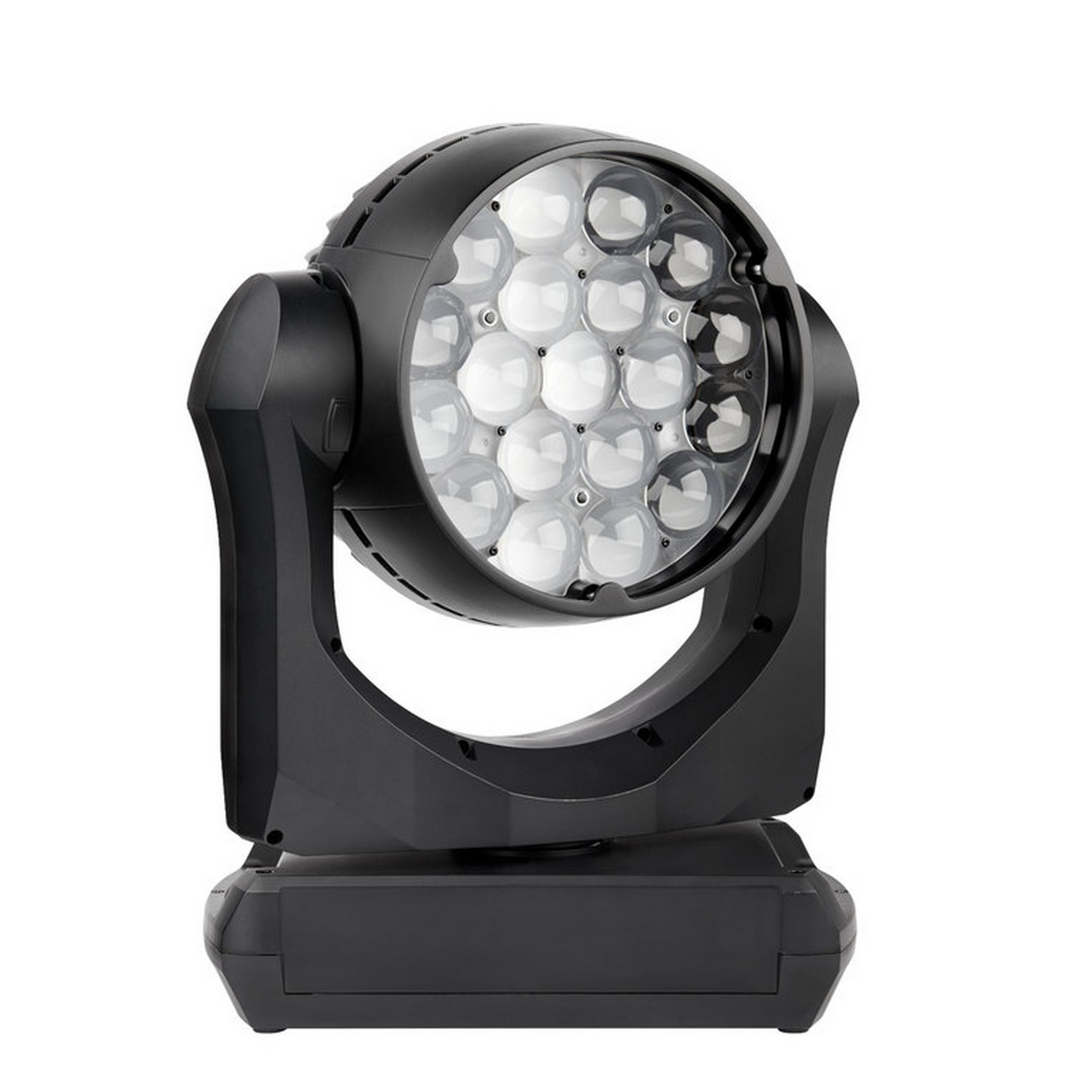

| Light source |
Main Beam LED: 19* 40W RGBW LED; Aura LED: 141*0.42W RGB LED
|
| Max total Primary LED engine power: |
approx.570W; Max total Aura LED engine power: approx. 60W
|
| Minimum LED lifetime |
50000hours (to >80% luminous output)
|
| Light engine luminous output |
19000 lumens
|
| Fixture luminous output |
Narrow beam: 11000 lumens
Medium beam: 12000 lumens
Wide beam: 13000 lumens
|
| Fixture Center intensity: |
Narrow beam: 1 Million cd
Medium beam: 130 kcd
Wide beam: 30 kcd
|
| CRI (Color Rendering Index) |
>74
|
| CQS (Color Quality Scale) |
82
|
| TM-30 Rf (IES TM-30-15 Fidelity Index) |
79
|
| TM-30 Rg (IES TM-30-15 Gamut Index) |
115
|
| TLCI (Television Lighting Consistency Index) |
62
|
| CCT |
6500 Kelvin
|
| LED refresh rate |
Beam LED 1200 Hz Aura LED 1200 Hz
|
| Housing |
High-impact flame-retardant thermoplastic
Color: Black
|
| Protection rating |
IP 20
|
| Orientation |
Any
|
| Minimum distance to combustible materials |
0.2 m (8 in.)
|
| Minimum distance to illuminated surfaces |
0.4 m (16 in.)
|

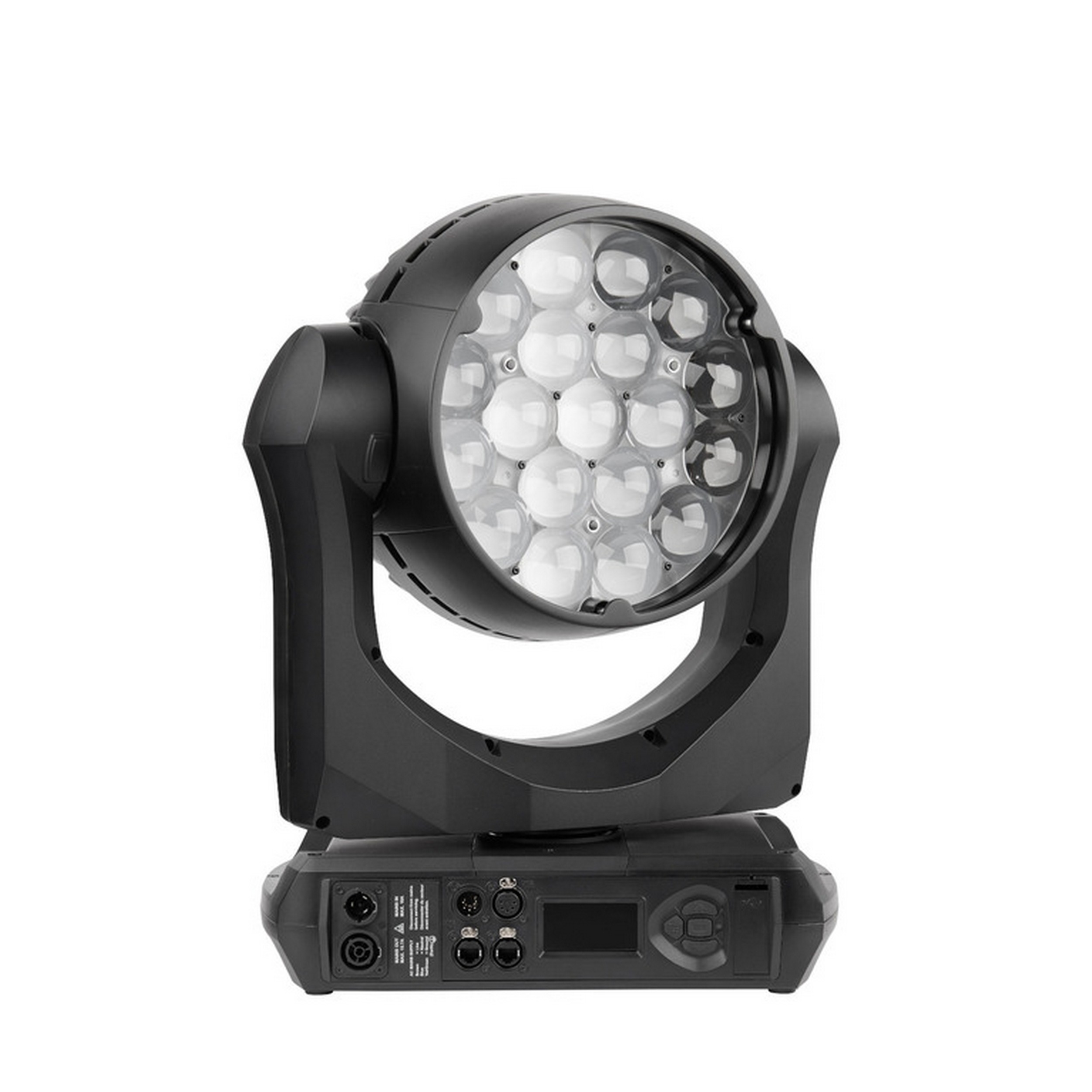

| AC power input/output |
Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector or NAC3FX-M connector) \
|
| DMX and RDM data in/out |
5-pin locking XLR
|
| Ethernet data |
Neutrik Ether Con in/out
|
| AC power |
100-240V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch mode
Idle Power Consumption: 77 W (all effects static, zero light output)
|
| Typical half-cycle RMS inrush current at 230 V, 50 Hz |
15.9A
|
| Typical power data, calibrated mode, full intensity at 6500 K |
100 V, 60 Hz: 5.0A, 500 W, PF 0.99
120 V, 60 Hz: 4.1A, 500W, PF 0.99
208 V, 60 Hz: 2.4A, 500W, PF 0.97
230 V, 50 Hz: 2.2 A, 500W, PF 0.97
240 V, 50 Hz: 2.1A, 500 W, PF 0.97
Measurements made at nominal voltage with all effects active & LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
|

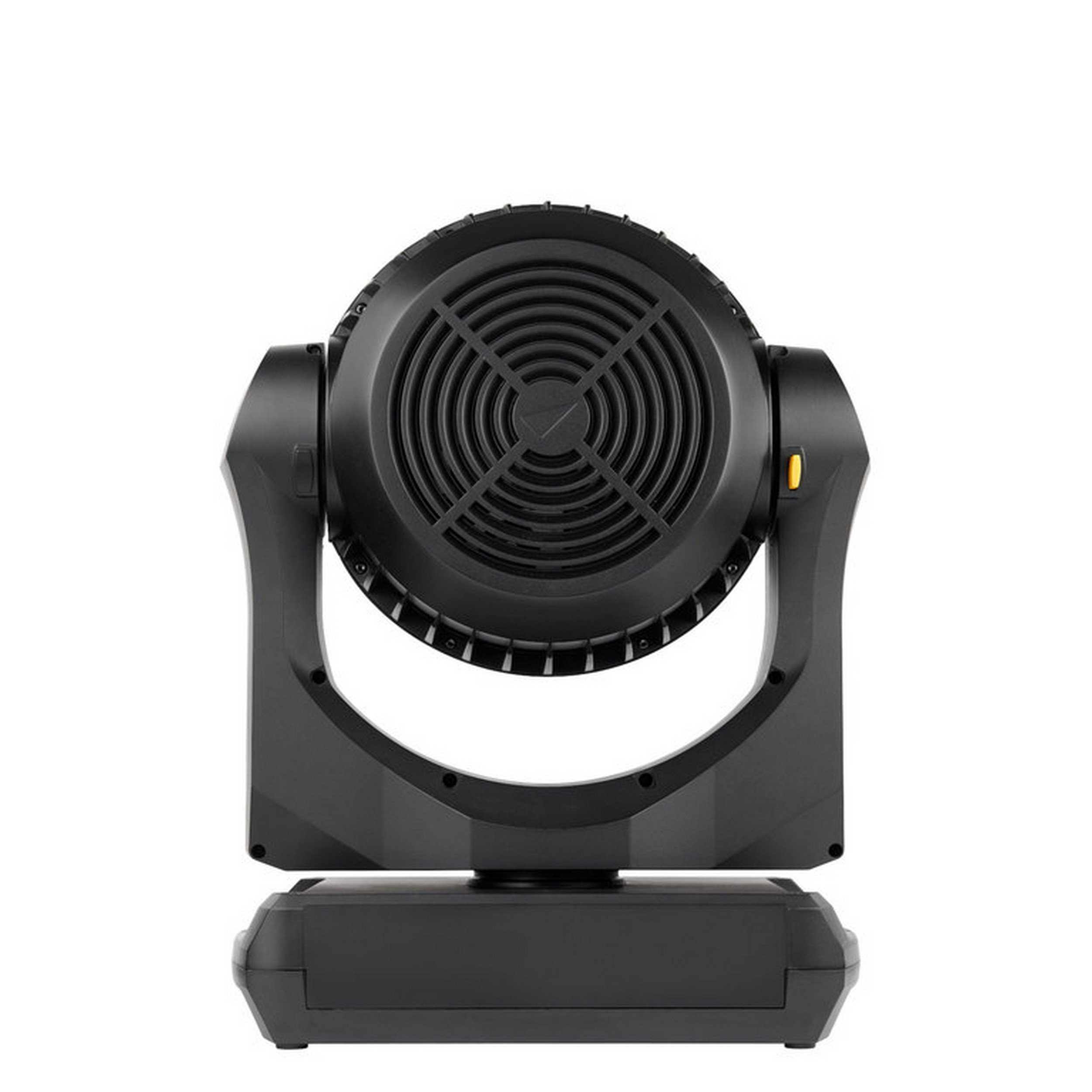

| Cooling |
Forced air (temperature regulated, low noise, user-definable levels)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Maximum surface temperature, steady state, at 40° C ambient |
53° C (128° F)
|
| Total heat dissipation (calculated, +/- 10%) |
1563 BTU/hr.
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
|
| EU EMC |
EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class B
|
| Canadian safety |
CSA C22.2 No. 166
|
| Canadian EMC |
ICES-003 Class B, ICES-005 Class B
|
| Global CB Certification/IECEE |
IEC 60598-2-17 (IEC 60598-1)
INCLUDED ITEMSTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment
|
| Cables, 16 A, for connection to power in chains |
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
|
| Cables, 16 A, for relaying power in chains |
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
|
| Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female) |
P/N 91611789
|
| Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female) |
P/N 91611789
|
| Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male) |
P/N 91611788
|
| G-clamp (suspension with fixture hanging vertically downwards only) |
P/N 91602003
|
| Quick Trigger Clamp (suspension with fixture hanging vertically downwards only) |
P/N 91602007
|
| Half-coupler clamp |
P/N 91602005
|
| Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black |
P/N 91604006
|
| Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver |
P/N 91604007
|
| Martin RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Cable |
P/N 91616091
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
|
| MAC Aura PXL EPS (in cardboard box, polystyrene packaging) |
P/N 90250035HU
|
| MAC Aura PXL SIP (in cardboard box with SIP foam flight case insert) |
P/N 90250040HU
|
| MAC Aura PXL, white finish, EPS (in cardboard box, polystyrene packaging) |
P/N 90250030HU
|
| Installation mounting points |
Two quarter-turn brackets for rigging
|
