| Length |
302 mm (11.9 in.) across yoke
|
| Width |
302 mm (11.9 in.) across yoke
|
| Height |
360 mm (14.2 in.), head straight up
|
| Weight |
6.5 kg (14.4 lbs.) without accessories
|

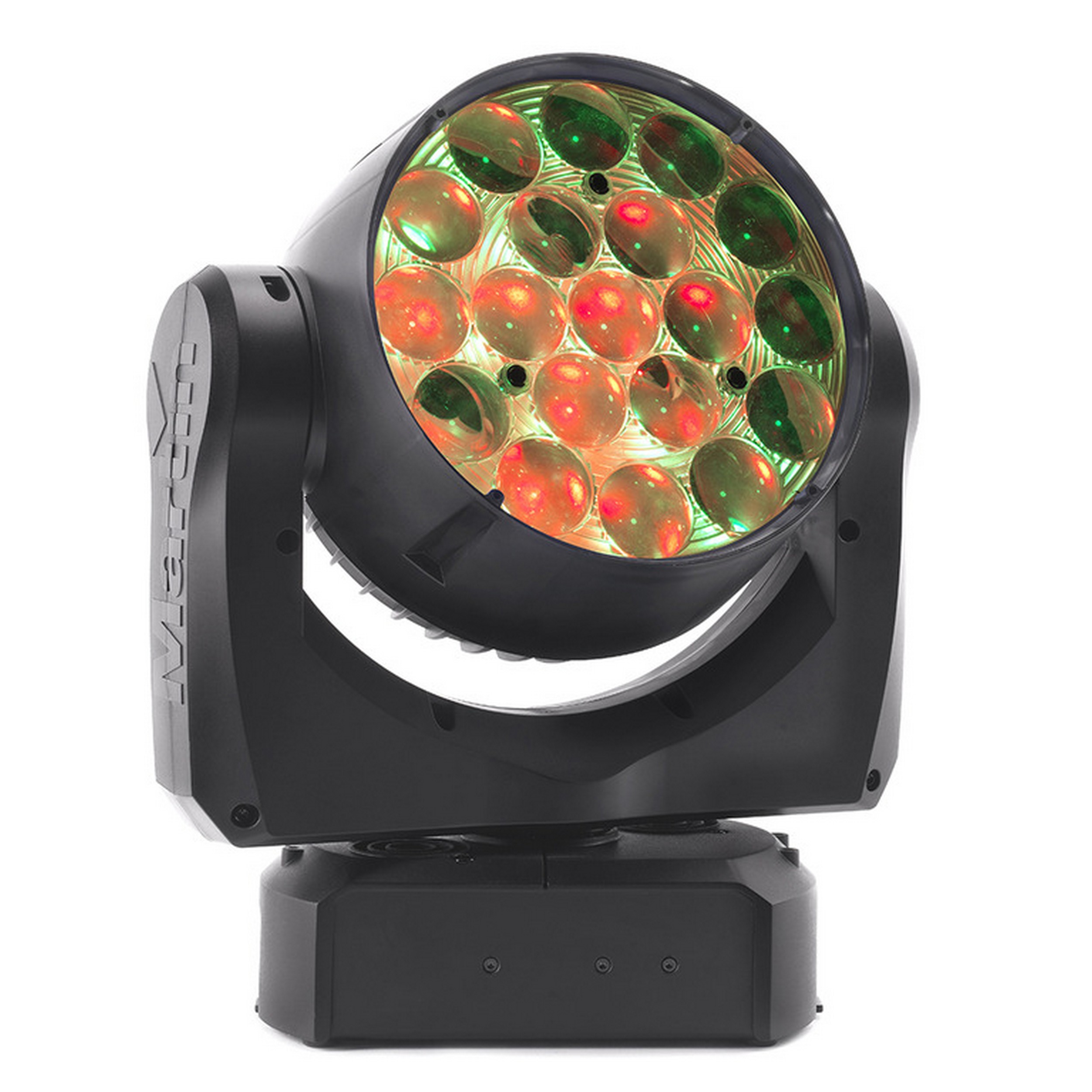

| Beam color mixing |
RGBW
|
| Aura (secondary lens array illumination) color mixing |
RGB
|
| Beam color temperature control |
CTO, variable 10,000 - 2500 K
|
| Beam and aura electronic 'color wheel' effect |
33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
|
| Beam and aura independent shutter effects |
Electronic, with regular and random pulse, burst and strobe effects
|
| Pre-programmed effects |
Range of synchronized and independent beam and aura FX, different FX can be combined
|
| Electronic dimming |
Independent beam and aura, four dimming curve options
|
| Pan |
540°
|
| Tilt |
232°
|
| Pan and tilt speed |
Adjustable via onboard control panel and DMX
|
| Control options |
Independent or synchronized Beam and Aura control
|
| Control systems |
DMX, RDM
|
| Control resolution |
8-bit, with 16-bit control of pan & tilt
|
| DMX channels |
14/25
|

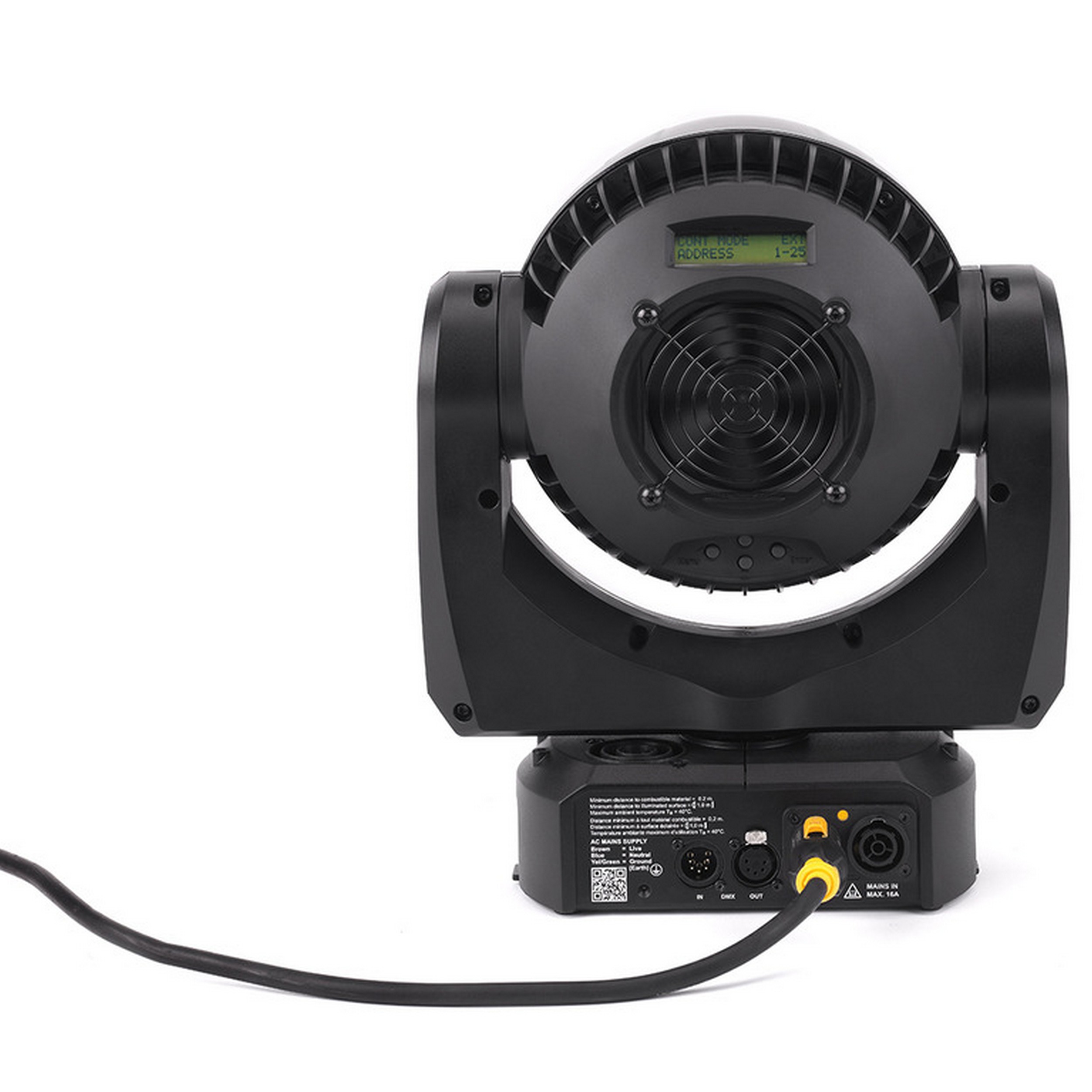

| Setting and addressing |
Control panel with backlit graphic display
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
RS-485
|
| Firmware update |
Via DMX with Martin™ USB Duo DMX Interface Box
|

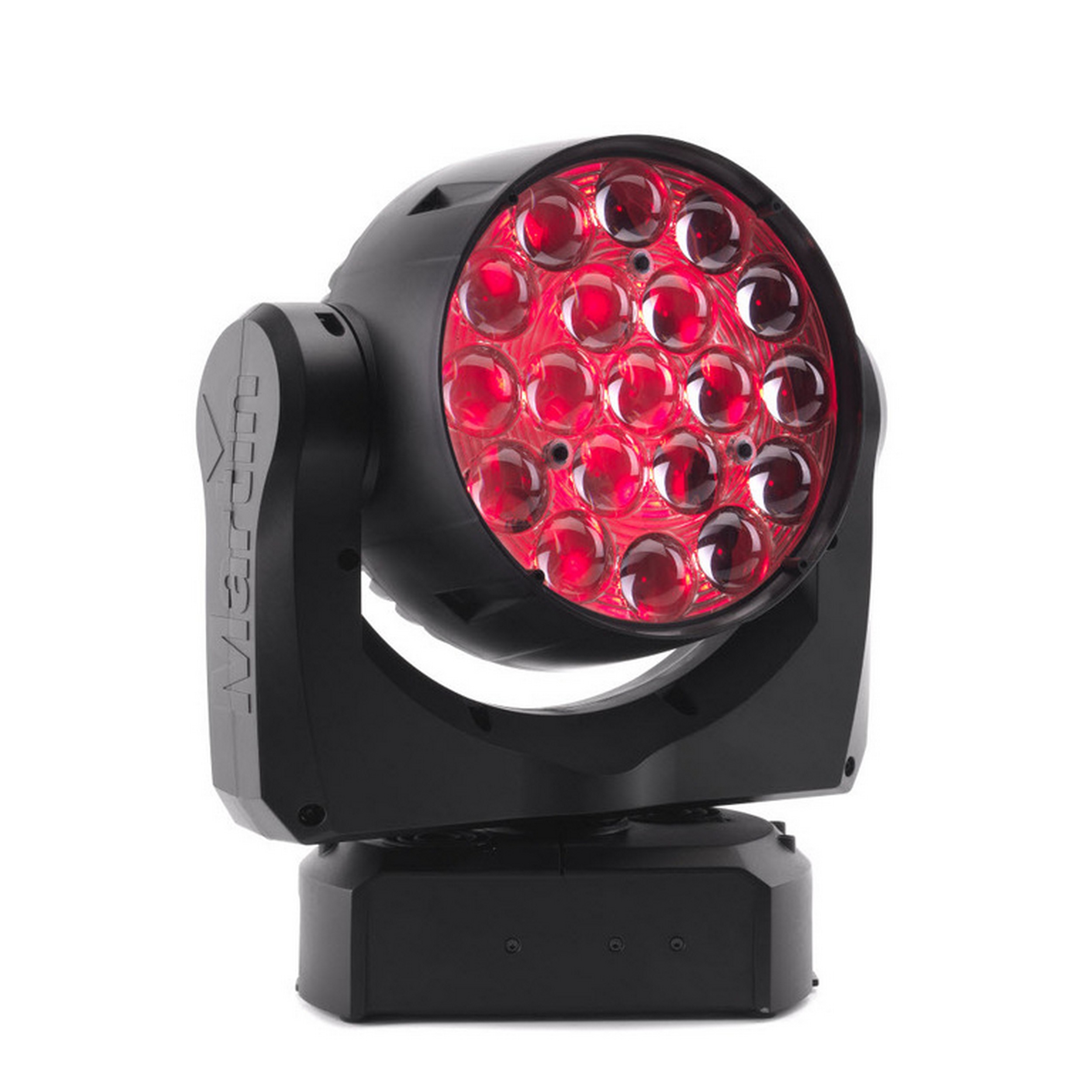

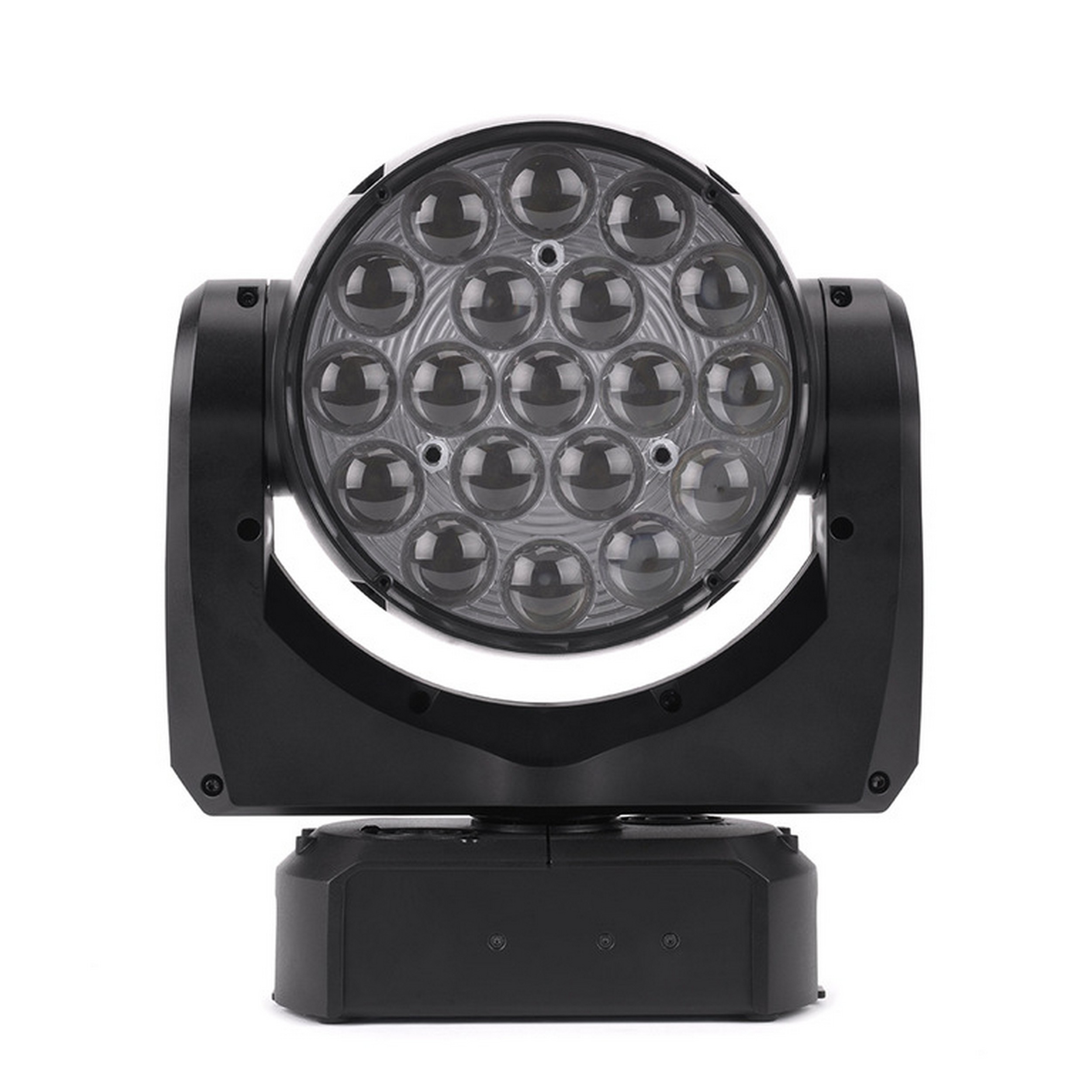

| Light Source |
19x 15W RGBW LED Array System
|
| LED Refresh Rate |
Beam 1200 Hz, Aura 4395 Hz
|
| Minimum LED Lifetime |
50,000 hours (to >70% luminous output)*
|
| Total luminous output (wide, one-tenth peak) |
6000 lumens
|
| Total luminous output (narrow, one-tenth peak) |
4300 lumens
|
| Video compatibility |
Designed for use with HD/high-speed video cameras
|
| Optics and Photometric Data notes |
*Figure obtained under manufacturer´s test conditions
|

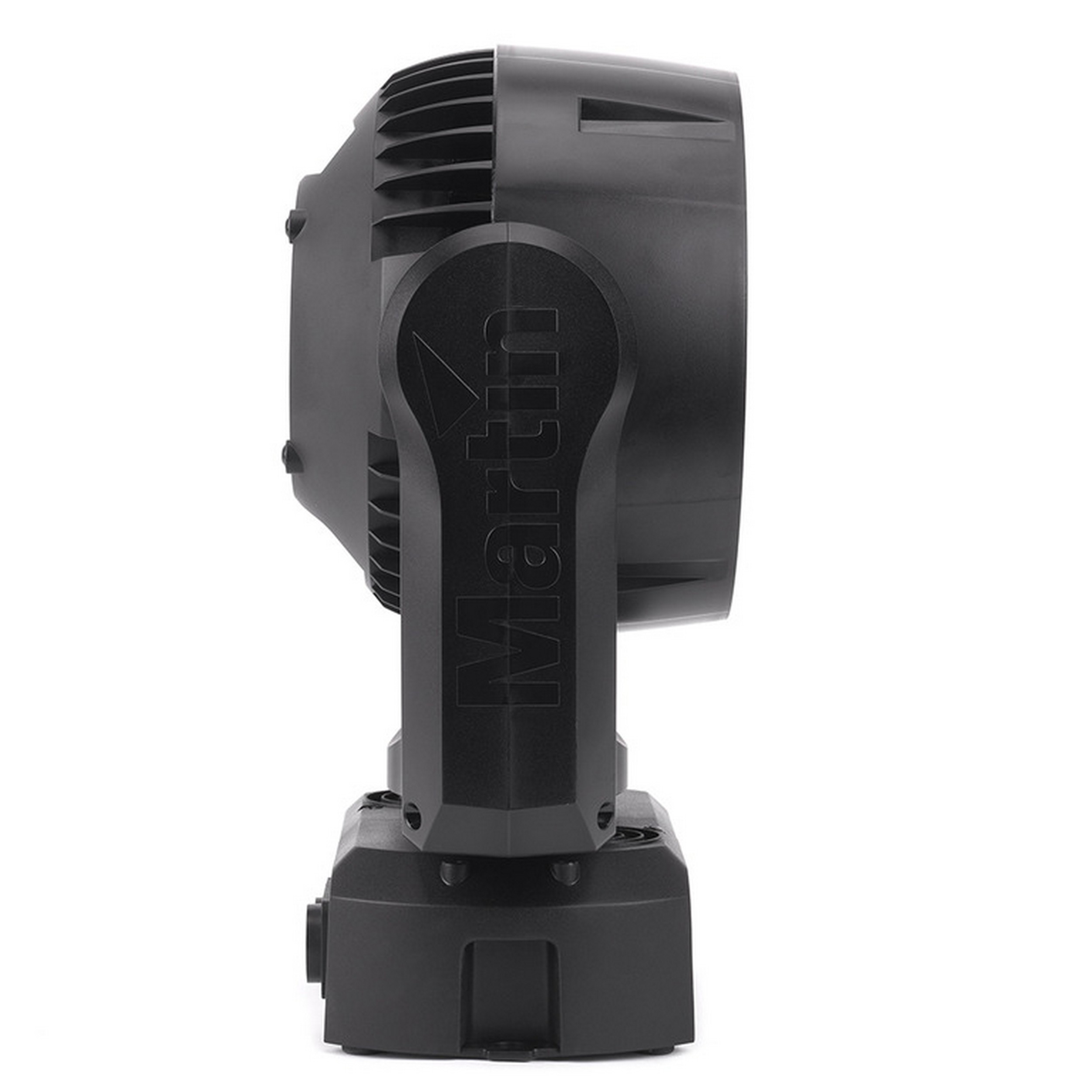

| Housing |
High-impact thermoplastic, flame-retardant to UL 94 5VA
|
| Color |
Black
|
| Protection rating |
IP20
|
| Mounting points |
M12 hole for rigging clamp, attachment points for surface-mounting bracket
|
| Location |
Indoor use only, must be fastened to surface or structure
|
| Orientation |
Any
|
| Minimum distance to combustible materials |
200 mm (8.0 in.)
|
| Minimum distance to illuminated surfaces |
1 m (3 ft. 4 in.)
|

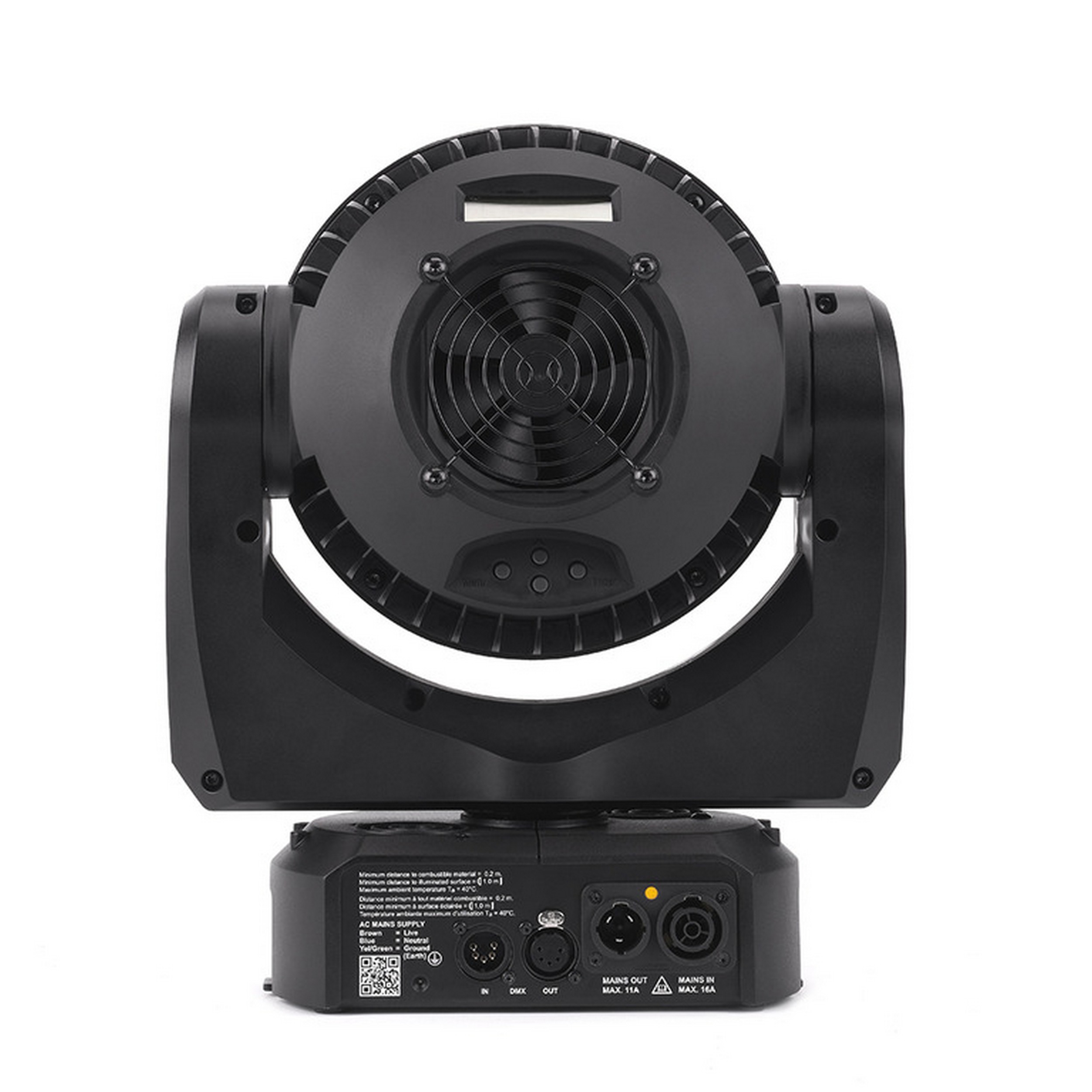

| AC Power |
Neutrik PowerCON TRUE1 NAC3PX dual socket
|
| AC power input socket |
Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector
|
| AC power thru socket |
Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
|
| DMX and RDM data in/out |
5-pin locking XLR
|
| AC power |
100-240 V nominal, 50/60 Hz
|
| Maximum total power consumption |
400 W
|
| Power supply unit |
Auto-ranging electronic switch mode
|
| Typical half-cycle RMS inrush current |
10.7 A
|
| Typical power consumption, all effects static, zero light output |
<25 W
|
| 100 V, 60 Hz |
359 W, 3.8 A, PF 0.99
|
| 120 V, 60 Hz |
355 W, 3.2 A, PF 0.99
|
| 208 V, 60 Hz |
350 W, 1.8 A, PF 0.97
|
| 230 V, 50 Hz |
349 W, 1.7 A, PF 0.95
|
| 240 V, 50 Hz |
349 W, 1.6 A, PF 0.95
|
| Typical Power and Current notes |
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
|
| Cooling |
Forced air (temperature-regulated, low noise, user-definable levels)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Minimum ambient temperature (Ta min.) |
5° C (41° F)
|
| Total heat dissipation (calculated, +/- 10%) |
1230 BTU/hr.
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471
|
| EU EMC |
EN 55103-1, EN 55103-2, EN 55015, EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class A
|
| Canadian safety |
CSA E598-2-17 (CSA E60598-1)
|
| Canadian EMC |
ICES-003 Class A
|
| Australia/NZ |
C-TICK N4241
|
| User manual |
P/N 35000254
|
| Included Items notes |
M12 bolt suitable for use with Martin rigging clamps
Note that power cables and connectors are not included and must be ordered separately
|
| Power connectors |
Cable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
Cable Connector, Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788
|
| Installation hardware |
Quick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
| Flightcase |
6-unit flightcase for MAC Aura™: P/N 91515020
|
| Optical Accessories |
MAC Aura / Aura XB Soft Lens Kit: P/N 91611730
|
| MAC Aura XB™ in cardboard box |
P/N 90232100
|
| MAC Aura XB™ in 6-unit flightcase |
P/N 90232110
|
| Cables, 16 A, for connection to power in chains |
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
|
| Cables, 16 A, for relaying power in chains |
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
(H07RN-F are European approved cables, SJOOW are US approved cables)
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com
|
| Martin Companion Cable |
P/N 91616091
|
