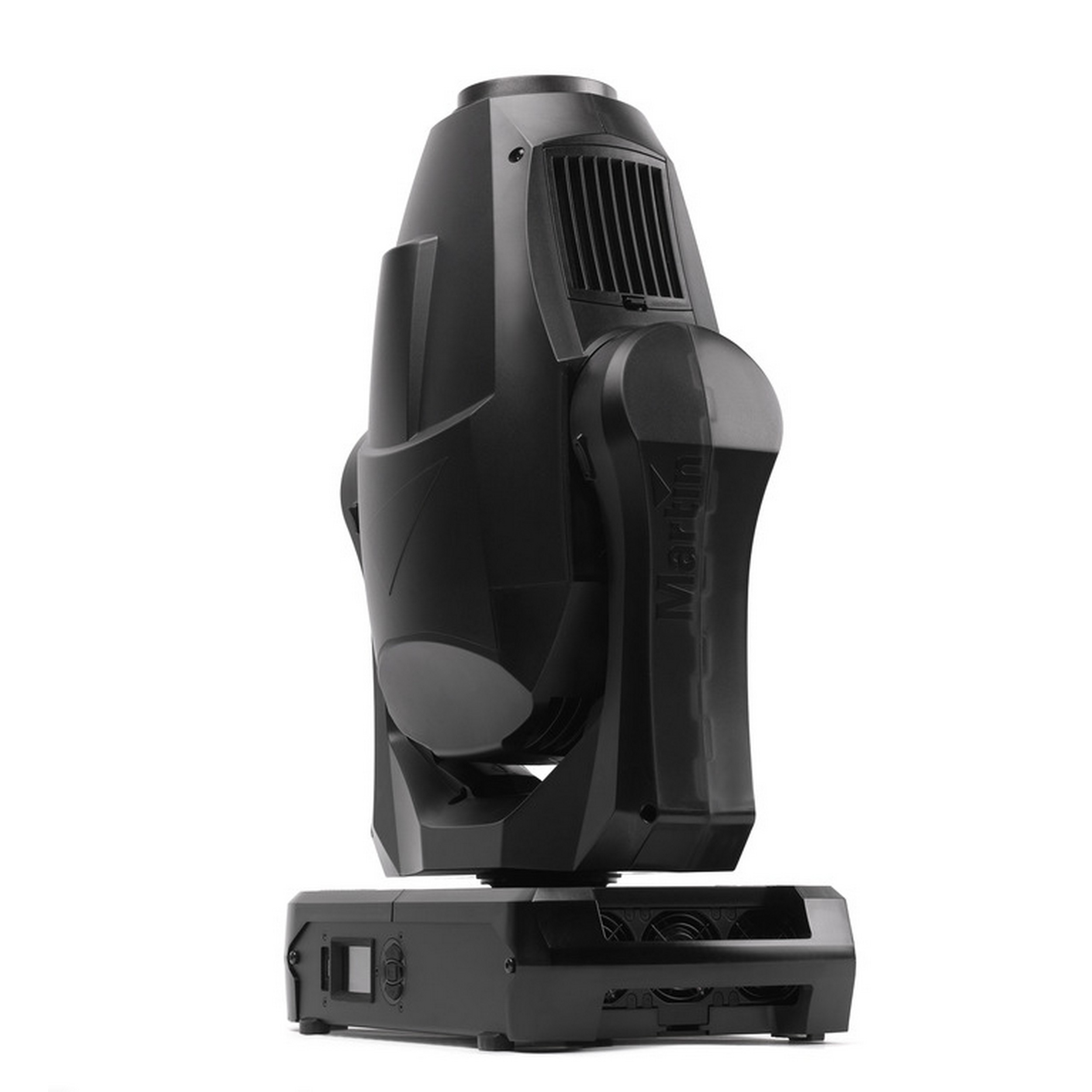

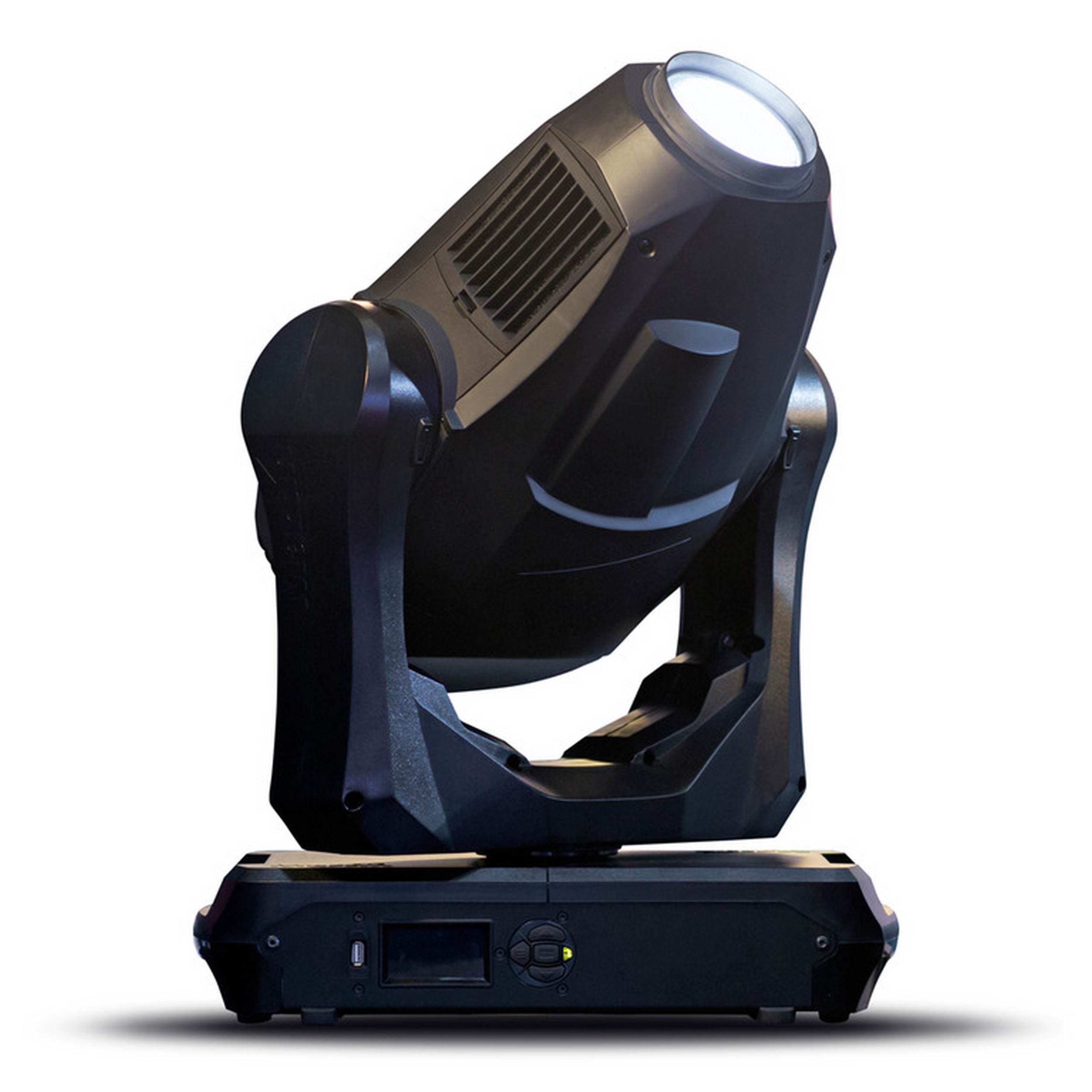

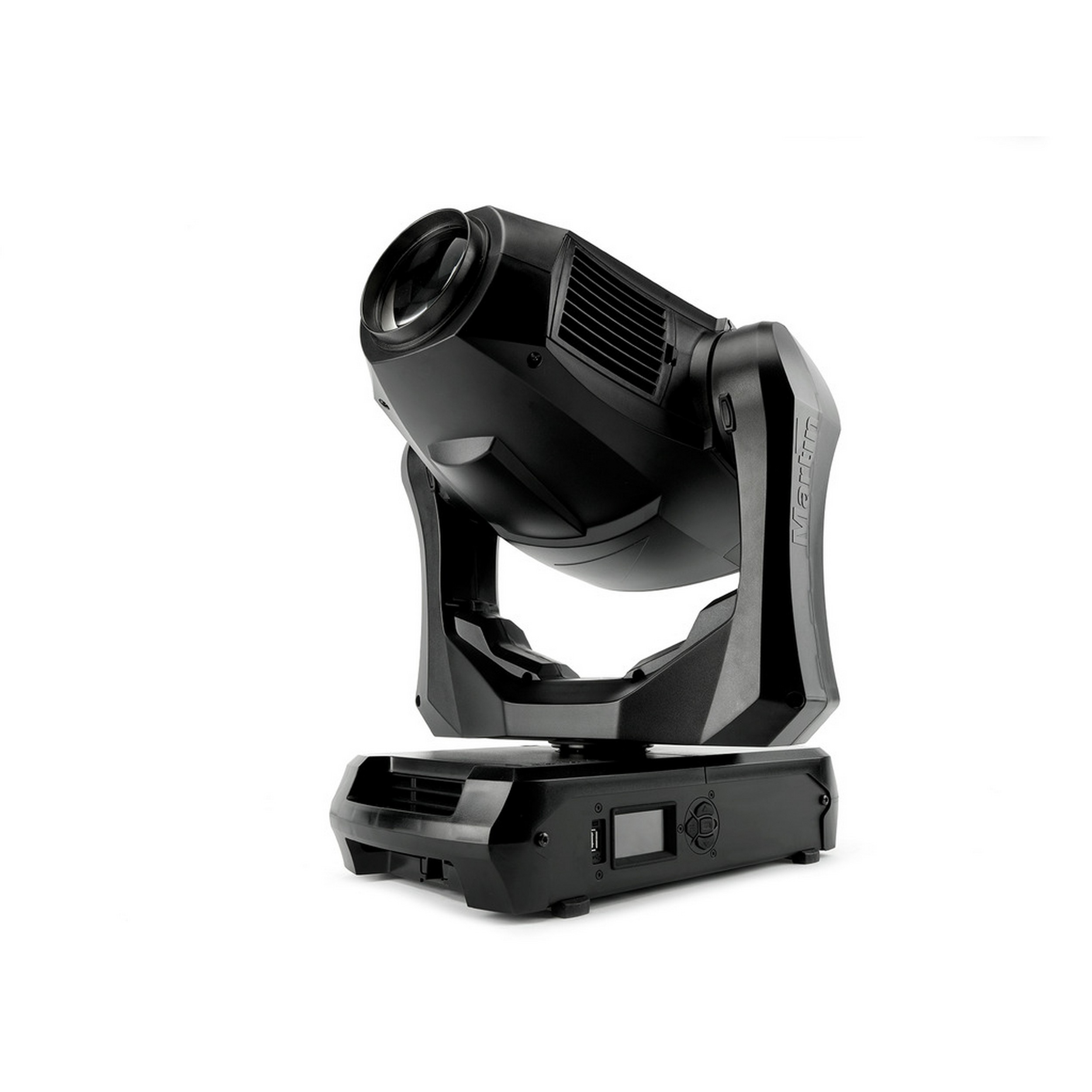

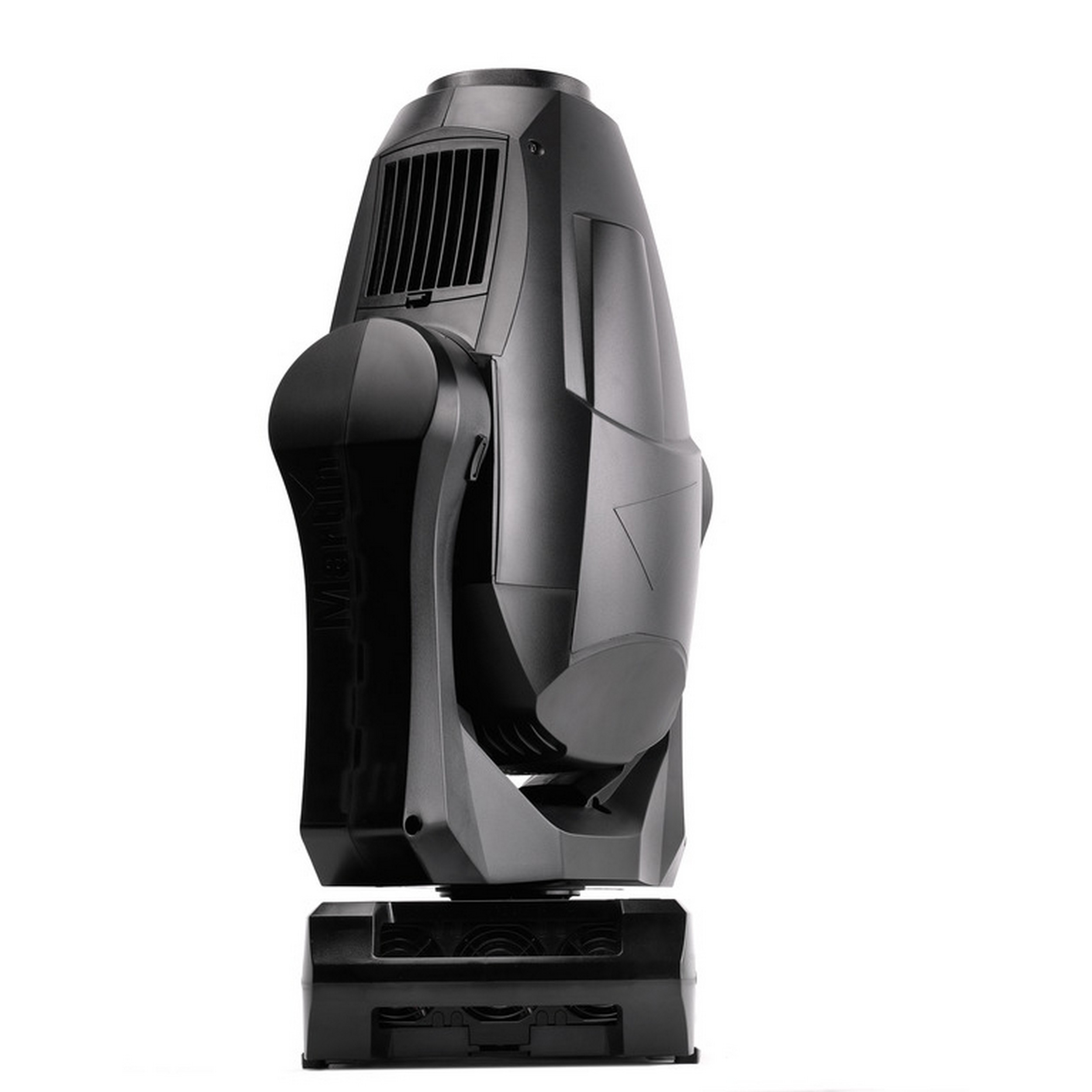

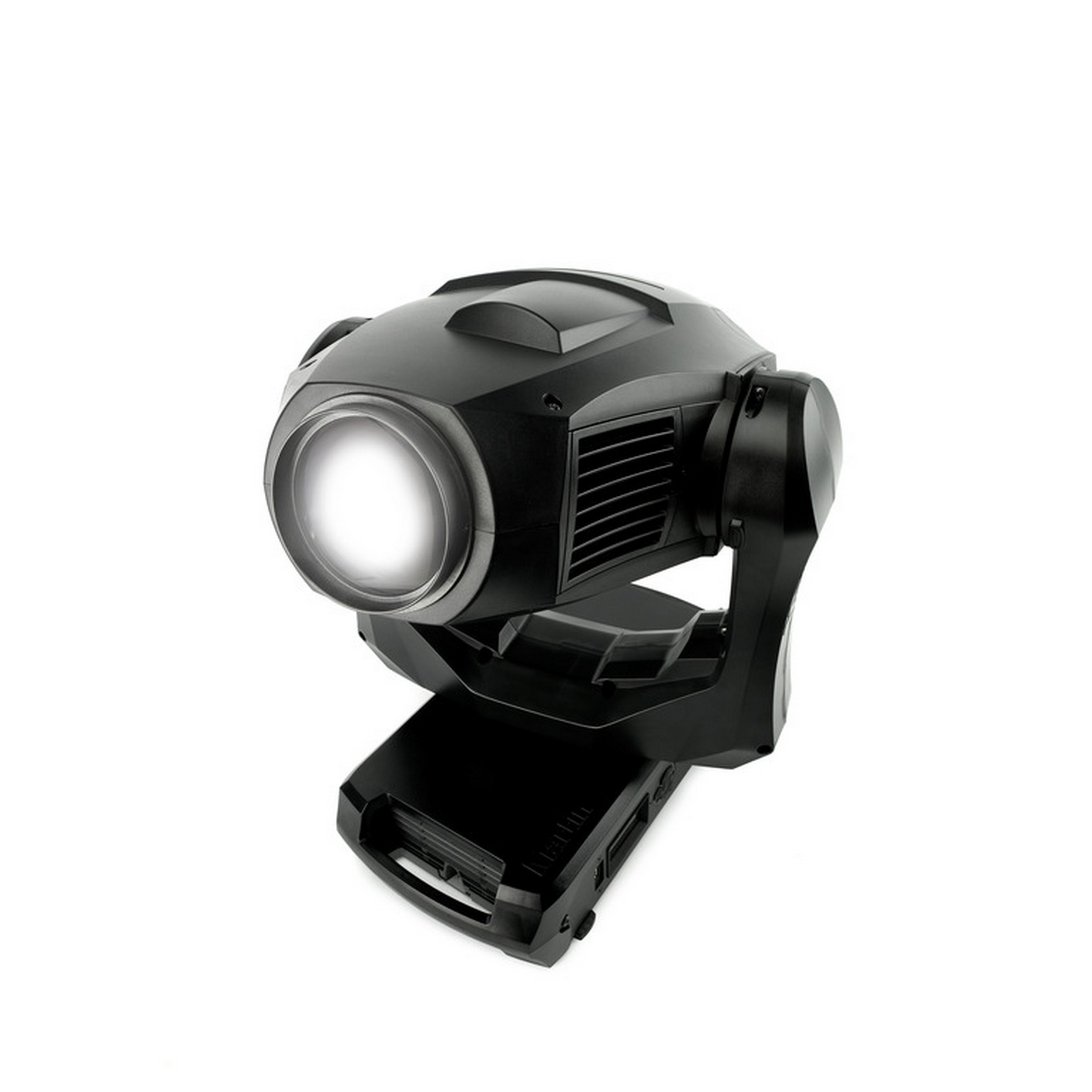

| Length |
452 mm (17.8 in.)
|
| Width |
431 mm (17.0 in.) across yoke
|
| Height |
642 mm (25.3 in.) head straight up
648 mm (25.5 in.) maximum
|
| Weight |
23.2 kg (51.1 lbs.)
|
| Color mixing |
CMY, independently variable 0 - 100%
|
| Color wheel |
6 color filters plus open
|
| Rotating gobo wheel |
6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
|
| Static gobo wheel |
10 gobos plus open, wheel indexing, rotation and shake
|
| Beam effects |
Rotating three-facet prism
|
| Zoom |
Motorized
|
| Focus |
Motorized, with zoom-focus tracking
|
| Iris |
0 - 100%, pulse effects
|
| Shutter effect |
Electronic, with variable speed regular and random strobe
|
| Electronic dimming |
Four dimming curve options
|
| Pan |
540°
|
| Tilt |
268°
|
| Pan and tilt speed |
Adjustable via onboard control panel and DMX
|
| Control systems |
DMX
|
| RDM |
Implemented
|
| Control resolution |
8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
|
| DMX channels |
19/27
|
| Setting and addressing |

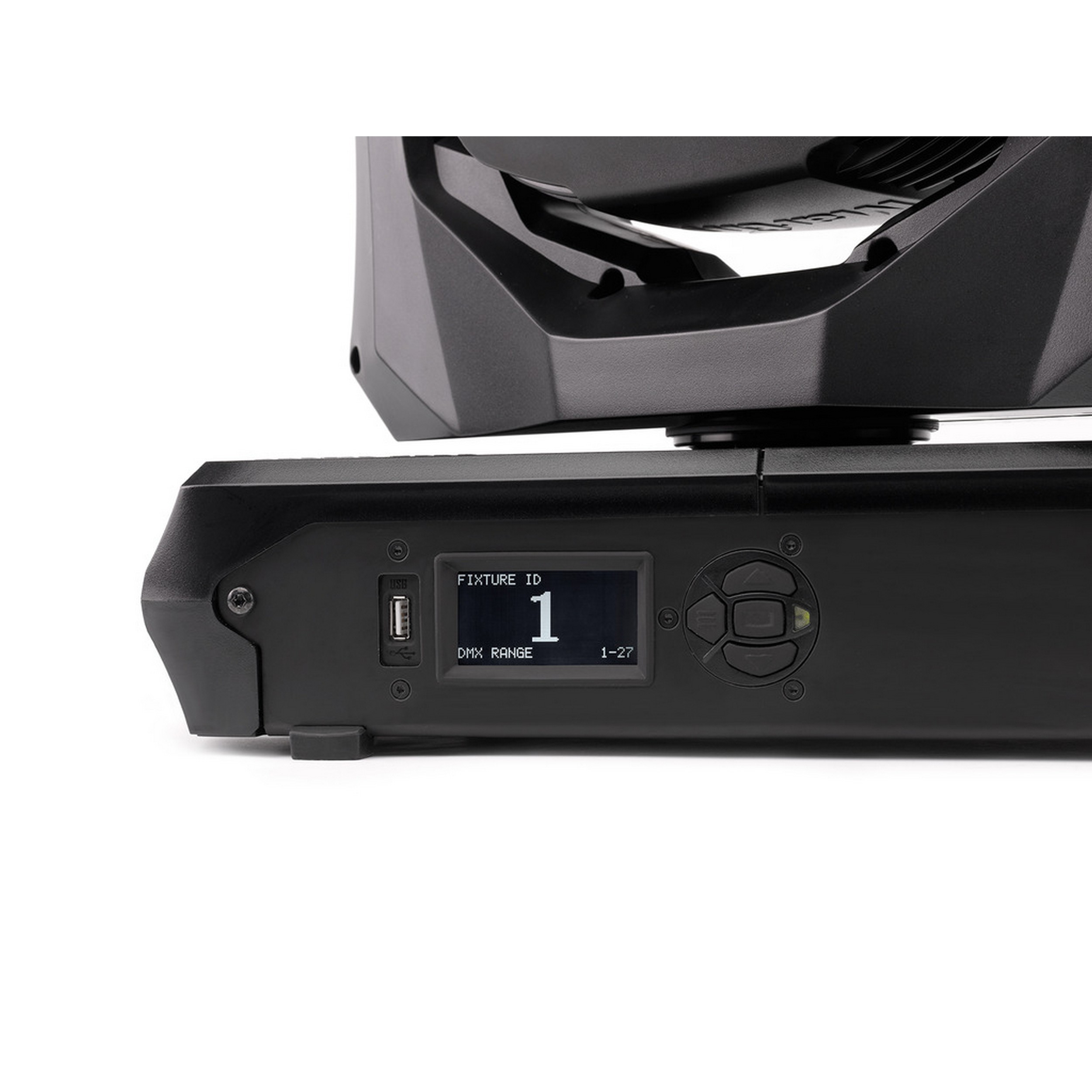

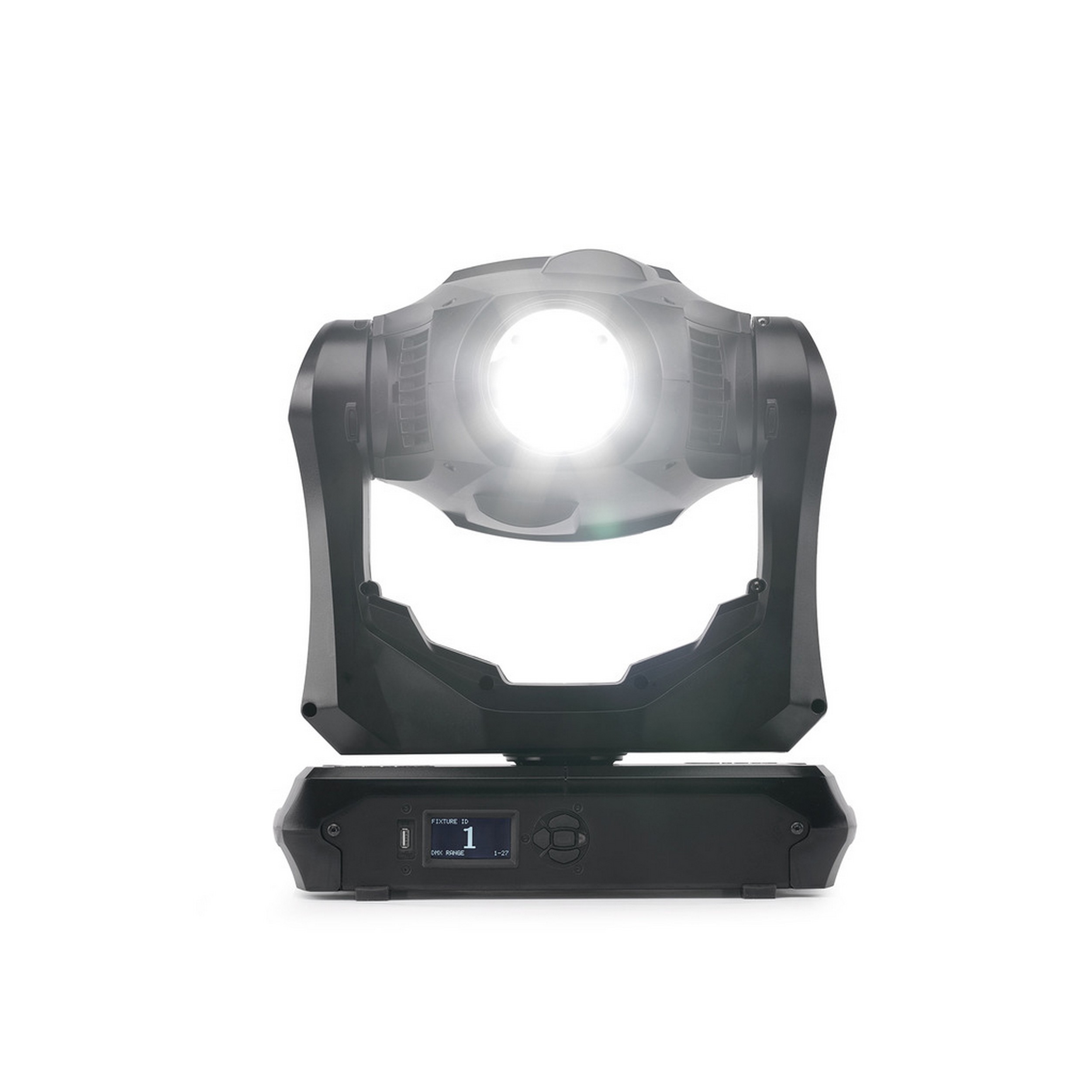

Control panel with backlit graphic display
|
| DMX compliance |
USITT DMX512-A
|
| RDM compliance |
ANSI/ESTA E1.20
|
| Transceiver |
RS-485
|
| Fixture software update |
Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
|
| Light source |
475 W LED engine
|
| LED refresh rate |
3000 Hz
|
| Minimum LED lifetime |
50,000 hours (to >70% luminous output)*
|
| Zoom range |
12° - 36° (1:3)
|
| Output |
12,700 lumens
|
| Optics notes |
*Figure obtained under manufacturer´s test conditions
|
| Color |
Black
|
| Housing |
High-impact flame-retardant thermoplastic
|
| Protection rating |
IP20
|
| Mounting points |
4 pairs of quarter-turn locks
|
| Location |
Indoor use only, must be fastened to surface or structure
|
| Orientation |
Any
|
| Minimum distance to combustible materials |
0.2 m
|
| Minimum distance to illuminated surfaces |
2.0 m
|

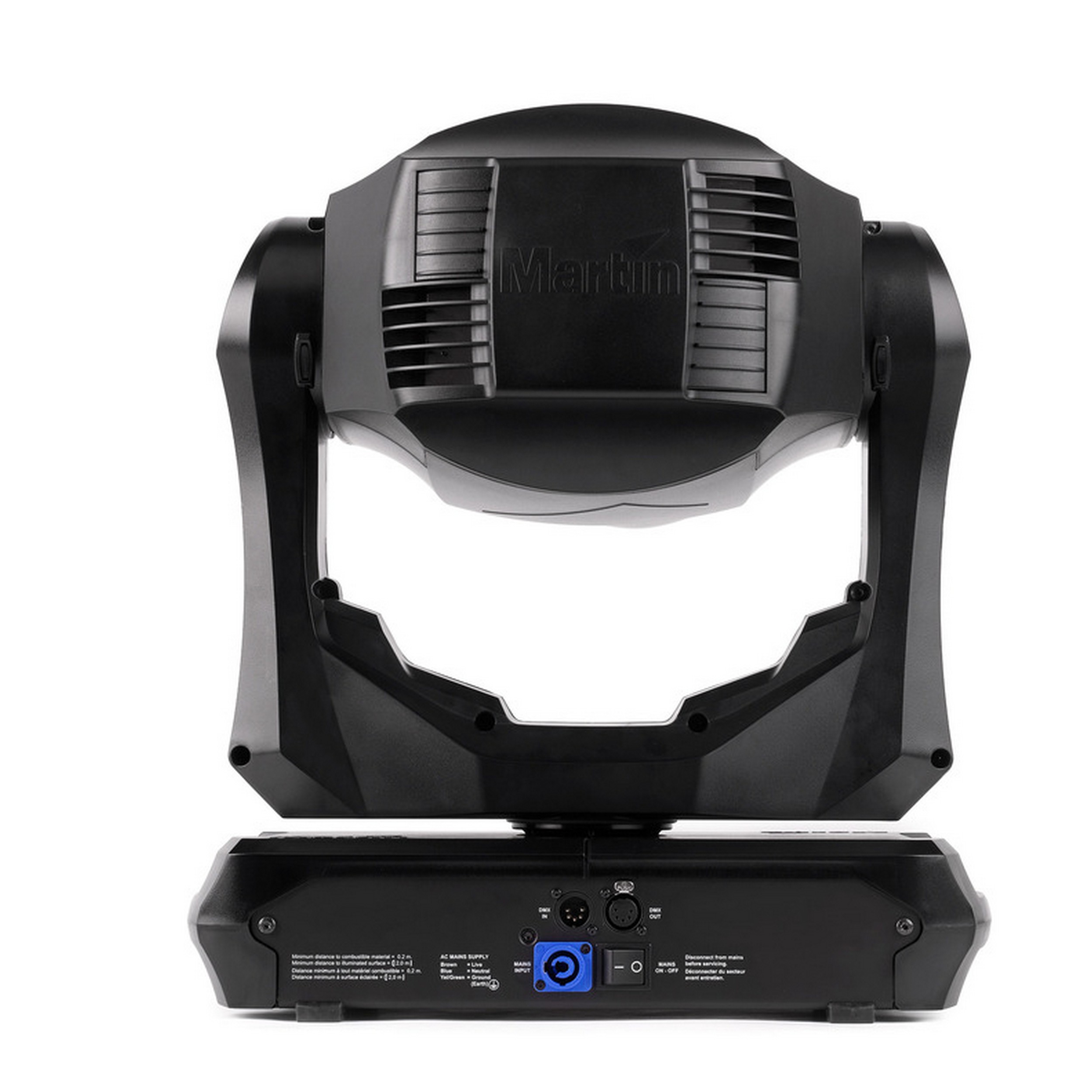

| AC power input |
Neutrik PowerCon
|
| DMX and RDM data in/out |
5-pin locking XLR
|
| AC power |
120-240 V nominal, 50/60 Hz
|
| Power supply unit |
Auto-ranging electronic switch mode
|
| Maximum total power consumption |
750 W
|
| Typical power consumption, all effects static, zero light output |
Approx. 50 W
|
| Typical half-cycle RMS inrush current |
10.3 A
|
| 120 V, 60 Hz |
4.8 A, 576 W, PF 0.999
|
| 208 V, 60 Hz |
2.8 A, 568 W, PF 0.991
|
| 230 V, 50 Hz |
2.5 A, 565 W, PF 0.988
|
| 240 V, 50 Hz |
2.4 A, 565 W, PF 0.988
|
| Typical Power and Current notes |
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
|
| Cooling |
Forced air (temperature-regulated, low noise, user-definable levels)
|
| Maximum ambient temperature (Ta max.) |
40° C
|
| Minimum ambient temperature (Ta min.) |
5° C
|
| Total heat dissipation (calculated, +/- 10%) |
2000 BTU/hr.
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471
|
| EU EMC |
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
|
| US safety |
UL 1573
|
| US EMC |
FCC Part 15 Class A
|
| Canadian safety |
CSA C22.2 No. E598-2-17 (CSA E60598-1)
|
| Canadian EMC |
ICES-003 Class A
|
| Australia/NZ |
C-TICK N4241
|
| 2 x Omega brackets for rigging clamp attachment |
P/N 91602001
|
| Flightcase for 2 x MAC Quantum™ |
P/N 91510210
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| MAC Quantum Profile™ in cardboard box |
P/N 90240000
|
| MAC Quantum Profile™ in 2-unit flightcase |
P/N 90240010
|
| Default color temperature |
6000 K
|
| Power Input Cables |
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
|
| Power connectors |
Power Connector PowerCON Female : P/N 91611794
|
| Installation hardware |
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
| Martin Companion Cable |
P/N 91616091
|
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com
|
