| Length |
266 mm (10.5 in.)
|
| Width |
287 mm (11.3 in.)
|
| Height |
329 mm (13.0 in.)
|
| Weight |
5.5 kg (12.1 lbs.)
|
| Color selection |
33 color presets plus full white, 'color wheel' effects
|
| Color mixing |
RGBW
|
| Electronic dimming |
0 - 100%
|
| Strobe and pulse effects |
Variable speed and action, random strobe
|
| Electronic shutter effect |
Instant open and blackout
|
| Zoom |
Motorized
|
| Control options |
DMX, standalone scene
|
| DMX channels |
5/9
|
| White balance control |
RGB adjustment
|
| DMX address setting |
Control panel with LCD display
|
| Standalone programming |
Control panel with LCD display
|
| Protocol |
USITT DMX512/1990
|
| Light source |
12 x 10 W RGBW Osram Ostar LEDs
|
| Minimum LED lifetime |
50,000 hours (to >70% luminous output)*
|
| Zoom range |
10° - 60°
|
| Optics notes |
*Figure obtained under manufacturer´s test conditions.
|
| Color |
Black
|
| Housing |
Aluminum
|
| Protection rating |
IP20
|
| Mounting |
Adjustable bracket, surface or truss mount
|
| Location |
Indoor use only
|
| Orientation |
Any
|

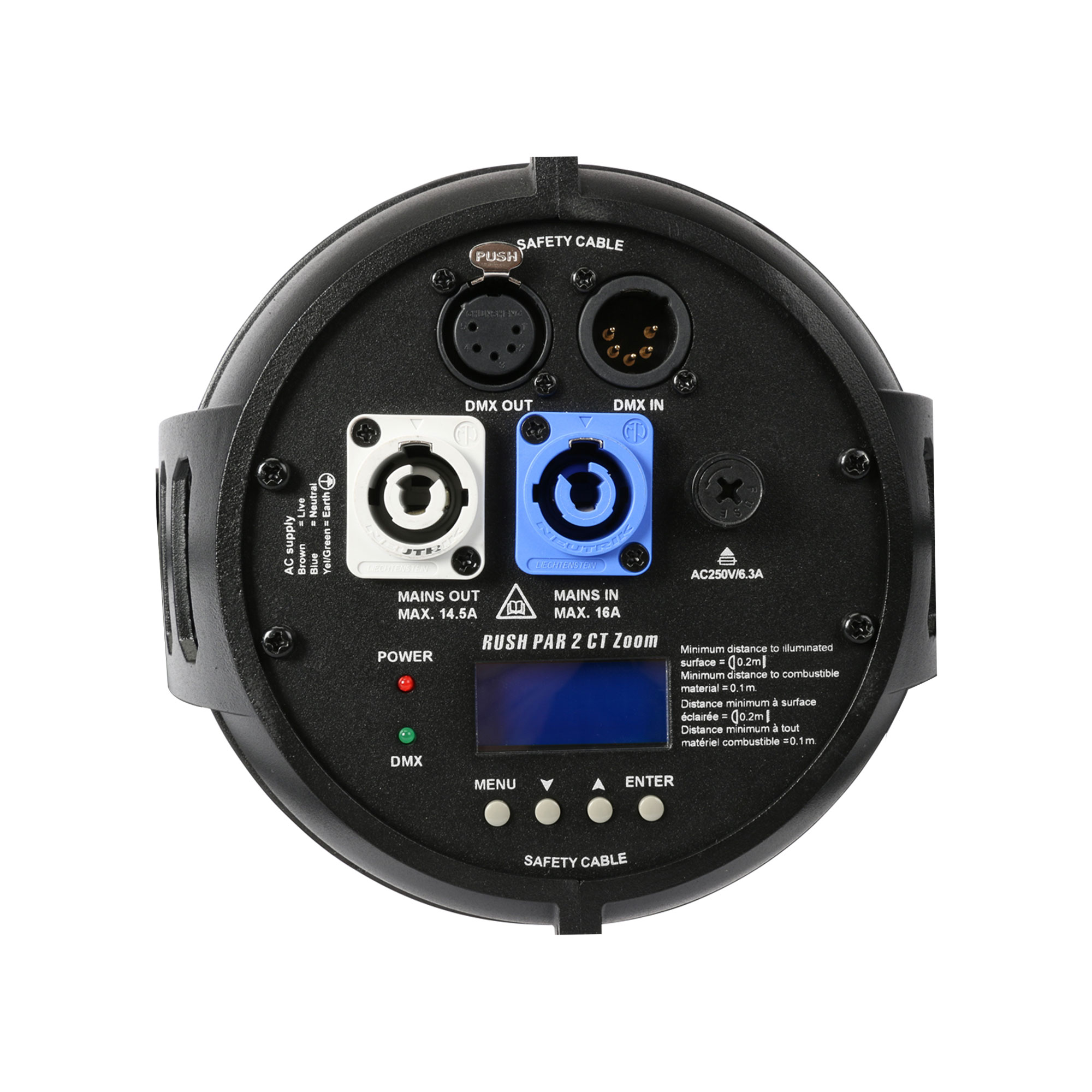

| AC power in, thru |
Neutrik PowerCon
|
| DMX data in/out |
5-pin XLR
|
| AC power |
100-240 V nominal, 50/60 Hz
|
| Typical total power consumption |
151 W
|
| Electrical notes |
Power consumption figures are typical, not maximum. Allow for +/-10% variation.
|
| 120 V, 60 Hz |
1.3 A, 151 W, PF 0.993
|
| 230 V, 50 Hz |
0.7 A, 148 W, PF 0.961
|
| Typical Power and Current notes |
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
|
| Cooling |
Forced air (temperature-regulated, low noise)
|
| Maximum ambient temperature (Ta max.) |
40° C (104° F)
|
| Minimum ambient temperature (Ta min.) |
0° C (32° F)
|
| Total heat dissipation (calculated, +/- 10%) |
520 BTU/hr. (at full intensity, full white)
|
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
|
| EU EMC |
EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
|
| US safety |
UL 1573 (pending)
|
| US EMC |
47 CFR Part 15 Class A
|
| Canadian safety |
CSA C22.2 No. 166 (pending)
|
| Canadian EMC |
ICES-003 Class A
|
| Australia/NZ |
C-TICK N4241
|
| Included Items notes |
Power cable 1.5 m
Mounting bracket
|
| Gel Frame for RUSH PAR 2, set of 10 |
P/N 46000106
|
| Cables, 16 A, for connection to power in chains |
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
|
| Power connectors |
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
|
| Installation hardware |
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
|
| RUSH PAR 2 RGBW Zoom™ in cardboard box |
P/N 90480040
|
| Cables, 16 A, for power input |
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
|
| Martin™ RDM 5.5 Splitter |
P/N 90758150
|
| Martin Companion Cable |
P/N 91616091
|
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com
|
