Ertekin World of Sound

JBL Professional

LSR6312SP

Studio Monitörleri

Marka:	JBL Professional
Ürün Kodu:	LSR6312SP
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Frequency Response	(-6 dB) 28 Hz - 80 Hz
-10 dB	26 Hz
Enclosure Resonance Frequency	28 Hz
Low-To-High Crossover Frequency	80 Hz (4th order electroacoustic Linkwitz-Riley)
Distortion, 96 dB SPL/ 1 m	N/A
Low Frequency (<80 Hz)	N/A
2nd Harmonic	<2%
3rd Harmonic	<1%
MAXIMUM CONTINUOUS SPL	>112 dB SPL / 1 m (35 Hz - 80 Hz)
Maximum Peak SPL	>115 dB SPL / 1 m (35 Hz - 80 Hz)
Calibrated Input Sensitivity	XLR or 1/4"
Selectable -10 dBV +4 dBu, +8 dBu	96 dB / 1 m
Power Nonlinearity (20 Hz - 200 Hz):	N/A
30 W	<0.4 dB
100 W	<1.0 dB
Power / Clip / Bypass Indicators	Green LED - normal operationAmber LED - bypass modeRed LED - Limiter activated
Low Frequency Topology	Class A-B, all discrete
Sine Wave Power Rating	260 W (<0.5% THD into rated impedance)
THD + N, 1⁄2Power	<0.05%
AC INPUT VOLTAGE	115 VAC, 60 Hz (230VAC, 50 Hz – model LSR6312SP/230)
AC Input Voltage Operating Range	±15%

DETAYLAR

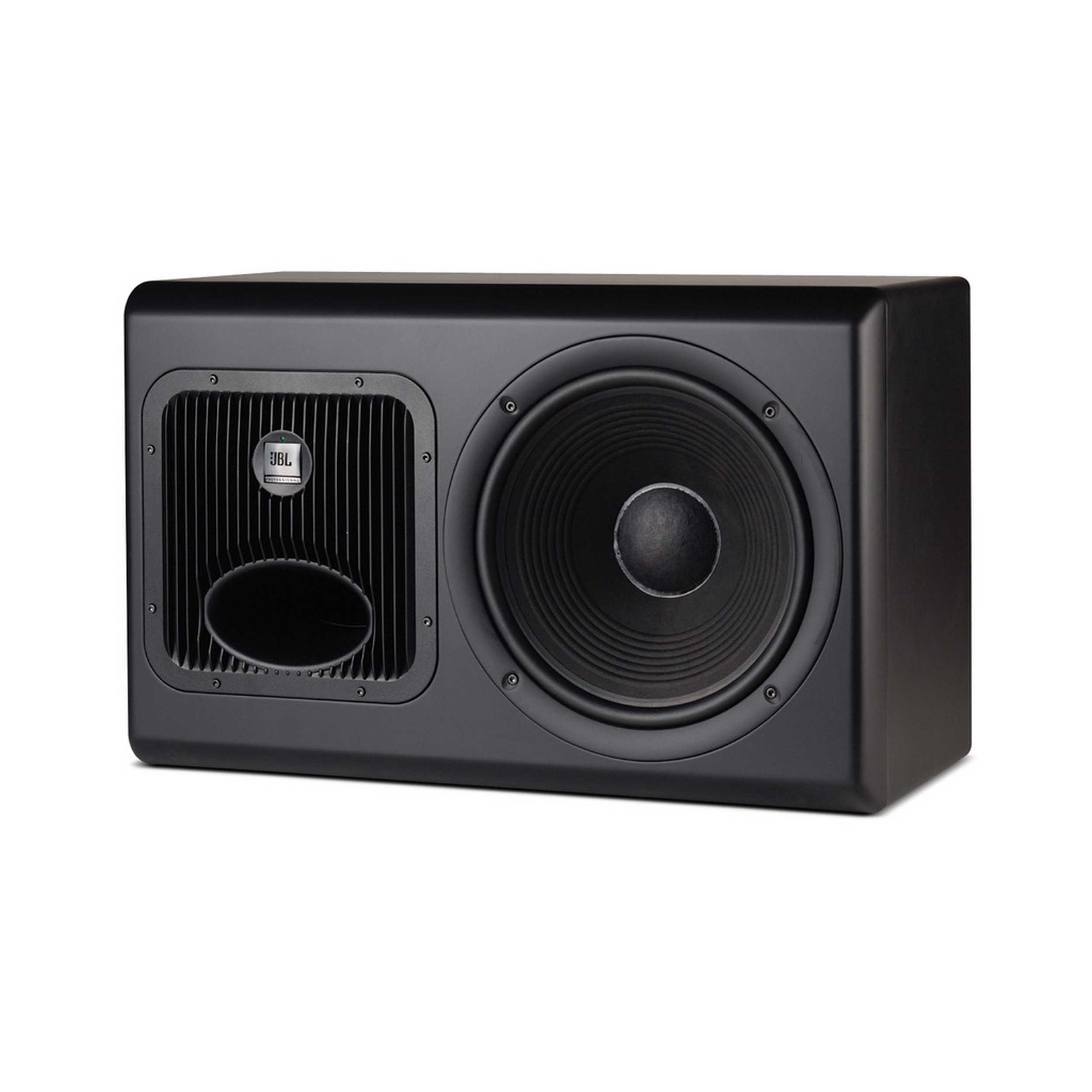

Powered Studio Subwoofer System

The LSR6312SP powered subwoofer is based on a 12" woofer with JBL's patented Differential Drive® and 250 Watts of power. THX® pm3 Approved. METAlliance® Certified.
