Crown

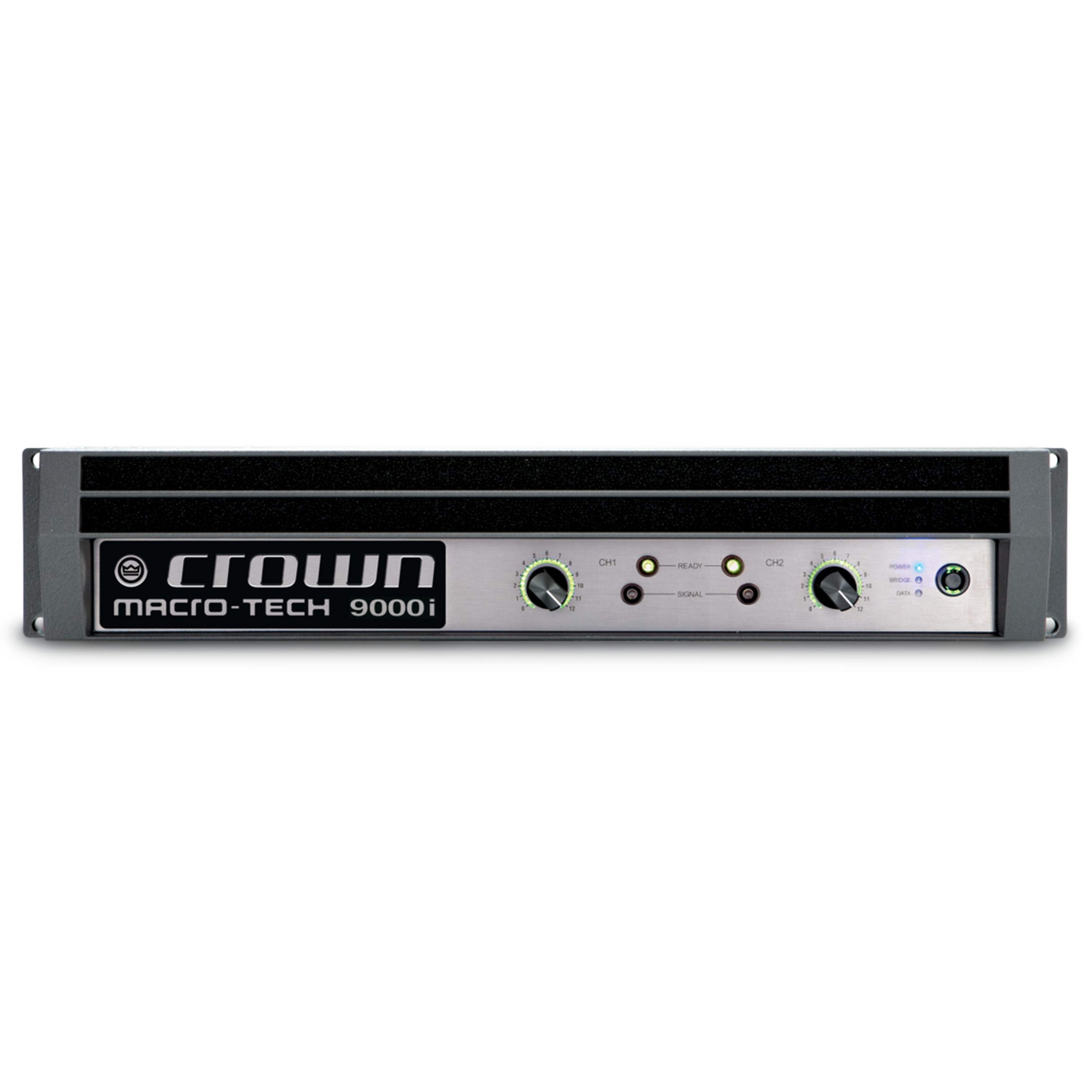

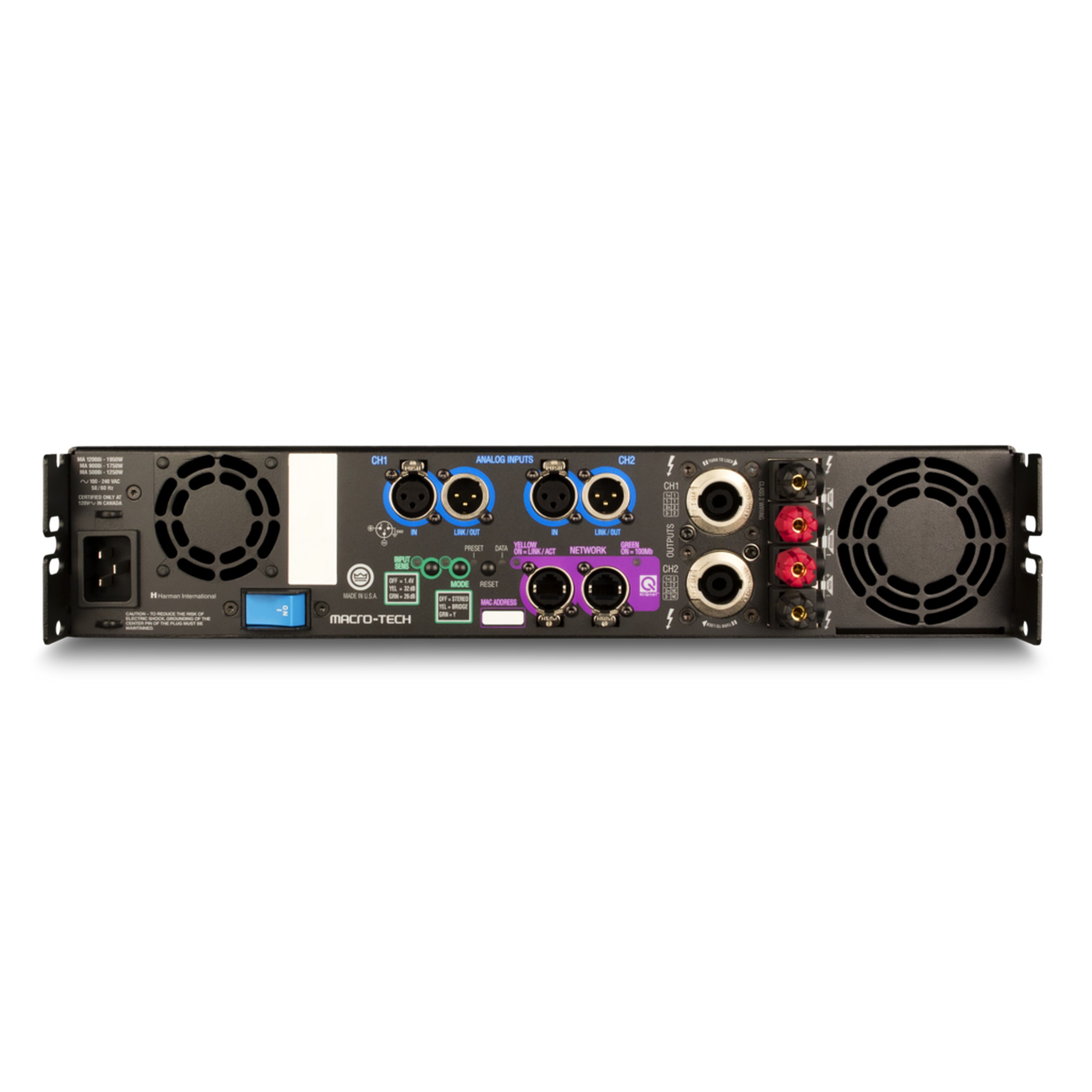

MA9000I

8 Ohm Amfiler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Response ± 0.25dB
Signal to Noise Ratio > 112dB
THD < 0.1%
THD+Noise < 0.1%, 20Hz to 20kHz
Intermodulation Distortion < 0.35%
Damping Factor > 5000
Crosstalk > 80dB
Common Mode Rejection > 70dB Typical
DC Output Offset < ±3mV
Input Impedance 20kΩ balanced, 10kΩ unbalanced
Maximum Input Level +20dBu Typical
Load Impedance Stereo: 1/2/4/8/16Ω; Bridge: 2/4/8Ω
Input Sensitivity 1.4Vrms, 32dB gain, 26dB gain
Voltage Gain 39.3dB to 24.5dB
Required AC Mains (+/- 10%) Universal AC input, 100-240VAC, 50/60Hz
Dimensions 19" x 3.5" x 16.2" (48.3 cm x 8.9 cm x 41.1 cm)
Net Weight 28 lbs (12.7 kgs)
Shipping Weight 36 lbs (16.3 kgs)
IEC Power Connector 20A
DETAYLAR
DETAYLAR

The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.

MAi Power Matrix
