Neutrik

NO2-4FDW-1-A

Chassis connector, black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket, 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

Marka:	Neutrik
Ürün Kodu:	NO2-4FDW-1-A
Kategori:	Data / Fiber
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

DETAYLAR

Chassis connector with black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*. The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.

DÖKÜMANLAR

RESİMLER

ETİKETLER

ÜRÜN AİLESİ

NO2-4FDW-1-A

Chassis connector, black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket, 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

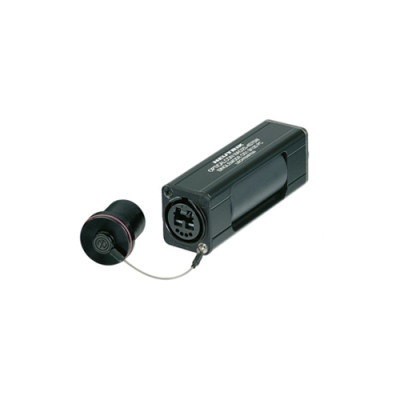

NAO2*-H1W-A

Weatherproof opticalCON DUO coupler (adapter), LC-Duplex, 4 copper wires (0.75 mm²).

OPTICALCON DUO HYBRID

Assembled extra rugged hybrid cable with 2 multi-mode fibers and 4 x 0.75 mm2 copper conductors, GFK strength member and aramid yarn as cable retention. Low weight robust hybrid cable, only 78kg/km.

OPTICALCON DUO SMPTE

Pre-assembled SMPTE cable with 2 single-mode fibers (PC or APC), 4 copper pins, overall copperbraided shield and stainless steel strength member, strong black PUR outer jacket for abrasion resistance.

OPTICALCON DUO LOW VOLTAGE HYBRID

Assembled ultra-flexible and lightweight (65 kg/km) low voltage camera / SM hybrid cable with 2 single mode fibers and 2 AWG16 copper conductors, aramid yard cable retention. Cost effective fiber optic hybrid cable solution.

NO2-4FDW-A

Chassis connector, black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.
