Crown

XFMR-4

Amfi Aksesuarları
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Output Connectors Pluggable barrier block connectors that accept up to 14 AWG wire
Frequency Response +/-1.0dB (at 70Hz to 15 kHz)
Insertion Loss ≤1.0 dB max (at 70VAC)
Max Input 32Vrms/125W
Dimensions 19" x 1.72" x 15.6" (48.3cm x 4.4cm x 39.7cm)
Weight 17lbs (7.7kg)
DETAYLAR
DETAYLAR

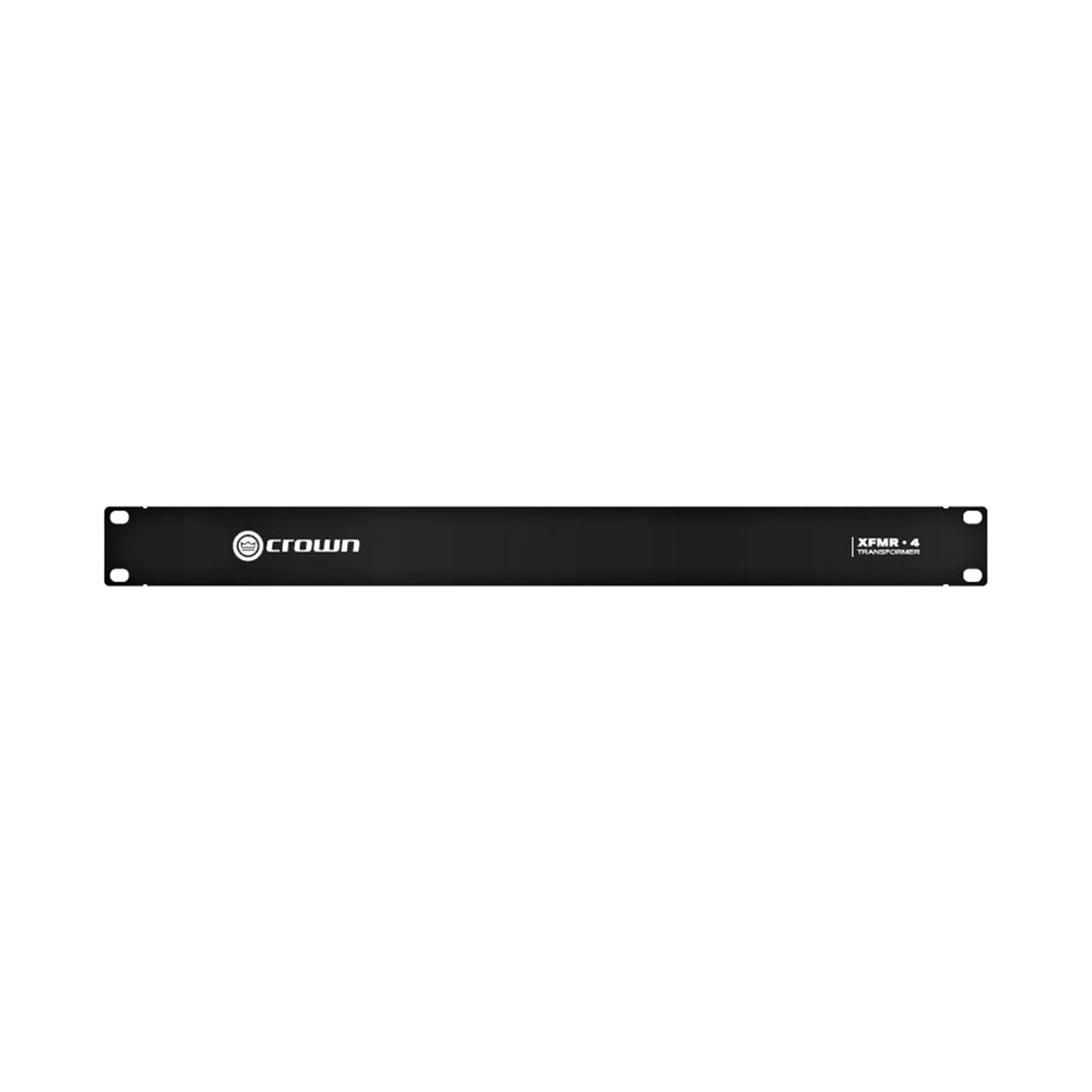

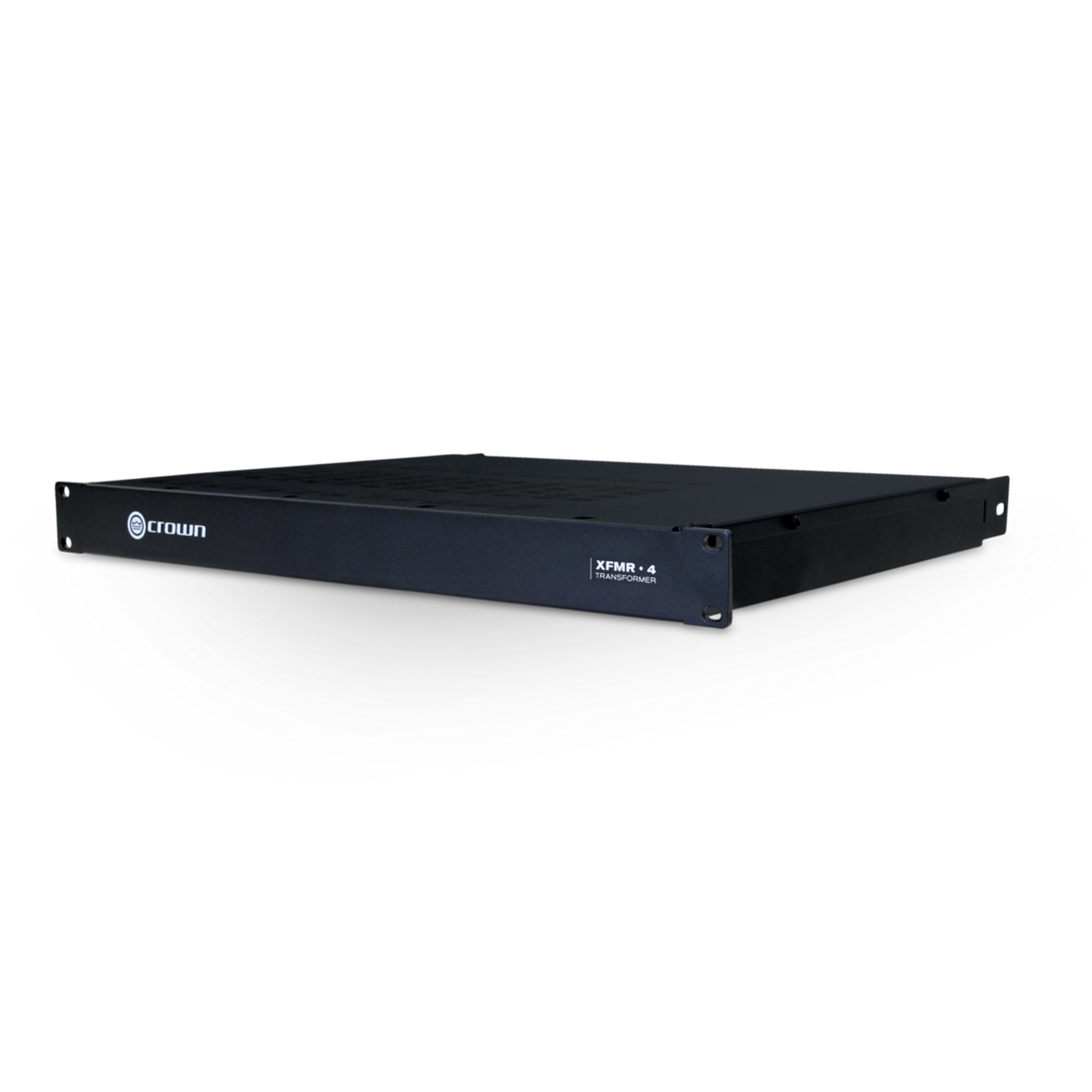

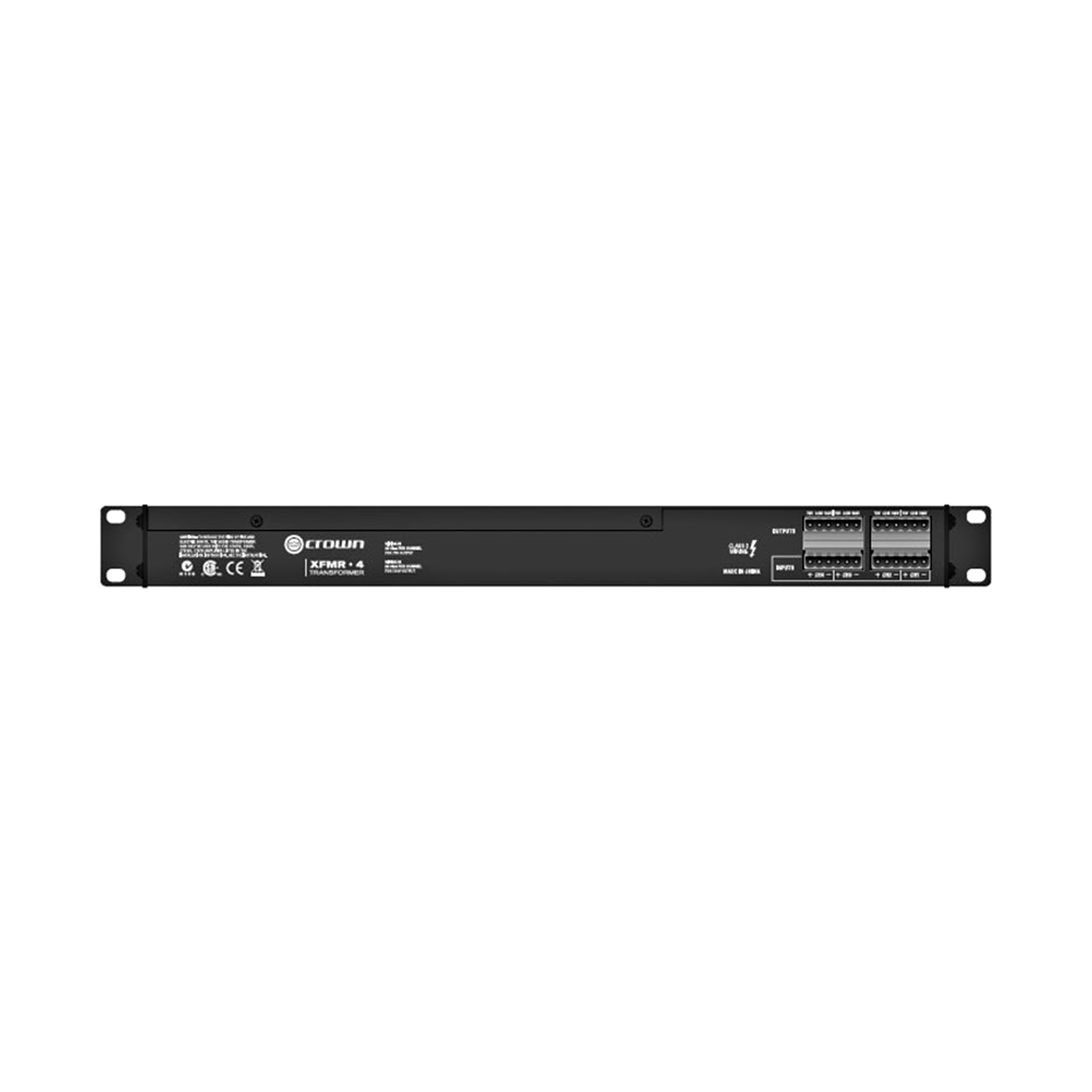

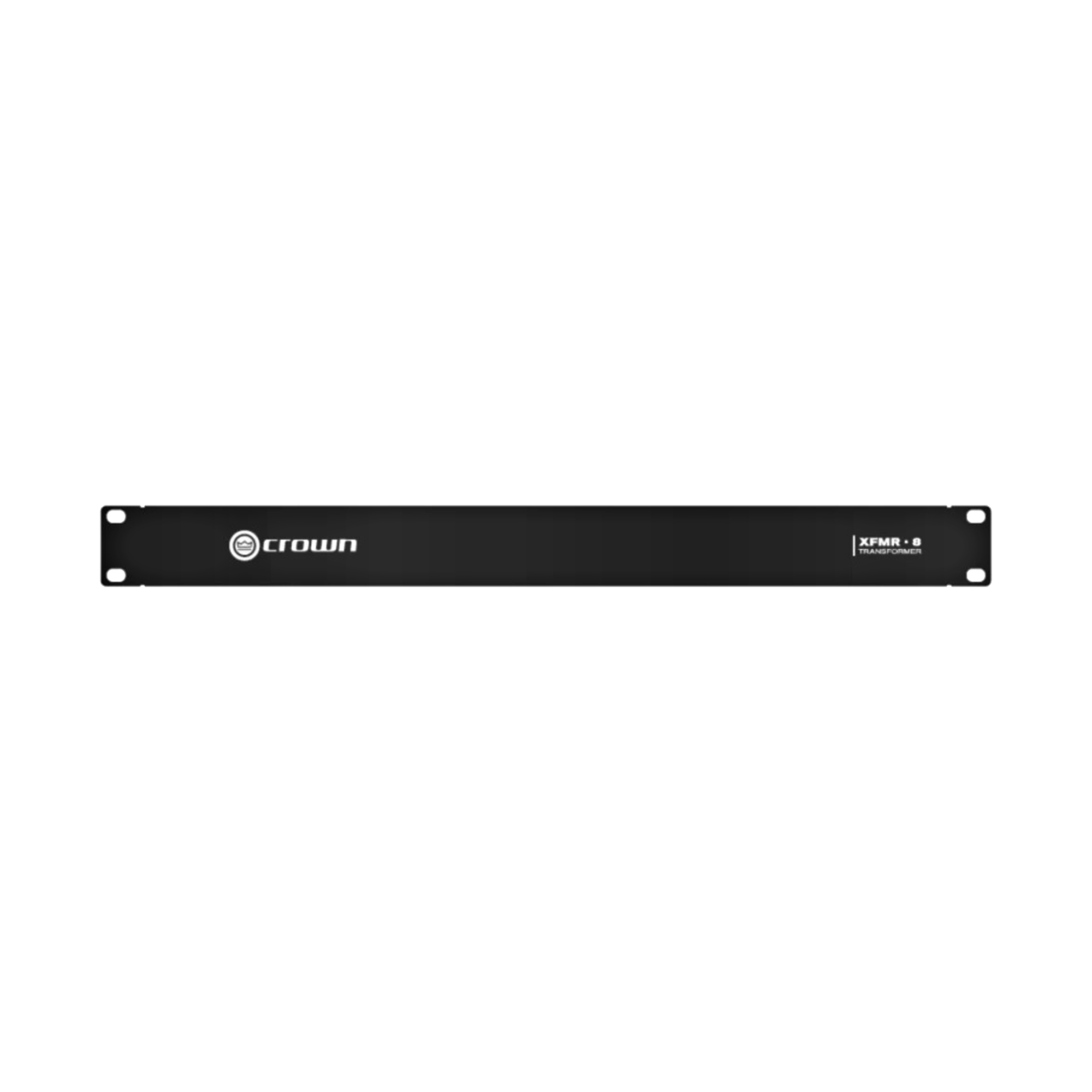

The Crown XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.
