Audac

ARU204

4lü Röle Ünitesi
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
DETAYLAR
DETAYLAR

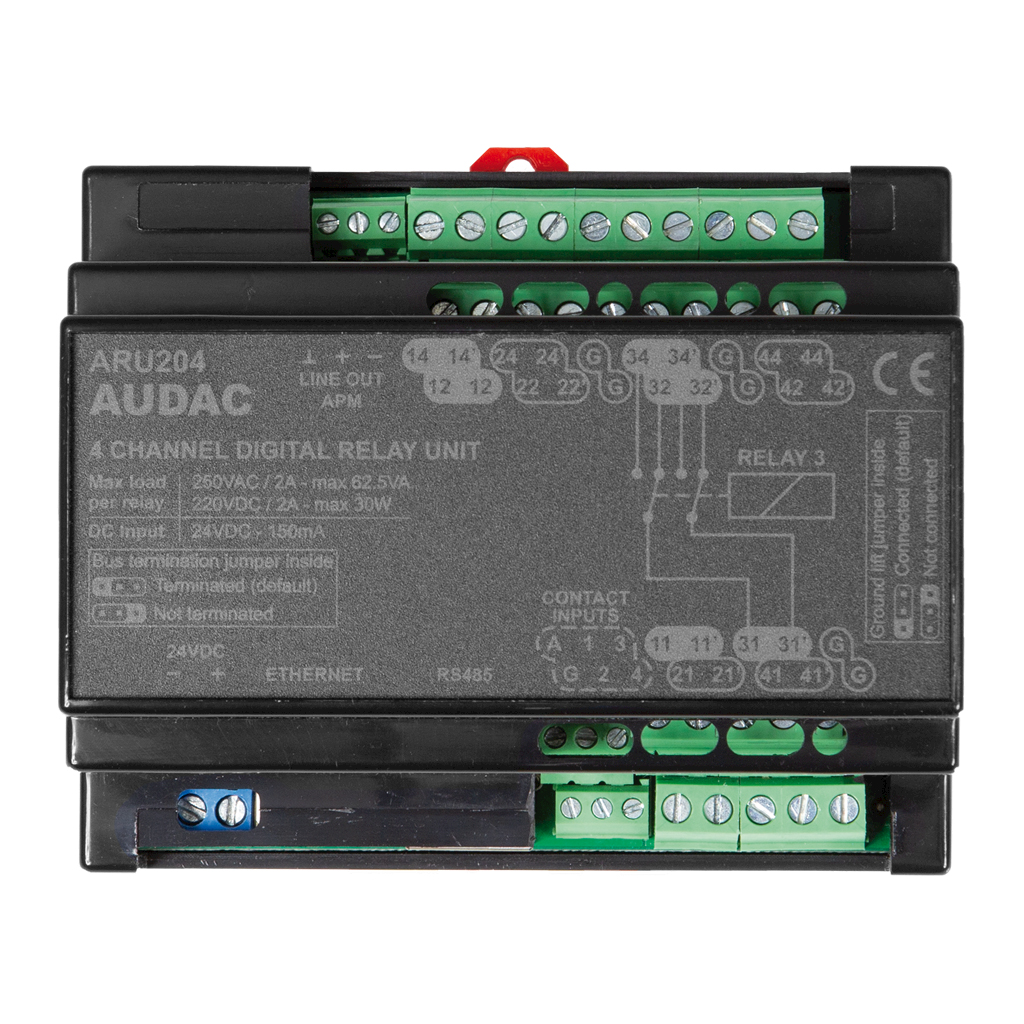

ÇOK KANALLI DİJİTAL RÖLE ÜNİTESİ - 4 RÖLE

SYSTEM SPECIFICATIONS
Number of relays 4
Contacts Normal open & normal closed
Control Digital communication bus (RS-485)
  Manual (contact) relay activation
  TCP/IP
  Audac Touch™
Connectors RJ45 (Ethernet)
  1 x RJ45 (RS-485 + Audio)
Max. cable length 300 m
Connection standard TIA/EIA T568B
Relay Type Two pole type
Inputs Signal 8 x 3-pin screw terminal for A & B input
Outputs Signal 8 x 2-pin screw terminal
Power Consumption 6 W (max.)
  Supply 24 V DC
PRODUCT FEATURES
Dimensions 107 x 87.5 x 54 mm (W x H x D)
Weight 0.2 kg
Data protocol RS-485
Required cabling UTP CAT5E
Colours Black
Construction ABS
Accessories Optional PSD24x external Power supply
