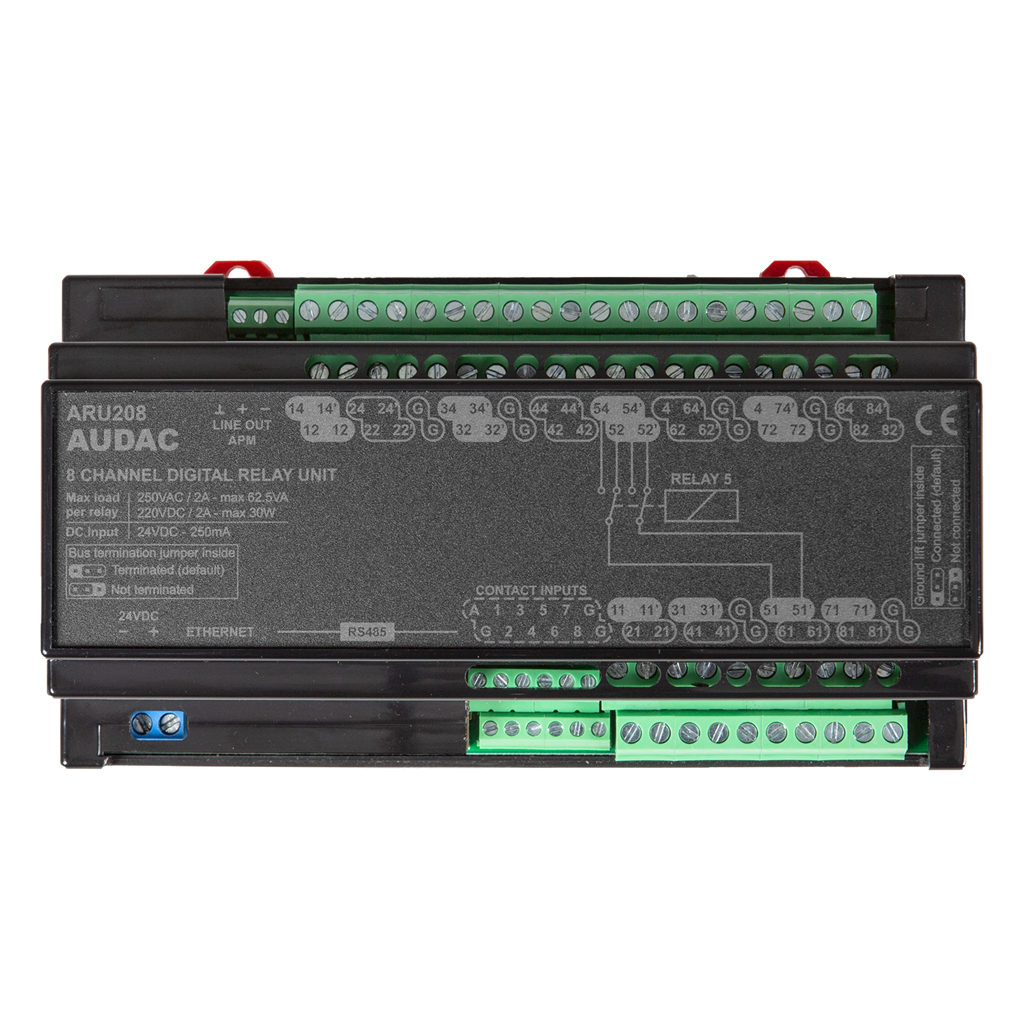

ÇOK KANALLI DİJİTAL RÖLE ÜNİTESİ - 8 RÖLE
|
SYSTEM SPECIFICATIONS |
|
Number of relays |
8 |
|
Contacts |
Normal open & normal closed |
|
Control |
Digital communication bus (RS-485) |
|
|
Manual (contact) relay activation |
|
|
TCP/IP |
|
|
Audac Touch™ |
|

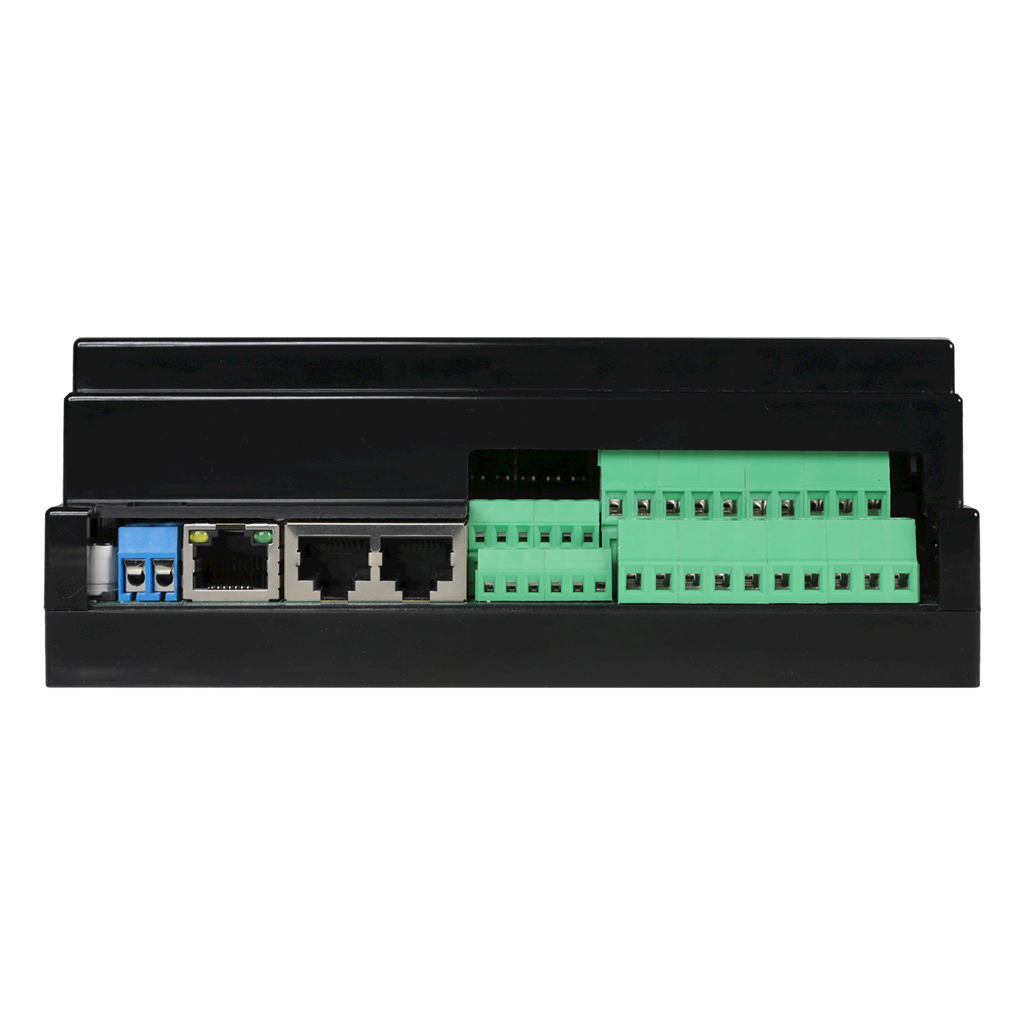

Connectors |
RJ45 (Ethernet) |
|
|
2 x RJ45 (RS-485 + Audio) |
|
Max. cable length |
300 m |
|
Connection standard |
TIA/EIA T568B |
|
Relay |
Type |
Two pole type |
|
Inputs |
Signal |
8 x 3-pin screw terminal for A & B input |
|
Outputs |
Signal |
8 x 2-pin screw terminal |
|
Power |
Consumption |
12 W (max.) |
|
|
Supply |
24 V DC |
|
PRODUCT FEATURES |
|
Dimensions |
159 x 87.5 x 54 mm (W x H x D) |
|
Weight |
0.4 kg |
|
Data protocol |
RS-485 |
|
Required cabling |
UTP CAT5E |
|
Colours |
Black |
|
Construction |
ABS |
|
Accessories |
Optional |
PSD24x external Power supply |
