JBL Professional

CBT-100LA-1

Sütun Hoparlörler

Marka:	JBL Professional
Ürün Kodu:	CBT-100LA-1
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB)	80 Hz – 20 kHz
Coverage Angle	Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°)Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (1W, 1m)	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
Impedance	8 ohms (in Thru mode)
Power Rating	325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
Rated Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)

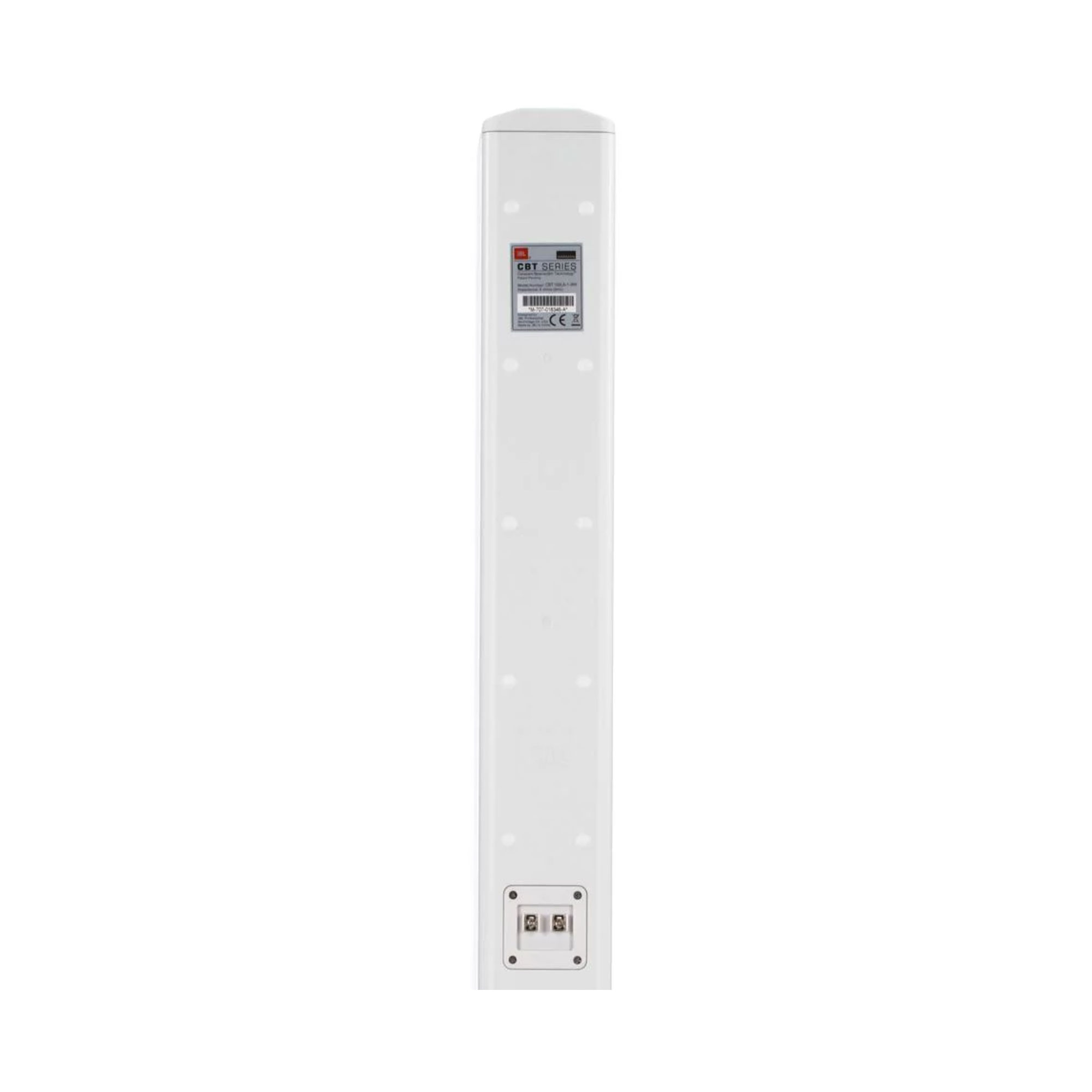

Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

DETAYLAR

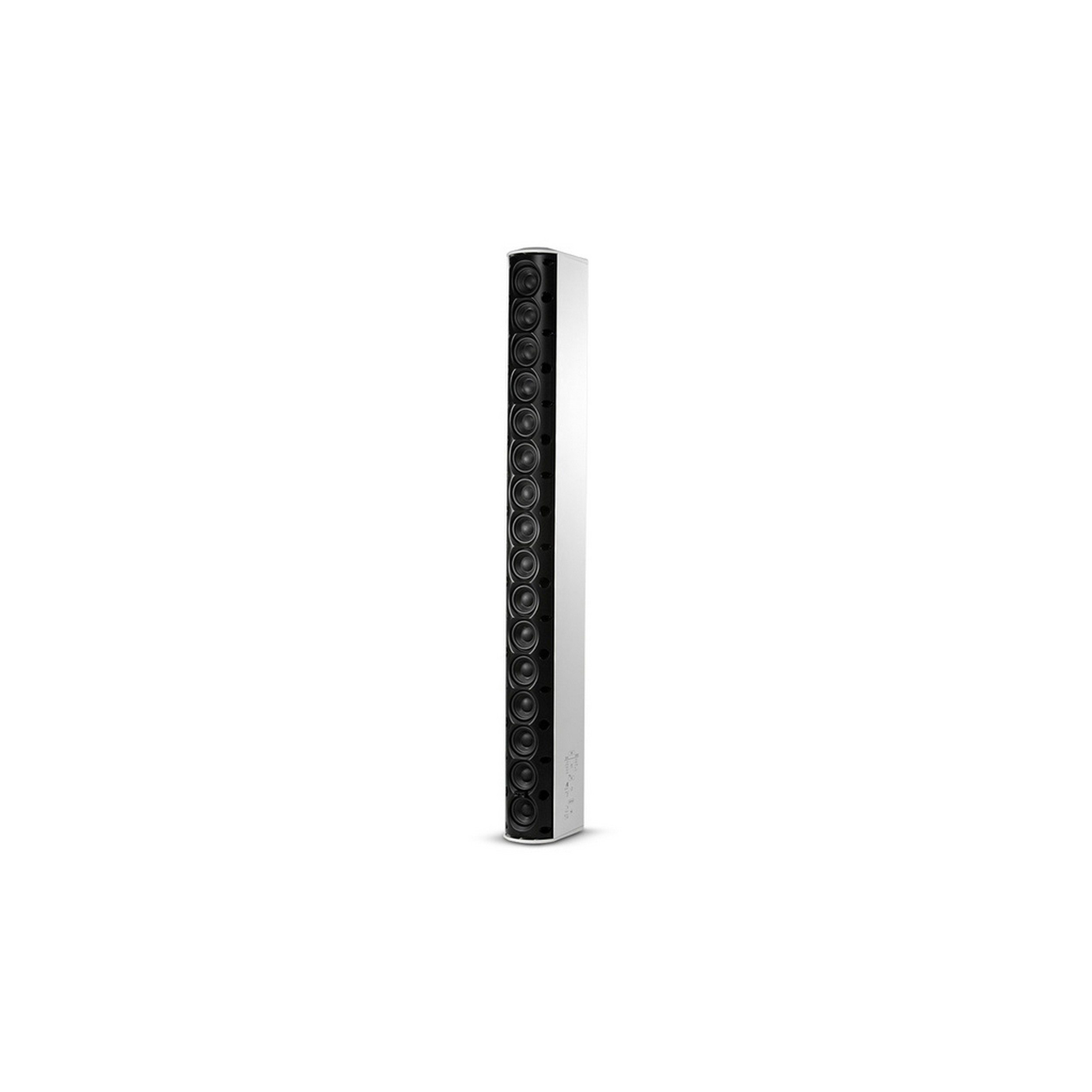

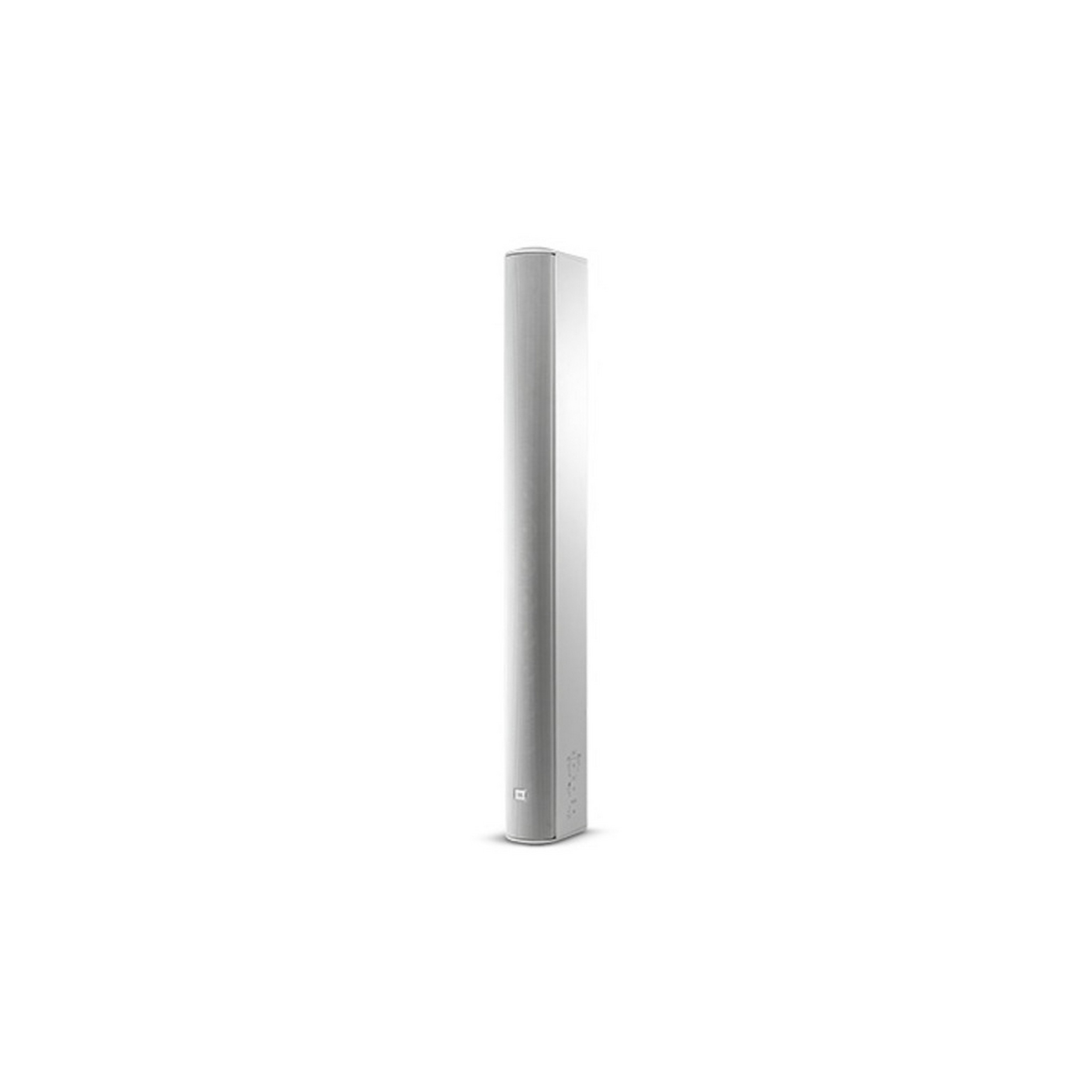

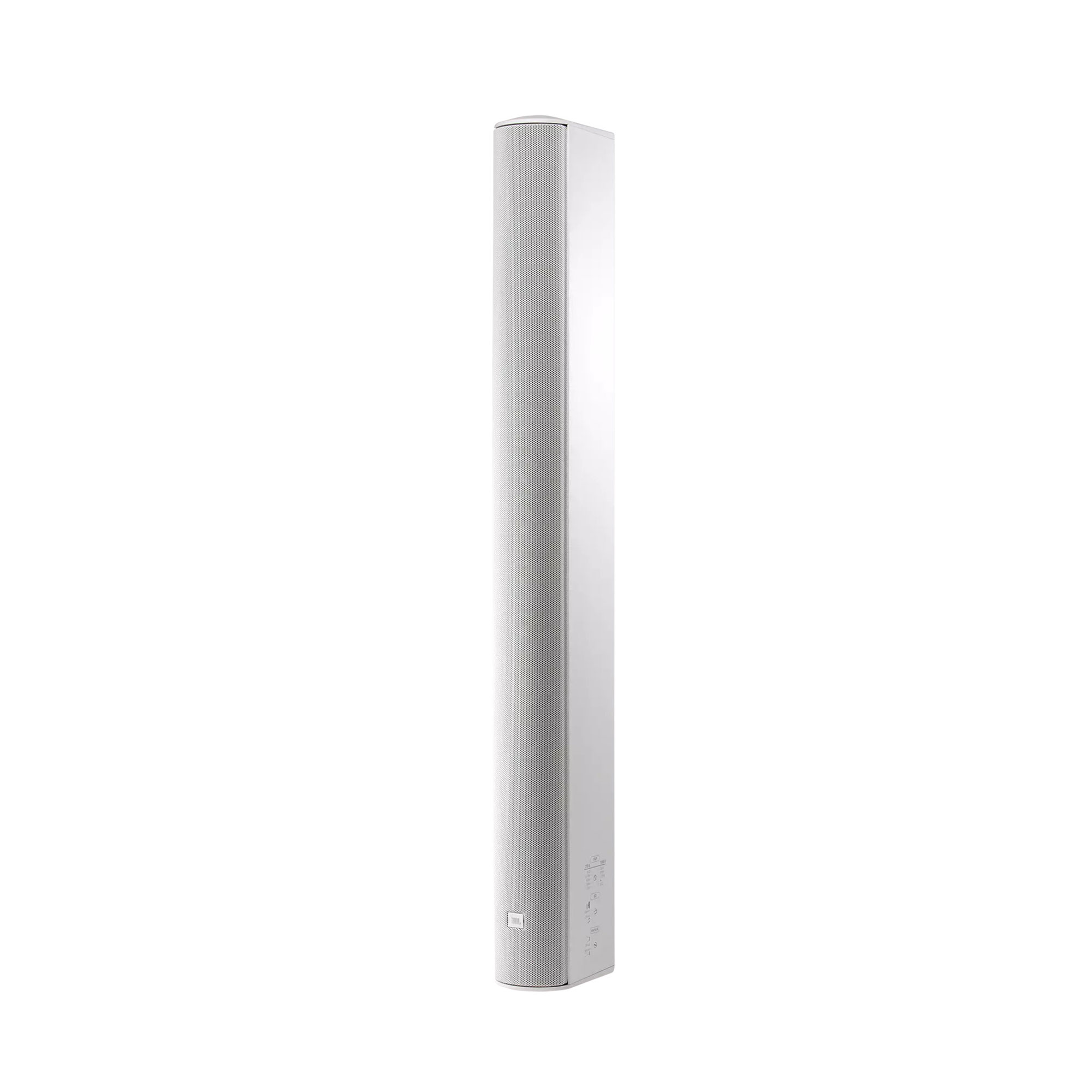

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
