JBL Professional

CBT-100LA-LS

Sütun Hoparlörler

Marka:	JBL Professional
Ürün Kodu:	CBT-100LA-LS
Kategori:	Hoparlörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB)	120 Hz – 20 kHz
Coverage Angle	Vertical:Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°)Horizontal: 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity (1W, 1m)	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz)
EN54 Sensitivity (@ 4m)	76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)
Impedance	8 ohms (in Thru mode)15w@70v; 30w@100v Tap = 333Ω 30w@70v; 60w@100v Tap = 167Ω 60w@70v; 120w@100v Tap = 83Ω 120w@70v; N/C@100v Tap = 42Ω
Power Rating	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Rated Maximum SPL (1m)	Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
EN54 Max SPL (@ 4m)	92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
Transformer Taps	120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
Reference Axis	Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.

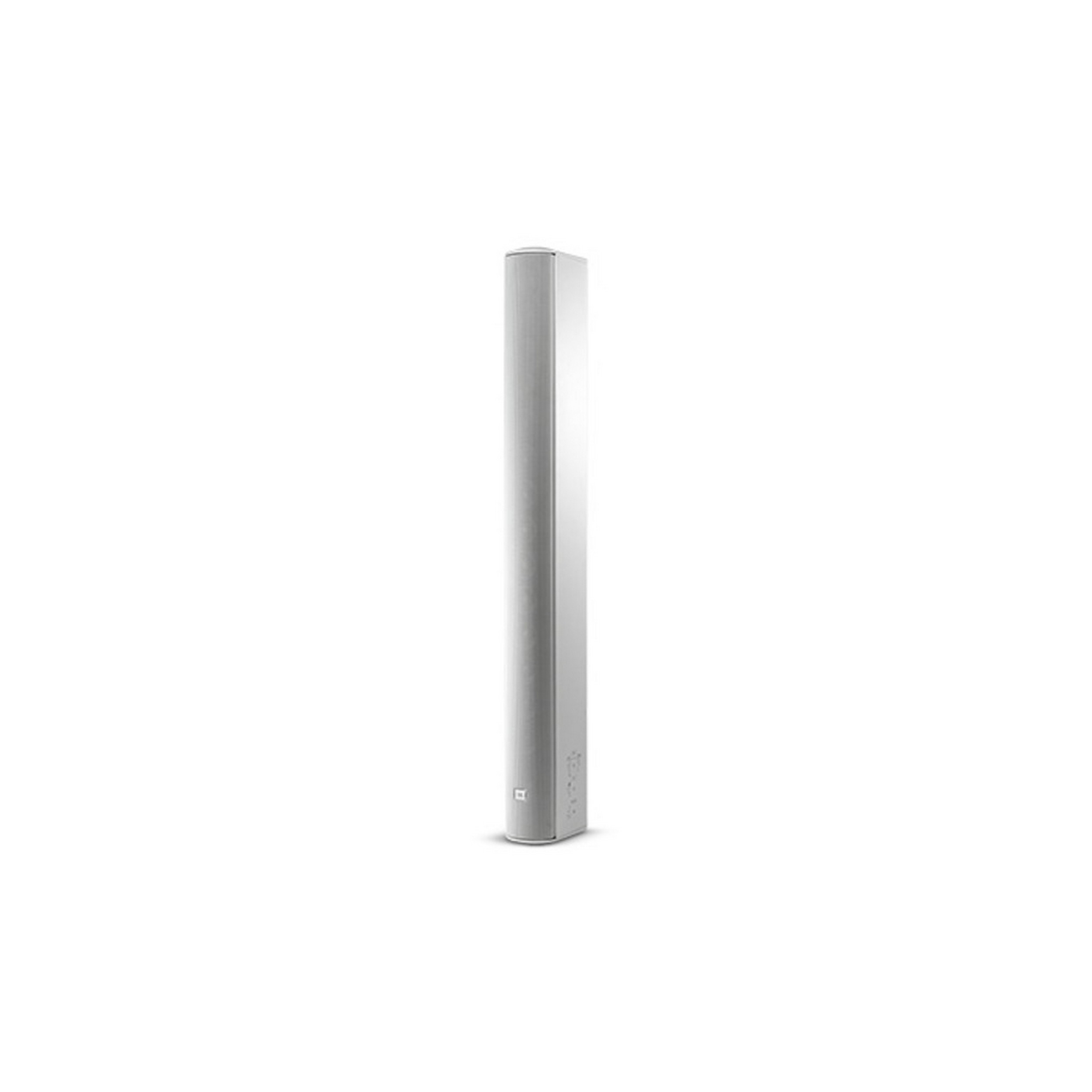

Enclosure	Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color	Black or White (-WH)

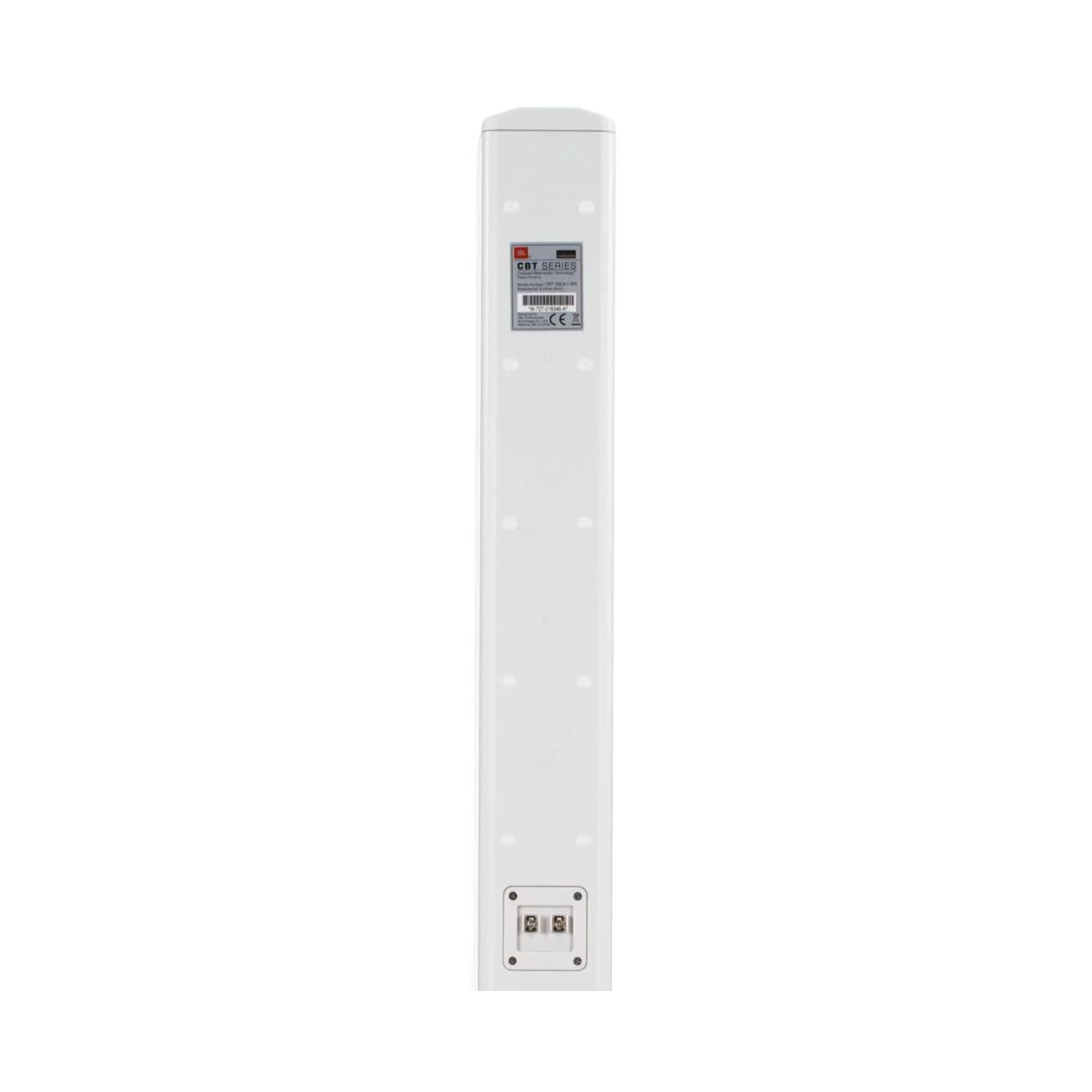

Insert Points	18 M6 insert points on back panel.
Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)	1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Safety Agency	EN54-24:2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.
Included Accessories	Swivel (pan) / tilt wall bracket MTC-PC2 terminal panel cover
Optional Accessories	MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

DETAYLAR

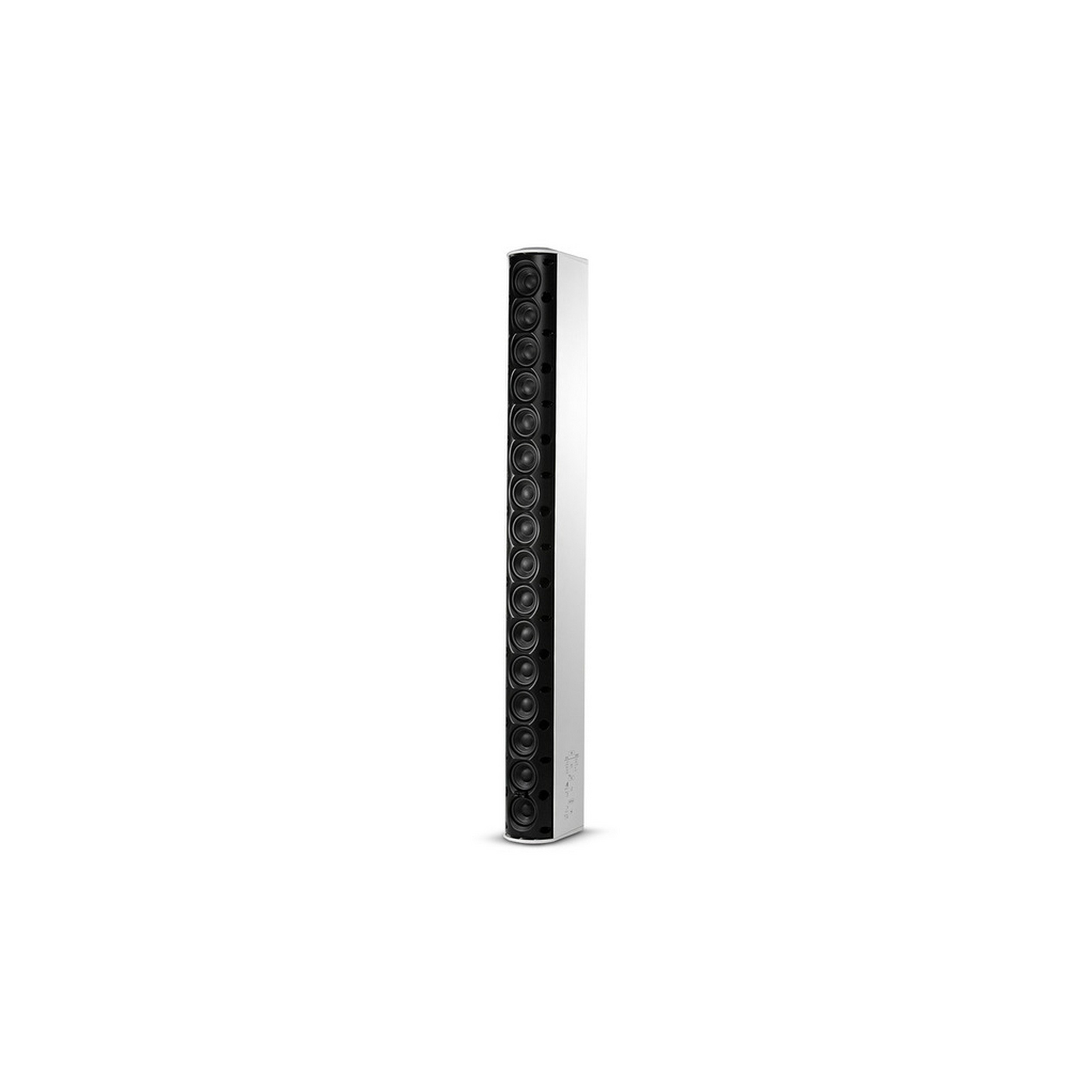

Line Array Column Loudspeaker with with Sixteen 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 100LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
