JBL Professional

JRX112M

Pasif Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Power Rating 250 W / 1000 W
Frequency Range 60 Hz - 16 kHz (-10 dB)
Dimensions (H x W x D) 572 mm x 394 mm x 318 mm(22.5 in x 15.5 in x 12.5 in)
Frequency Response 70 Hz - 12 kHz (±3 dB)
Nominal Impedance 8 ohms
Sensitivity 99 dB SPL (1w/1m)
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL (1m) 129 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 1.8 kHz
Weight 19.5 kg (43 lb)
HF Driver JBL 2412 1 in exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver JBL M112-8
Input Connectors Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
DETAYLAR
DETAYLAR

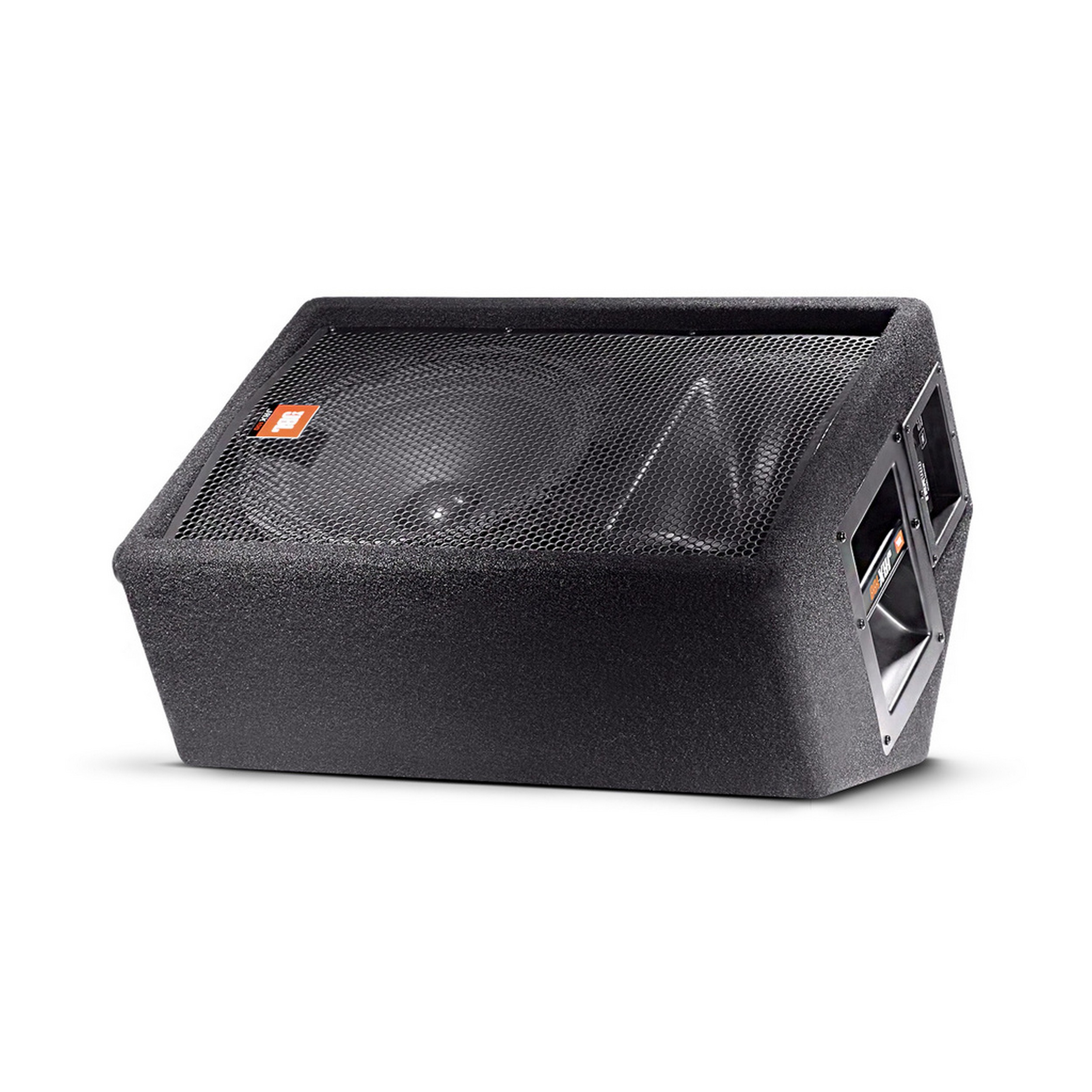

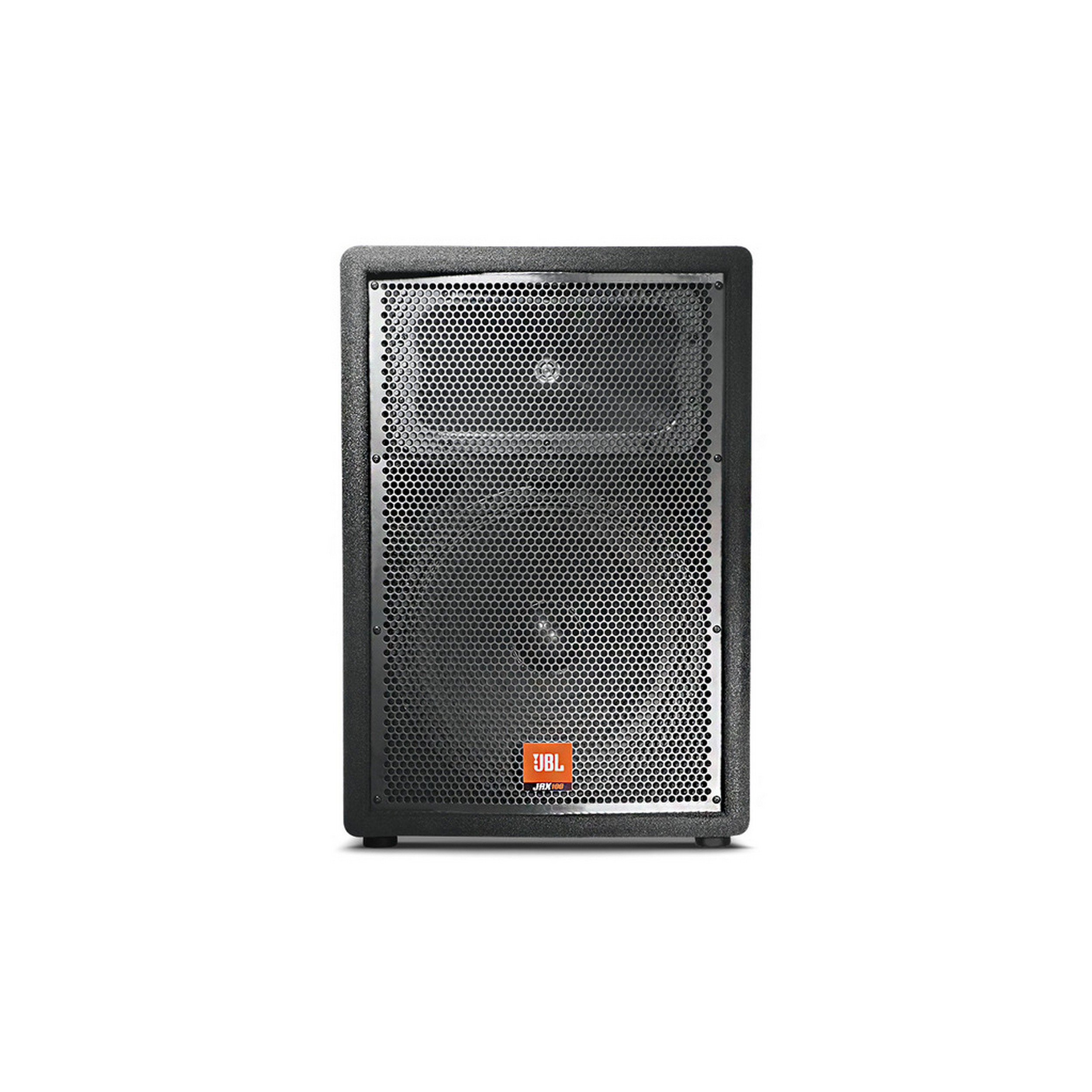

12 in. Two-Way Stage Monitor Loudspeaker System

The JRX112M is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.
