JBL Professional

PRX812

12" Aktif Hoparlör 1500W WIFI Kontrollü
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
System Type Self Powered 12”, two-way, bass-reflex
Maximum SPL Output 135 dB peak
Frequency Response (-10dB) Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
Frequency Response (±3 dB) Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz

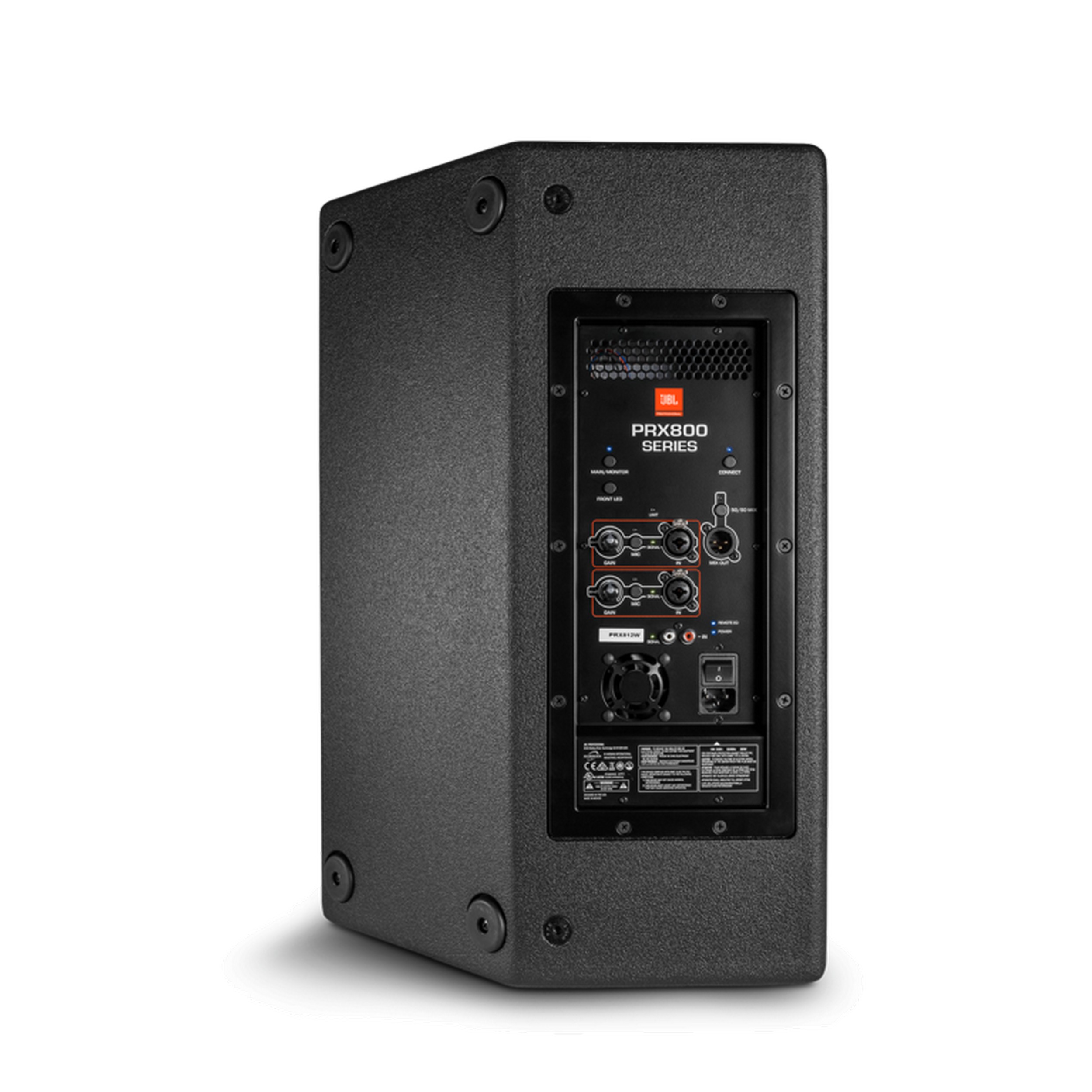

Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio

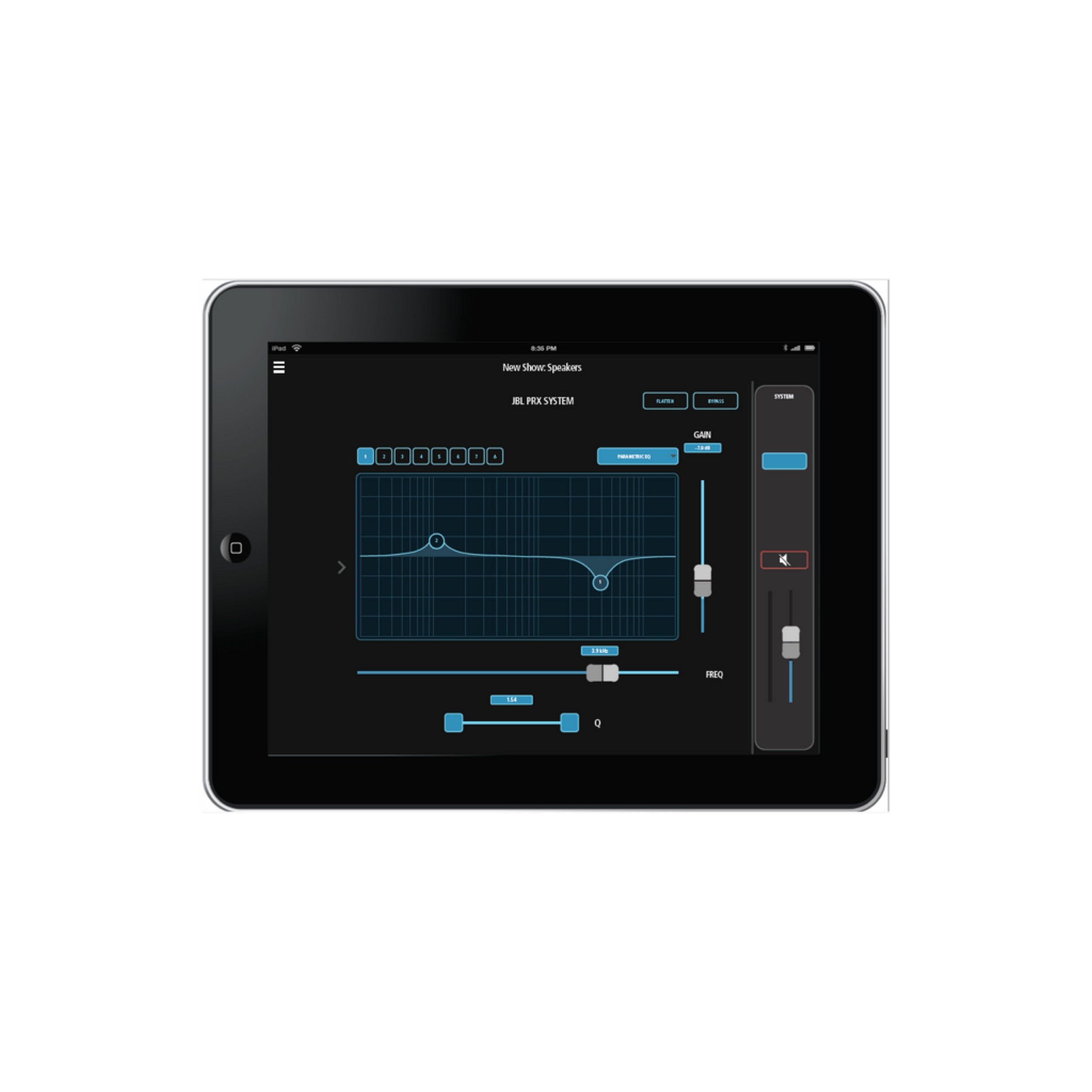

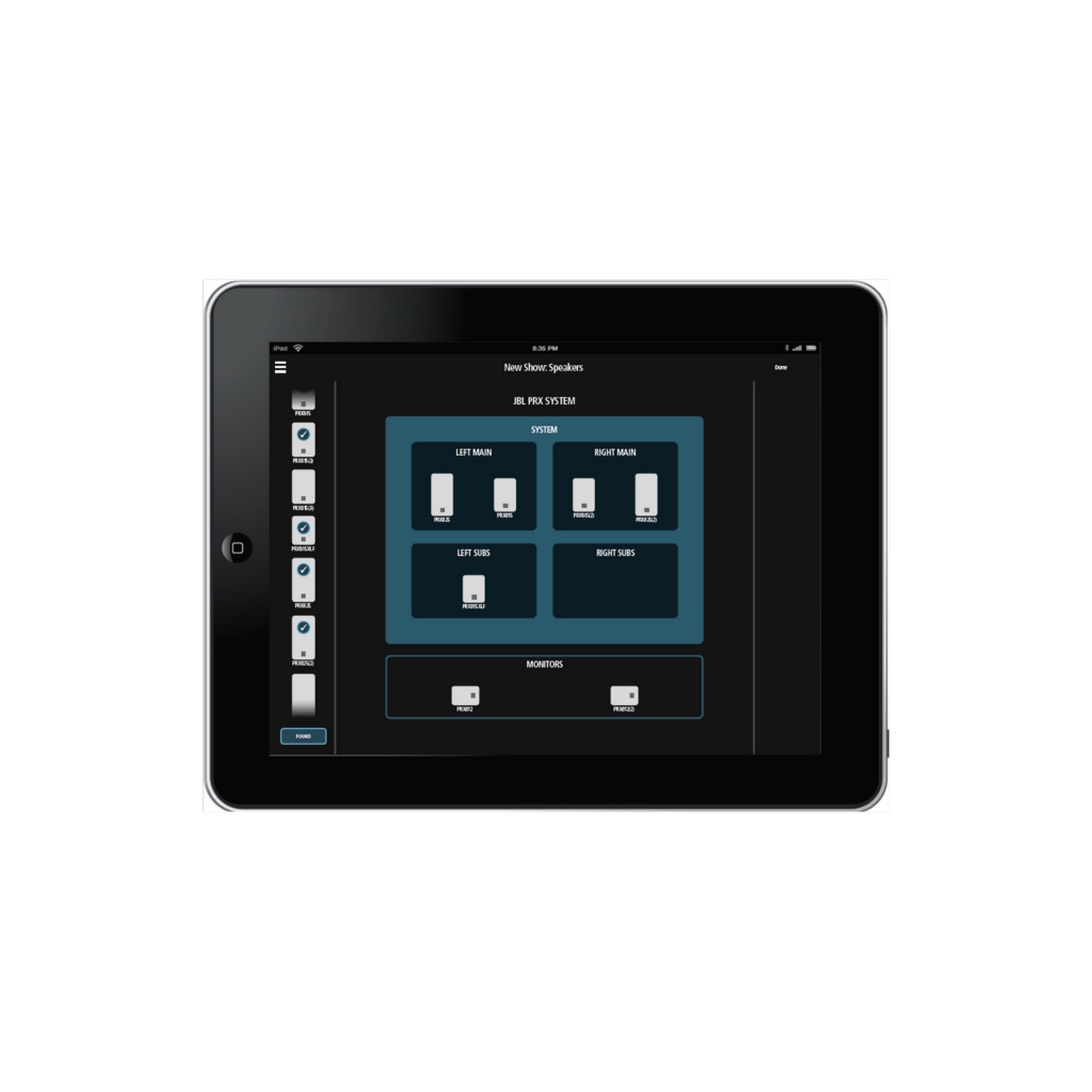

EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input) dbx Type IV™ limiter circuit
Crossover Frequency 1.85 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz

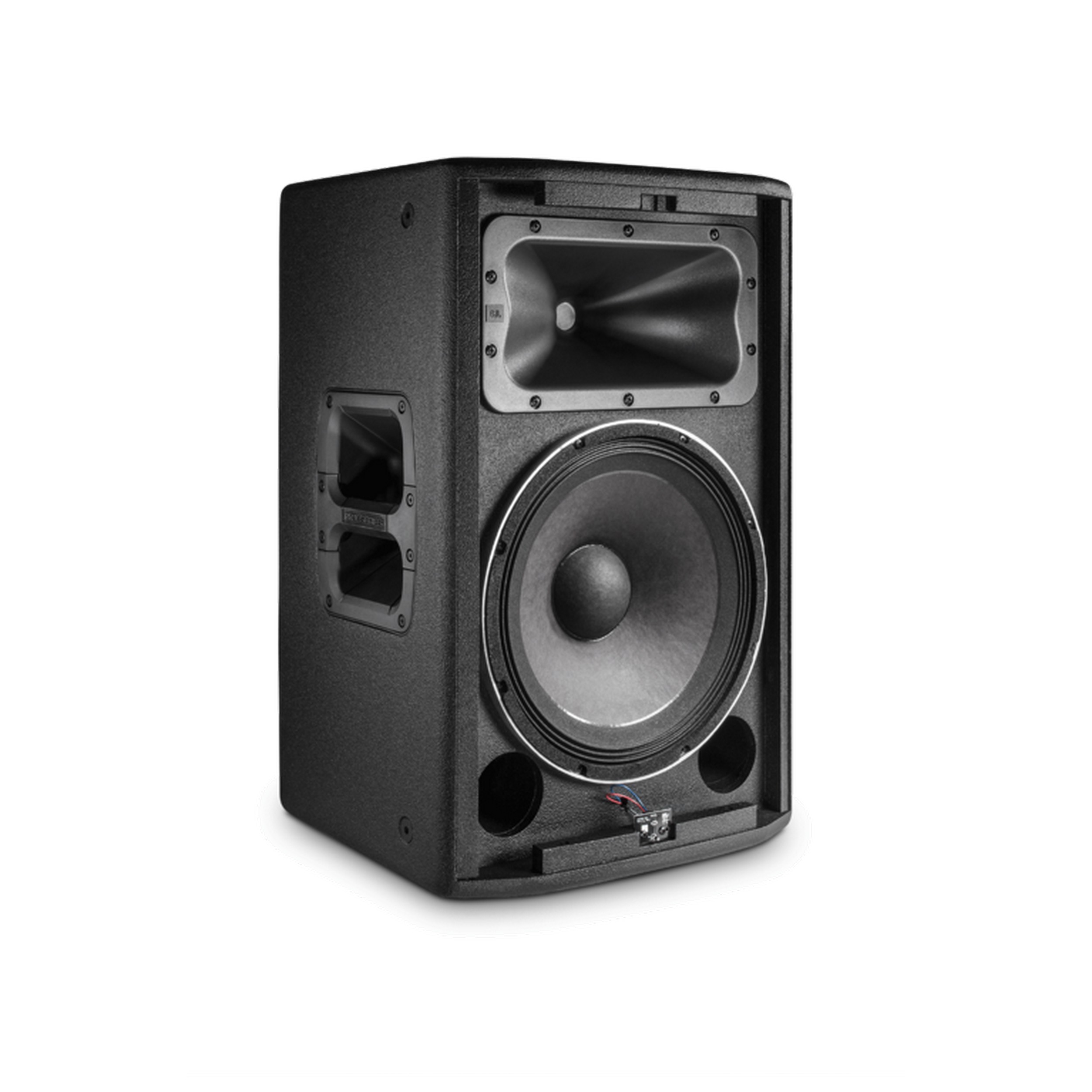

LF Driver 1 x JBL 272G 305 mm (12 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.2 dB
Directivity Factor (Q) 10.4
Enclosure Asymmetrical, 18 mm, plywood
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport 1 x injection molded handle with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 599 mm x 385 mm x 341 mm (23.6 in x 15.1 in x 13.4 in)
Net Weight 40 lbs / 18.1 kg
Gross Weight 21.2 kg (48.0 lb)
DETAYLAR
DETAYLAR

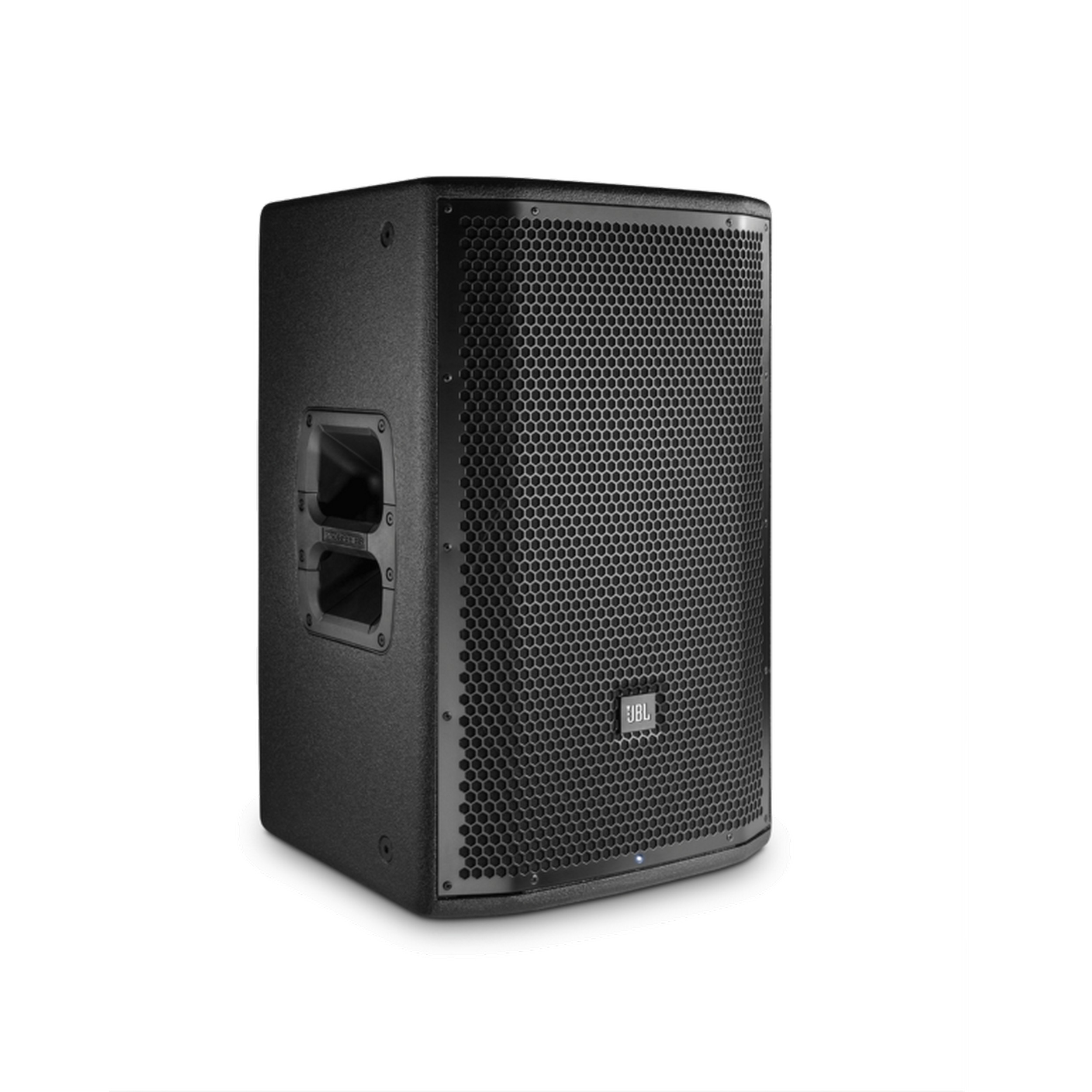

12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The JBL PRX812 is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812 delivers incredible volume in a lightweight and compact form factor.


DÖKÜMANLAR
DÖKÜMANLAR
RESİMLER
RESİMLER
ETİKETLER
ETİKETLER

ÜRÜN AİLESİ

B-HYPE 15
15"+1” Aktif Hoparlör 400W
B-HYPE 8
8”+1” Aktif Hoparlör 260W
DVX-D10 HP
10"+1" Aktif Hoparlör 1200W
DVX-D12 HP
12"+1,4" Aktif Hoparlör 1400W
DVX-D8 HP
8"+1" Aktif Hoparlör 800W
DVX-DM12 TH
12"+1,4"Aktif Sahne Monitörü 1500W
DVX-DM15
15"+1.4" Aktif Sahne Monitörü 1500W
INGENIA IG2T
2x8"+1" 2 Yollu Aktif Hoparlör 800W
INGENIA IG3T
2x10"+1,4" 2 Yollu Aktif Hoparlör 1800W
INGENIA IG4T
4x6.5"+1.4" 2 Yollu Aktif Hoparlör 1800W
LVX-12
12”+1” 2 Yollu Aktif Hoparlör 800W PRG
LVX-15
15”+1” 2 Yollu Aktif Hoparlör 800W PRG
LVX-8
8”+1” 2 Yollu Aktif Hoparlör 400W PRG
LVX-XM 12
12”+1” 2 Yollu Aktif Koaksiyel Hoparlör 600W RMS
LVX-XM 15
15”+1” 2 Yollu Aktif Koaksiyel Hoparlör 600W RMS
SIGMA S-115
15"+1.4" Aktif Hoparlör 1000W
SIGMA S-118
Aktif 18" Subwoofer 1400 W
SIGMA S-215
2x15+1.4“ 3 Yollu Aktif Hoparlör 1400W
OPERA-10
10”+1" 2 Yollu Aktif Hoparlör 600W
OPERA-12
12”+1" 2 Yollu Aktif Hoparlör 600W
OPERA-15
15”+1" 2 Yollu Aktif Hoparlör 600W
L-160 D
2x5" Aktif Hoparlör 160W
K-70
5” Aktif Hoparlör 100W
K-162
2x6.5” Aktif Hoparlör 160W
K-300
2x6.5” Aktif Hoparlör 300W
VIO-X 12
12”+1” 2 Yollu Aktif Hoparlör 900W RMS
VIO-X 15
15"+1” 2 Yollu Aktif Hoparlör 900W RMS
ES-503
Tri-Amped Stereo Sub+Üst Hoparlör Sistemi 1000W
ES-802
Bi-Amped Sub+Üst Hoparlör Sistemi 1200W
B-HYPE 10
10”+1” Aktif Hoparlör 260W
INGENIA IG1T
2x6,5"+1" 2 Yollu Aktif Hoparlör 800W
ES-1203
Tri-Amped Stereo Sub+Üst Hoparlör Sistemi 2400W
XPRS10
10" Aktif Hoparlör
XPRS115S
15" Aktif Subwoofer
XPRS12
12" Aktif Hoparlör
XPRS15
15" Aktif Hoparlör
VIO-X205-60
2x5” 2 Yollu Aktif Hoparlör 60°
VIO-W10
2 Yollu İnce Tasarım Aktif Monitör Hoparlör 400W RMS
ES-1002
Bi-Amped Sütun Tipi Sub+Üst Hoparlör Sistemi 1800W
VIO-X205-100
2x5” 2 Yollu Aktif Hoparlör 100°
FLEXSYS FMX-10
10" Aktif Koaksiyel Sahne Monitörü 800W
FLEXSYS FMX-12
10" Aktif Koaksiyel Sahne Monitörü 1200W
FLEXSYS FMX-15
15" Aktif Koaksiyel Sahne Monitörü 1200W
KL-12
12”+1” 2 Yollu Aktif Hoparlör 800W
KL-15
15"+1" 2 Yollu Aktif Hoparlör 800W
VIO C12
12" 2 Yollu Aktif Küme Hoparlörü
VIO C15
15" 2 Yollu Aktif Küme Hoparlörü
VIO C212
2x12" 2 Yollu Aktif Küme Hoparlörü
IRX108BT
Aktif 8" Hoparlör Bluetooth lu
IRX112BT
Aktif 12" Hoparlör Bluetooth lu
PRX812
12" Aktif Hoparlör 1500W WIFI Kontrollü

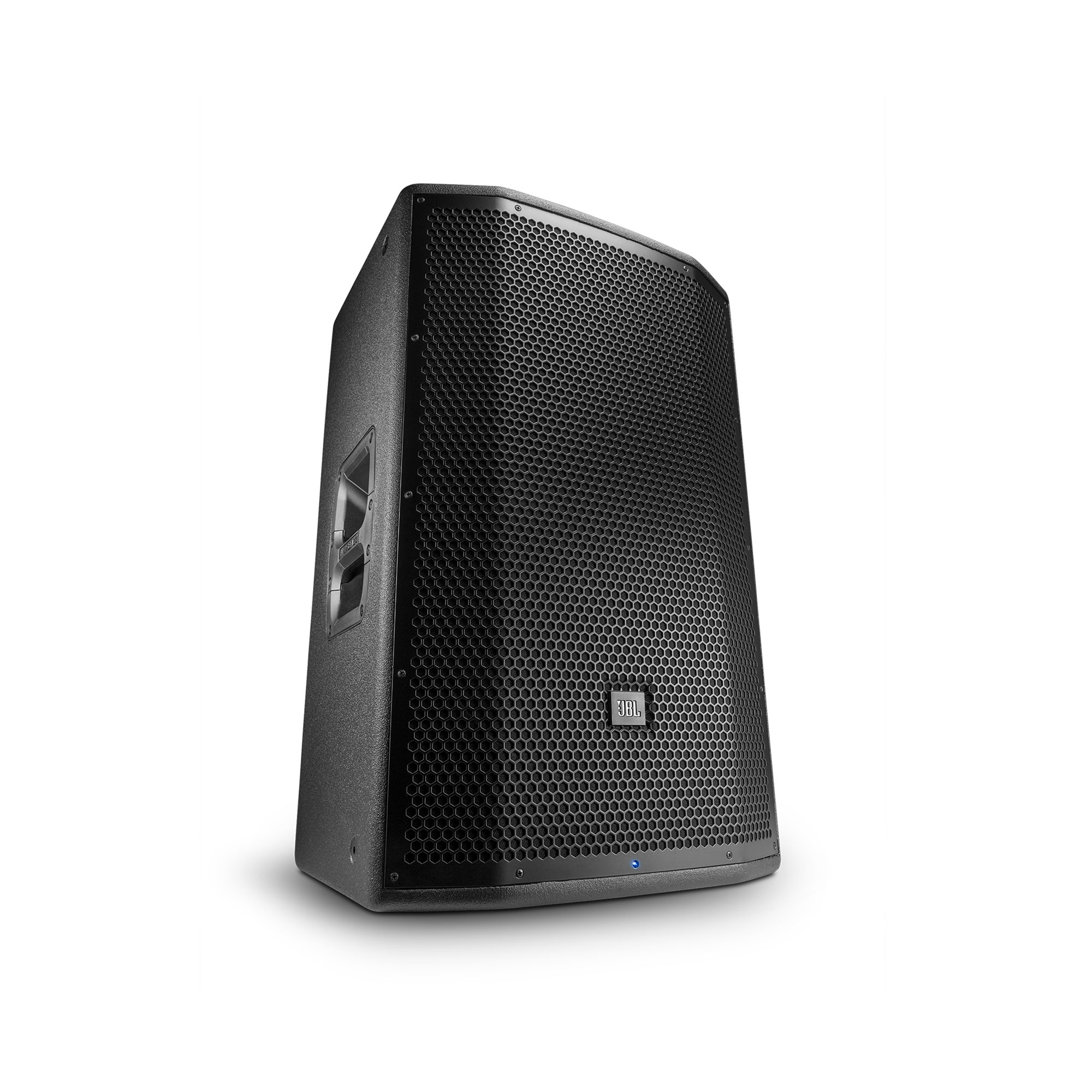

PRX815
