JBL Professional

PRX835

15" 3 Yollu Aktif Hoparlör 1500W WIFI Kontrollü
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
System Type Self Powered 15”, three-way, bass-reflex
Maximum SPL Output 138 dB peak
Frequency Response (-10dB) Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz
Frequency Response (±3 dB) Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz
Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.

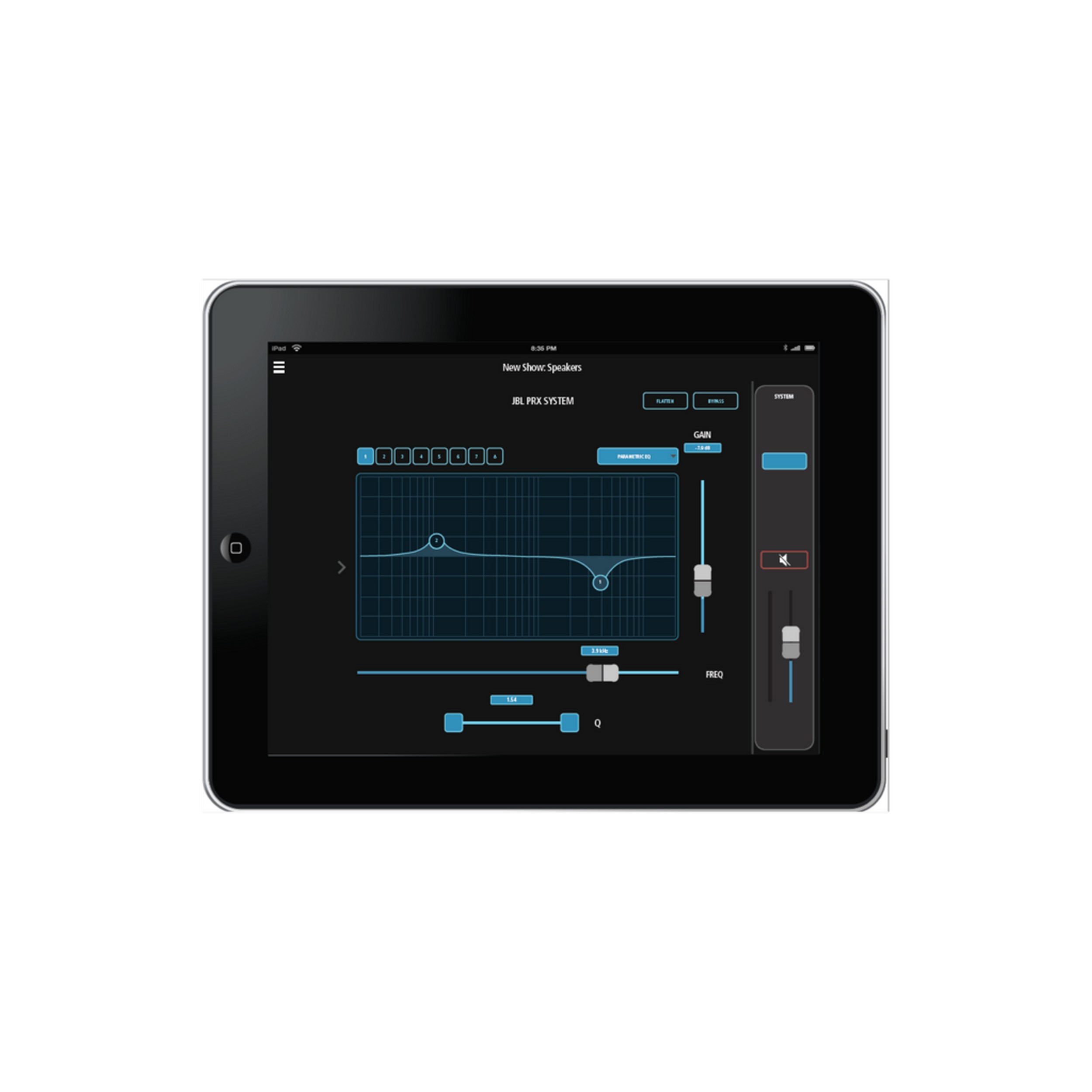

EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
Dynamic Control (Input) dbx Type IV™ limiter circuit
Crossover Frequency 580 Hz, 2.1 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 275G 380 mm (15 in) woofer
MF Driver 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.5 dB
Directivity Factor (Q) 11.2
Enclosure Trapezoidal, 18 mm, plywood
Suspension / Mounting 12 M10
Transport 2 x integrated handles with injection molded backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 938 mm x 446 mm x 539 mm (36.9 in x 17.5 in x 21.2 in)
Net Weight 32.38 kg (71.4 lb)
Gross Weight 38.6 kg (85.0 lb)
DETAYLAR
DETAYLAR

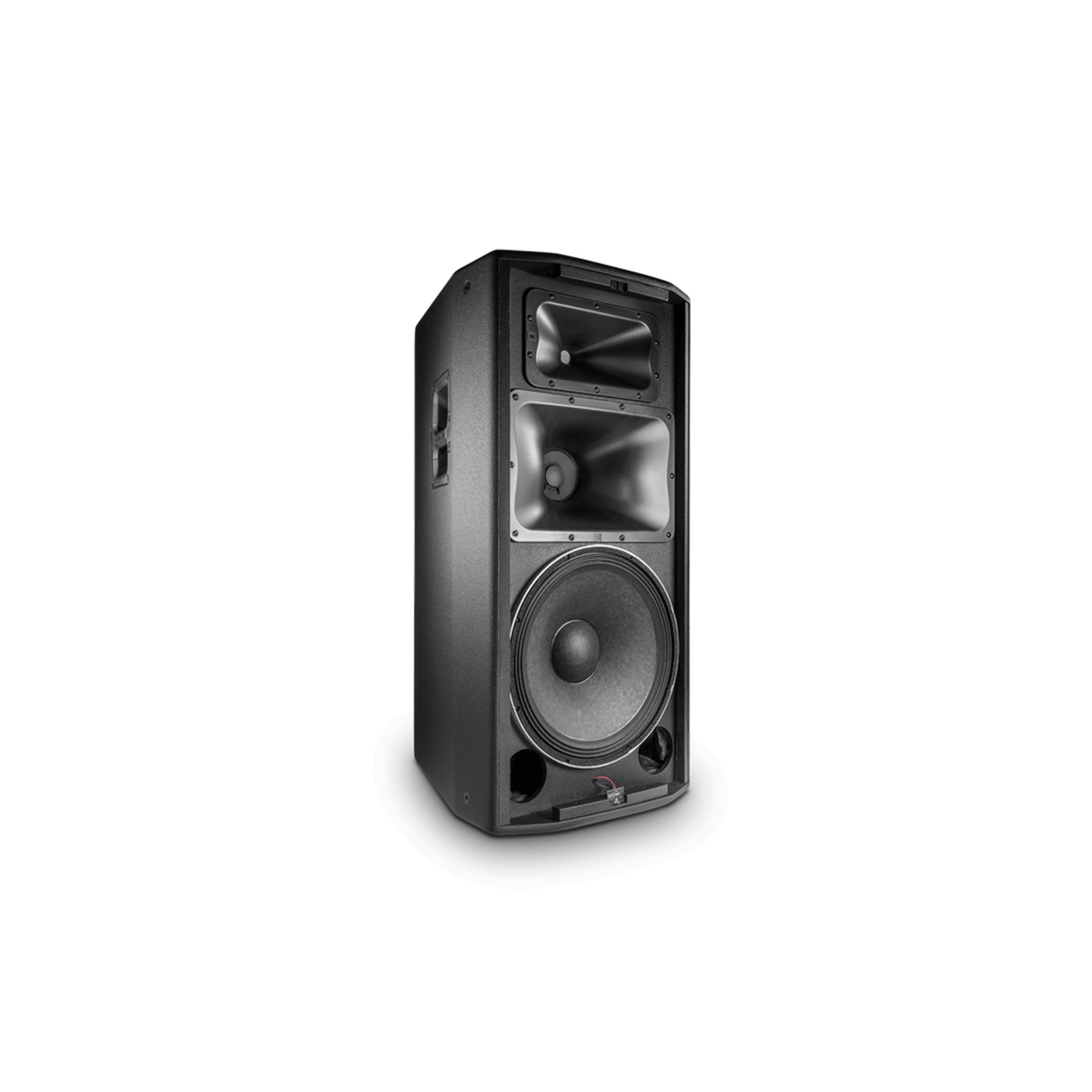

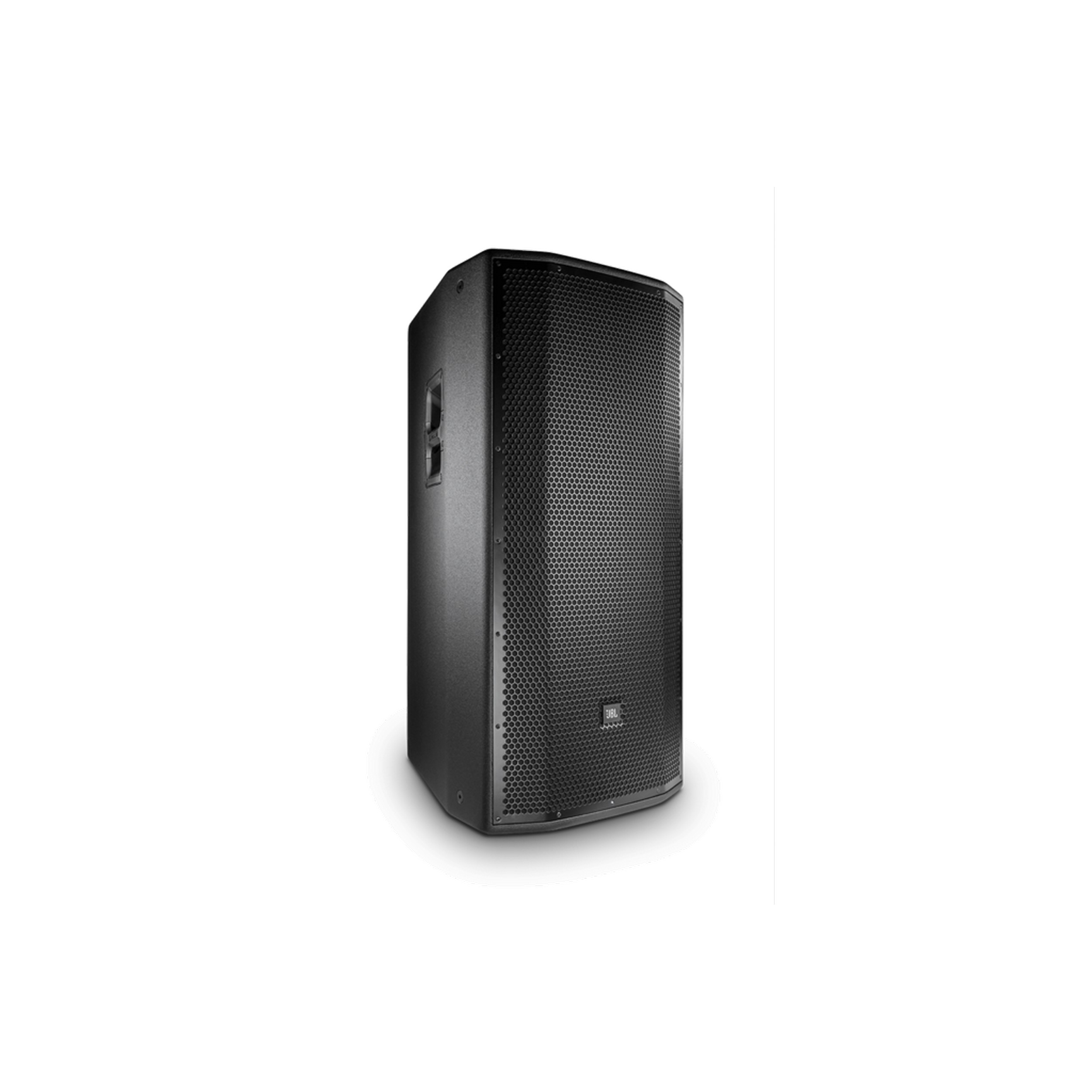

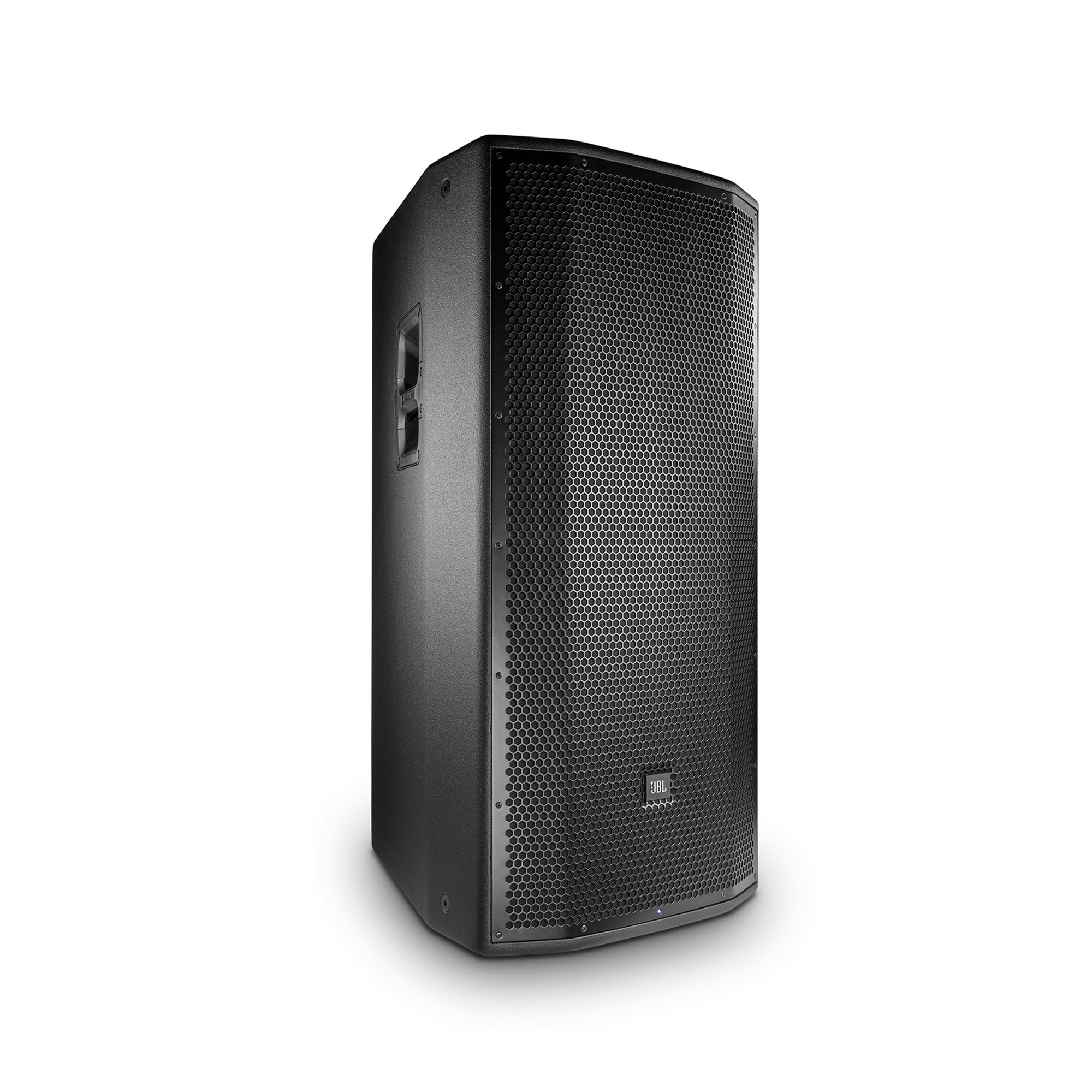

15” Three-Way Full-Range Main System with Wi-Fi

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor.
