JBL Professional

PRX815XLF

15" Aktif Subwoofer 1500W WIFI Kontrollü

Marka:	JBL Professional
Ürün Kodu:	PRX815XLF
Kategori:	Hoparlörler
Barkod:	PRX815XLFW/230D

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

System Type	Self Powered 15” subwoofer
Maximum SPL Output	131 dB peak
Frequency Response (-10dB)	36 Hz - 98 Hz
Frequency Response (±3 dB)	40 Hz – 87 Hz

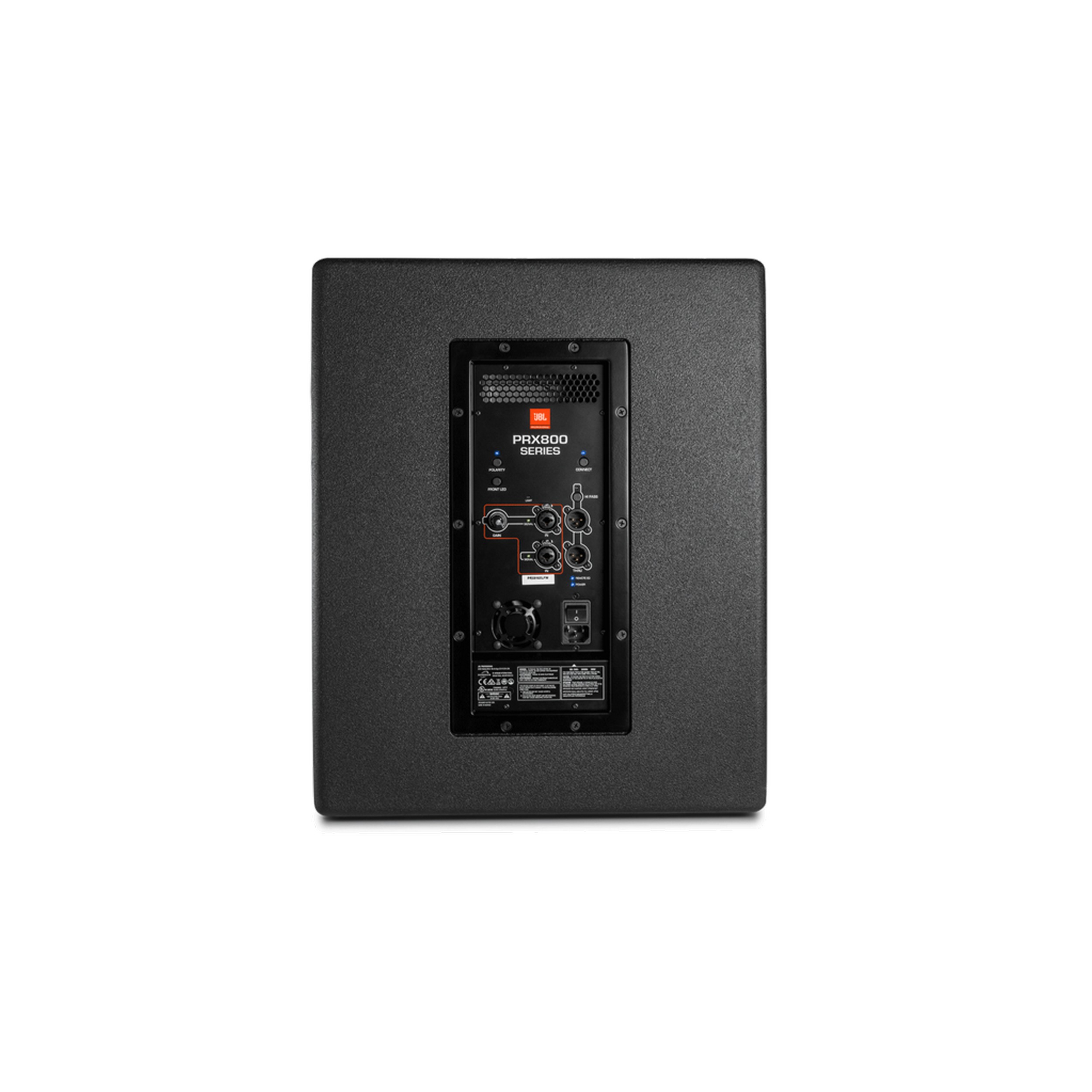

Input Connectors	Two Balanced female XLR/ 1/4” combo connectors
Input Impedance	20K Ohms (balanced)
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal presentPower: Blue indicates system has power and ready to pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
System Low Pass	80 Hz DSP
Loop out Crossover Frequency	80 Hz Digital 24db/octave Linkwitz-Riley Filter
Design	Highly efficient Class-D amplifier
Power Rating	1500W
AC power input	100V - 240V ~ 50/60 Hz

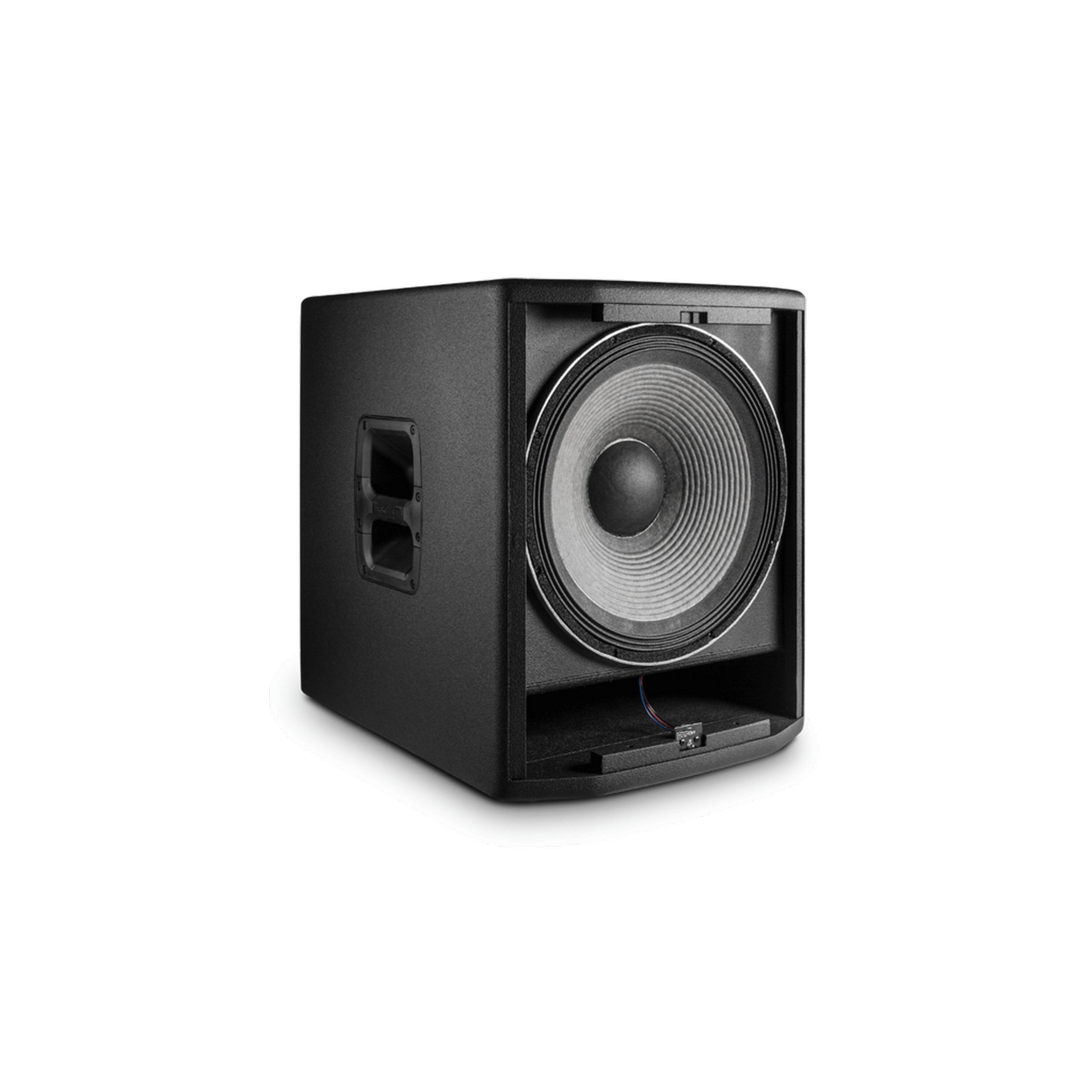

LF Driver	1 x JBL 2275H 15 in woofer
Enclosure	Rectangular, 18 mm, birch-poplar mix
Transport	2 x injection molded handles with backing cup
Finish	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D)	548 mm x 446 mm x 572 mm (21.6 in x 17.5 in x 22.5 in)
Net Weight	26.3 kg (58.0 lb)
Gross Weight	30.3 kg (66.8 lb)

DETAYLAR

15” Self-Powered Extended Low Frequency Subwoofer System with Wi-Fi

The JBL PRX815XLF is a self-powered extended low-frequency subwoofer system. Featuring a JBL 15-inch woofer powered by a 1500-watt class-D amplifier, PRX815XLF delivers incredible output in a lightweight and compact form factor.
