JBL Professional

VRX918SP

Aktif 18" Asılabilir Subwoofer
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Power Rating 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
Frequency Range 31 Hz – 220 Hz
Dimensions (H x W x D) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Response 34 Hz – 220 Hz
Maximum Peak Output 126 dB SPL at 1m
Bandpass Nominal Impedance LF: 2 x 2 ohms
LF Driver 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
Audio Input Connector XLR with loop through
User Controls Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
Signal Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage User selectable: 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 18 mm birch plywood.
Suspension / Mounting Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight 38.5 kg (85 lb)
Optional Accessories VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
DETAYLAR
DETAYLAR

18 in. High Power Powered Flying Subwoofer

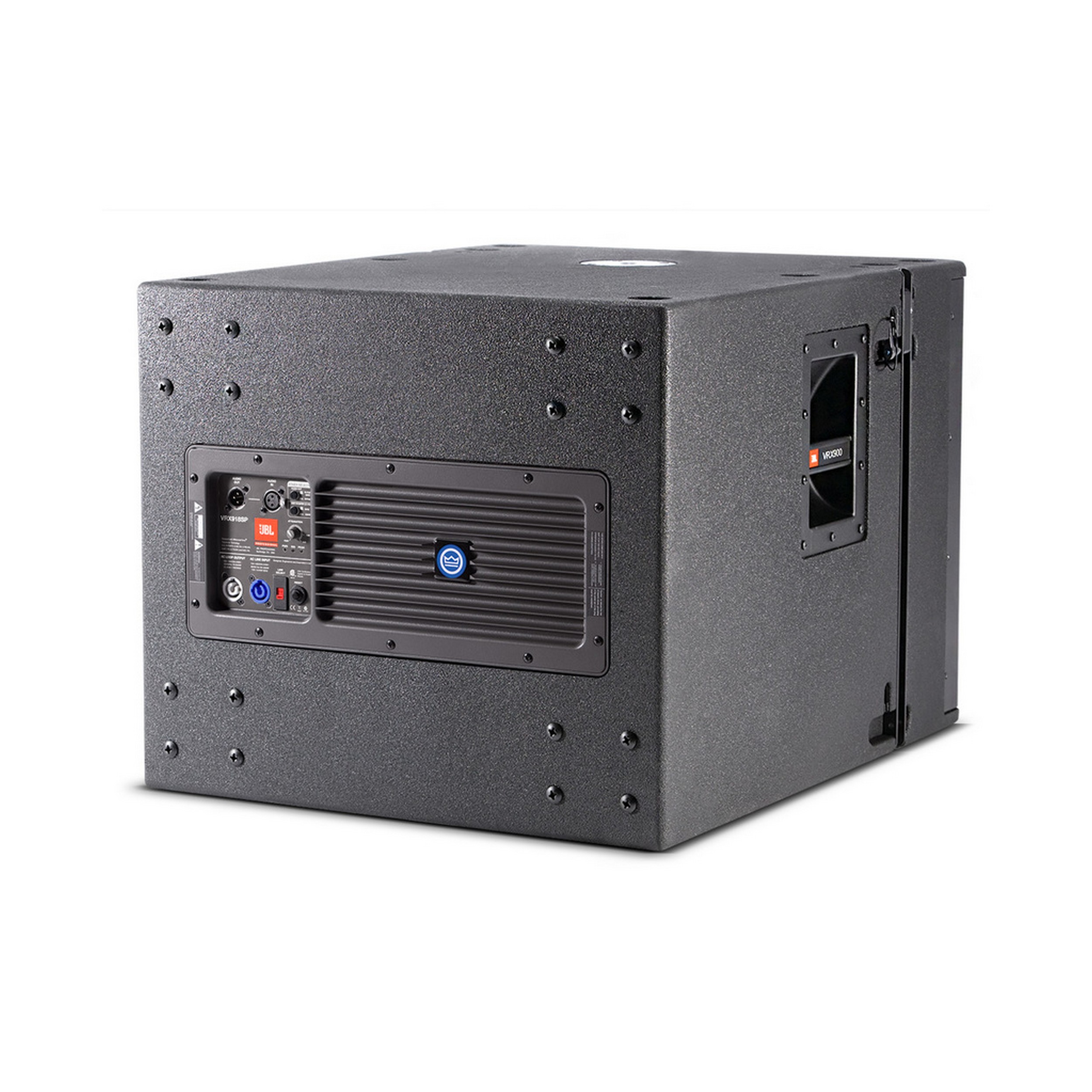

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
