Ertekin World of Sound

Neutrik

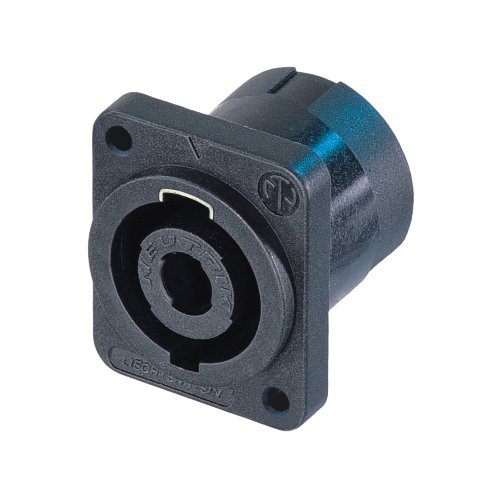

NL4MD-V-S

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not

Marka:	Neutrik
Ürün Kodu:	NL4MD-V-S
Kategori:	Speakon Konnektörler
Barkod:	10658276

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

DETAYLAR

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not airtight. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

DÖKÜMANLAR

RESİMLER

ETİKETLER

ÜRÜN AİLESİ

NLJ2MD-V

2 pole combination of speakON socket and 1/4" jack receptacle, vertical pcb mount, same pcb footprint and panel cut out as NL4MD-V

NLJ2MD-H

2 pole combination of speakON socket and 1/4" jack receptacle, horizontal pcb mount, same pcb footprint and panel cut out as NL4MD-H

NL2MD-H

2 pole chassis connector, gray D-size flange, countersunk thru holes, horizontal PCB. Does not intermate with the 4-pole cable connector.

NL2MD-V

2 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount. Does not intermate with the 4-pole cable connector.

NL2MP

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector

NL4MD-H

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount

NL4MD-H-1

4 pole chassis connector, black D-size flange, countersunk thru holes, horizontal PCB mount

NL4MD-H-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), horizontal PCB mount

NL4MD-H-3

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), horizontal PCB mount

NL4MD-V

4 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount

NL4MD-V-R

4 pole chassis connector, red D-size flange, countersunk thru holes, vertical PCB mount

NL4MD-V-S

NL4MD-V-1

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), vertical PCB mount

NL4MD-V-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount

NL4MP

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs

NL4MP-1

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs

NL4MP-2

4 Pin Şase Tipi Speakon Konnektör

NL4MP-3

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs

NL4MP-M3

4 pole chassis connector, black D-size flange, M3 threaded insert, 3/16" flat tabs

NL4MP-ST

4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.

NL4MP-UC

4 pole chassis connector for 40 A rms continuous, 50 A audiosignal duty cycle 50%. Black D-size flange, countersunk thru holes, 1/4" flat tabs

NL4MPR

4 Pin Şase Tipi Speakon Konnektör

NL8MD-V

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, vertical PCB mount

NL8MD-V-BAG

8 pole chassis connector, black chrome square G-size flange, countersunk thru holes, vertical PCB mount

NL8MD-V-1

8 pole chassis connector, nickel metal square G-size flange, self tapping screw holes (A-screw), vertical PCB mount

NL8MPR

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs

NL8MPR-BAG

8 pole chassis connector, black chrome metal square G-size flange, countersunk thru holes, 3/16" flat tabs

NLT4MP

4 Pin Şase Tipi Speakon Konnektör

NLT4MP-BAG

4 Pin Şase Tipi Speakon Konnektör

NLT4FP

4 pole female chassis connector, metall housing, solder contacts

NLT4FP-BAG

4 pole female chassis connector, black-chrome metal housing, solder contacts

NLT4MD-V

4 pole male chassis connector, metal housing, vertical PCB mount, self tapping screw holes (A-screw)

NLT8MP

8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs

NLT8MP-BAG

8 Pin Şase Tipi Speakon Konnektör

NLT8FP-BAG

8-pole female chassis connector, black-chrome metal housing, solder contacts
