Neutrik

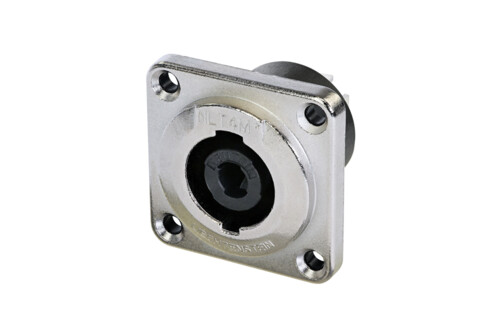

NLT4MP-BAG

4 Pin Şase Tipi Speakon Konnektör
Marka:
Ürün Kodu:
Kategori:
Barkod:
  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
DETAYLAR
DETAYLAR
4 pole male chassis connector, black-chrome metal housing, solder or ¼" flat tabs The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
DÖKÜMANLAR
DÖKÜMANLAR
RESİMLER
RESİMLER
ETİKETLER
ETİKETLER

ÜRÜN AİLESİ

NLJ2MD-V
2 pole combination of speakON socket and 1/4" jack receptacle, vertical pcb mount, same pcb footprint and panel cut out as NL4MD-V
NLJ2MD-H
2 pole combination of speakON socket and 1/4" jack receptacle, horizontal pcb mount, same pcb footprint and panel cut out as NL4MD-H
NL2MD-H
2 pole chassis connector, gray D-size flange, countersunk thru holes, horizontal PCB. Does not intermate with the 4-pole cable connector.
NL2MD-V
2 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount. Does not intermate with the 4-pole cable connector.
NL2MP
2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector
NL4MD-H
4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount
NL4MD-H-1
4 pole chassis connector, black D-size flange, countersunk thru holes, horizontal PCB mount
NL4MD-H-2
4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), horizontal PCB mount
NL4MD-H-3
4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), horizontal PCB mount
NL4MD-V
4 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount
NL4MD-V-R
4 pole chassis connector, red D-size flange, countersunk thru holes, vertical PCB mount
NL4MD-V-S
4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not
NL4MD-V-1
4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), vertical PCB mount
NL4MD-V-2
4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount
NL4MP
4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
NL4MP-1
4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs
NL4MP-2
4 Pin Şase Tipi Speakon Konnektör
NL4MP-3
4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs
NL4MP-M3
4 pole chassis connector, black D-size flange, M3 threaded insert, 3/16" flat tabs
NL4MP-ST
4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.
NL4MP-UC
4 pole chassis connector for 40 A rms continuous, 50 A audiosignal duty cycle 50%. Black D-size flange, countersunk thru holes, 1/4" flat tabs
NL4MPR
4 Pin Şase Tipi Speakon Konnektör
NL8MD-V
8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, vertical PCB mount
NL8MD-V-BAG
8 pole chassis connector, black chrome square G-size flange, countersunk thru holes, vertical PCB mount
NL8MD-V-1
8 pole chassis connector, nickel metal square G-size flange, self tapping screw holes (A-screw), vertical PCB mount
NL8MPR
8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs
NL8MPR-BAG
8 pole chassis connector, black chrome metal square G-size flange, countersunk thru holes, 3/16" flat tabs
NLT4MP
4 Pin Şase Tipi Speakon Konnektör
NLT4MP-BAG
4 Pin Şase Tipi Speakon Konnektör
NLT4FP
4 pole female chassis connector, metall housing, solder contacts
NLT4FP-BAG
4 pole female chassis connector, black-chrome metal housing, solder contacts
NLT4MD-V
4 pole male chassis connector, metal housing, vertical PCB mount, self tapping screw holes (A-screw)
NLT8MP
8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs
NLT8MP-BAG
8 Pin Şase Tipi Speakon Konnektör
NLT8FP-BAG
8-pole female chassis connector, black-chrome metal housing, solder contacts
