Neutrik

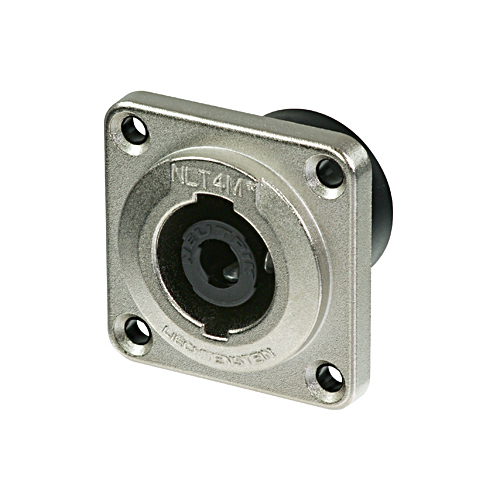

NLT4MD-V

4 pole male chassis connector, metal housing, vertical PCB mount, self tapping screw holes (A-screw)

Marka:	Neutrik
Ürün Kodu:	NLT4MD-V
Kategori:	Speakon Konnektörler
Barkod:

TEKNİK ÖZELLİKLER
DETAYLAR
DÖKÜMANLAR

ÖZELLİKLER

TEKNİK ÖZELLİKLER

DETAYLAR

4 pole male chassis connector, metal housing, vertical PCB mount, self tapping screw holes (A-screw) The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

DÖKÜMANLAR

RESİMLER

ETİKETLER

ÜRÜN AİLESİ

NLJ2MD-V

2 pole combination of speakON socket and 1/4" jack receptacle, vertical pcb mount, same pcb footprint and panel cut out as NL4MD-V

NLJ2MD-H

2 pole combination of speakON socket and 1/4" jack receptacle, horizontal pcb mount, same pcb footprint and panel cut out as NL4MD-H

NL2MD-H

2 pole chassis connector, gray D-size flange, countersunk thru holes, horizontal PCB. Does not intermate with the 4-pole cable connector.

NL2MD-V

2 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount. Does not intermate with the 4-pole cable connector.

NL2MP

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector

NL4MD-H

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount

NL4MD-H-1

4 pole chassis connector, black D-size flange, countersunk thru holes, horizontal PCB mount

NL4MD-H-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), horizontal PCB mount

NL4MD-H-3

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), horizontal PCB mount

NL4MD-V

4 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount

NL4MD-V-R

4 pole chassis connector, red D-size flange, countersunk thru holes, vertical PCB mount

NL4MD-V-S

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not

NL4MD-V-1

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), vertical PCB mount

NL4MD-V-2

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), vertical PCB mount

NL4MP

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs

NL4MP-1

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs

NL4MP-2

4 Pin Şase Tipi Speakon Konnektör

NL4MP-3

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs

NL4MP-M3

4 pole chassis connector, black D-size flange, M3 threaded insert, 3/16" flat tabs

NL4MP-ST

4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.

NL4MP-UC

4 pole chassis connector for 40 A rms continuous, 50 A audiosignal duty cycle 50%. Black D-size flange, countersunk thru holes, 1/4" flat tabs

NL4MPR

4 Pin Şase Tipi Speakon Konnektör

NL8MD-V

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, vertical PCB mount

NL8MD-V-BAG

8 pole chassis connector, black chrome square G-size flange, countersunk thru holes, vertical PCB mount

NL8MD-V-1

8 pole chassis connector, nickel metal square G-size flange, self tapping screw holes (A-screw), vertical PCB mount

NL8MPR

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs

NL8MPR-BAG

8 pole chassis connector, black chrome metal square G-size flange, countersunk thru holes, 3/16" flat tabs

NLT4MP

4 Pin Şase Tipi Speakon Konnektör

NLT4MP-BAG

4 Pin Şase Tipi Speakon Konnektör

NLT4FP

4 pole female chassis connector, metall housing, solder contacts

NLT4FP-BAG

4 pole female chassis connector, black-chrome metal housing, solder contacts

NLT4MD-V

4 pole male chassis connector, metal housing, vertical PCB mount, self tapping screw holes (A-screw)

NLT8MP

8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs

NLT8MP-BAG

8 Pin Şase Tipi Speakon Konnektör

NLT8FP-BAG

8-pole female chassis connector, black-chrome metal housing, solder contacts
