JBL Professional

AM7212-00

Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range ( –10 dB) 36 Hz - 20 kHz
Frequency Response ( ± 3 dB) 42 Hz - 18 kHz
Coverage /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
LF Driver 2262H
HF Driver 2432H
System Type 12" Two - Way, High Power, Full - Range
Dimensions (H x W x D) 711 x 369 x 458 mm (28 x 14.5 x 18 in)
Weight 23.1 kg (51 lb)
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m) Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 95 dB SPL
Nominal Impedance 8 ohms
DETAYLAR
DETAYLAR

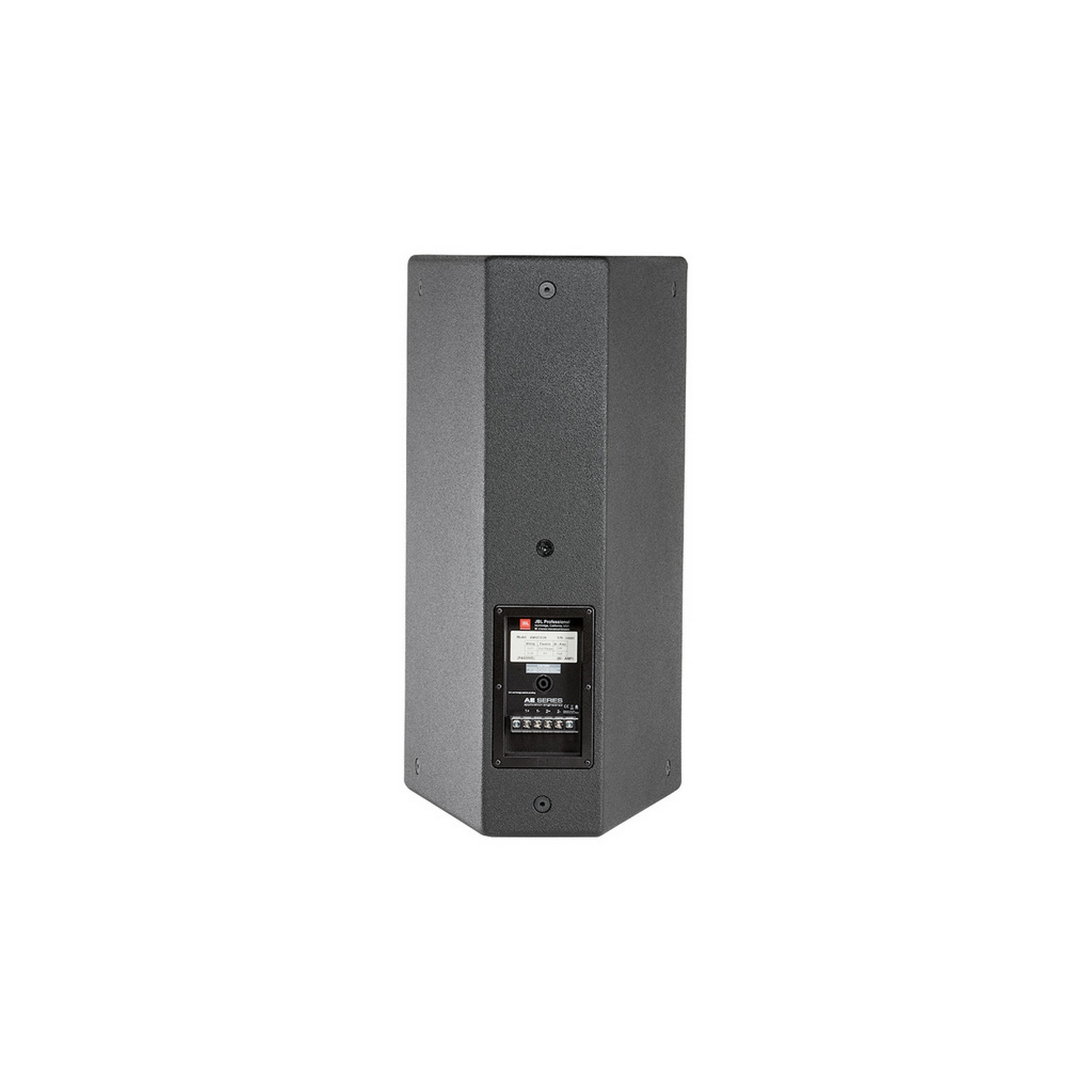

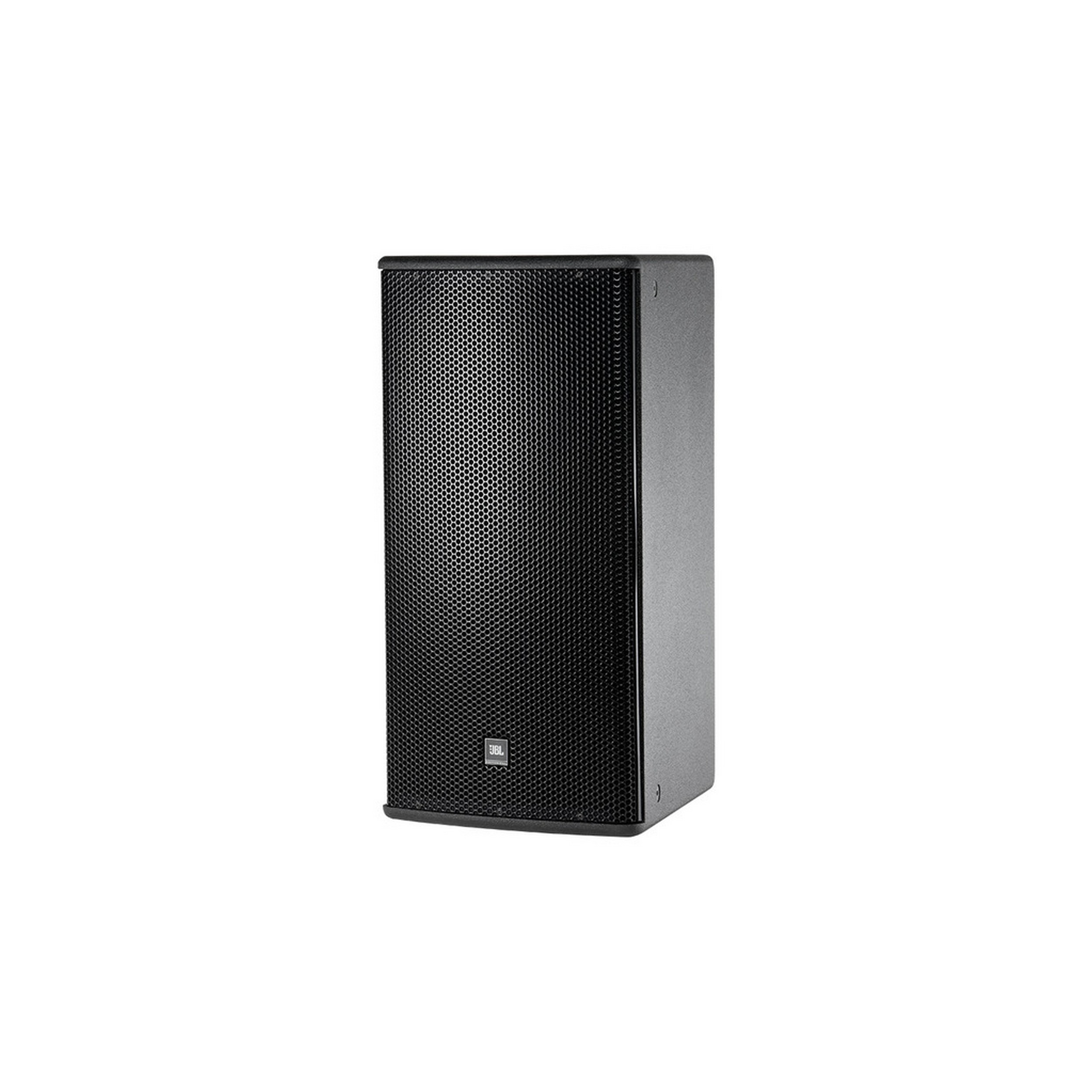

High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
