| Frequency Range (-10 dB) |
38 Hz – 20 kHz
|
| Frequency Response (±3 dB) |
45 Hz – 18 kHz
|
| Coverage Pattern |
/64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
|
| Directivity Index (DI) |
13 dB
|
| Crossover Modes |
Tri-amp/Bi-amp switchable
|
| Crossover Frequencies |
300 Hz and 2.3 kHz
|
| Transducer Power Rating (AES) |
LF: 1000 W (4000 W peak), 2 hrs750 W (3000 W peak), 100 hrsMF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs
|
| Long-Term System Power Rating (IEC) |
LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs
|
| Maximum SPL |
LF: 127 dB-SPL cont avg (133 dB peak)Tri-amp mode:MF: 133 dB-SPL cont avg (139 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Bi-amp mode:MF/HF: 133 dB-SPL cont avg (139 dB peak)
|
| System Sensitivity of Passive Sections (1W @ 1m) |
MF/HF Section in Bi-amp mode: 108 dB SPL
|
| Nominal Impedance System Sensitivity |
8 ohms
|

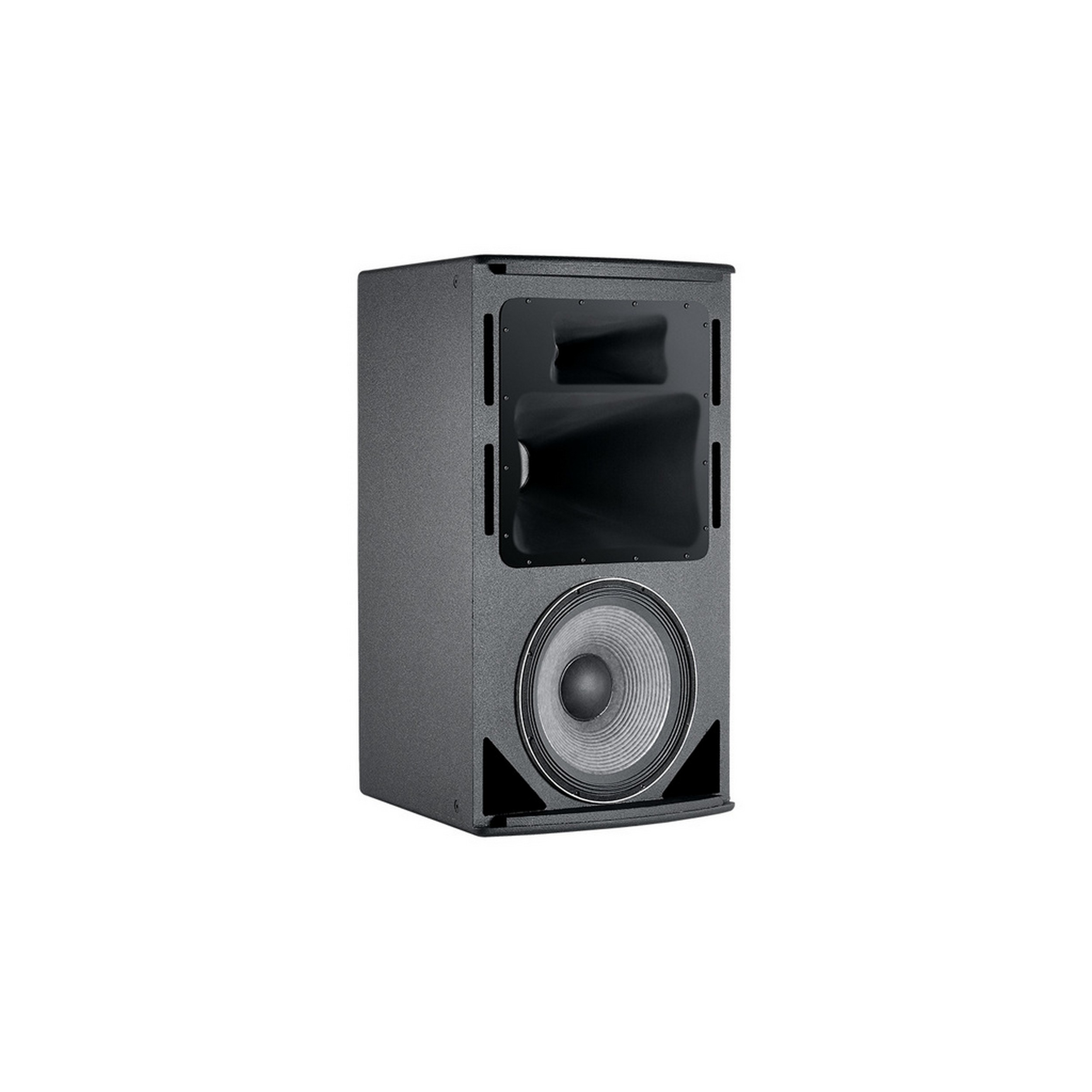

| Low Frequency Driver |
1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)
|
| Sensitivity (1W @ 1m) (Low Frequency) |
97 dB SPL
|
| Midrange Driver |
JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
|
| Sensitivity (1W @ 1m) (Midrange) |
108 dB SPL
|
| High Frequency Driver |
JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
|
| Sensitivity (1W @ 1m)(High Frequency) |
115 dB SPL
|
| Enclosure |
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
|
| Suspension Attachment |
13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
|
| Finish |
Black DuraFlex™ finish. White available upon request.
|

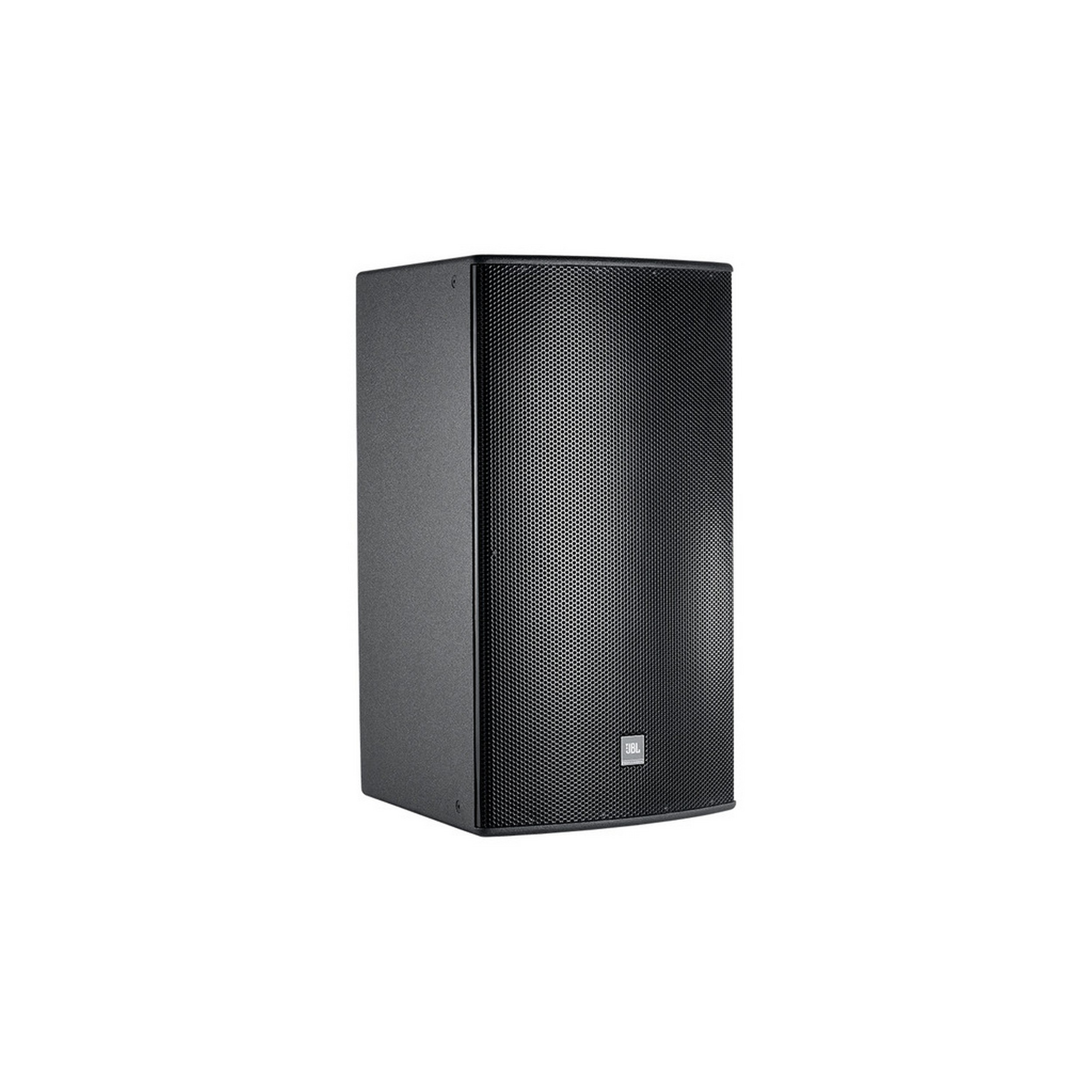

| Grille |
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
|

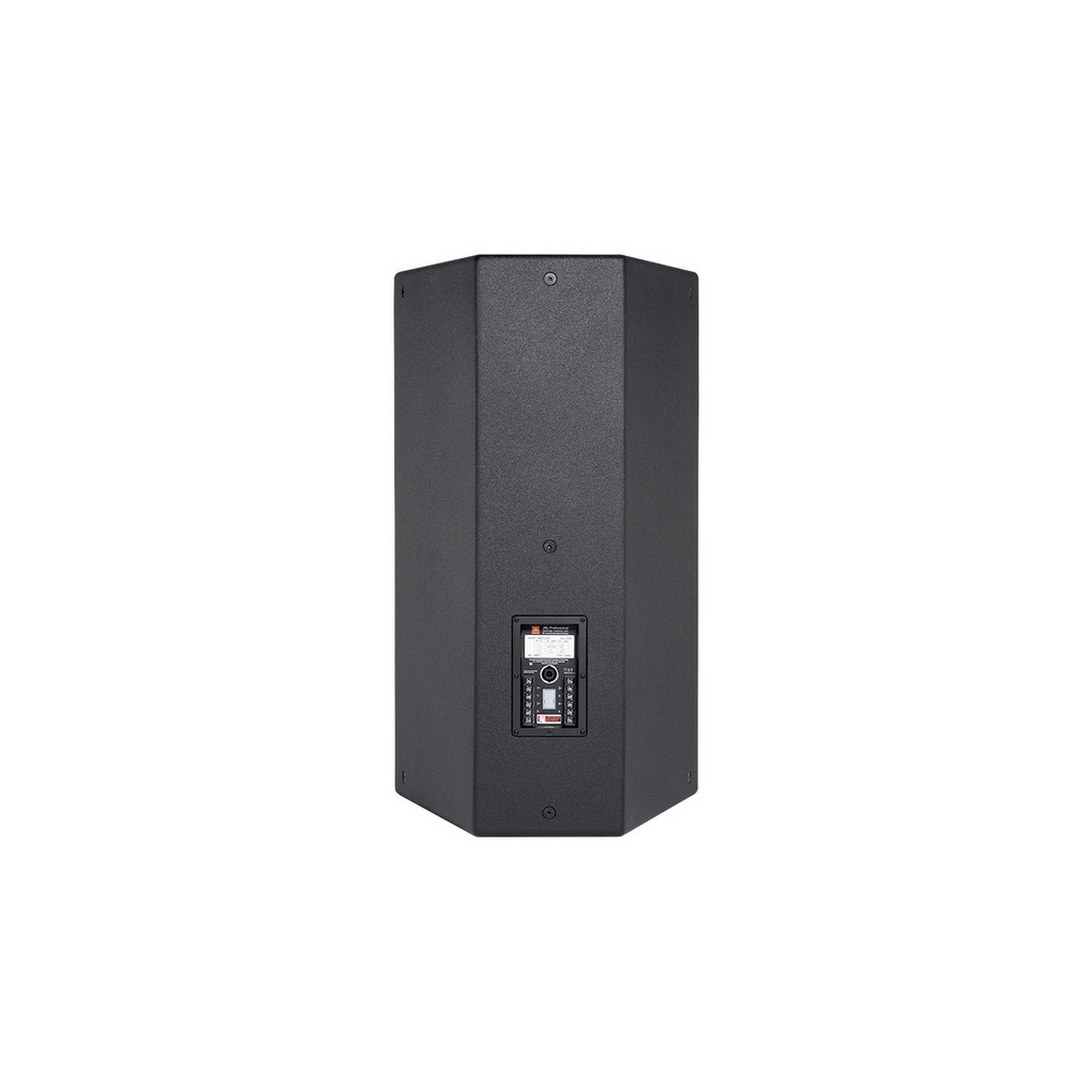

| Input Connector |
NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
|
| Environmental Specifications |
Mil-Std 810; IP-x3 per IEC529.
|
| Dimensions (H x W x D in vertical cabinet orientation) |
967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
|
| Net Weight |
45.8 kg (101 lb)
|
| Optional Accessories |
M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
|
