JBL Professional

AM7215-66

Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range ( –10 dB) 34 Hz - 20 kHz
Frequency Response ( ± 3 dB) 40 Hz - 18 kHz
Coverage /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
LF Driver 2265H
HF Driver 2432H
System Type 15" Two - Way, High Power, Full - Range
Dimensions (H x W x D) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Weight 27.2 kg (60 lb)

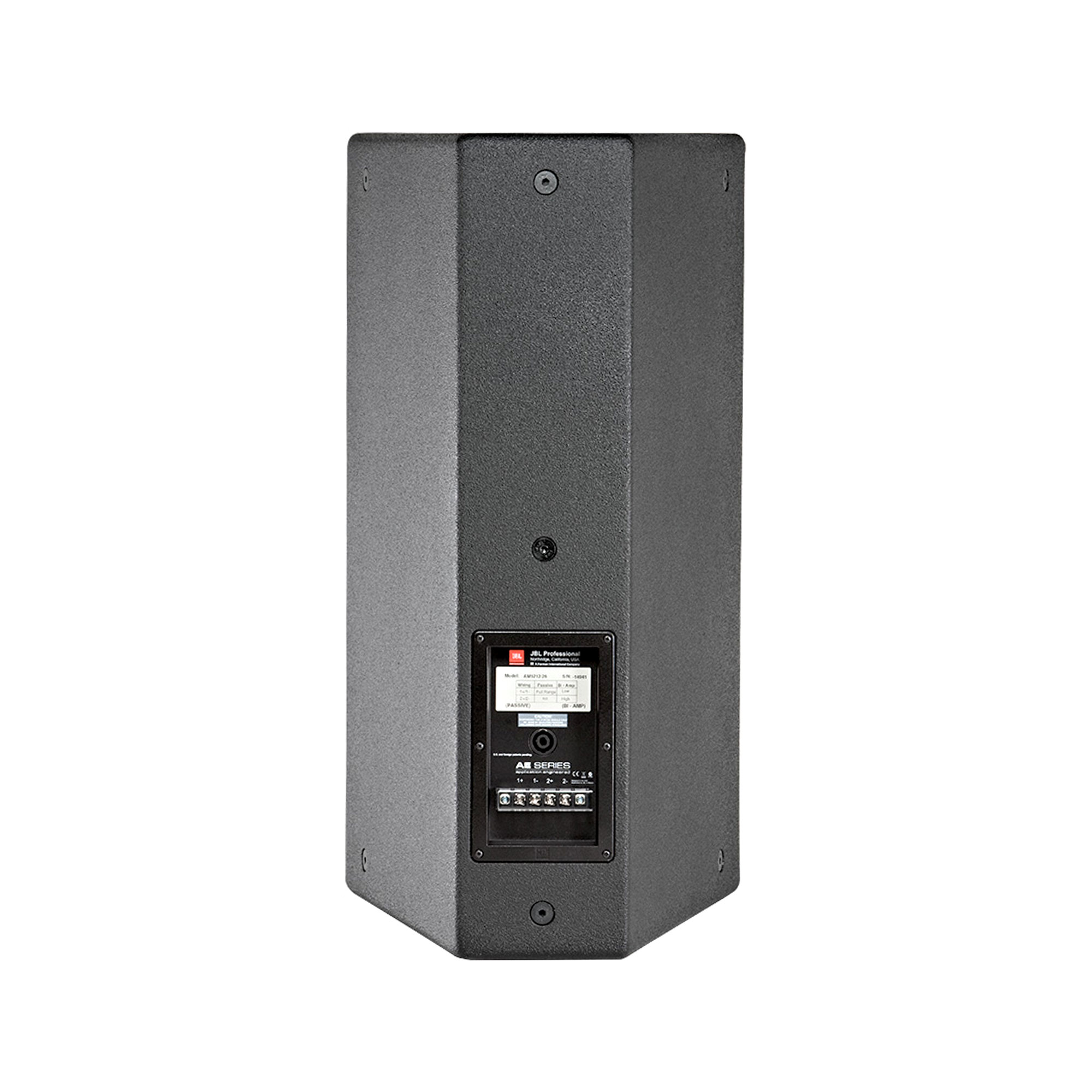

Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr750 W (3000 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m) Bi-amp mode:LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
Nominal Impedance 8 ohms
DETAYLAR
DETAYLAR

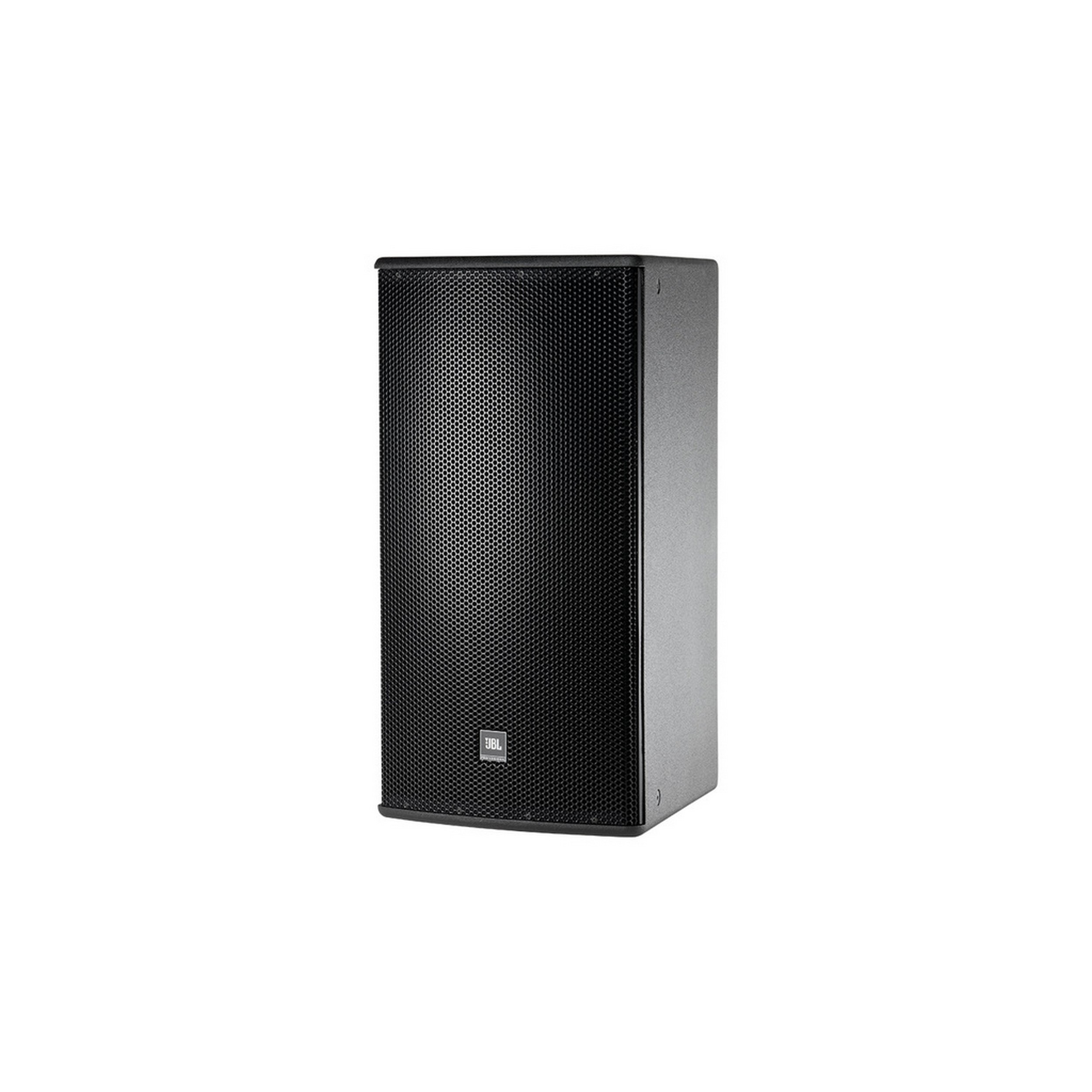

High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
