JBL Professional

AW595-LS

Kabin Hoparlörler
Marka:
Ürün Kodu:
Kategori:
Barkod:

  • TEKNİK ÖZELLİKLER
  • DETAYLAR
  • DÖKÜMANLAR
ÖZELLİKLER
TEKNİK ÖZELLİKLER
Frequency Range (-10 dB) 41 Hz – 20 kHz
Frequency Response (±3 dB): 88 Hz – 19 kHz
Coverage Pattern 90° x 50°, rotatable waveguide
Coverage AngleHorizontalVertical 500 Hz   1000 Hz   2000 Hz   4000 Hz136°          127°            96°            99°106°            87°             64°           40°
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Crossover Frequency 1.2 kHz
Long-Term System Power Rating (IEC) 400 W (1600 W peak), 100 hrs
Maximum SPL 127 dB-SPL cont avg (133 dB peak)
Maximum SPL (@ 4m) 113.34 dB
System Sensitivity (1w @ 1m) 100 dB SPL
Sensitivity (1W @ 4m) 88.43 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100W100V: 400W, 200W
Low Frequency Driver 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 98 dB SPL
High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W, 1m) 113 dB SPL
Waveguide PT-H95HF -1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)

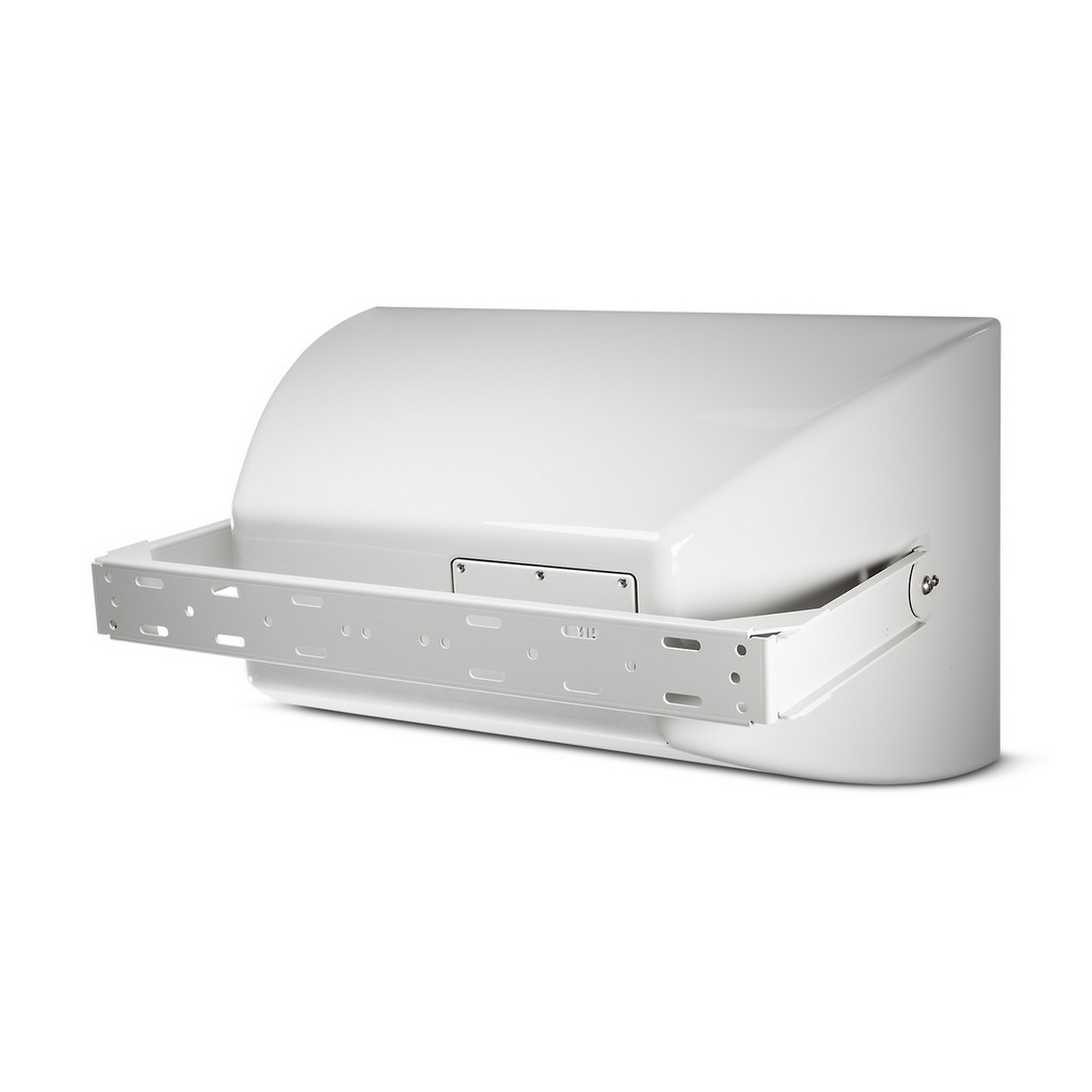

Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh

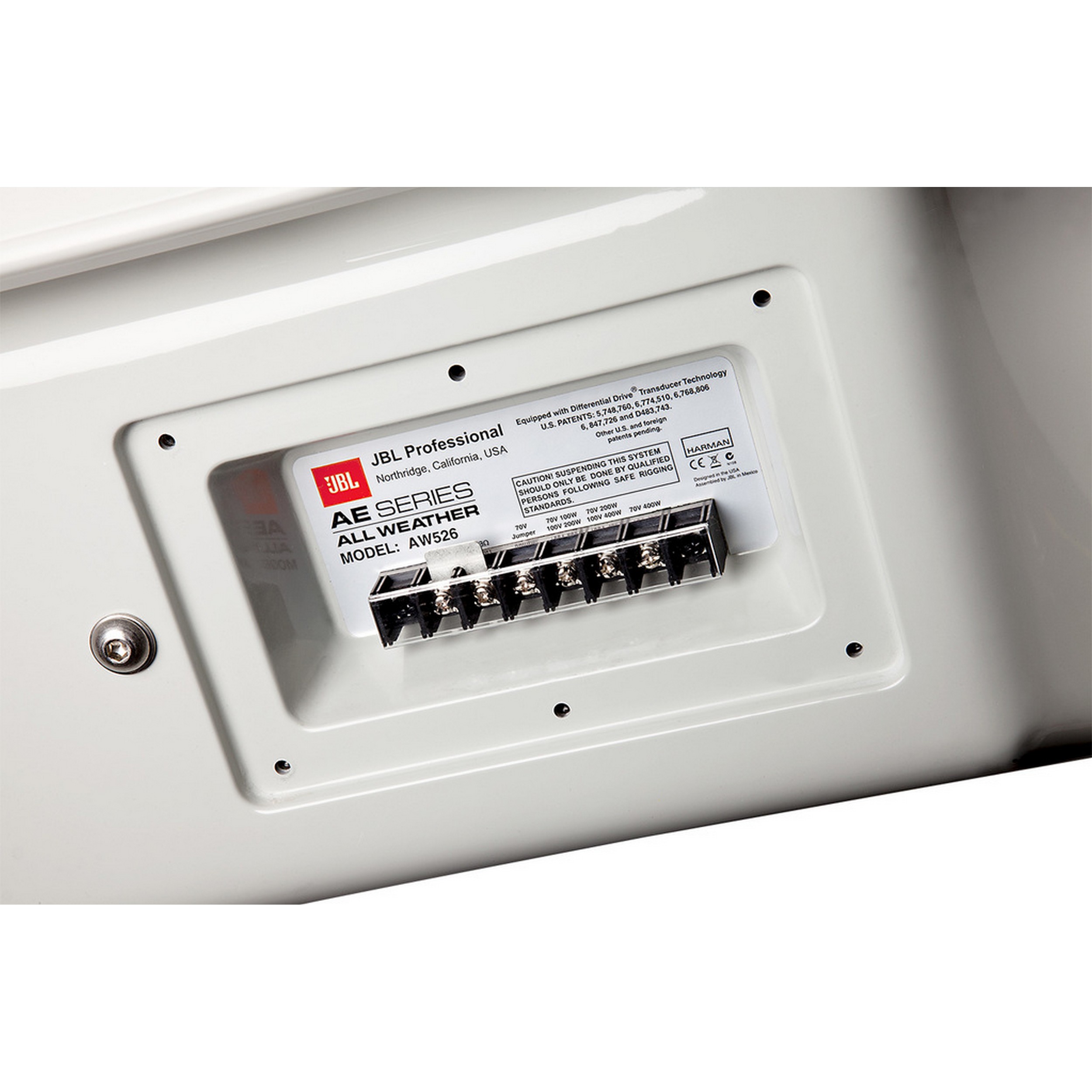

Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications IP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Net Weight 28.3 kg (62.5 lb)
DETAYLAR
DETAYLAR

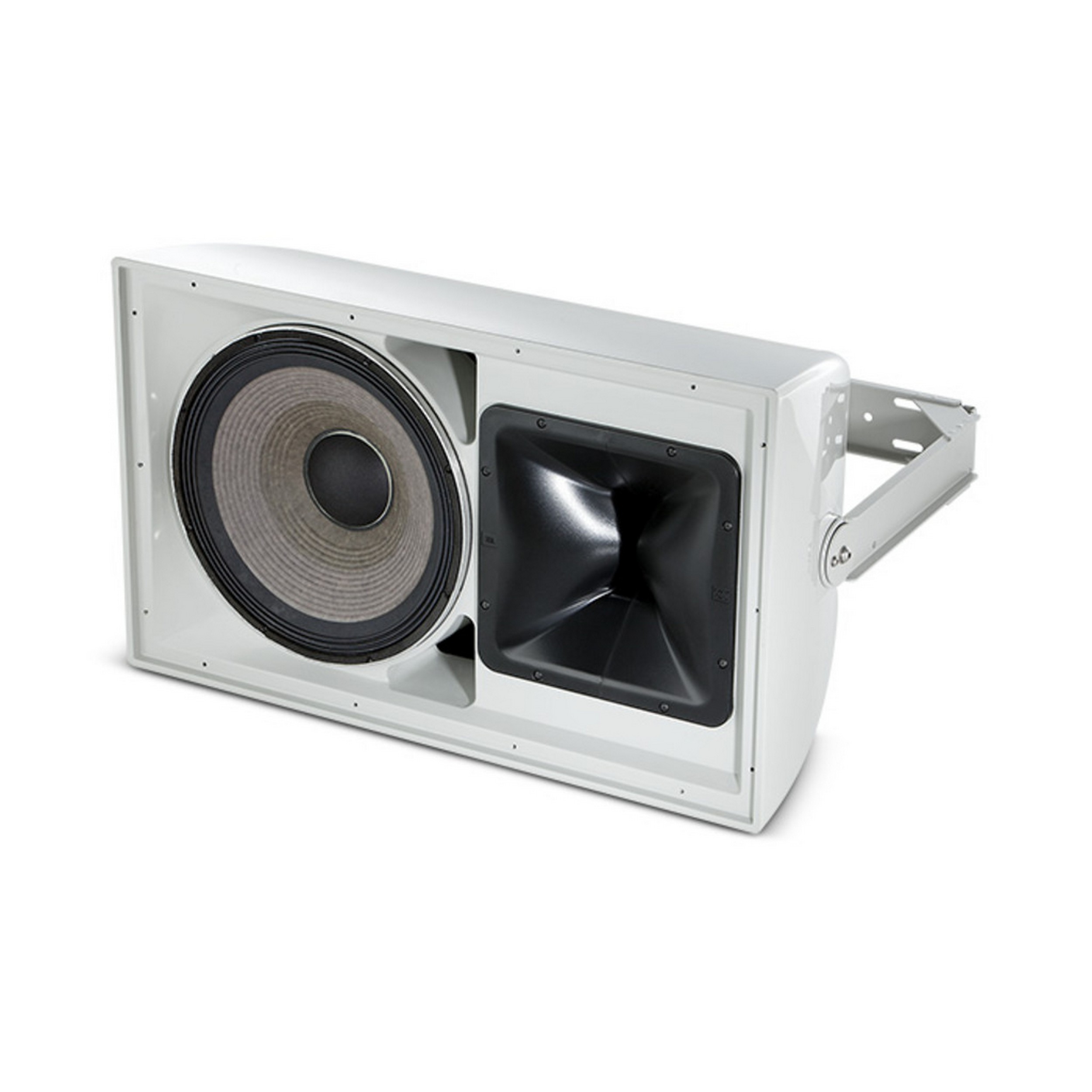

Parts are sealed on LS models (non-LS photo shown).

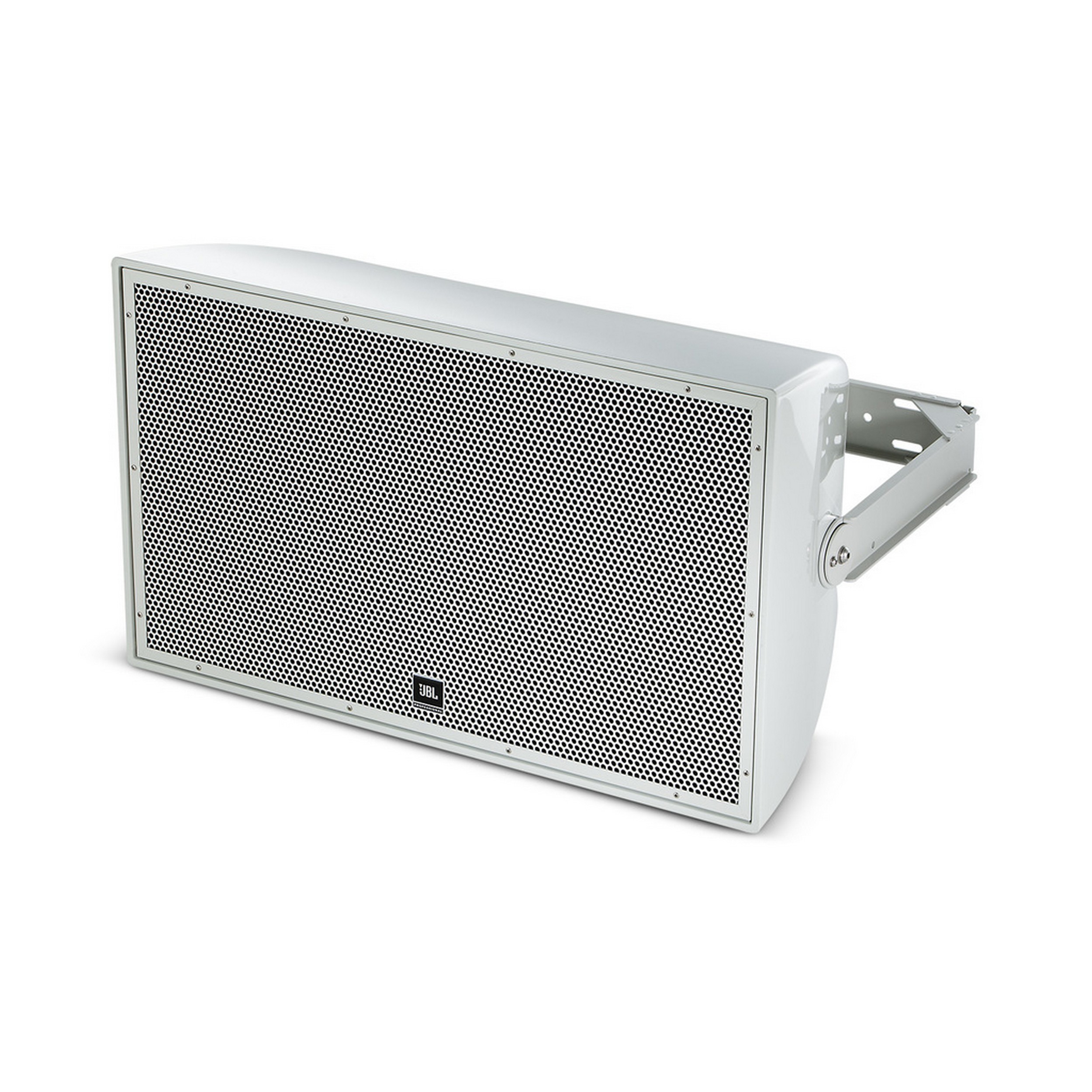

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn for Life Safety Applications

The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer.
